Wiring harness design in CATIA V5 - 3D modeling Week 2 Challenge

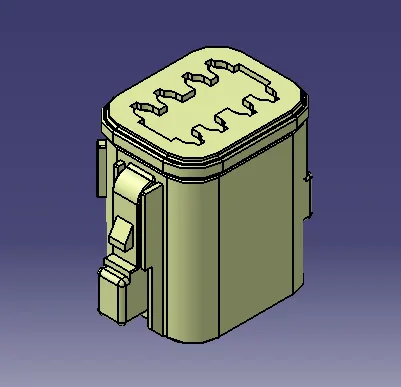

1.DT06-08SA:

it has 8 terminals so we have to give terminations for this one while defining as a connector.

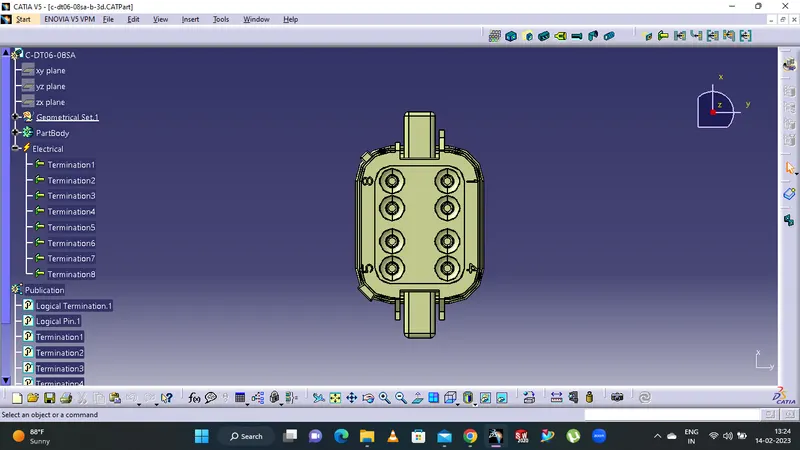

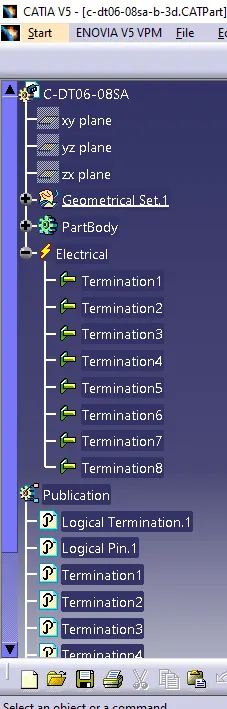

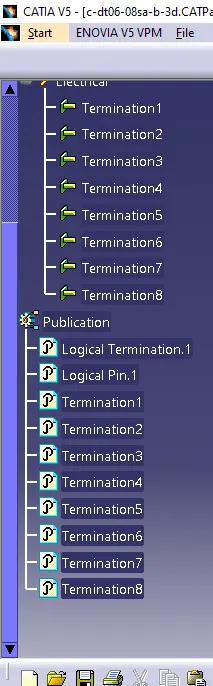

TREE SPECIFICATIONS:

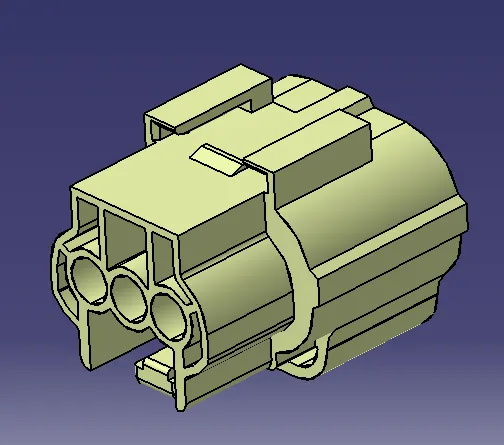

2.Tyco 174357-2:

It has three terminals so, we have to give 3 terminations for this one while defining as a connector.

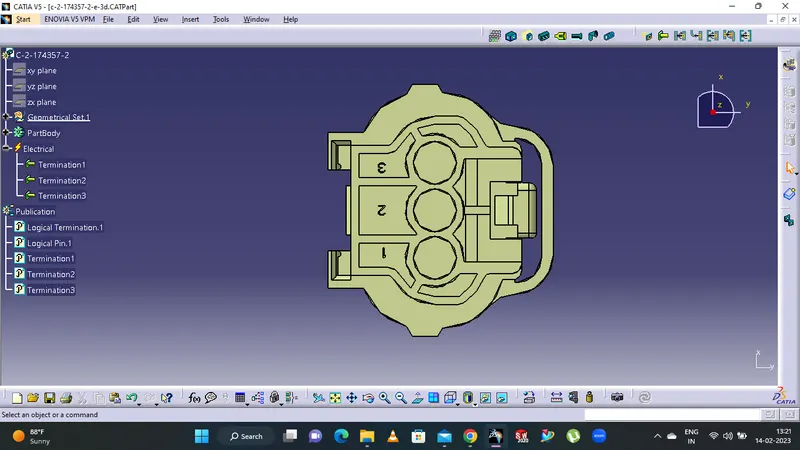

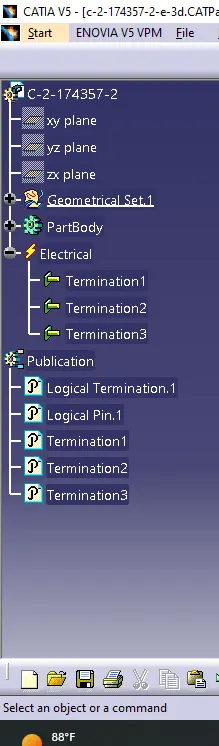

TREE SPECIFICATIONS:

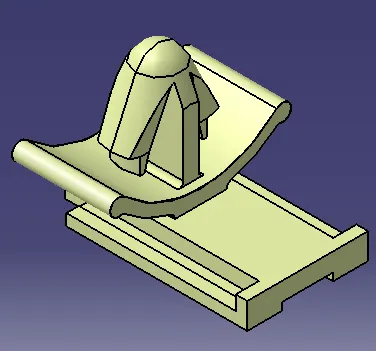

3.Tyco 85229-1:

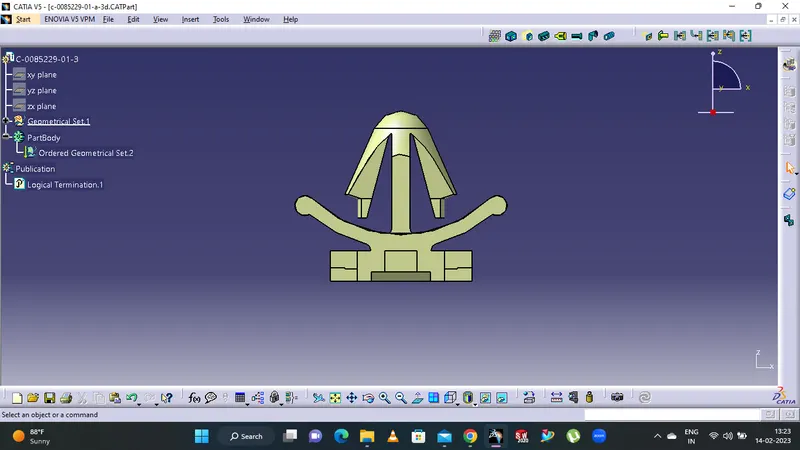

It is a mounting clip so we have to define it as a mounting equipment and it as no terminals also so no terminations for this one.
