Wiring harness design in CATIA V5 - 3D modeling Week 2 Challenge

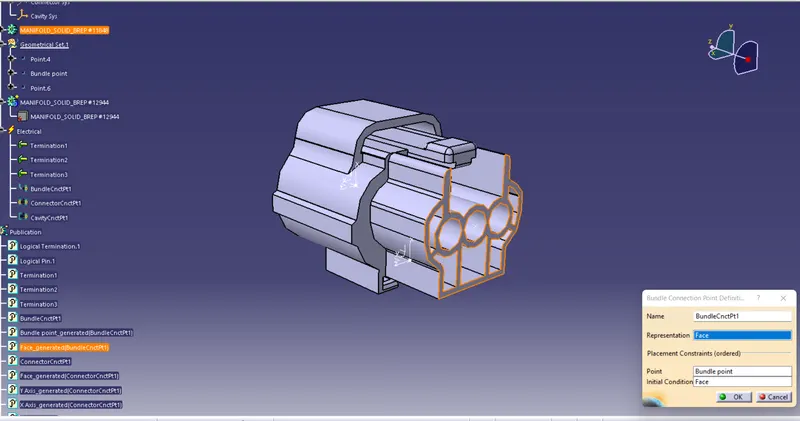

1. First step is to create a point for bundle entry point and connector connection point and defining it in electrical part workbench.

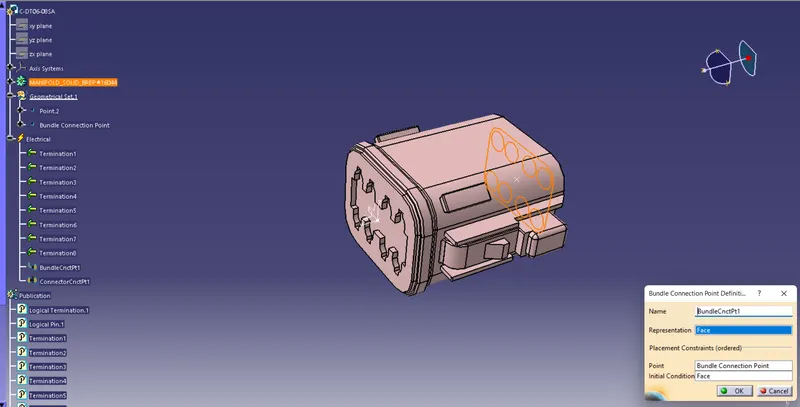

2. Define the bundle entry point in the electrical part design.

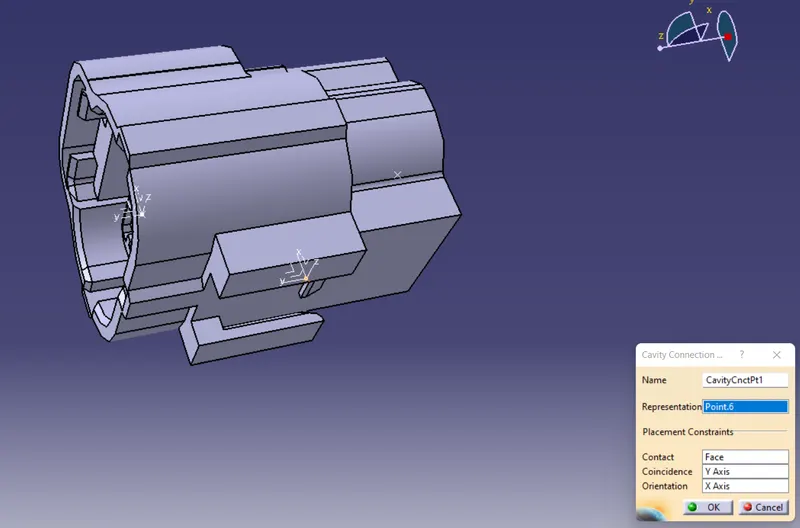

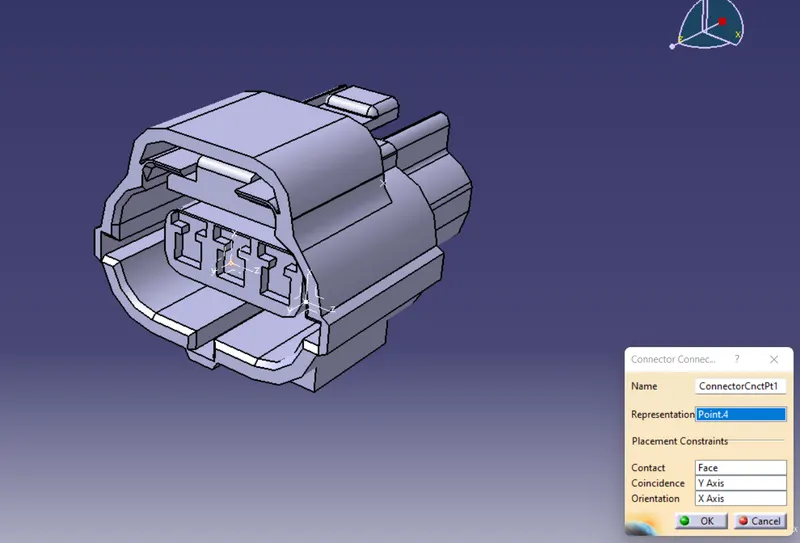

3. Define the connector connection Point.

4. Define Cavity Connection Point.

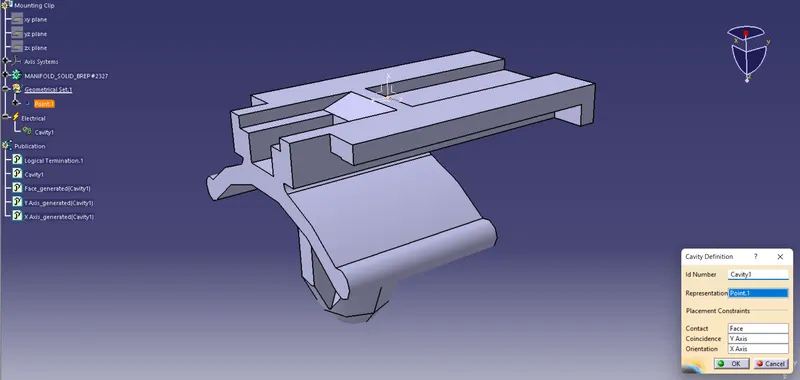

5. Define cavity for mounting clip , by first creating geomentric coordinates in the part workbench.

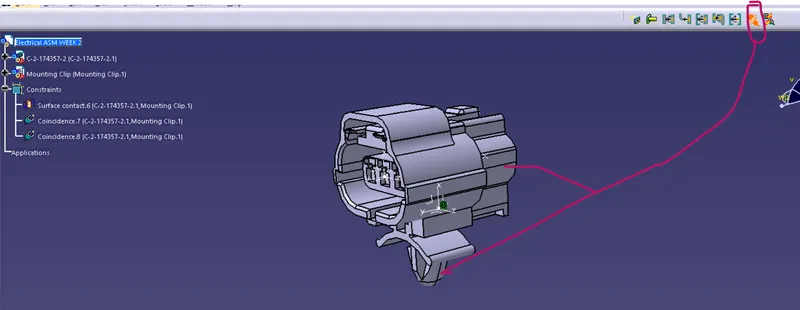

6. In the electrical asm workbench, using connect electrical option select the female connector and the mounting clip. In this way both the connecctor and clip is attched to each other.
