Wiring harness design in CATIA V5 - 3D modeling Week 2 Challenge

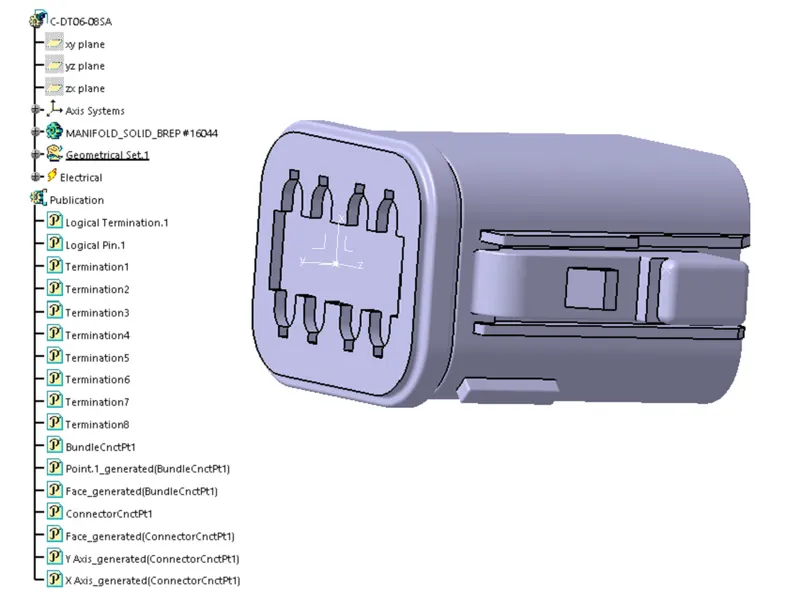

1.Deutsch DT06-08SA
Defined electrical using Define Connector tool
Geometry Proberty Provided
- Connector Connector Point
- Bundle Connector Point
- Cavity Connection Point

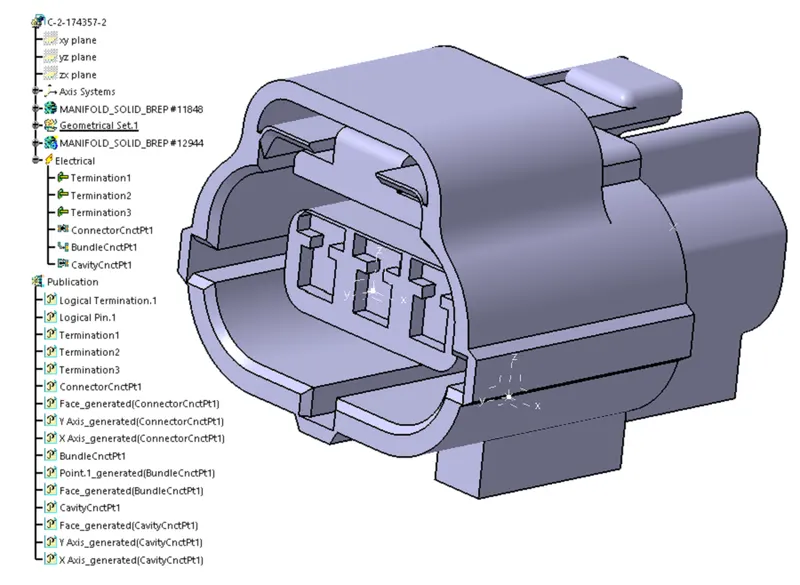

2.Tyco 17357-2
Defined electrical using Define Connector tool
Geometry Proberty Provided
- Connector Connector Point
- Bundle Connector Point
- Cavity Connection Point

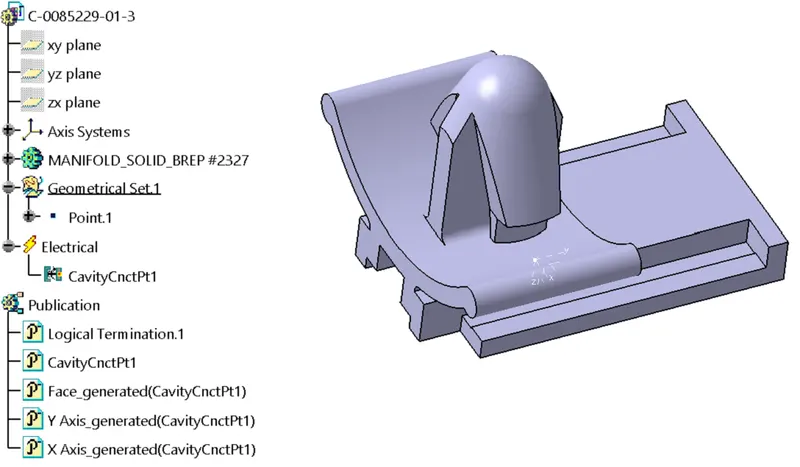

3.Tyco 85229-1
Define equipment
Geometry Proberty Provided
- Cavity Connection Point
