Wiring harness design in CATIA V5 - 3D modeling Week 2 Challenge
- Week-2 Wiring Harness Design Challenge
- First the Connector CAD file uploaded in the part modeling workbench

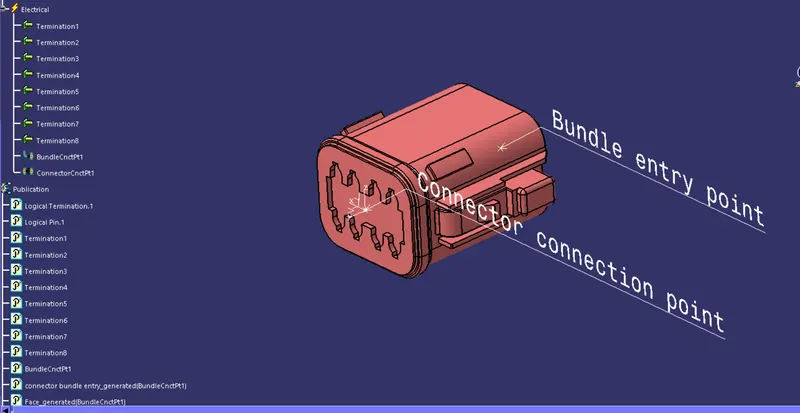

- Then we need create a points for the Connector connection point and bundle entry point

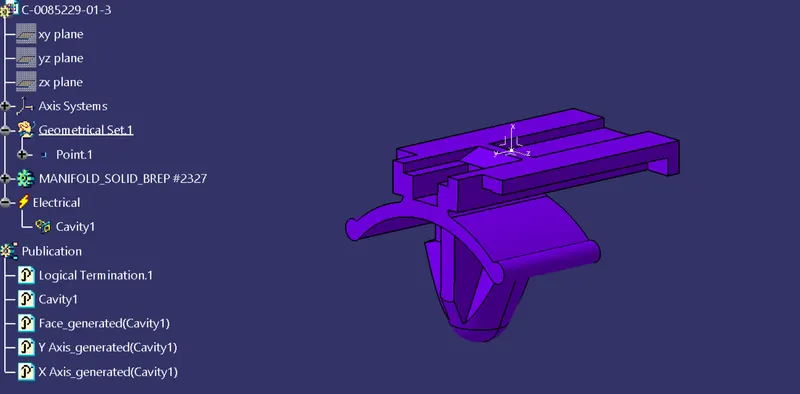

- Then create a axis system at the connector connection point and cavity connection point
- Here we have to position the Y- axis in the direct connection, Z- axis along with the mounting clip, X-axis along the bottom to top.
- Then define the part as a Connector by using the Define connector command

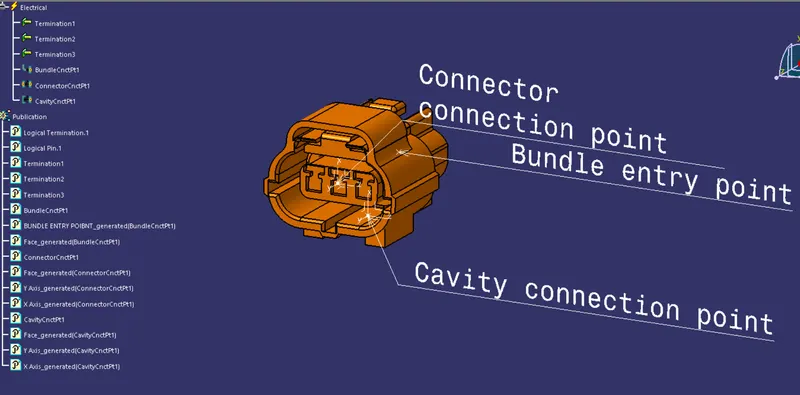

- Then define the bundle entry point and cavity point.
