Week 9 Tension and Torsion test challenge

Aim: To see the structural behavior of Tension and Torsion on the specimen when goes under deformation.

Test Result:

1. Tension Test:

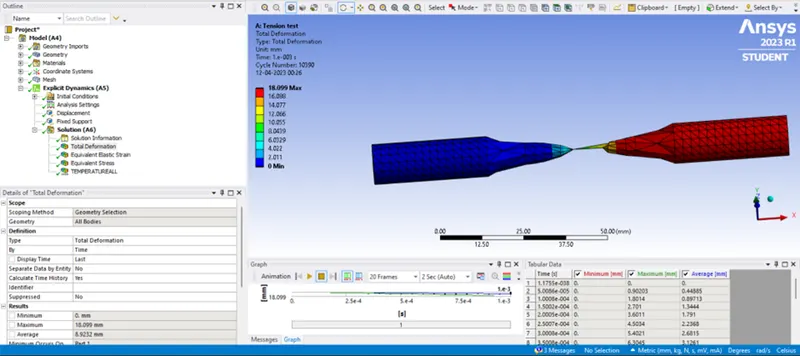

1. Deformation:

2. Equivalent Stress:

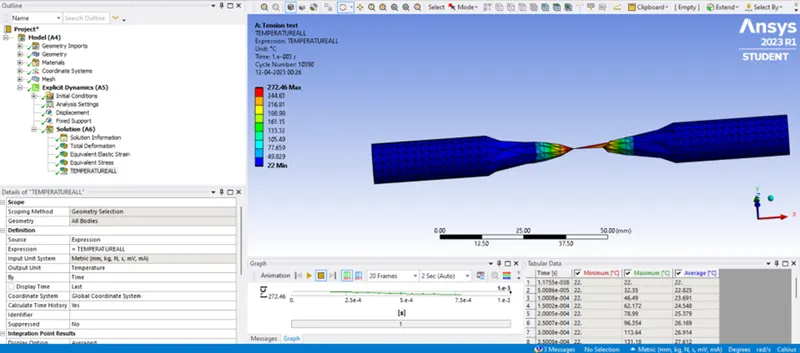

3. Temp:

2.Torsion Test:

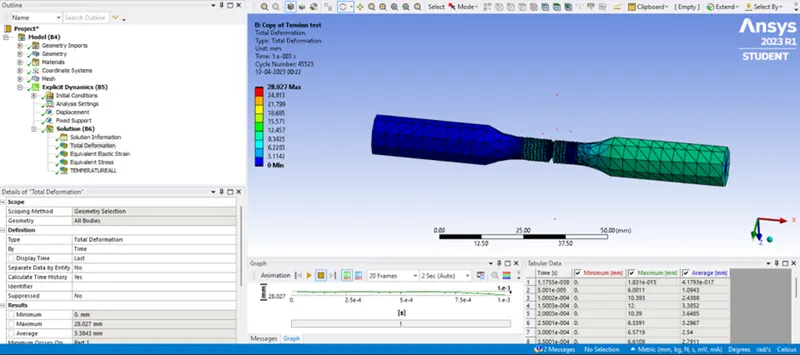

1.Deformation:

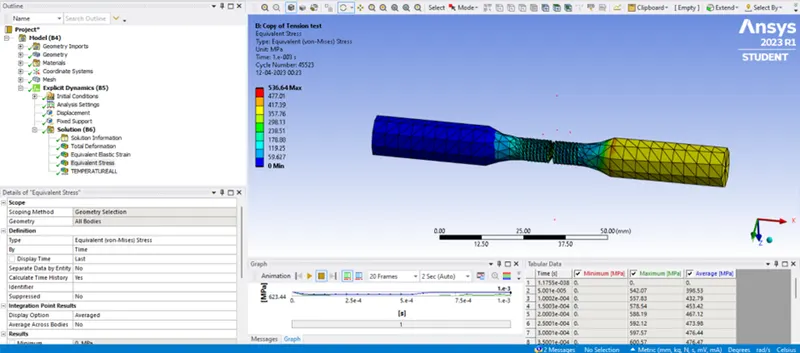

2. Equivalent Stress:

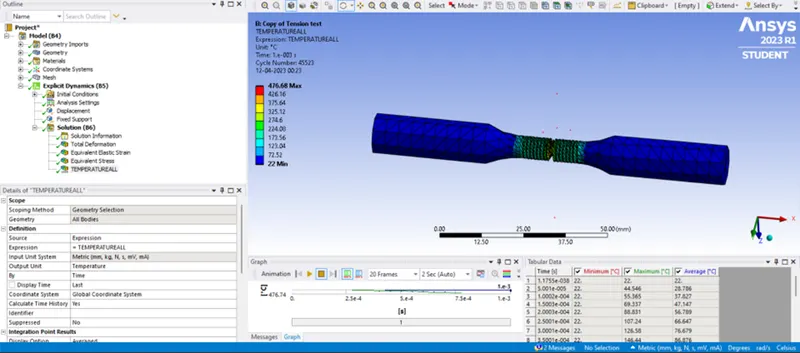

3. Temperature:

Results:

#	Solution	Tension Test (18mm)	Torsion Test (1200 deg)
1	Deformation	18.09 mm	28.02 mm
2	Equivalent Stress	357.98 Mpa	536.66 Mpa
3	Temp	272 degree	476 degree
