Week 9 Tension and Torsion test challenge

AIM: To perform the torsion and tensile test on given specimen.

PROCEDURE:

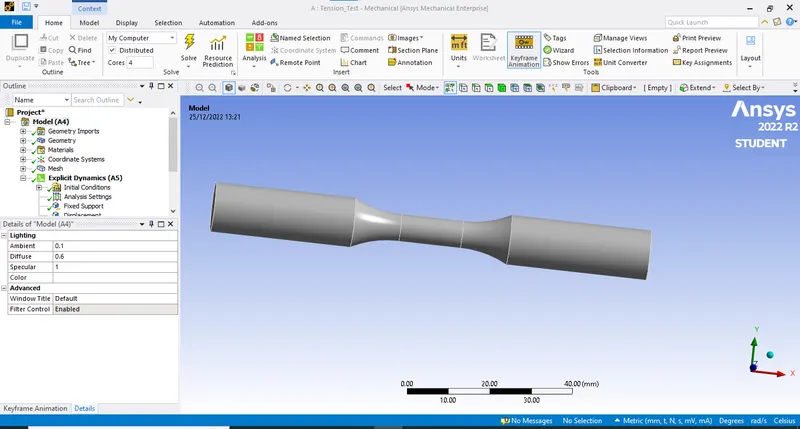

• So first we will import the given model into ANSYS workbench in Explicit dynamics. The model is shown below:

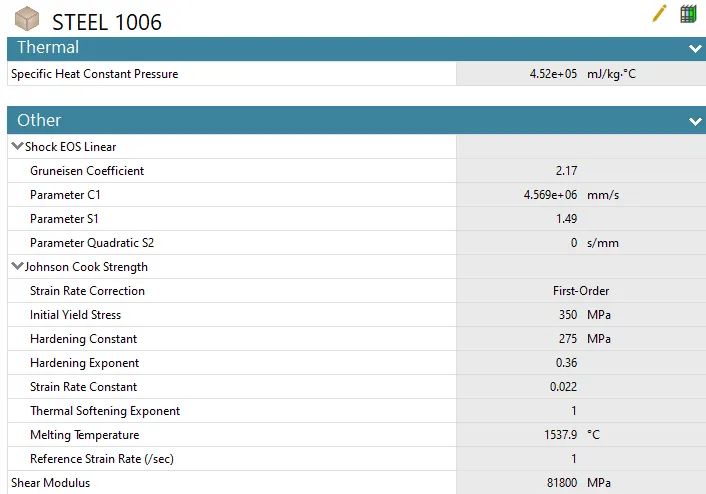

• We are using Steel 1006 material here for this simulation.

TENSILE TEST

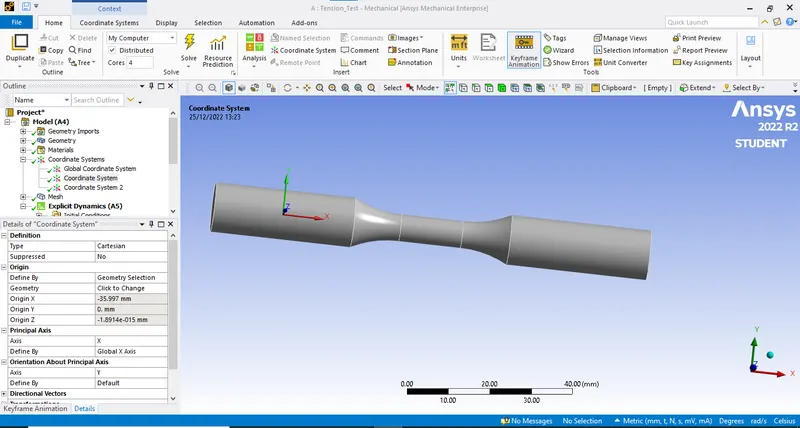

• Now first we will create two new cordinate system for the specimen.

MESH

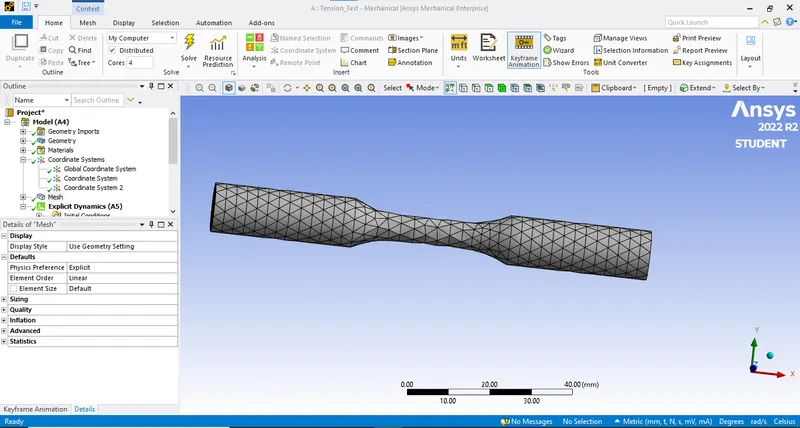

• Now next is to mesh the component. So for this we will do some settings.
• First create a Method select the specimen and select tetrahedrons as method.

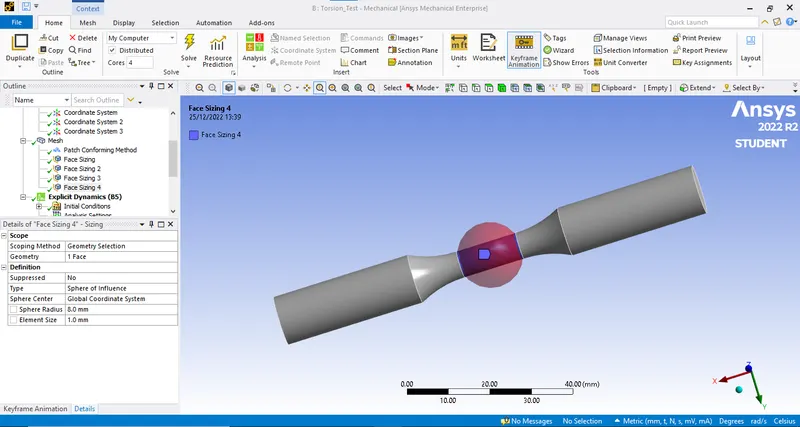

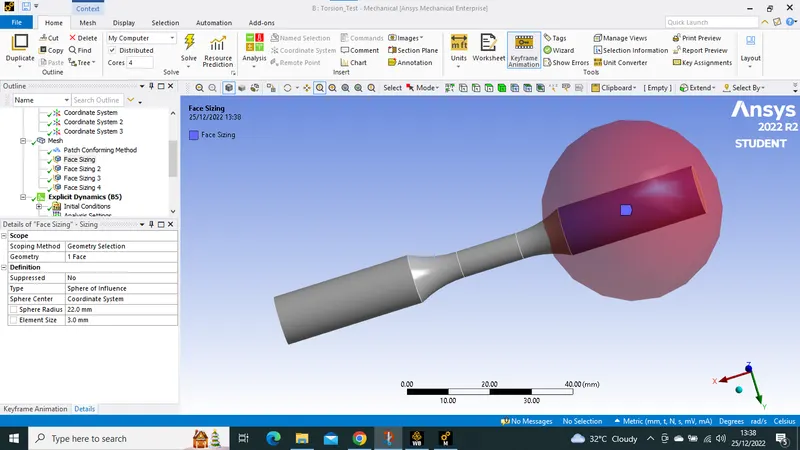

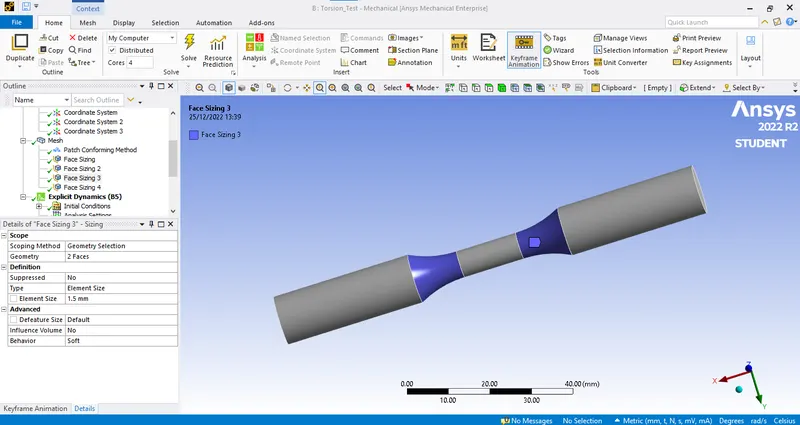

• Next is to select the sizing and do the process as follow:

• Do this for the other side too. And then generate the mesh.

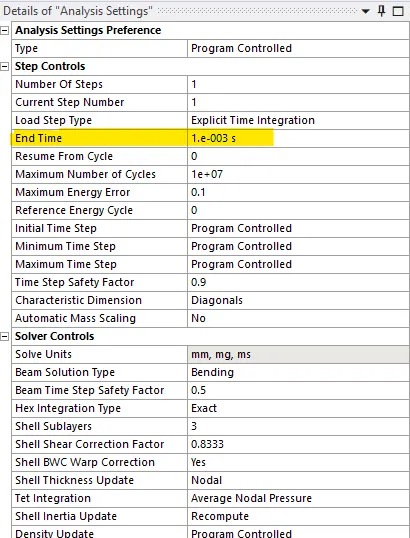

• Now next is analysis setting,

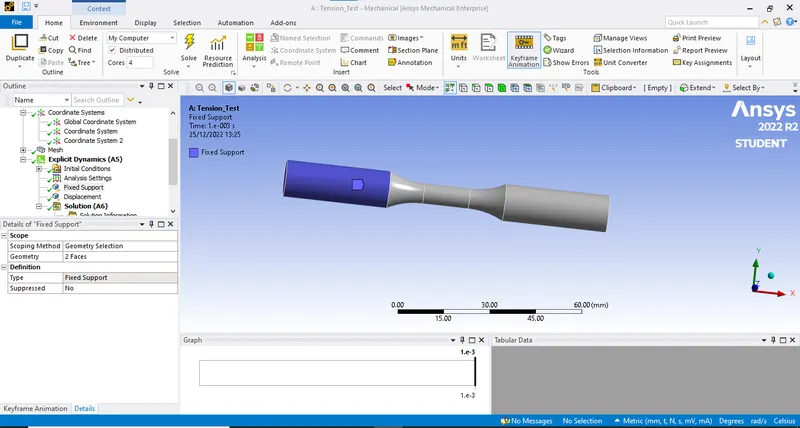

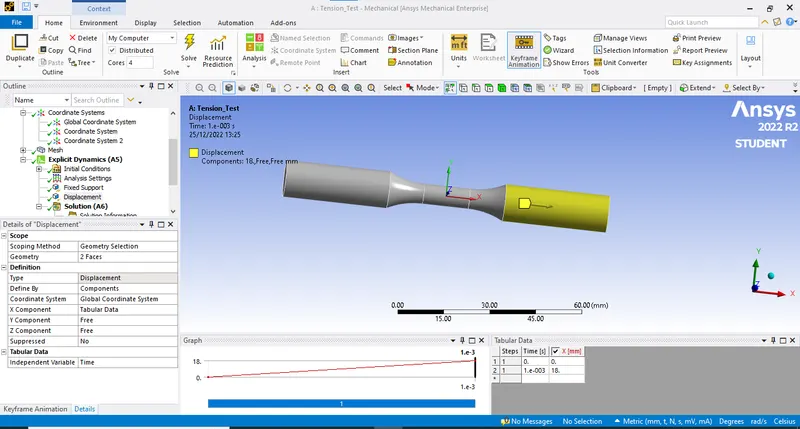

• After that fixed the one end of specimen and give the displacement to the other one.

• Now we will check for the result after solving the problem.

Total Deformation:

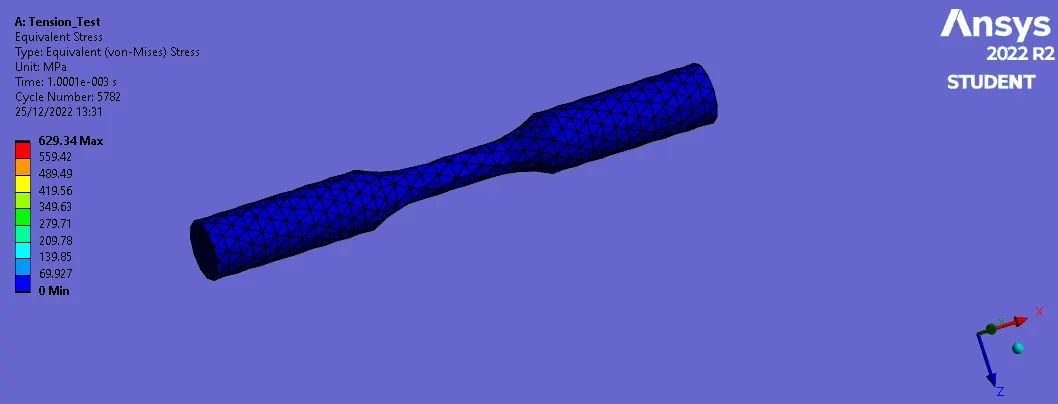

Equivalent Stress:

Tempreture:

Sr No.	Total deformation (mm)	Equivalent Stress  (MPa)	Tempreture .0">.0.0C
1	18.004	629.34	266.76

TORSION TEST:

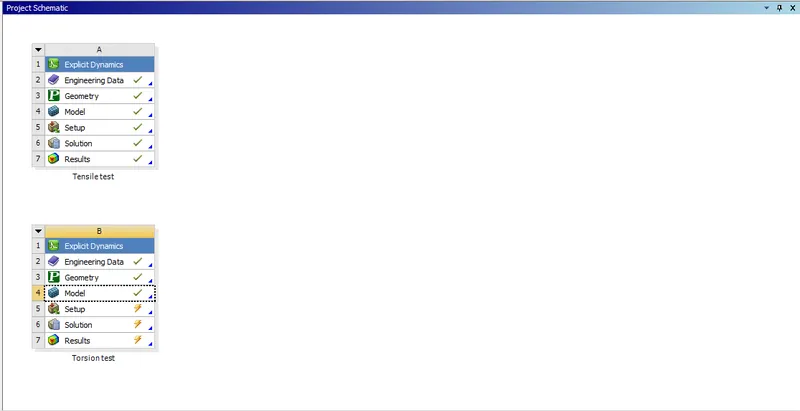

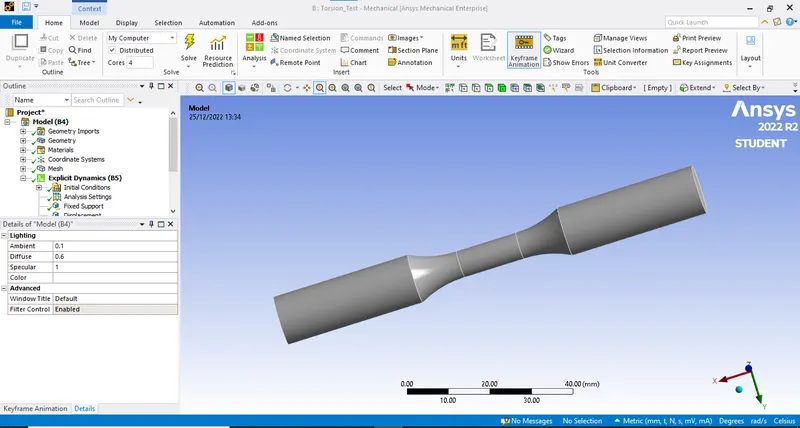

• Now next we will duplicate the module for torsion test.

• Now we will do some changes in the model, we will create another co-ordinate system.
• Create a cylindrical co-ordinate system as shown below:

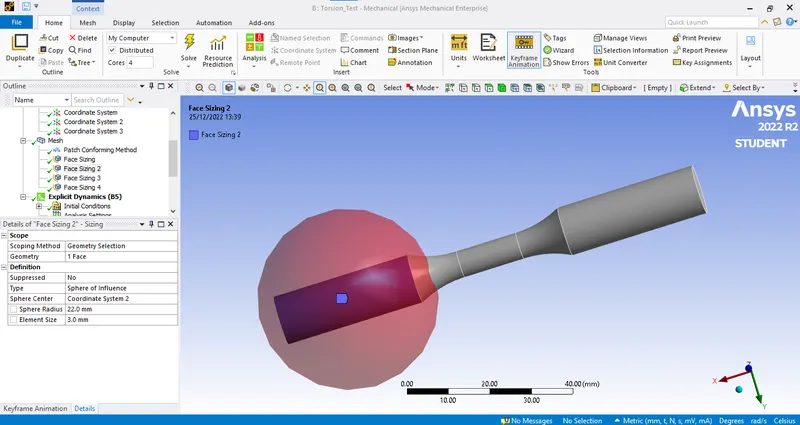

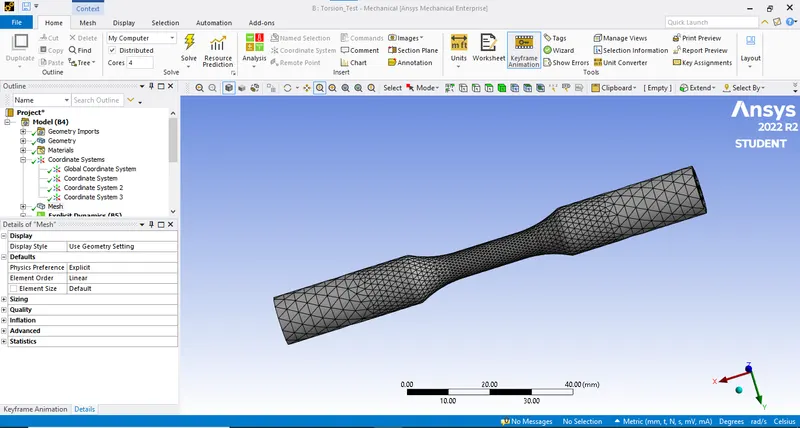

• Now next is to mesh the specimen.

FINAL:

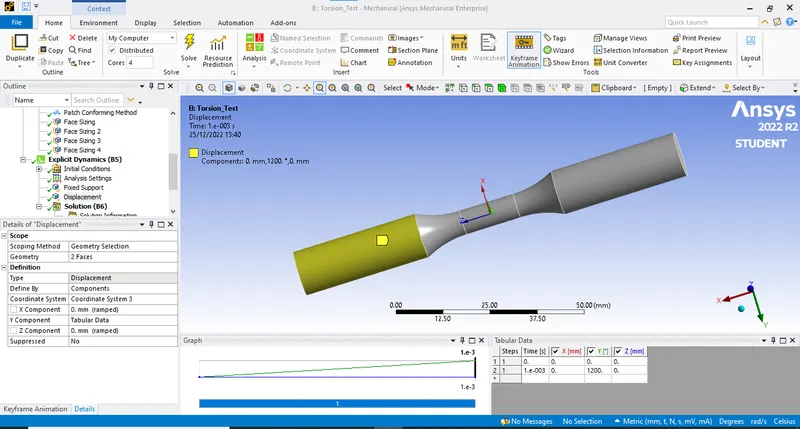

• Now next is to change the displacement setting as shown:

• And then solve the equation.

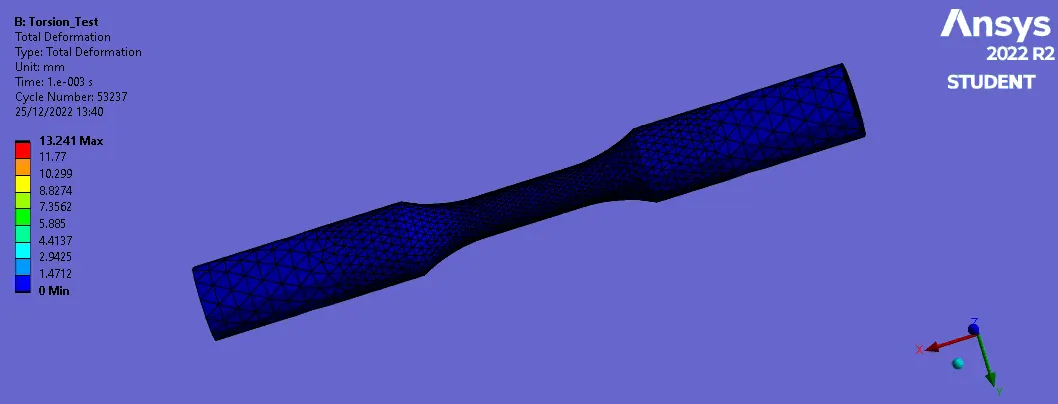

Total Deforamtion:

Equivalent Stress:

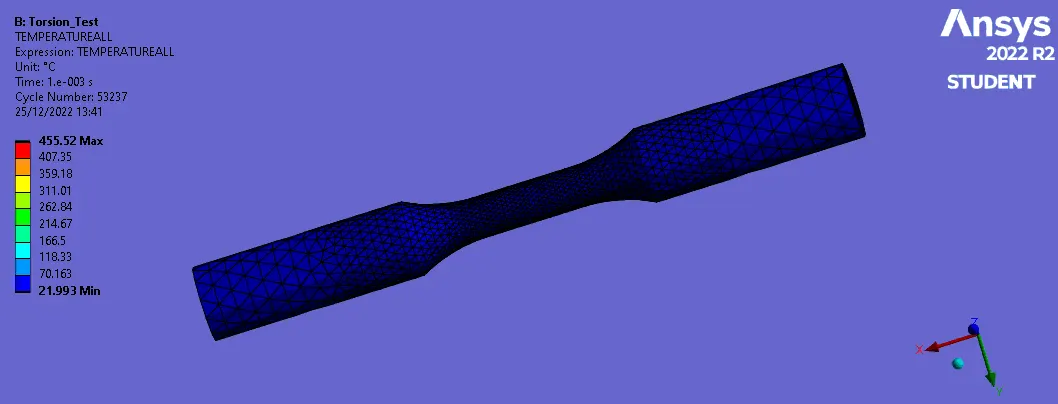

Tempreture:

Sr No.	Total deformation (mm)	Equivalent Stress  (MPa)	Tempreture .0">.0.0C
1	13.24	644.42	455.52

RESULT:

• Tension and torsion test are performed.
• Required results are plotted.
• There is no error in simulation.
• The tempreture increase for torsion test. Also the equivalent stress is more in torsion test.
