Week 9 - Project - Master Section Development
Tooling Axis creation :
- Extract the Master Sections.
- Create point on the middle lines.
- On that point create a line and name it as Tooling Axis.
- Create plane take a midpoint and draw a line name it as Lifter Axis.

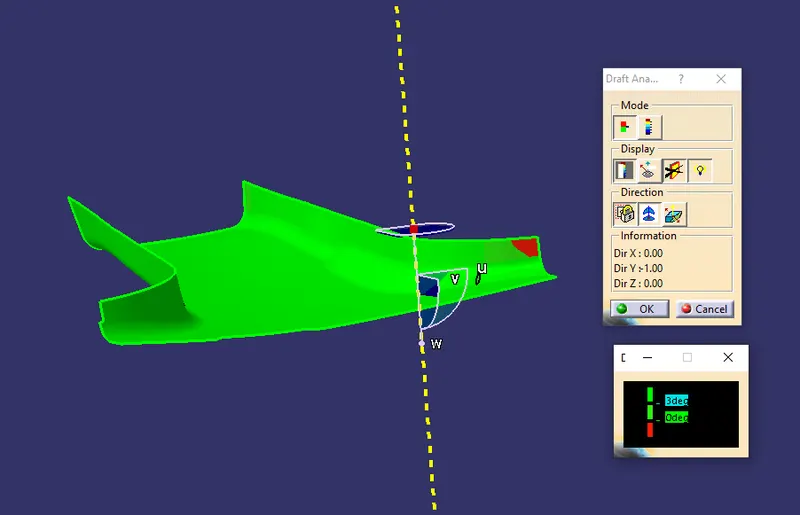

Draft Analysis :
- In Drafting Analysis first have to check the given class A Surface joined r not.
- Next create a tooling axis as explained above.
- Go to instert>>Analysis>>Feature draft analysis.
- Make sure that in customize view parameters command in shading it has to be in material status.
- Now drag the red coloured point on the compass to match the tooling axis which we have created.
- Then click on the lock icon under the display command and a point will appear on your screen and top the point on the surface of the fan cover.
- Change angle degree to 3 Degrees and click on ok.
- For Side core change the angle degree to 3 Degrees and click on ok.

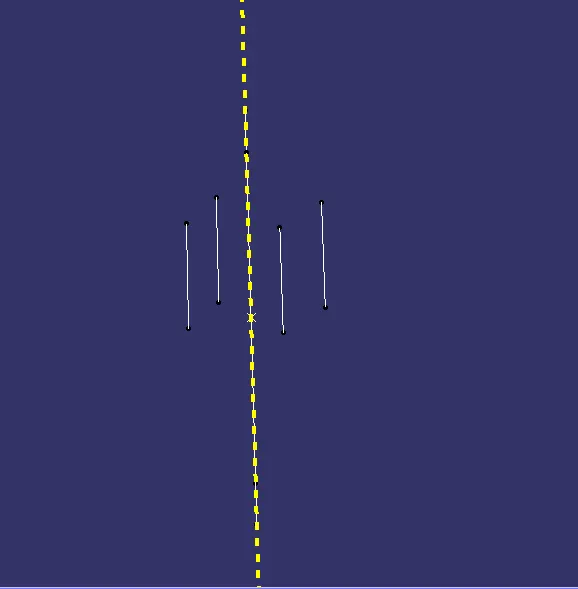

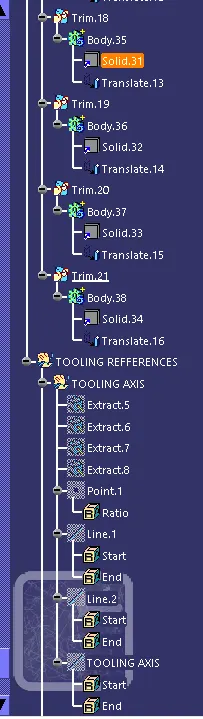

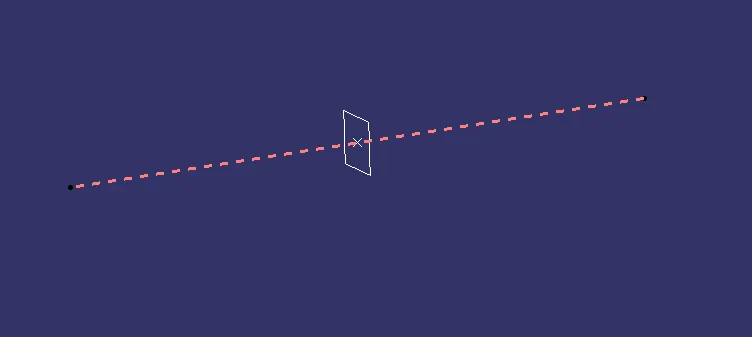

Tooling Axis creation :
Lifter Axis

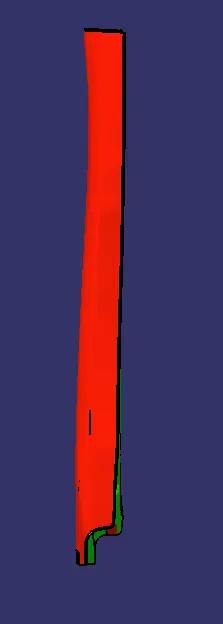

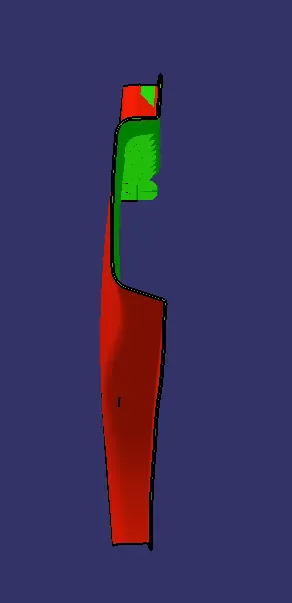

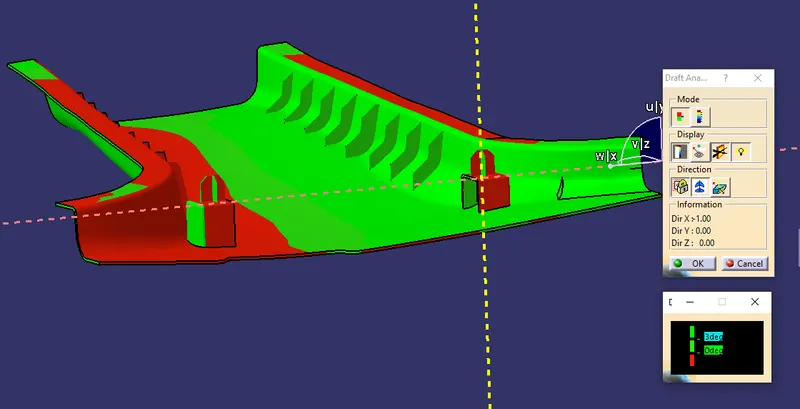

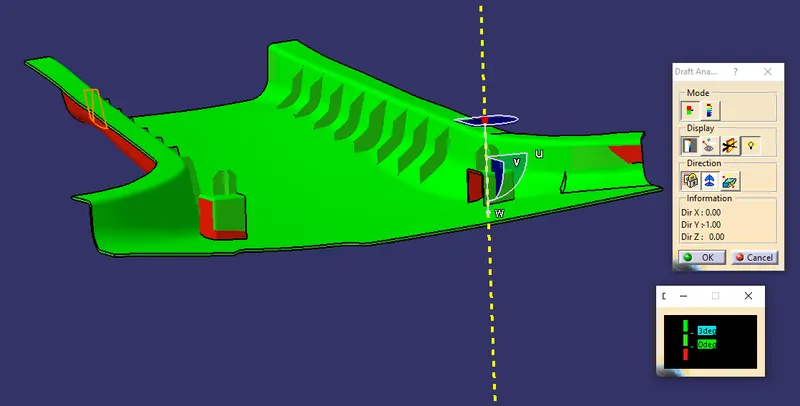

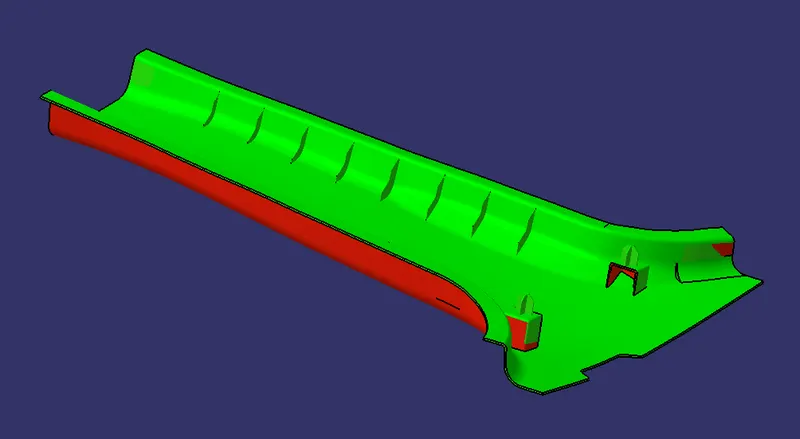

Draft analysis :

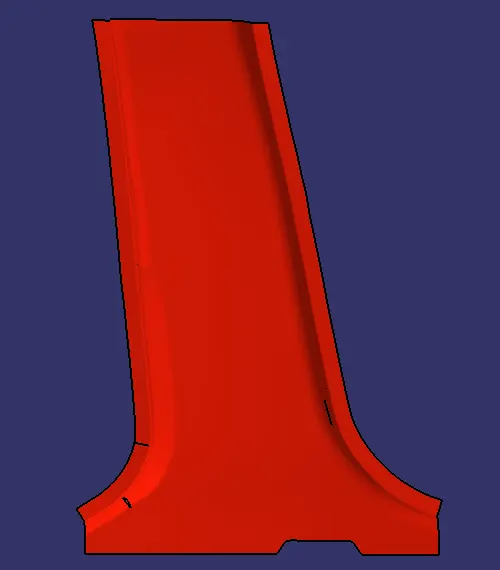

Class A-surface

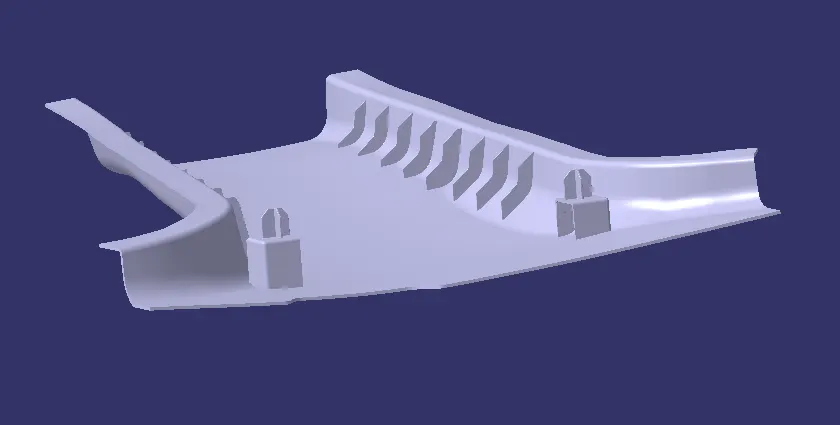

Final Component :

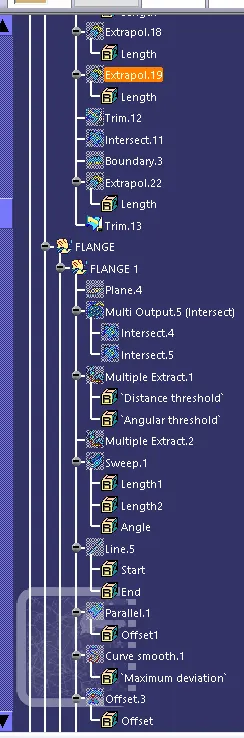

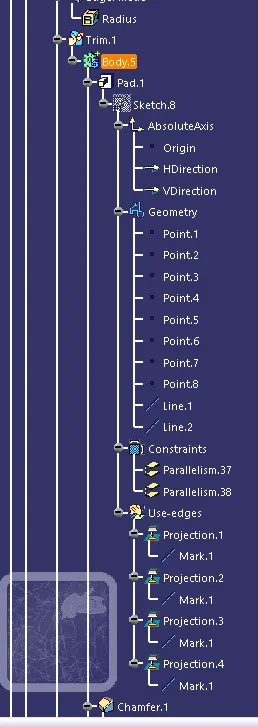

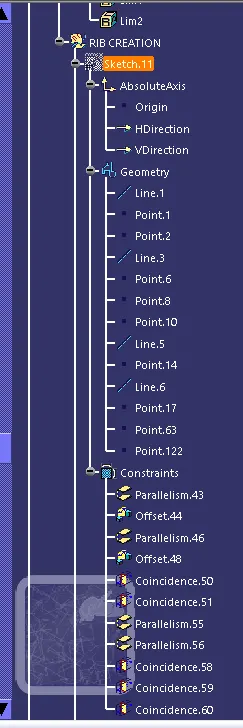

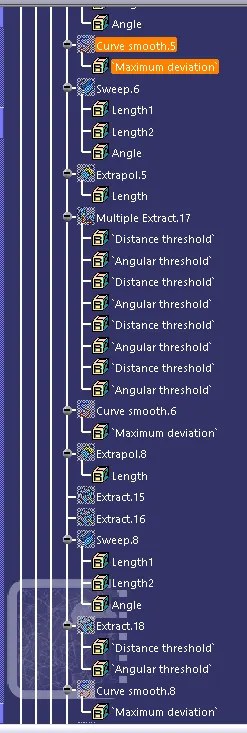

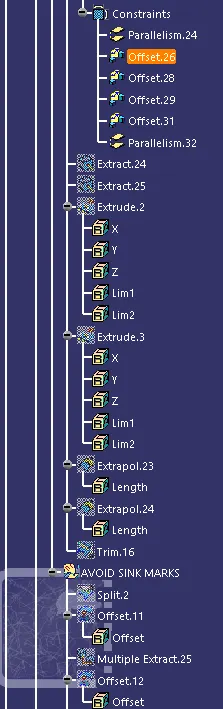

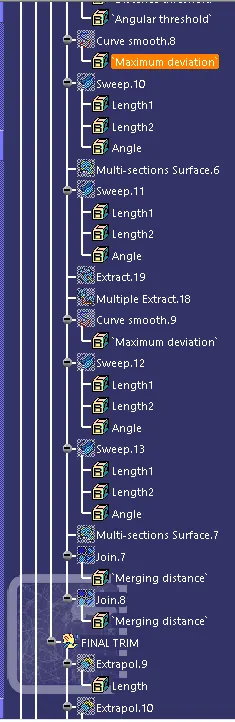

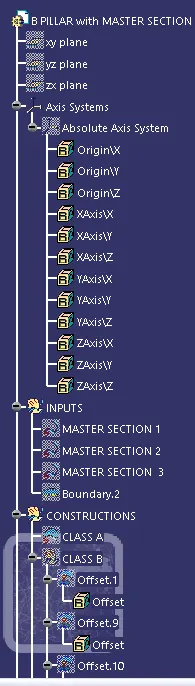

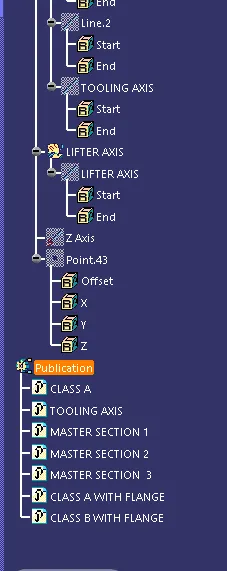

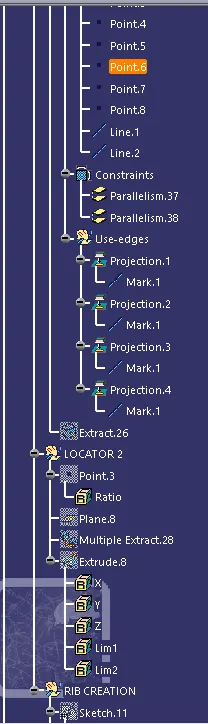

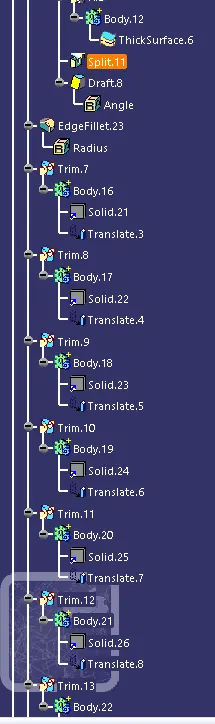

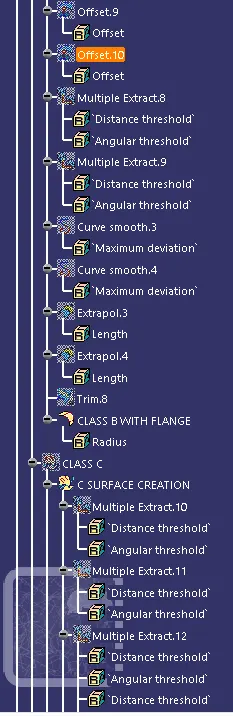

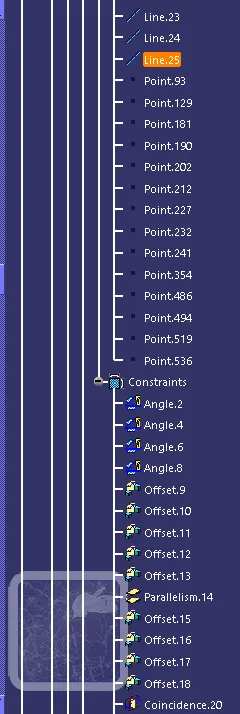

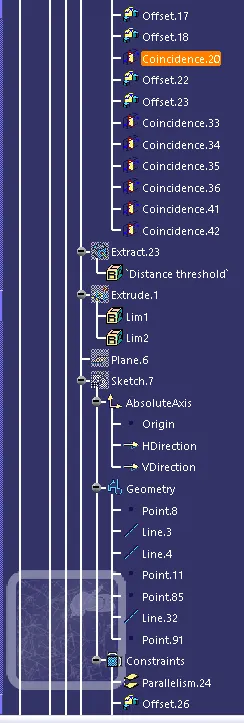

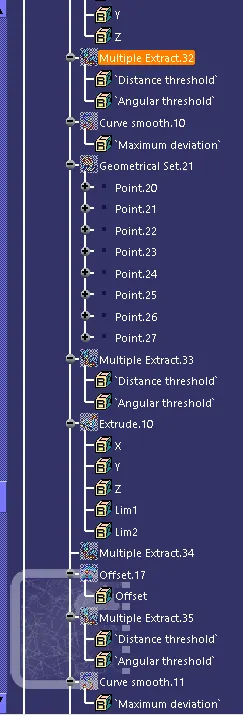

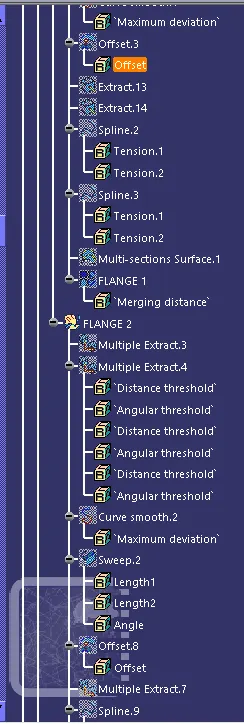

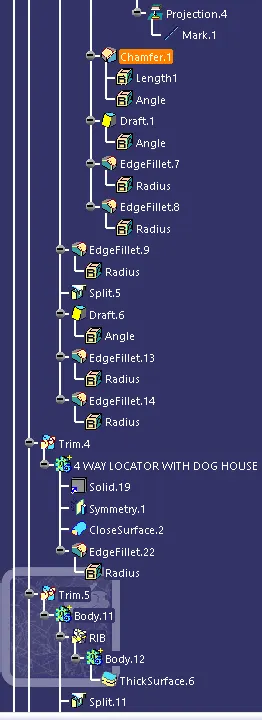

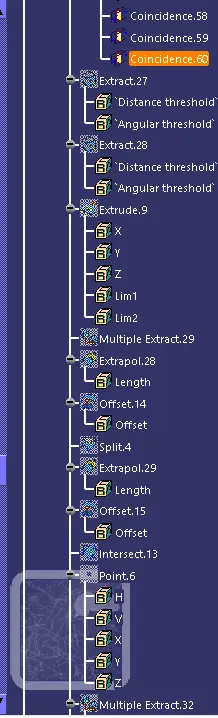

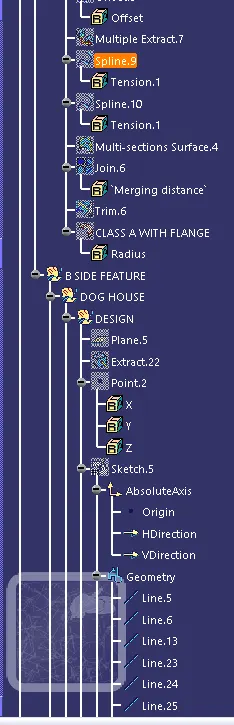

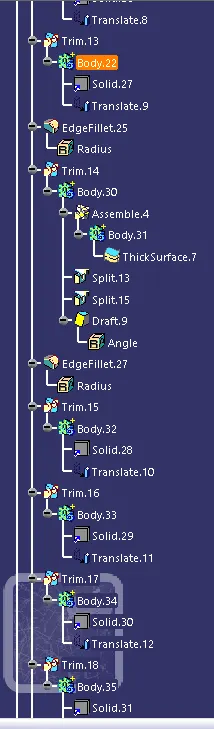

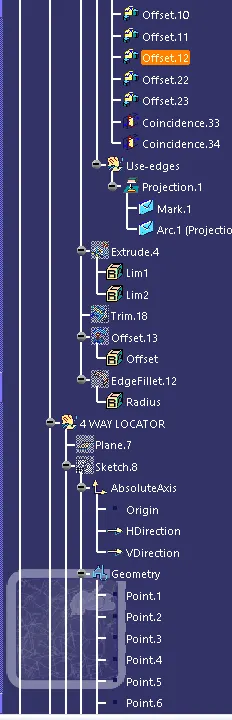

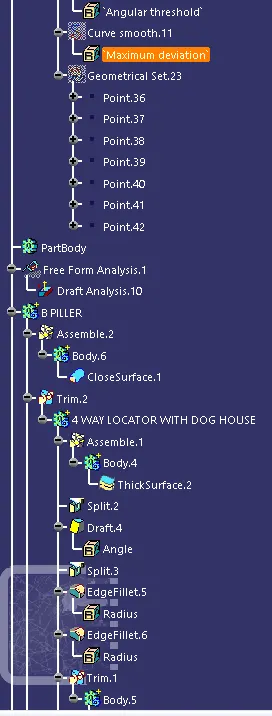

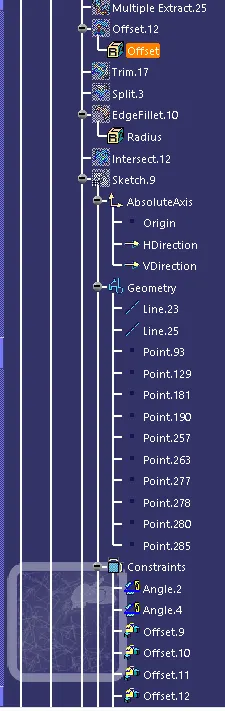

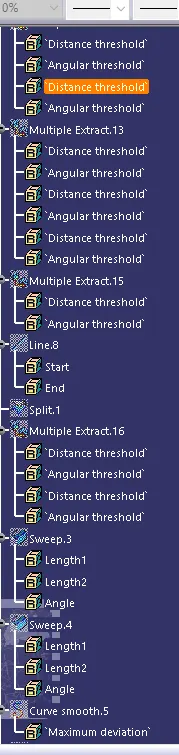

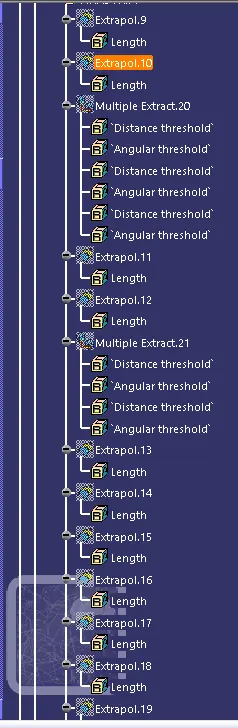

Tree Structure :
Views :
Isometric View
Side View
Front View
Top View
