Week 9 - Project - Master Section Development

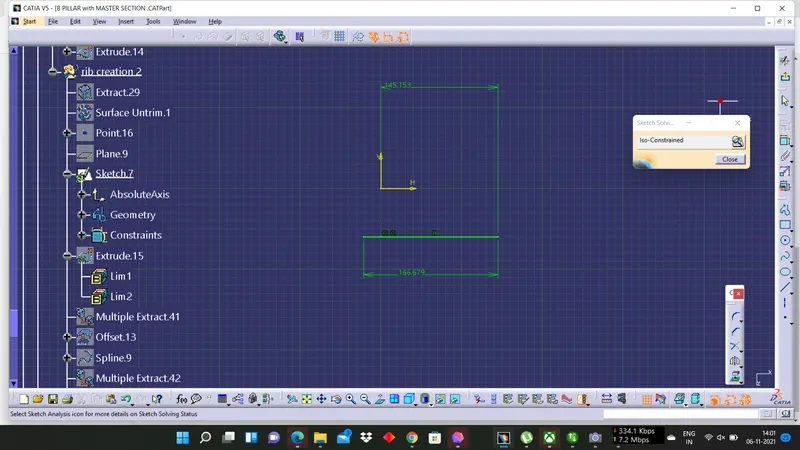

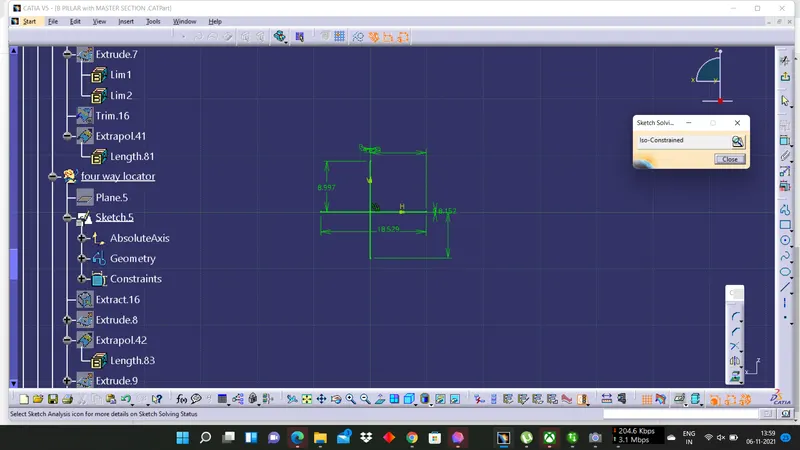

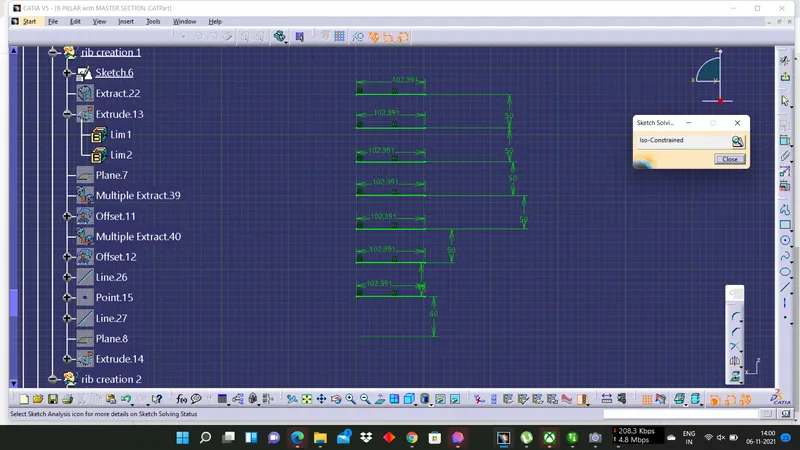

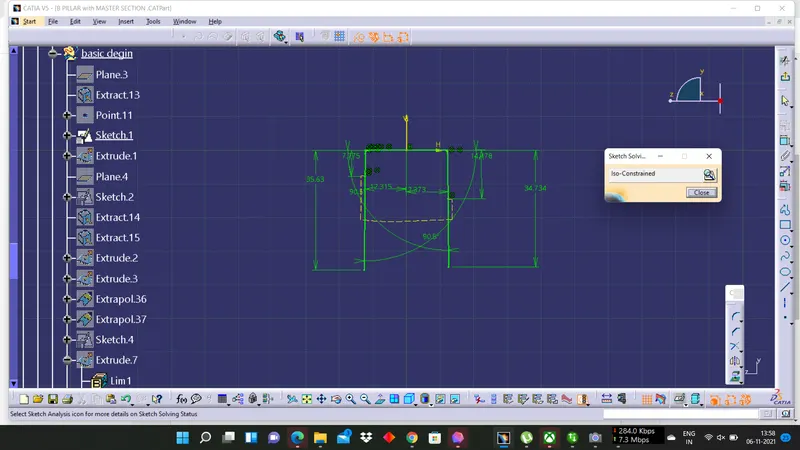

SKETCH SOLVING STATUS

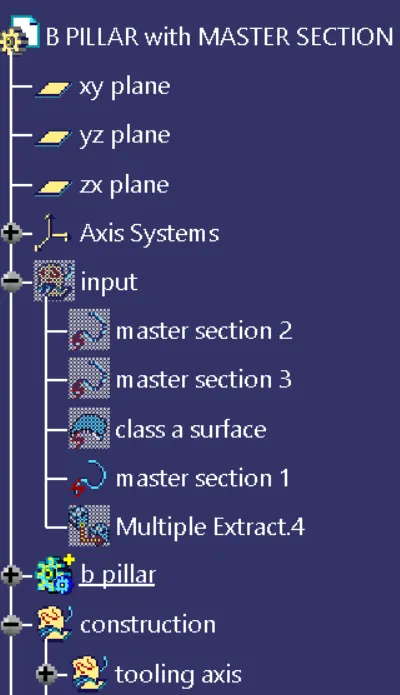

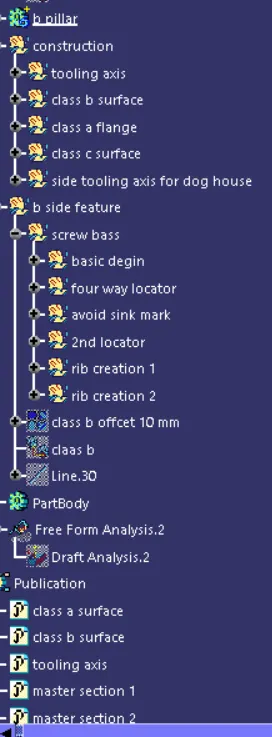

IMAGES OF DETAILES TREE STRUCTURE

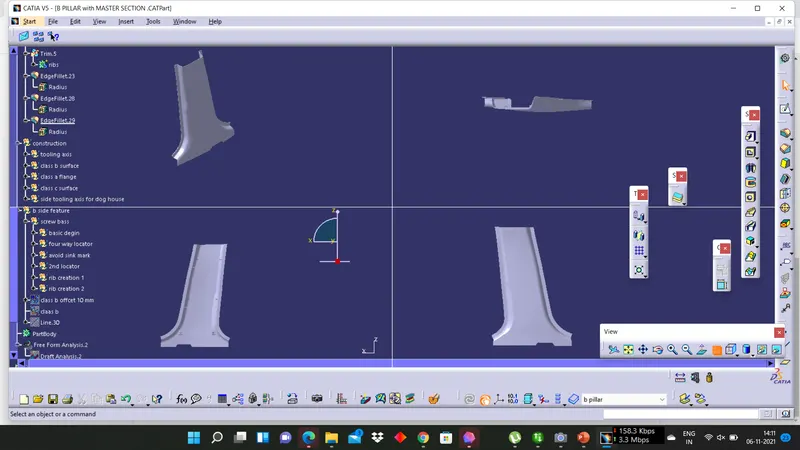

PICTURE OF 3D CAD

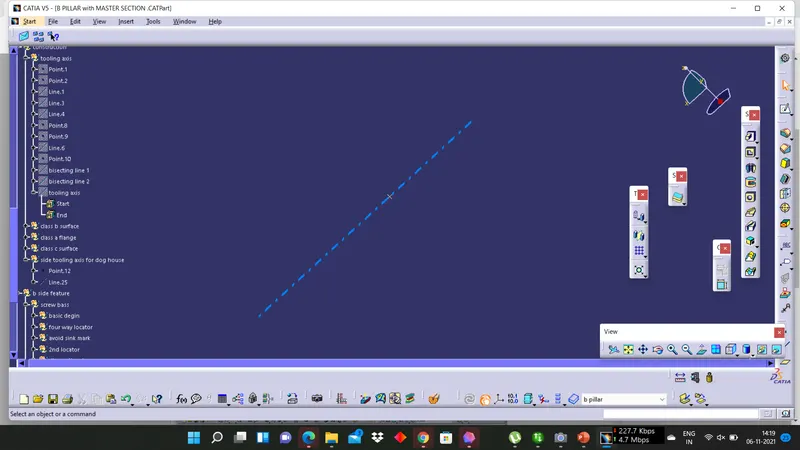

TOOLING AND SIDE CORE AXIS
1.CREATE FOUR LINES ON FOUR WAY LOCATOR
2. INTERSECT 2 PARLLEL LINES WITH THE HELP OF BISECTING LINE
3. REPEAT SAME PROCESS ON OTHER TWO LINES
4. CREATE BISECTING LING WITH THOSE TWO LINES AND THIS LINE WILL BE OUR TOOLING AXIS

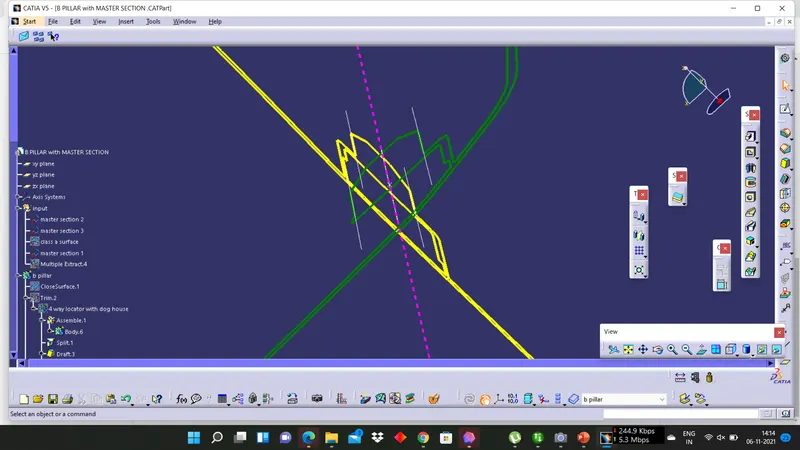

SIDE CORE AXIS
THE POINT THAT WE CREATED PREVIOUSLY CREATE A LINE ON THAT POINT TO CREATRE SIDE CORE AXIS

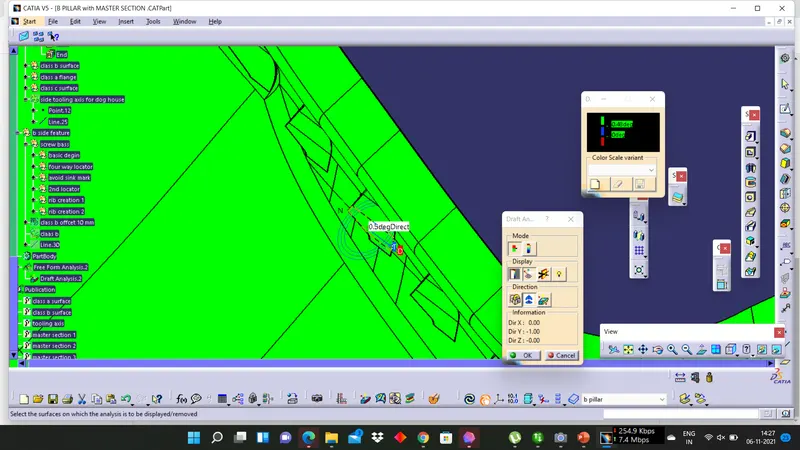

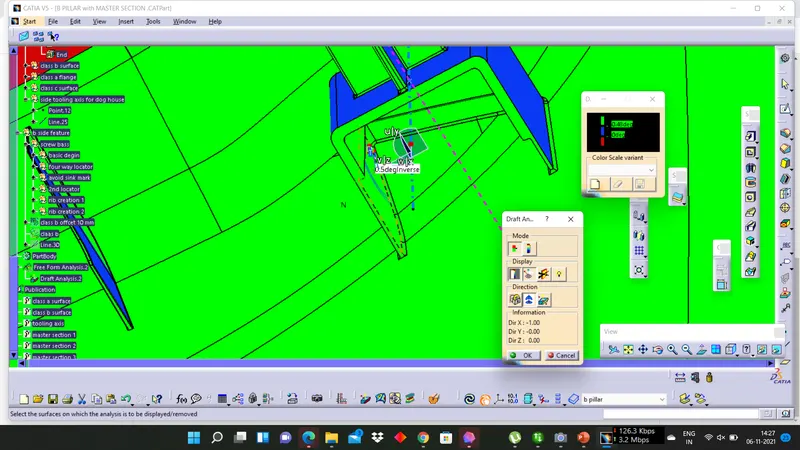

DRAFT ANALYSIS

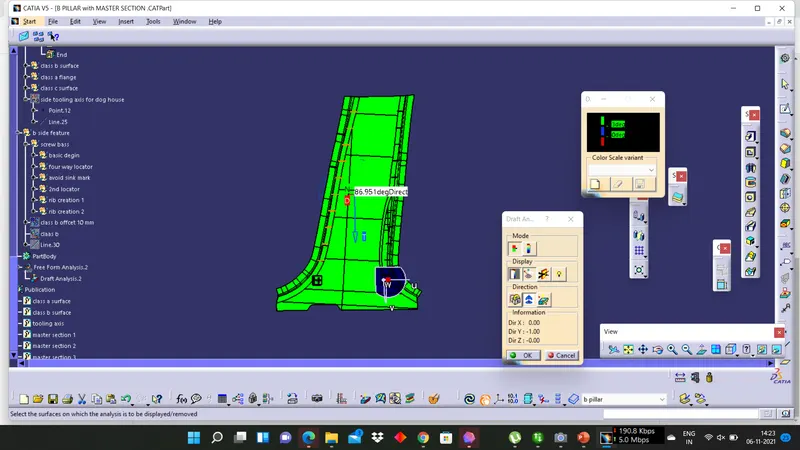

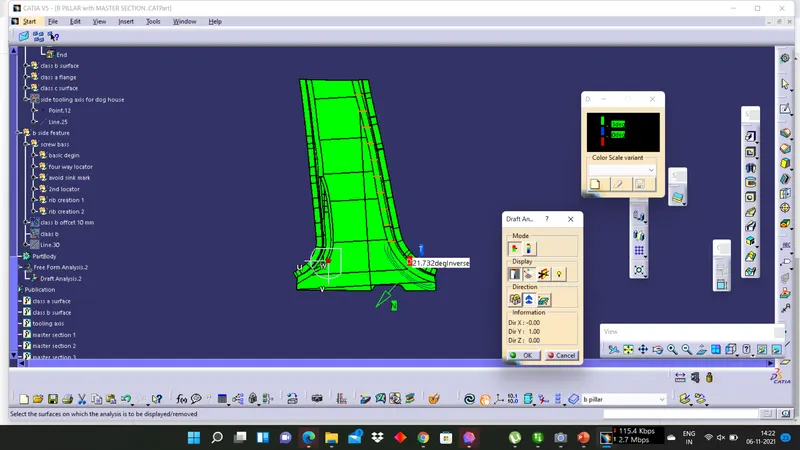

1. DRAFT ANALYSIS ON B PILLAR
BACK SIDE DRAFT ANALYSIS
FRONT SIDE ANALYSIS

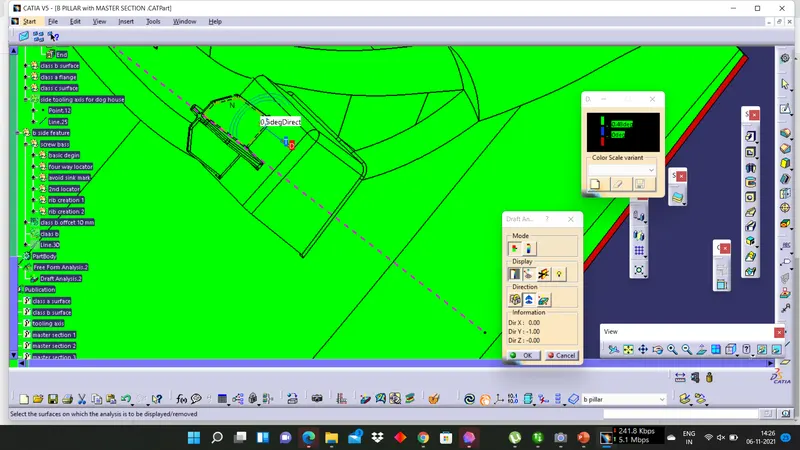

DOG HOUSE DRAFT ANALYSIS
DOG HOUSE INNER SIDE DRAFT ANALYSIS WITH SIDE CORE AXIS
FOUR WAY LOCTOR DRAFT ANALYSIS
RIBS ANALYSIS
