Week 9 - Project - A pillar Design with Master Section

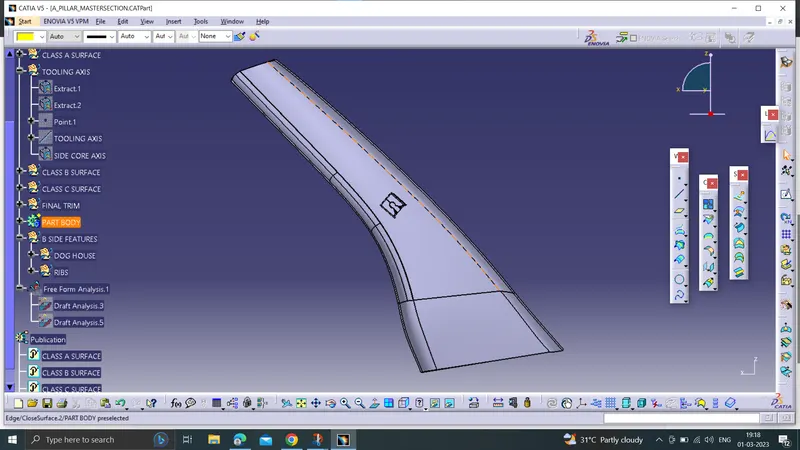

ISOMETRIC VIEW

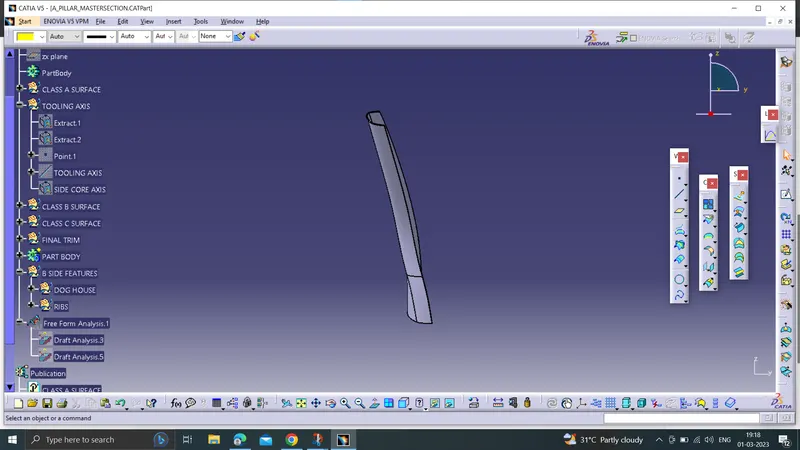

FRONT VIEW

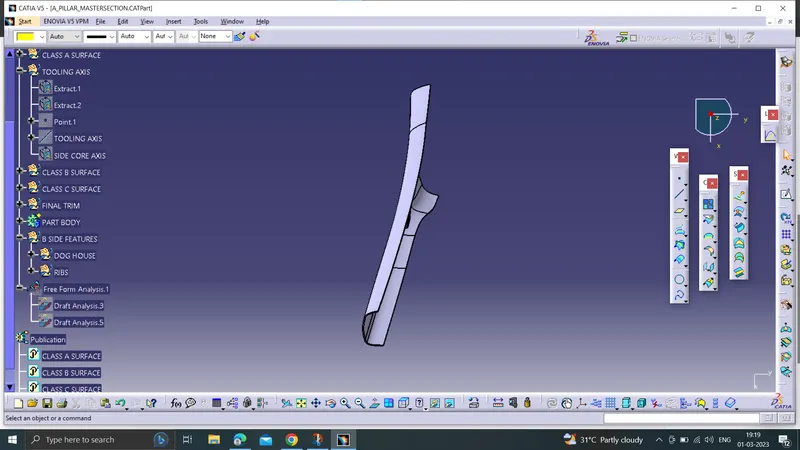

SIDE VIEW

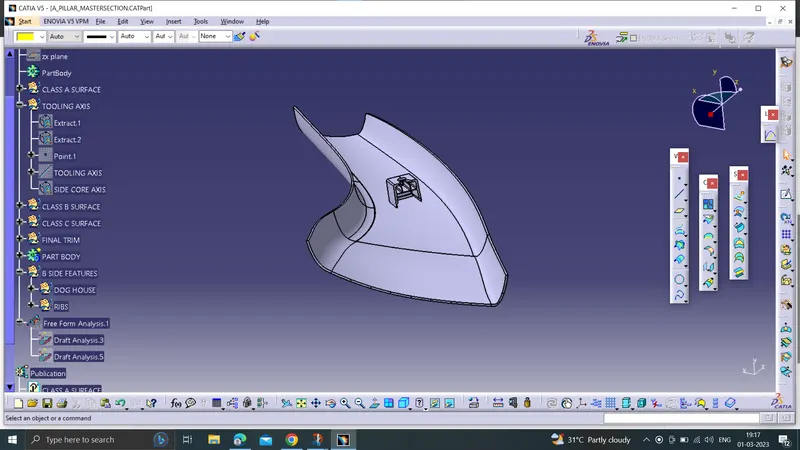

TOP VIEW

REPORT :

TOOLING AXIS: tooling axis is done by using bisecting method . i had taken master sections as my reference and created the main tooling axis. lifter axis is also created by using the bisecting method

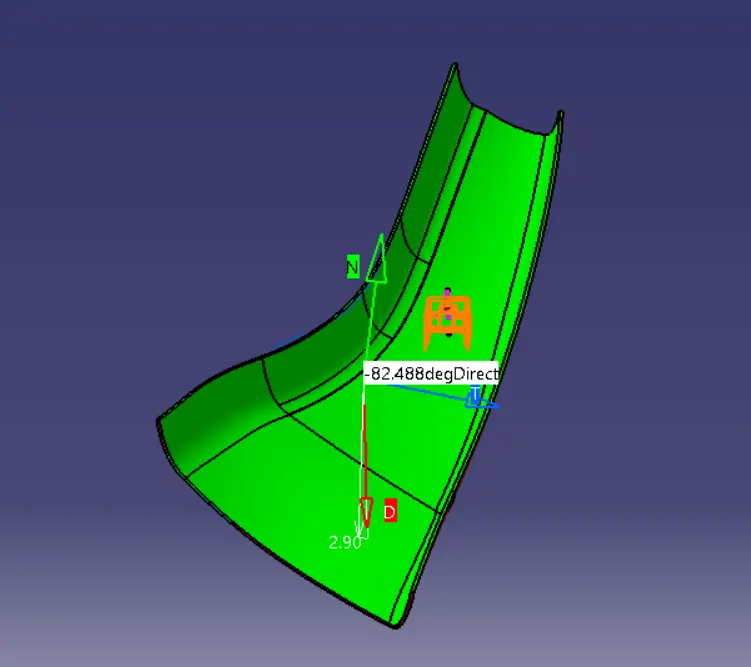

DRAFT ANALYSIS: draft analysis done for the final component as fiving the degree of 3 deg and checked for the draft . draft analysis for dog house is also done by using the main tooling axis and lifter axis with the 0.5 deg.

For the creation of final plastic component thw given class A is offset to the required thickness which is 2.5mm to creat the B surface . after offsetinf the class A checked for any patches whivh would have form when offseting after visual checking i cleared all the patches which occured during the offset. after the creaton of B surface next step is to create the class C surface inorder to create the class i had created sweep and multisection on class a after the creation of the c surface i joind it with the given class A and finaly trimed it with class B . after the final trim created a closed body which is the final plastic component. after the final product creation checked it with the given master section. by visual checking gone for the next b side fearture dog house. dog house was created using the given master section . after the creation of dog house that was variefed with the mastersection .
