Week 9 - Project - A pillar Design with Master Section

Points to ensure:

In Tree Structure

• Ensure using surface command.
• Use closed body command to create the solids
• Rename geometrical set properly.

Output Required in a ppt :

• Picture of the sketches with Sketch solving status’s geometry tab
• Picture of the Detailed tree structure.
• Picture of the 3D CAD
• Create closed body
• Create tooling axis and follow design rules.
• Follow the Master section to create flange
• Follow the master section for thickness and to create the Closed volume.
• Follow master section to create Attachment features
• Tke thickness of Plastic to be 2.5 mm

Here we have given the Class A surface and master section shown below

1st we have to create the tooling axisfor the given Class A surface, which will be usefull in the forming process.

after creating the tooling we will start with the modelling process

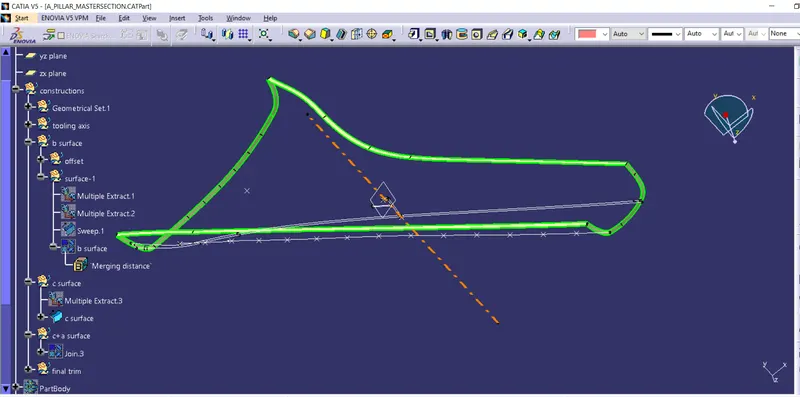

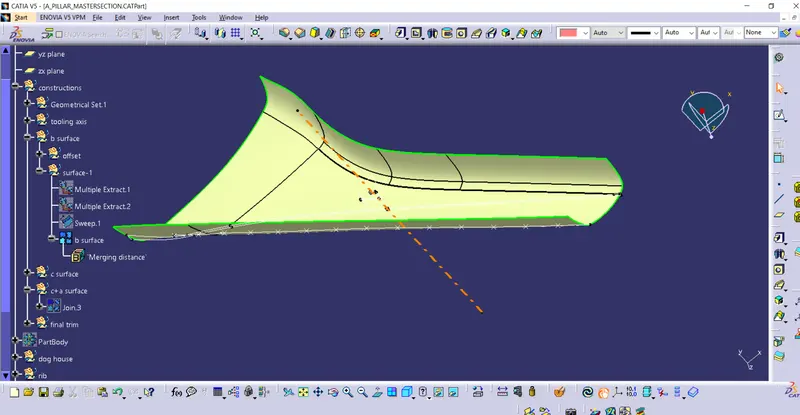

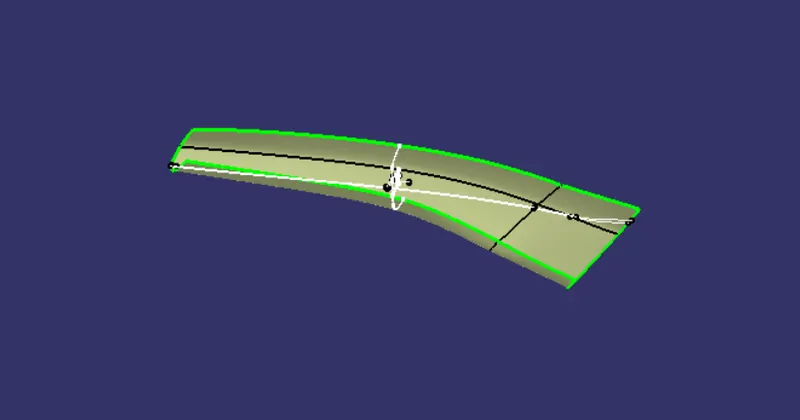

creating class b surface

class B surface created

then we will go to the Class C Surface

Class C Surface was created

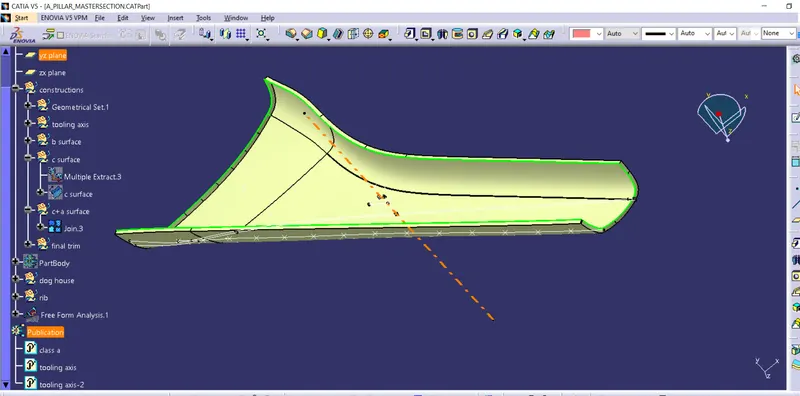

then we have to Join both Class A Surface and Class C surface

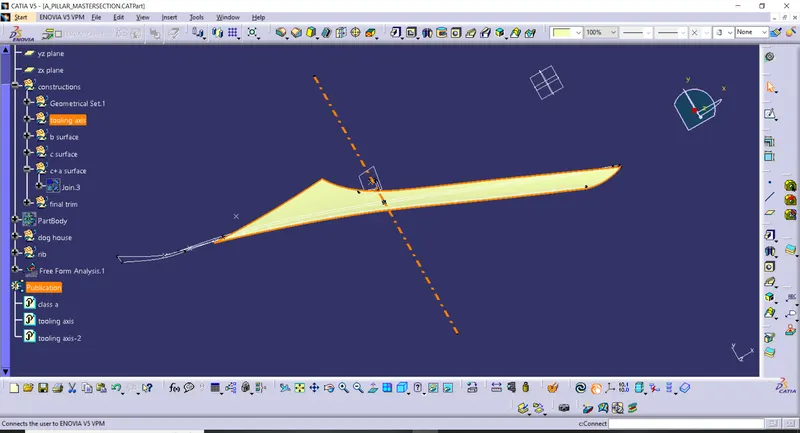

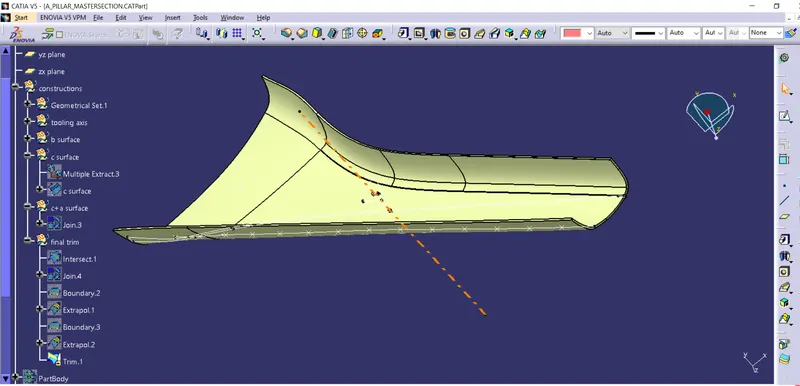

after joining both Class A and Class C then we have to trim the extra by using the Class B

after that we have added the Close Surface Command

add the material to it

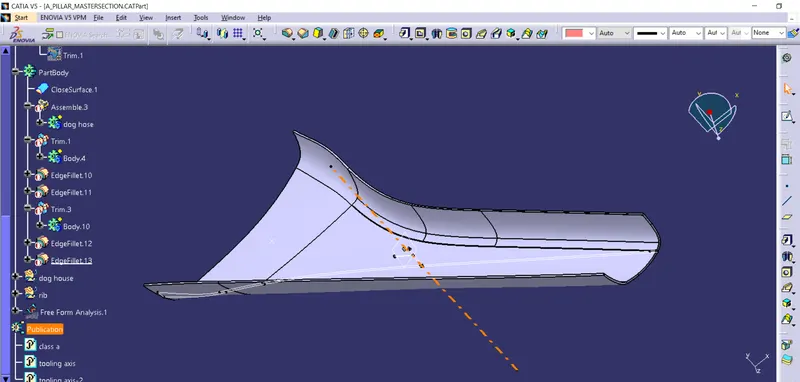

up to this we have the Solid of the A pillar

then, now we have to add the engineering features to the A-Pillar

!st we will start with the Dogg -House

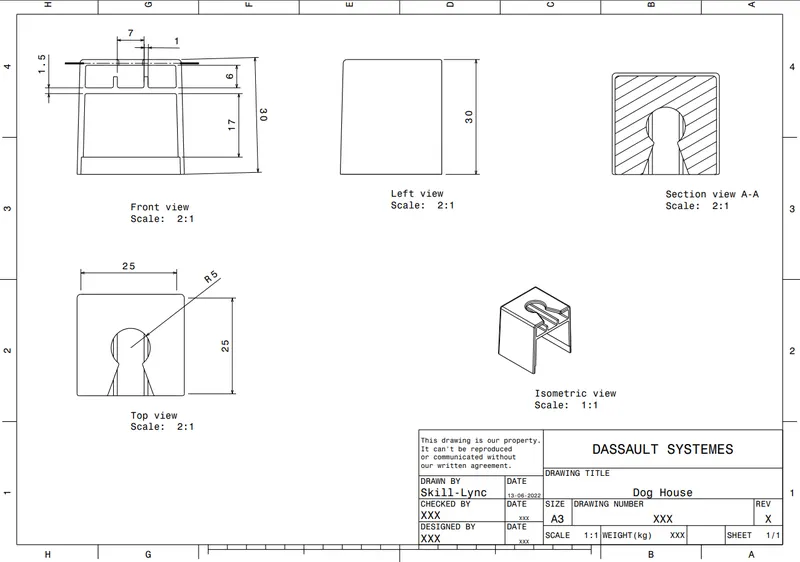

for the Dogg house creation we have some drawings we have o study them 1st

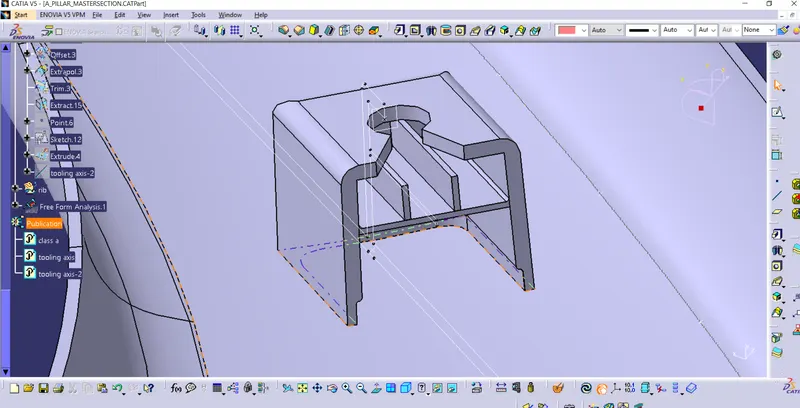

by using the given drawings and standard procesdues and given instructions we have to create the doog-house

dogg-house will be acted as the side core which will have some extra operations while creating the for that the side core we have creat the side core axis

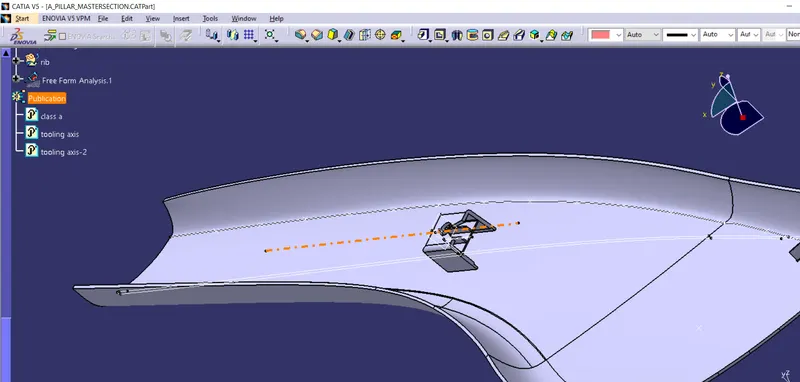

we are creating the side core tooling direction

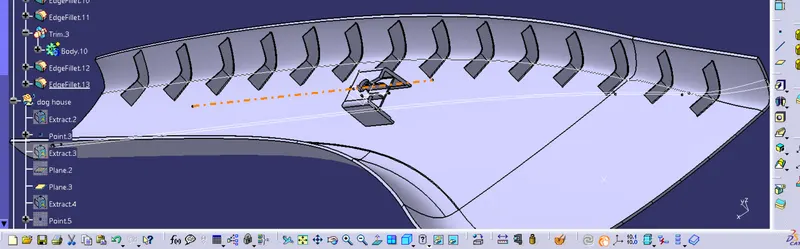

after side core tooling direction we are creating the side ribs for the strengthing the A-pillar

all the ribs are at distance of 50mm each

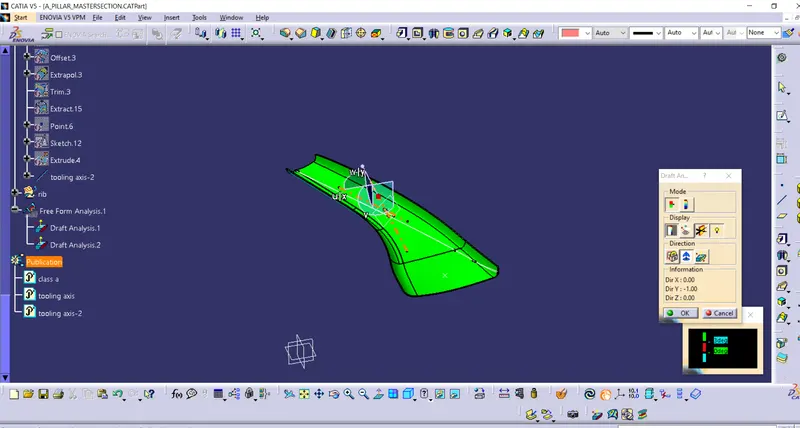

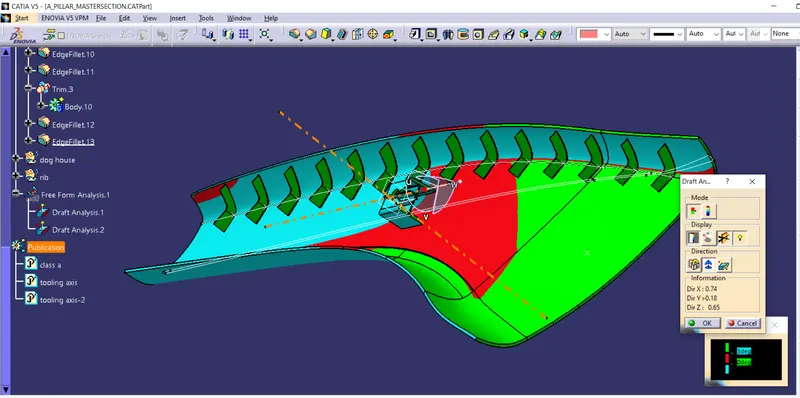

checking for the draft analysis

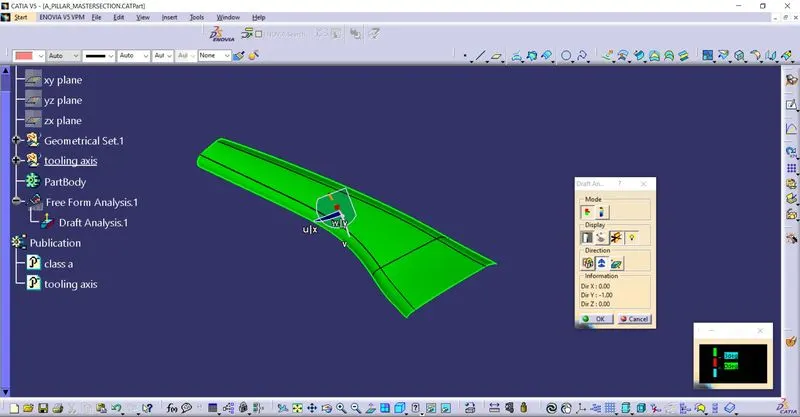

checking for the draft analysis for checking weather the tooling direction is correct or not

after applyimg the close surface

here also we can check that all the surfaces are clearing draft analysis

i have see many faliures in the Doog-House Draft Analysis.

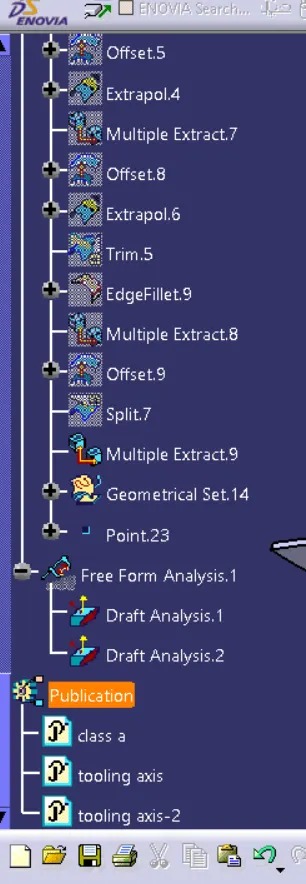

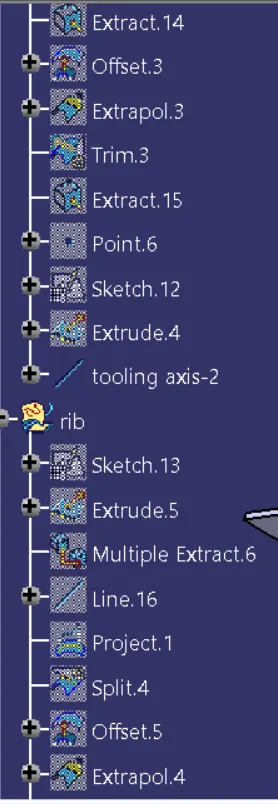

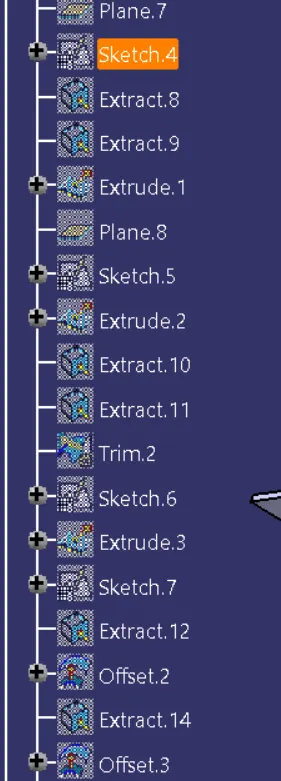

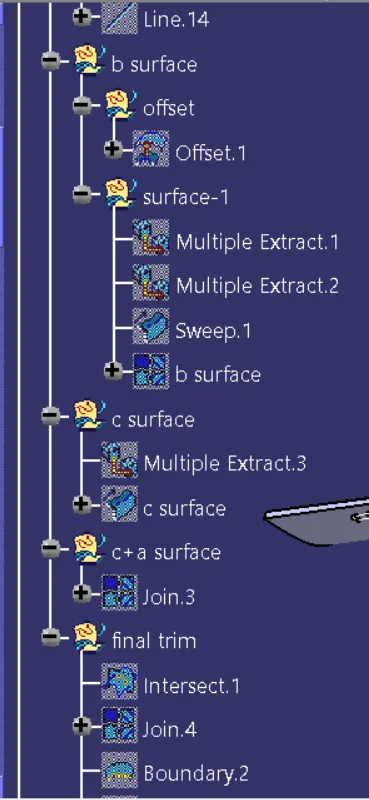

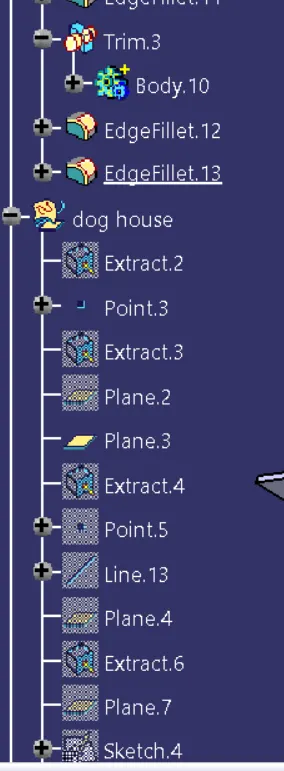

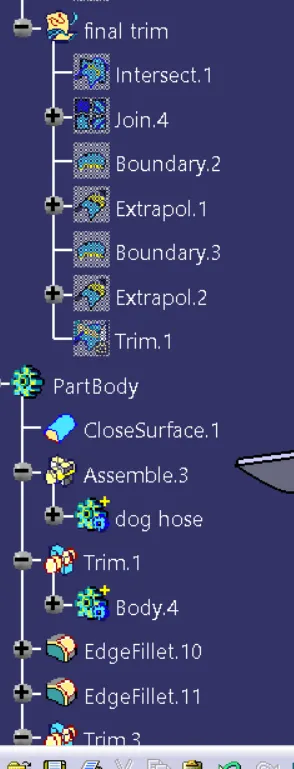

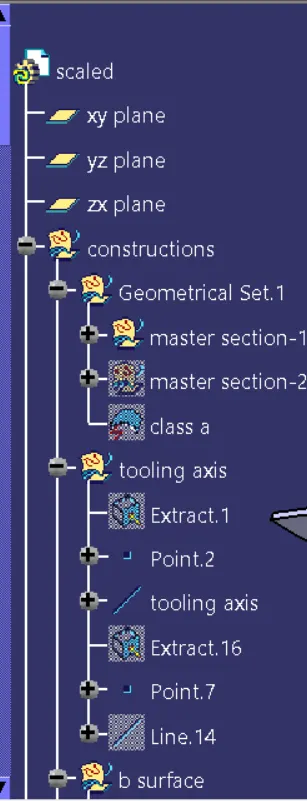

• Picture of the Detailed tree structure.

Conclusion: Almost i have created the model, but in the Draft analysis of dogg- housei have made some mistakes.
