OBJECTIVES:

• To create the class B and class C surfaces from the given class A surface
• To form a solid geometry by combining all the surfaces
• To create a dog house for the solid part whilst following the design rules
• To perform draft analysis on the class A surface and the solid part model

A-PILLAR

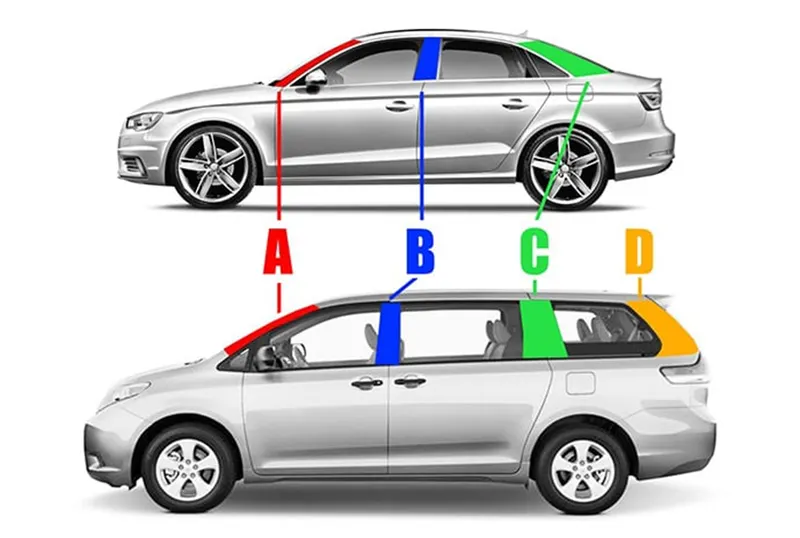

The structure of an automobile body consists of various support structures like the roof, pillars, and floor. The car pillar in the vehicle stands in the near-vertical position, which supports the vehicle’s roof. The pillars found most commonly are the A, B, C and D pillars.

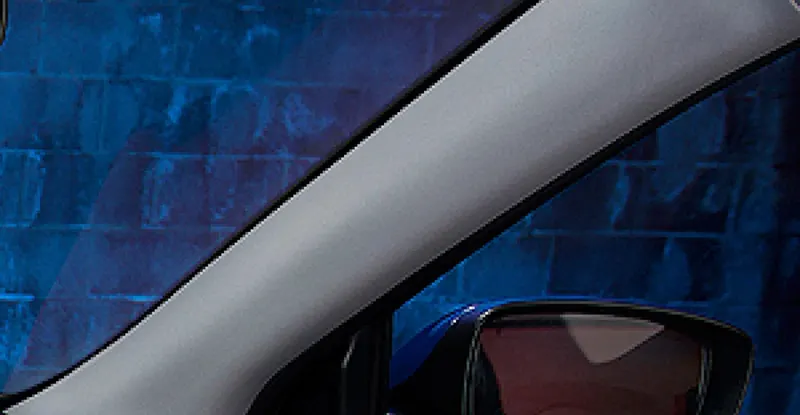

The A pillars are the first set of upright sections on a car body that links the lower body to the roof of the car. It acts as a major support structure during impacts and it is also a median to support the windshield of the vehicle. Apart from structural advantages the A pillar has a large effect on the overall aerodynamics of the vehicle.

MASTER SECTION:

Master sections are the guides for design requirements which decide the component packaging after the styling surface

PRE-DESIGN CHECKS:

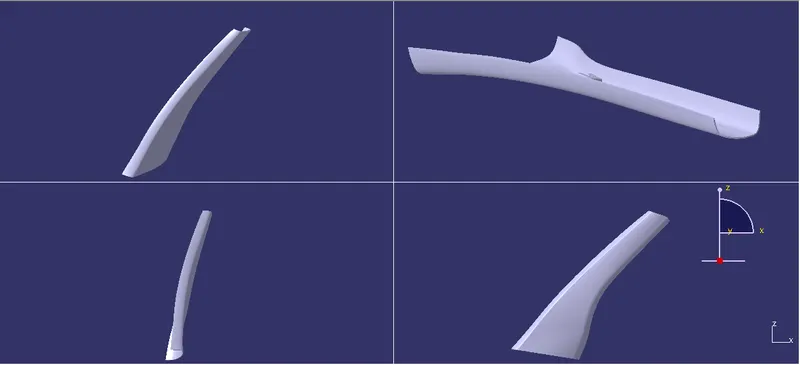

Before starting the creation of the class B surface we must ensure that the given class A surface is properly closed and the surface continuity is proper. This can be done either with the help of the join operation or by using the boundary feature.

TOOLING AXIS:

• The next step is to create the tooling axis for the part which will determine the direction in which the core and cavity of the mould will move.
• Designer must ensure that all holes and slots are covered in the main tooling and thus side core must be avoided whenever possible
• After analysing visually for the best possible tooling axis, an reference tooling axis is created on the centre of one of the surfaces of the A pillar trim.
• The main tooling axis is created by using the bisecting method and by taking references from the master section

DRAFT ANALYSIS:

• Draft analysis is done on the class a surface after the tooling axis has been obtained
• The part must have a minimum draft angle of 3 degrees on all the tapered faces
• Using the feature draft analysis tool and the compass the part surface is validated for the minimum draft criteria

CLASS B SURFACE

• After all the validation has been done, the class B surface is created by offsetting the class B surface to a distance of 2.5 mm
• After offsetting a large opening in the surfaces is found which is closed with the help of sweep and multi section commands
• The class B surface is then extrapolated in parts to trim it along with the class C surface

CLASS C SURFACE

• The class C surface which connects the class A and class B surface is created by sweeping the boundary of the class A and using the class A as a reference.
• The sweep is divided into several parts in order to avoid complexity
• Surfaces which are parallel to the tooling direction are swept with the tooling axis as reference and with a draft angle of 3degrees

PART:

The final trim is created by joining the Class A and C surface and finally trimming it with the Class B surface. The combination of class A, B and C surface is then converted into a solid with the aid of close surface command in the part workbench

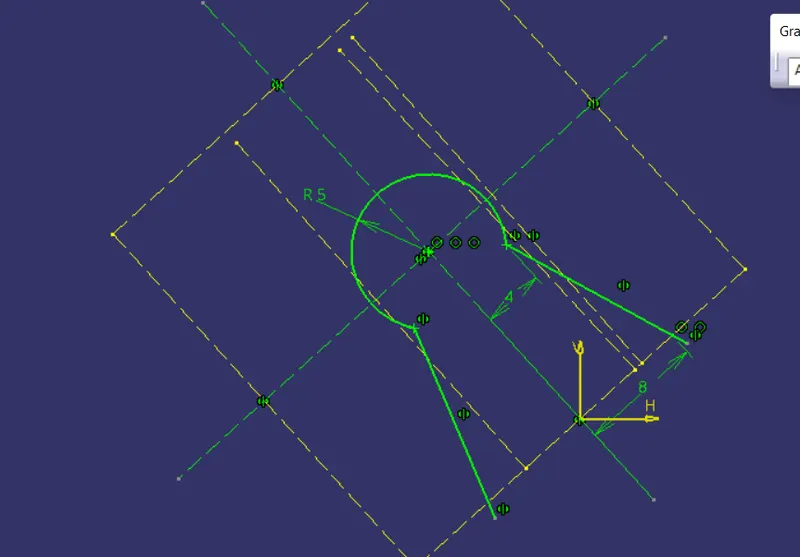

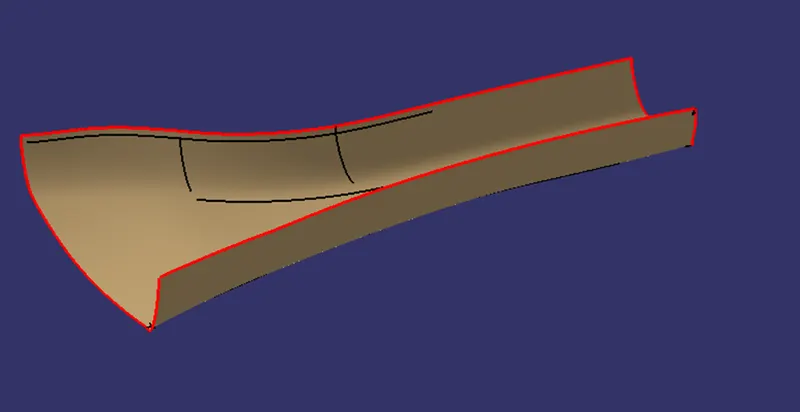

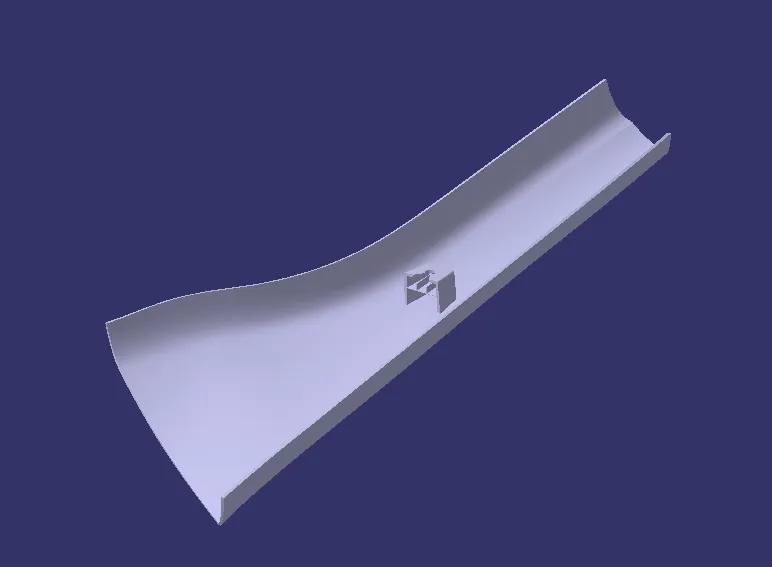

Given Master section Sketch 1 :

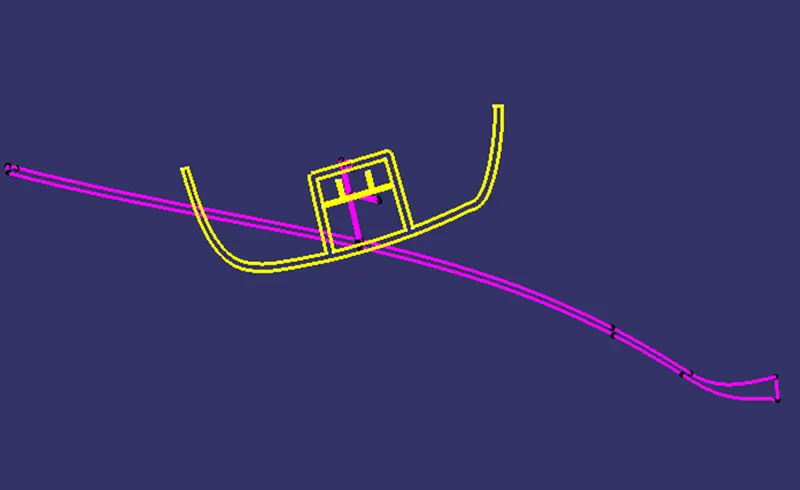

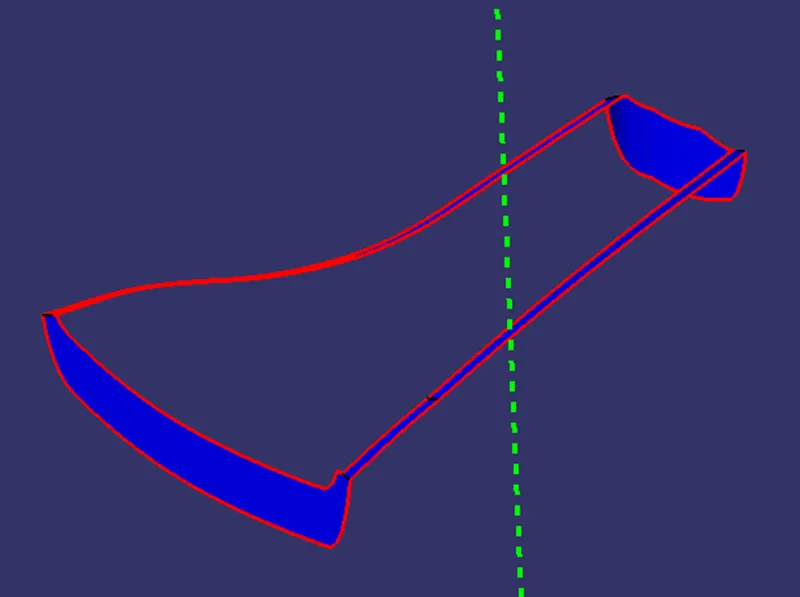

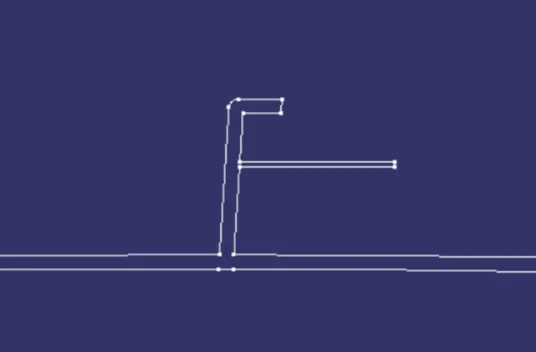

Given Master section Sketch 2 :

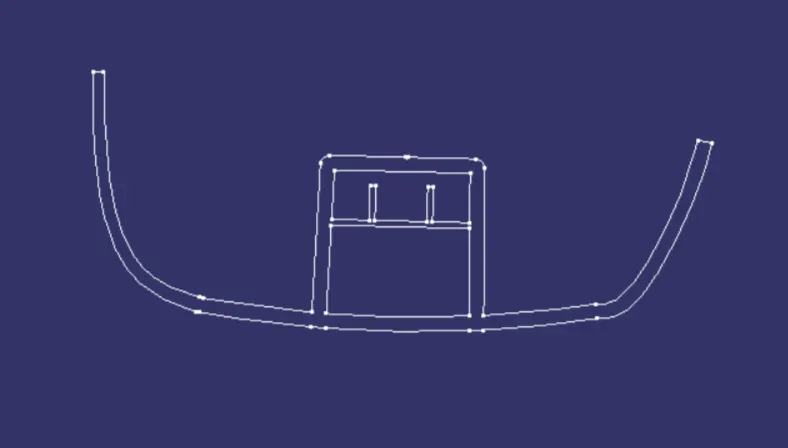

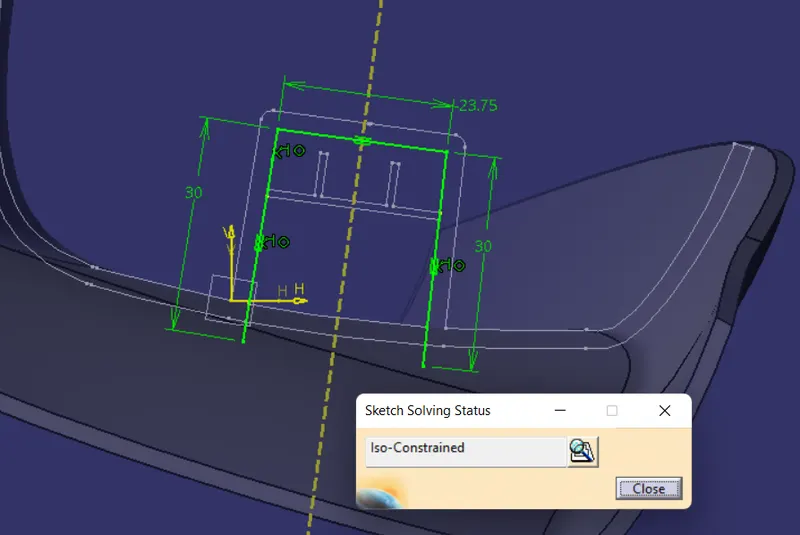

Sketch for Dog house :

Sketch for Cutting Element :

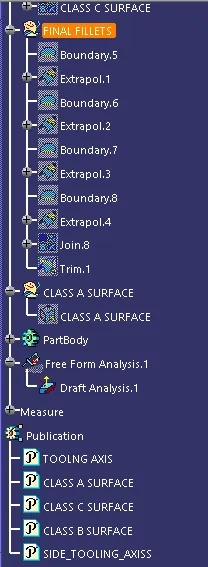

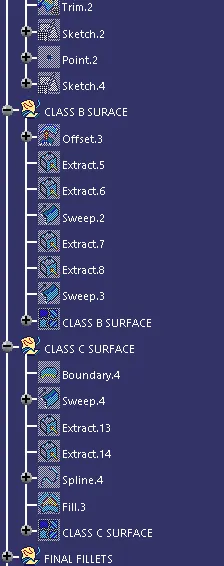

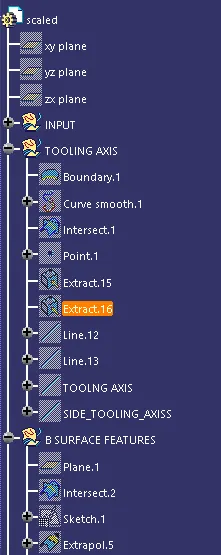

Tree Structure :

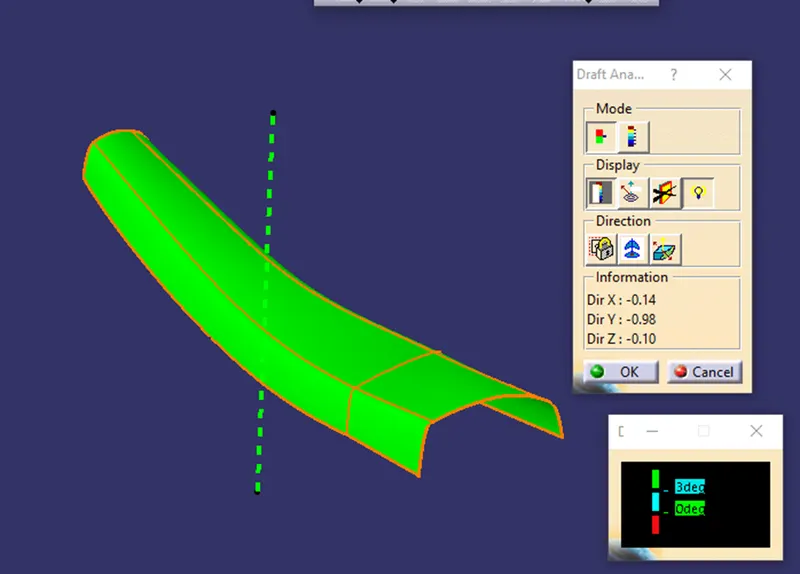

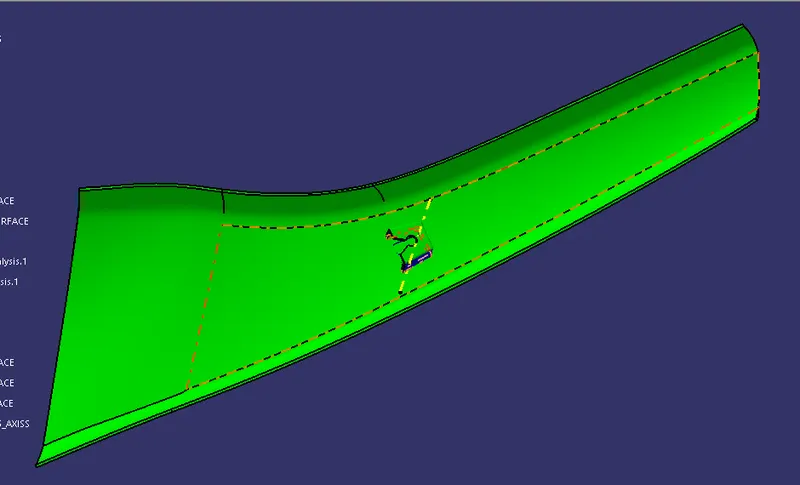

Draft analysis :

1. The part created has to be changed to material mode in display frame.
2. Compass is enabled and align it along with the tooling direction.
3. Lock command is then classified and Draft angle is applied.
4. Color codes are classified and Draft angle is applied.
5. Running point analysis is used to display permissible draft angle.

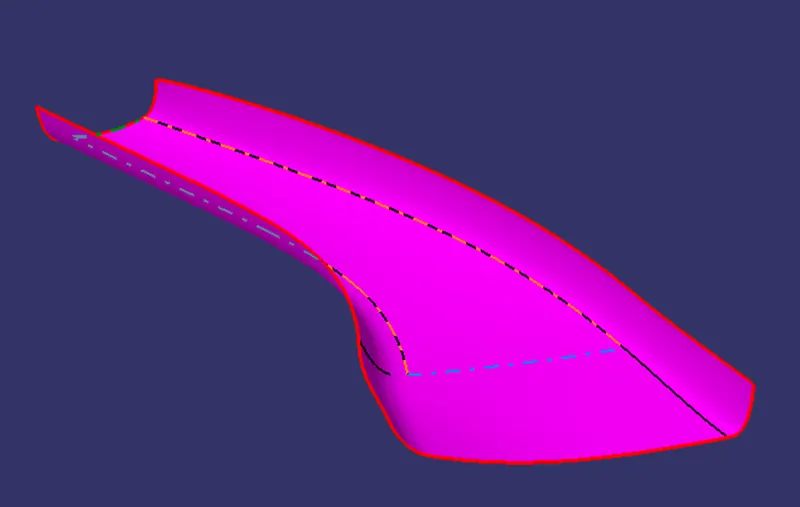

Draft Analysis For final solid part :

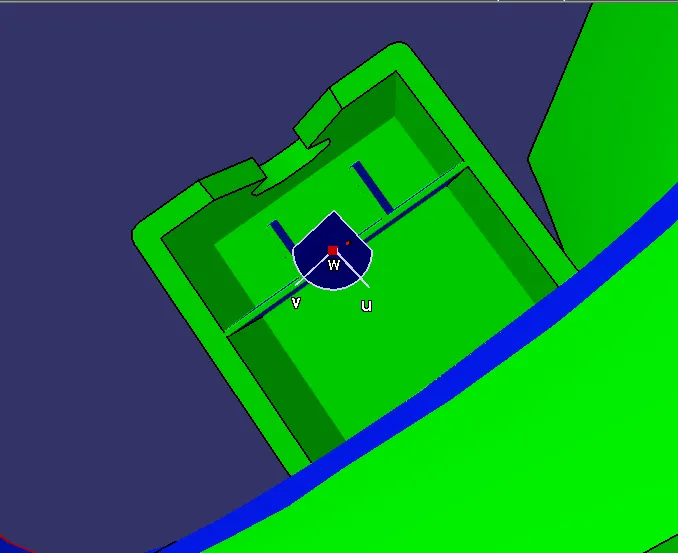

Side core Draft Analysis :

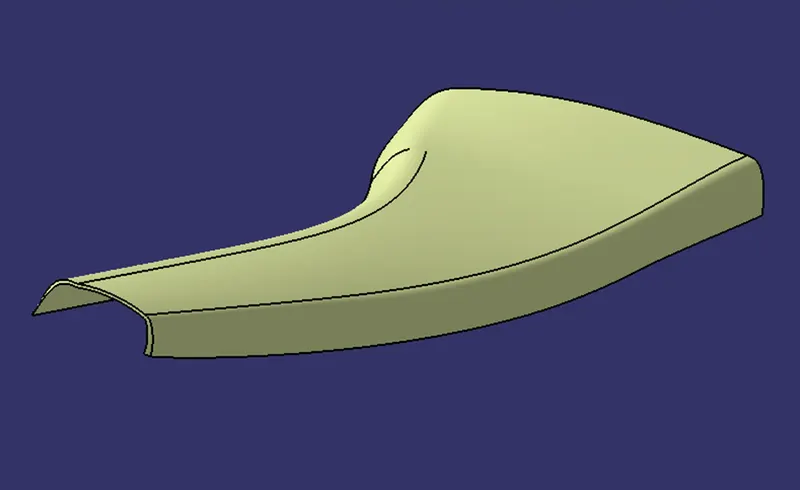

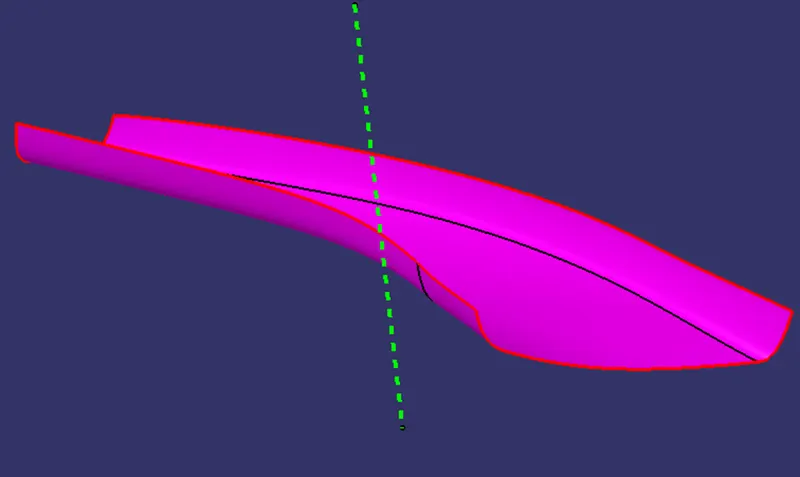

Final component :

Conclusion :

Hence the A Pillar Design with the master section given as the intersection sketch with the Class A surface is done sucessfully and create the tooling axis and perform the Draft analysis for the final solid part is also done successfully. From the Draft analysis for class A surface some areas in minimum of draft angle of 2.66 Degree so we need to correct it Class A surface itself by informing to the Class-A surface creating team.
