OBJECTIVES:

• To create the class B and class C surfaces from the given class A surface
• To form a solid geometry by combining all the surfaces
• To create a dog house for the solid part whilst following the design rules
• To perform draft analysis on the class A surface and the solid part model

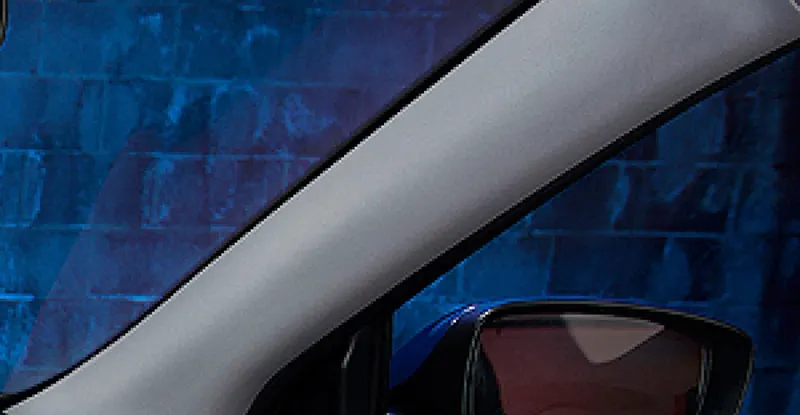

A-PILLAR

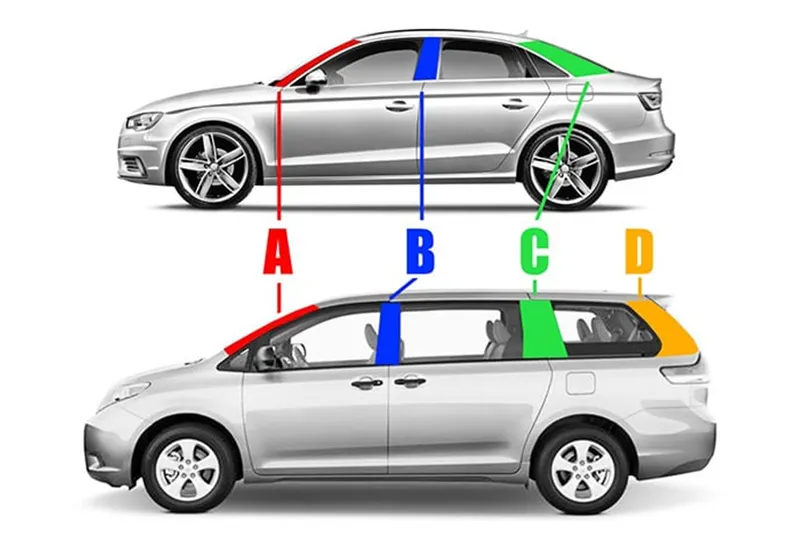

The structure of an automobile body consists of various support structures like the roof, pillars, and floor. The car pillar in the vehicle stands in the near-vertical position, which supports the vehicle’s roof. The pillars found most commonly are the A, B, C and D pillars.

The A pillars are the first set of upright sections on a car body that links the lower body to the roof of the car. It acts as a major support structure during impacts and it is also a median to support the windshield of the vehicle. Apart from structural advantages the A pillar has a large effect on the overall aerodynamics of the vehicle.

MASTER SECTION:

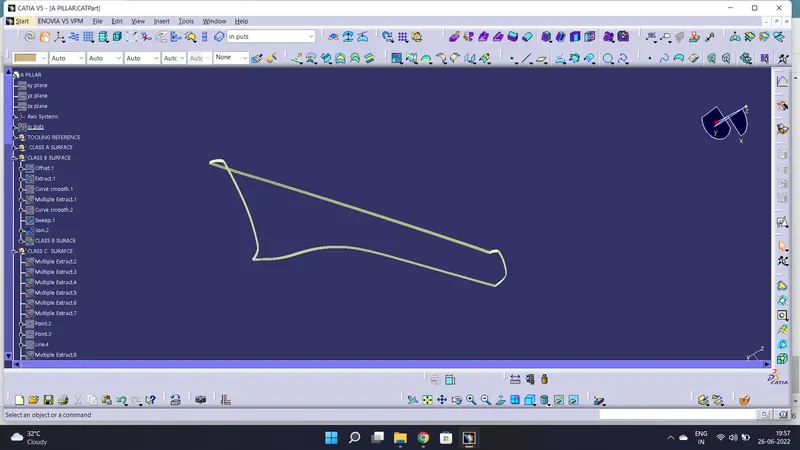

Master sections are the guides for design requirements which decide the component packaging after the styling surface

REFERENCE FOR CLASS A, CLASS B & CLASS C SURFACE.

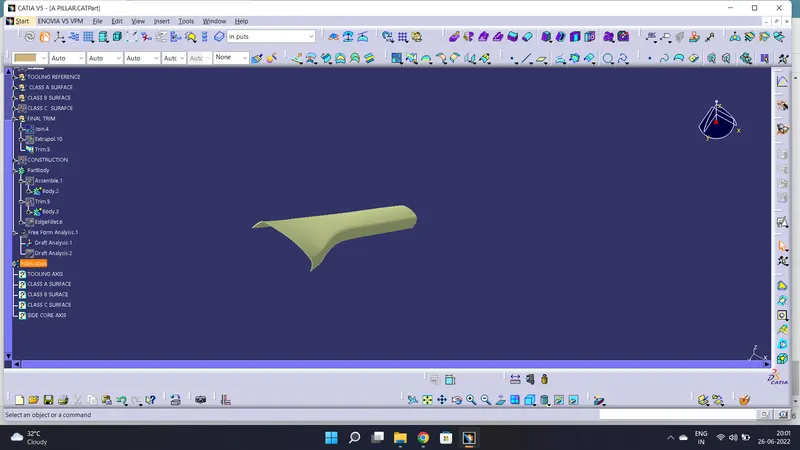

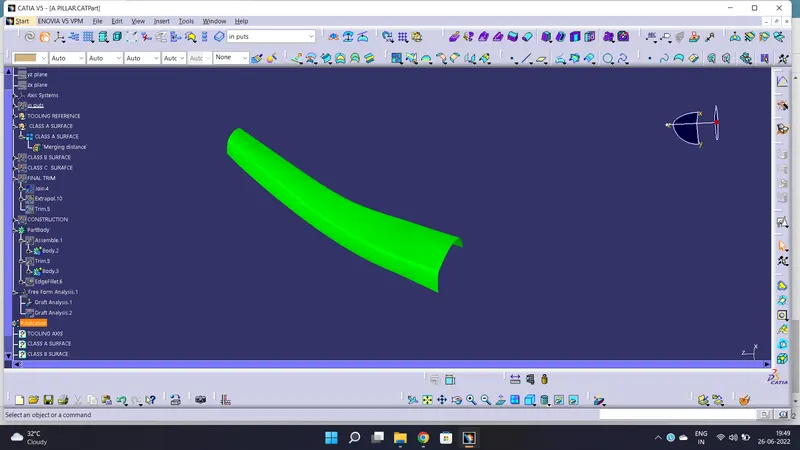

CLASS A SURFACE

check the surface quality

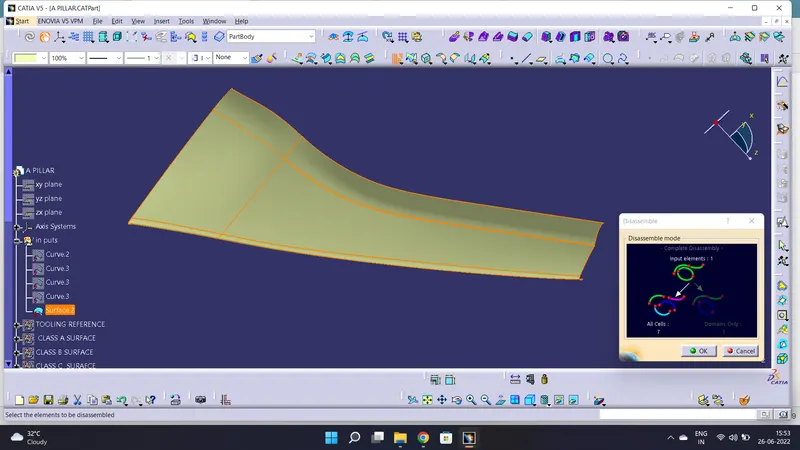

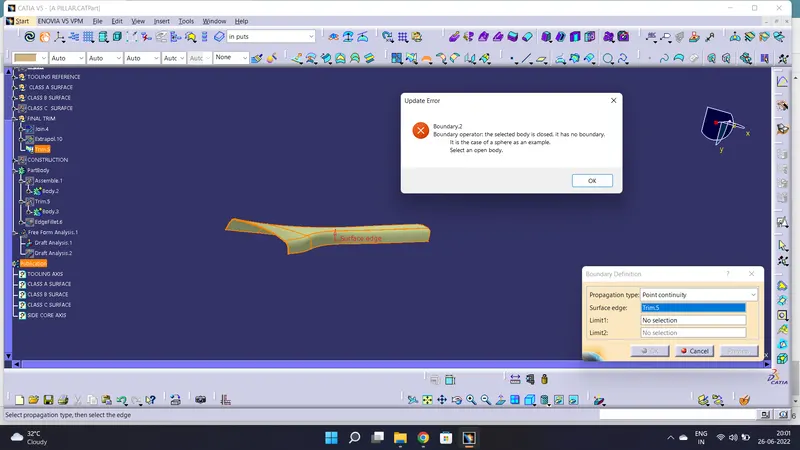

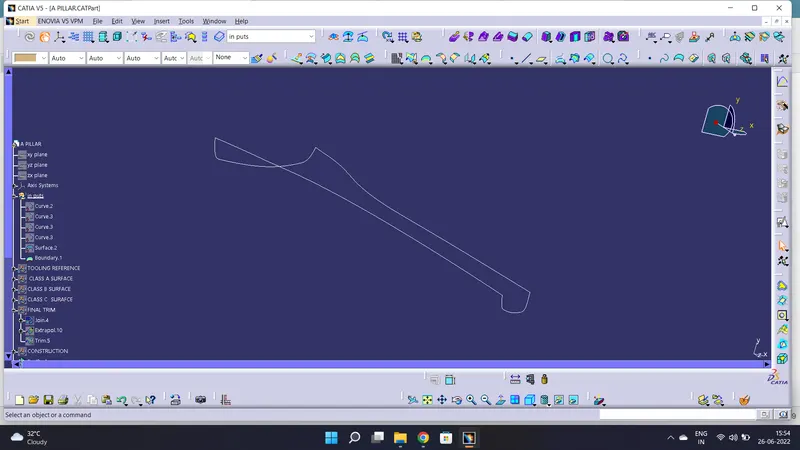

check the any patches available in surface with boundary

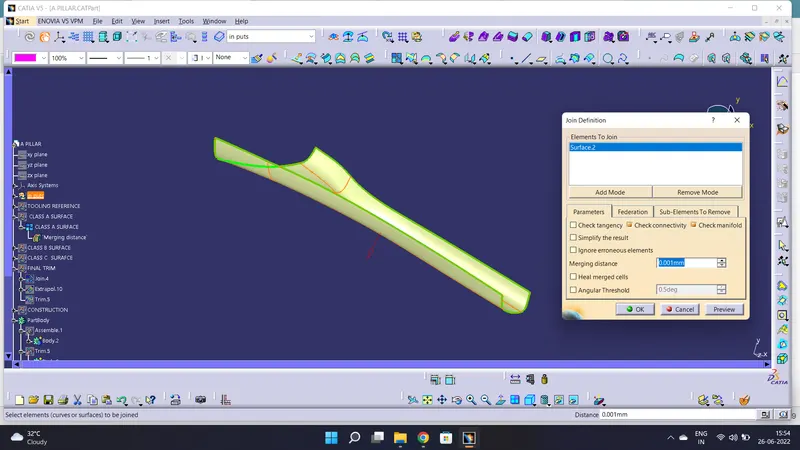

let's join the surface

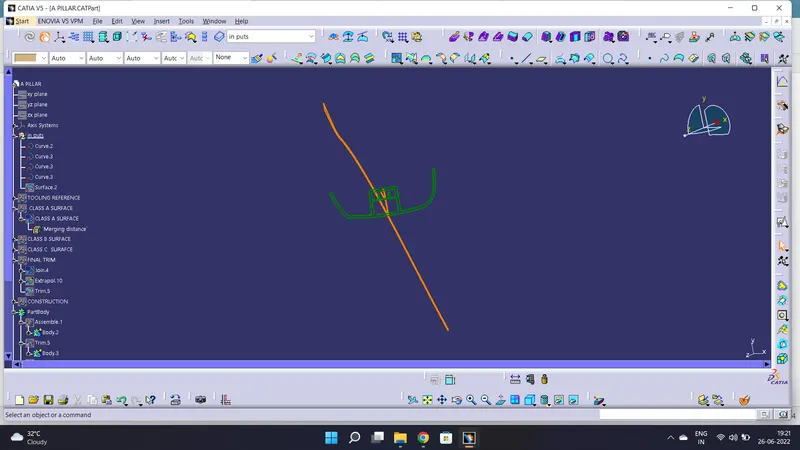

TOOLING AXIS

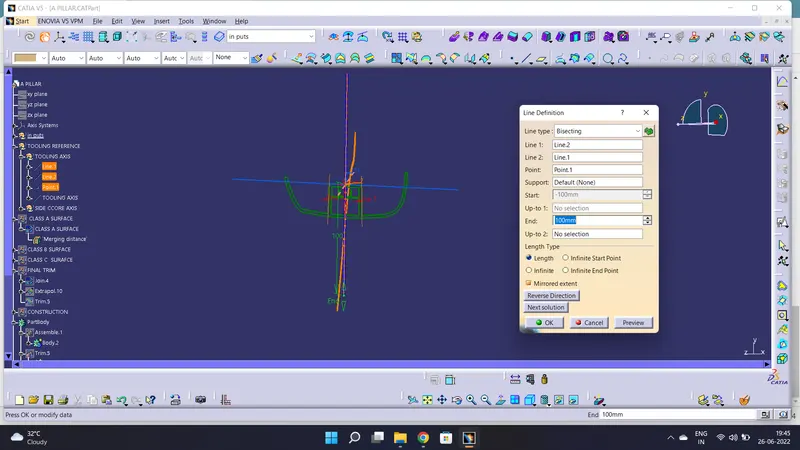

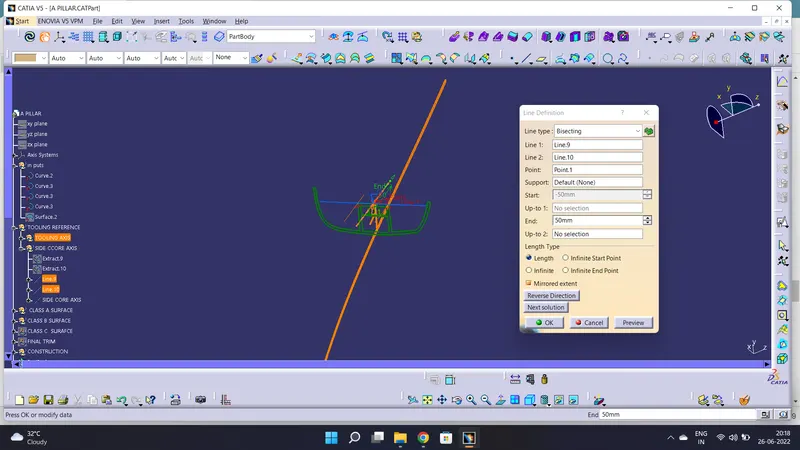

create the two lines with the master section, bisecting the line & create the tooling axis.

DRAFT ANALAYSIS

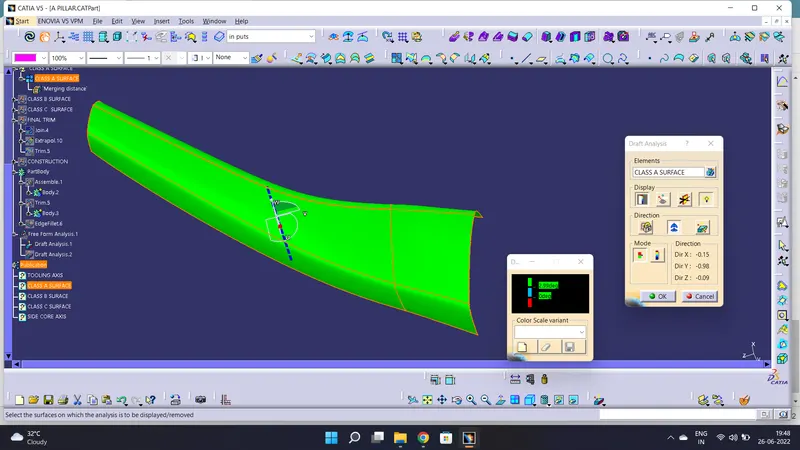

Draft analysis for class A surface

CLASS B SURFACE

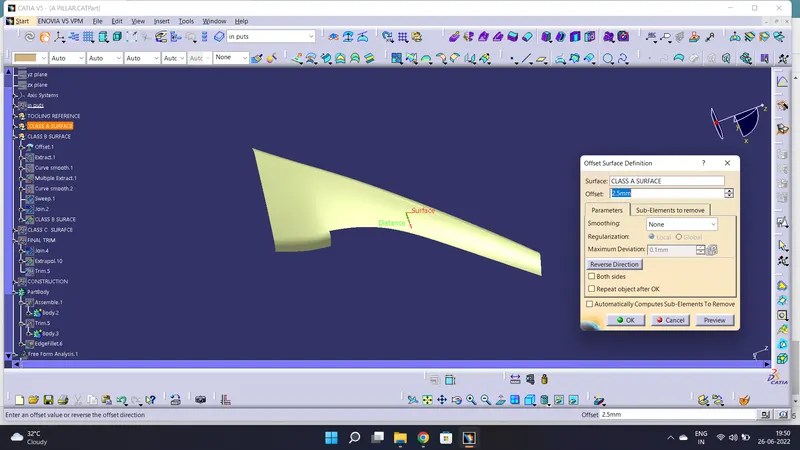

Create B surface offset form the class A surface as per master section.

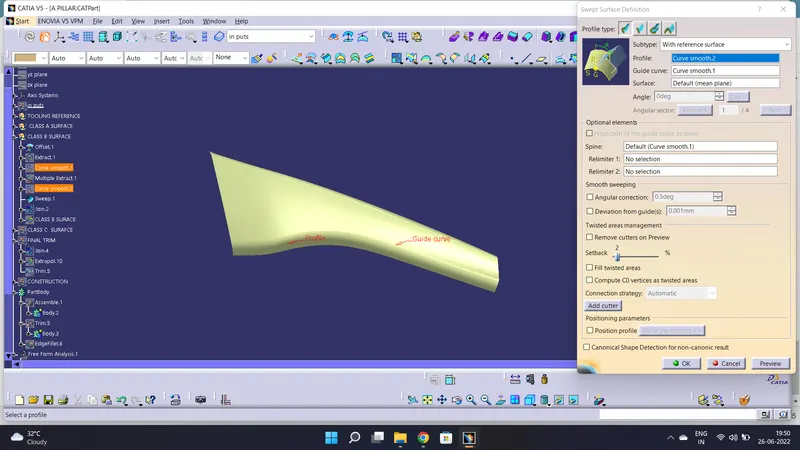

missing surfaces create with swept surface.

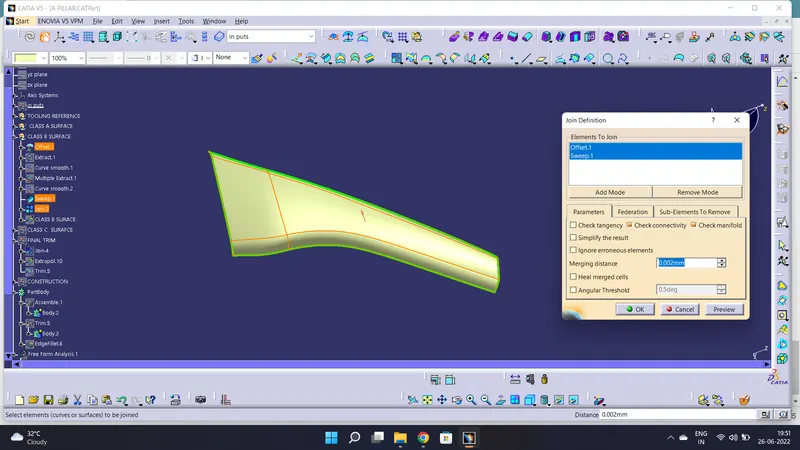

let's join the surfaces & create the class B surface.

CLASS C SURFACE

create the surface with swept & multi section surfaces.

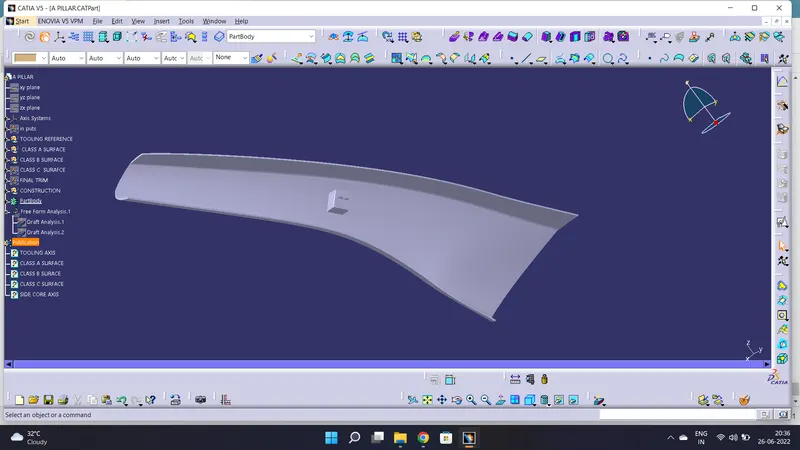

FINAL SURFACE

Join the surfaces without any boundary.

SIDE CORE AXIS

create side core axis using master section.

DOG HOUSE & RIBS

Create the dog house & ribs as per master section.

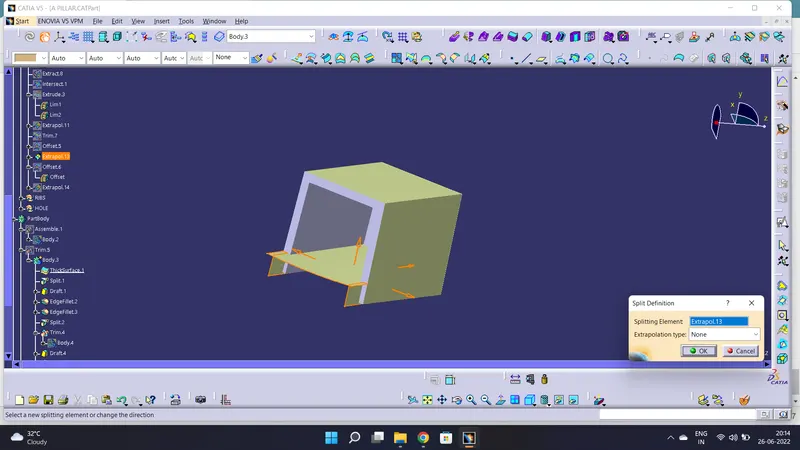

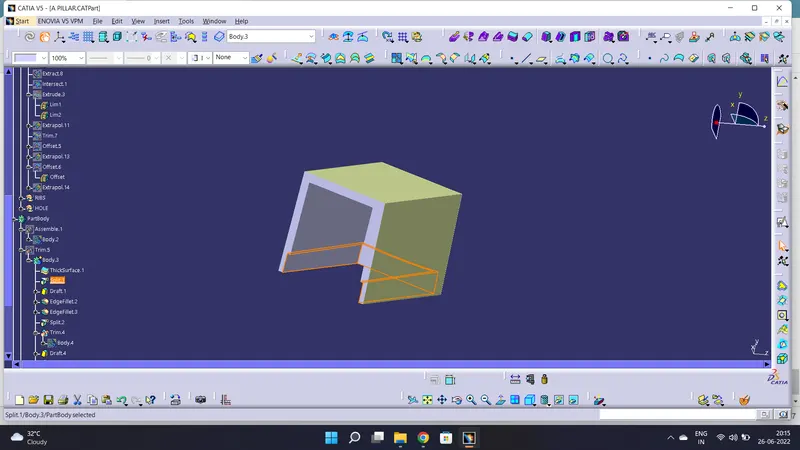

DOG HOUSE

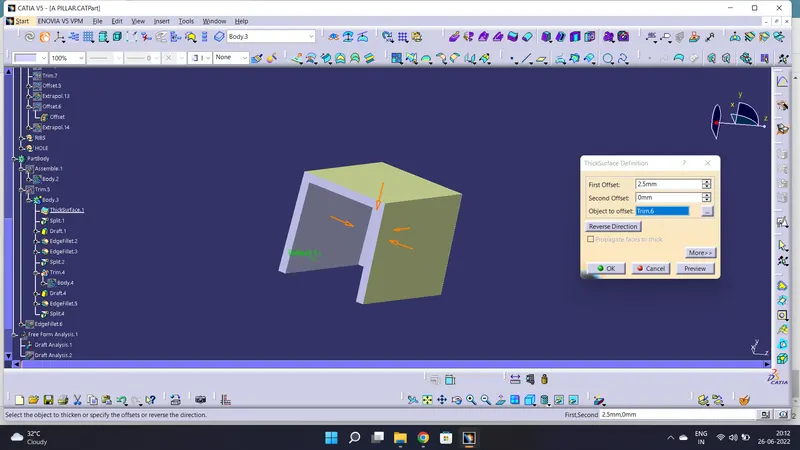

Extrude the sketch convert to sloid.

to reduce the sink marks.

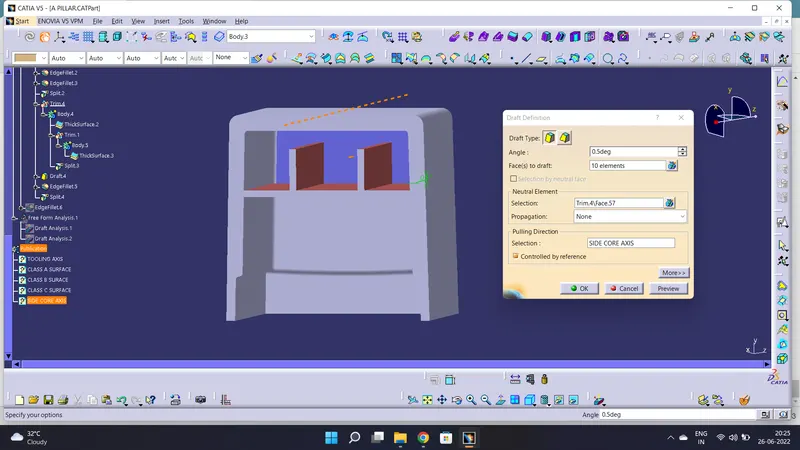

draft to the dog house using side core axis.

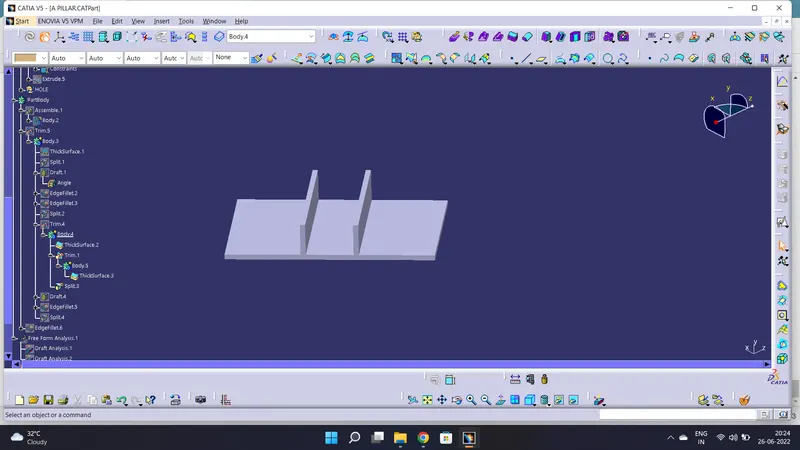

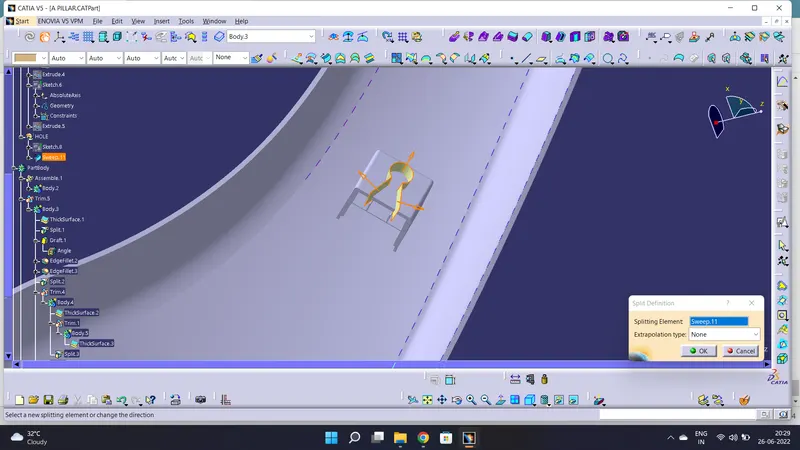

RIBS

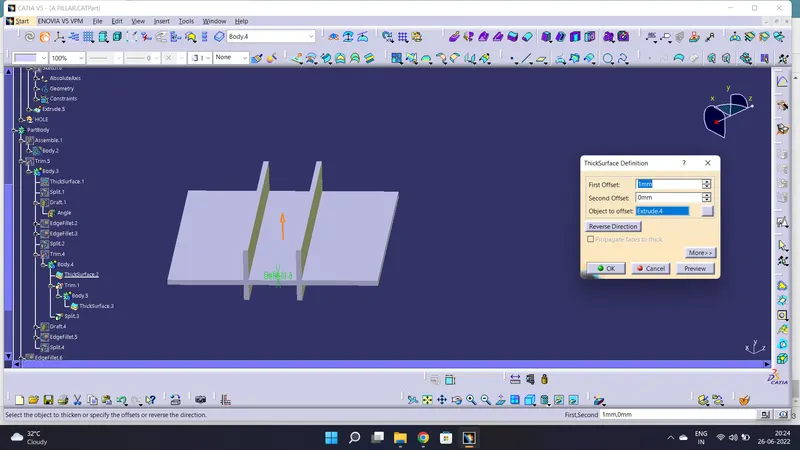

Extrude the sketch convert to sloid.

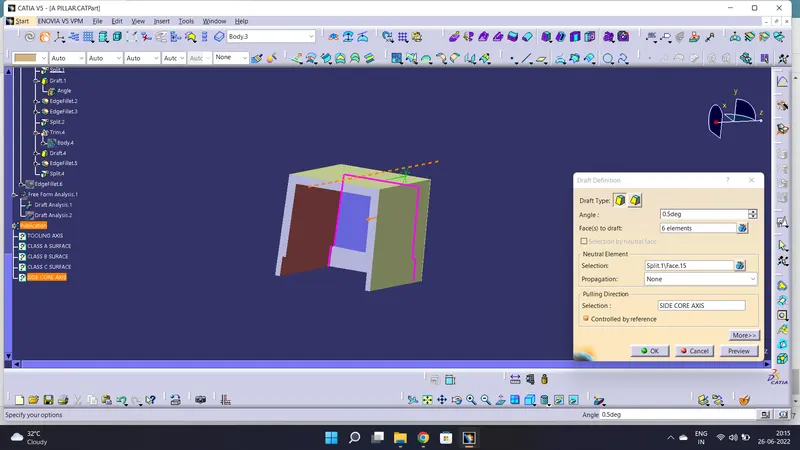

DRAFT TO RIBS USING SIDE CORE AXIS

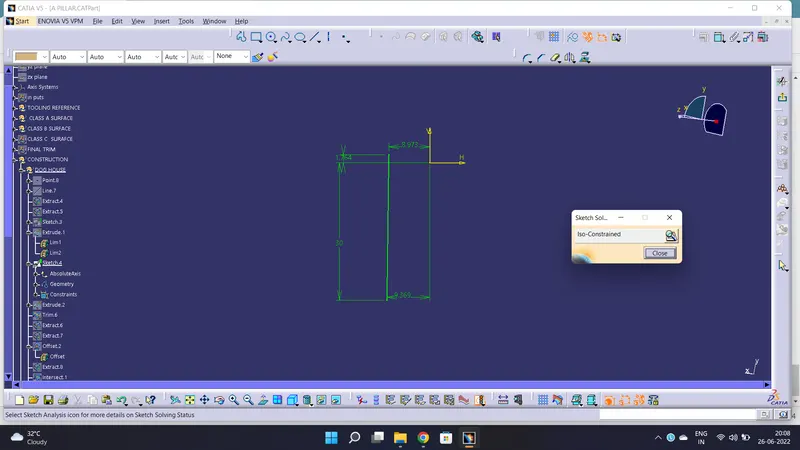

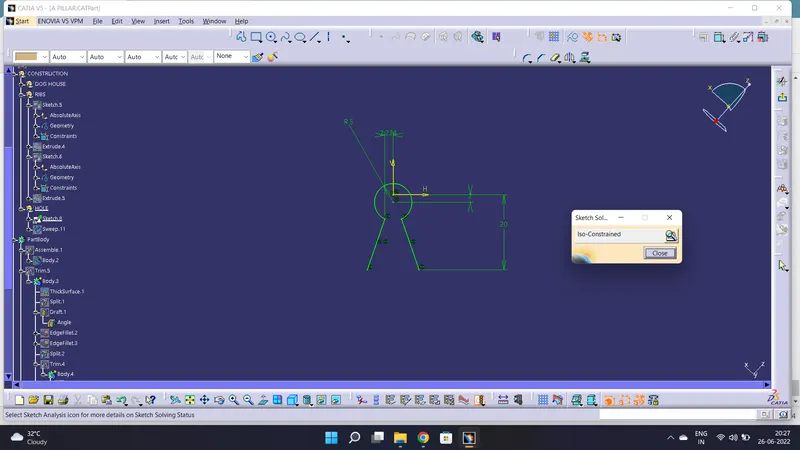

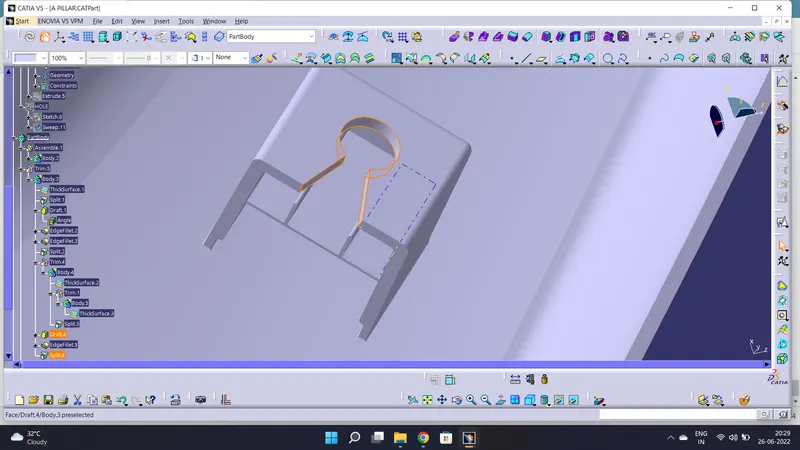

DOG HOUSE TOP PROFILE

GIVEN FILLETS TO THE DOG HOUSE & RIBS AS PER MASTER SECTION.

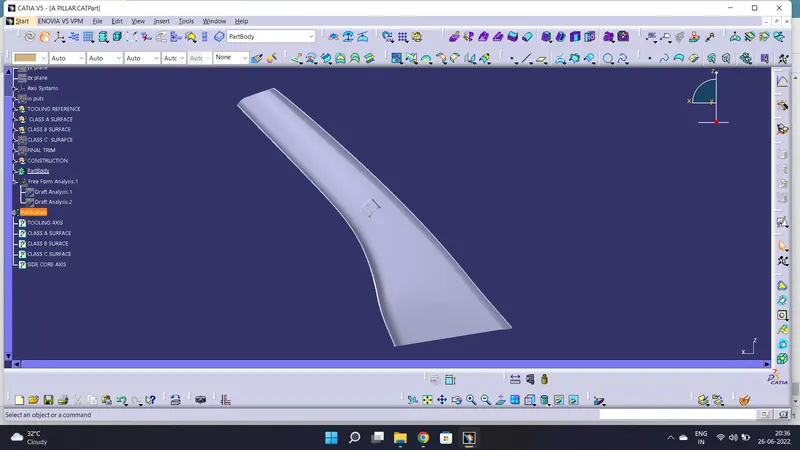

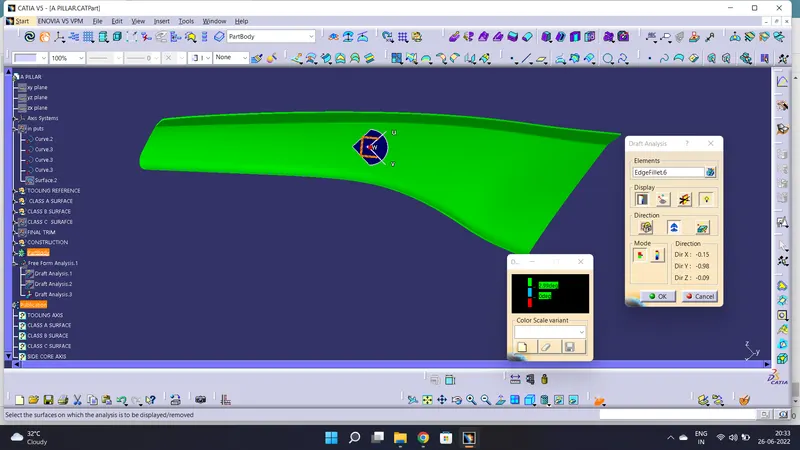

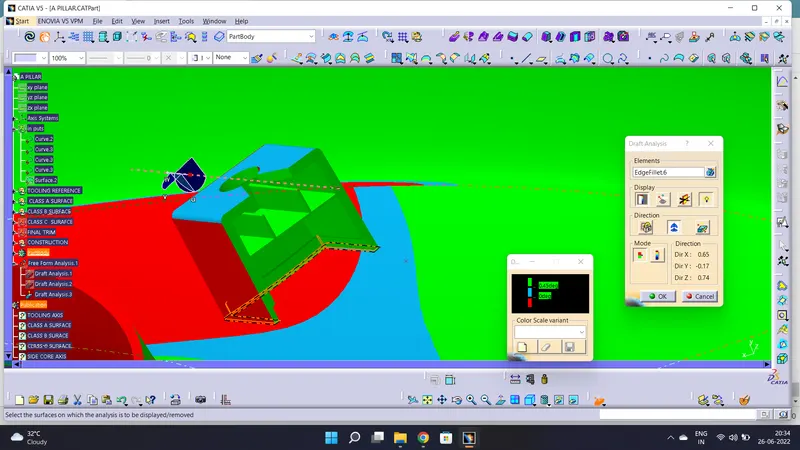

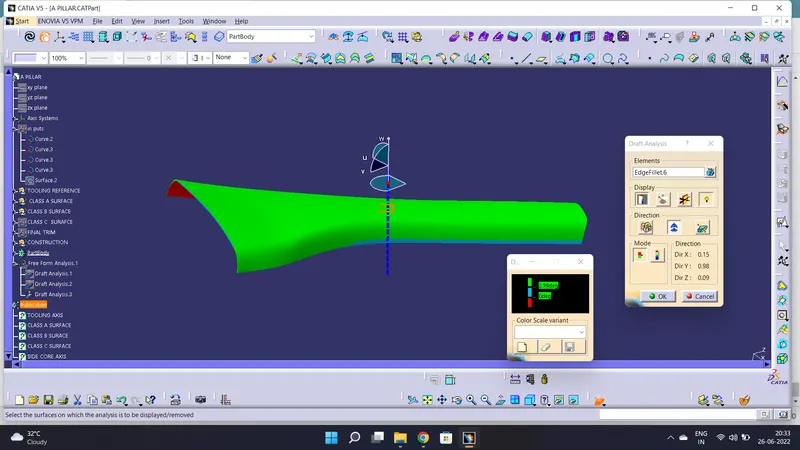

DRAFT ANALYSIS FOR SOLID SURFACE

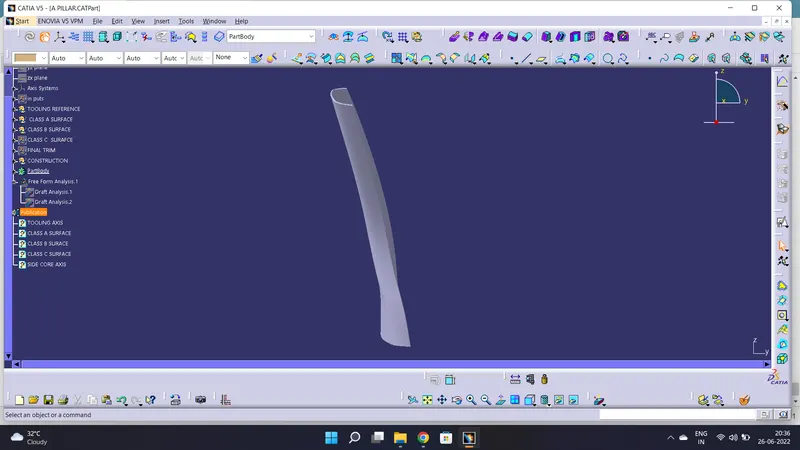

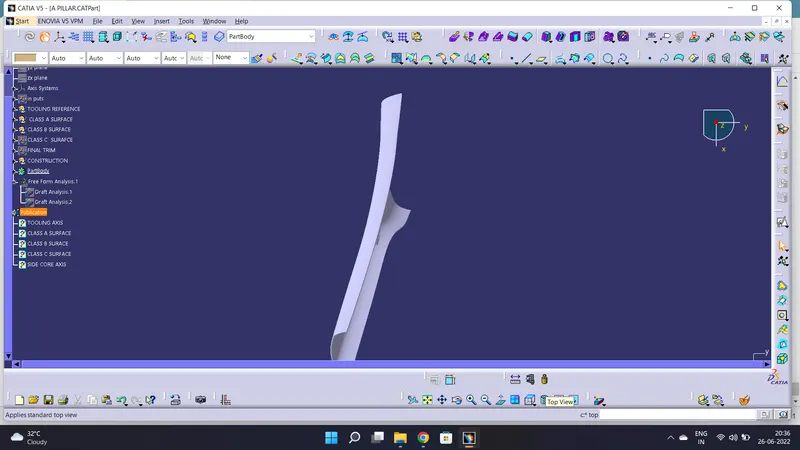

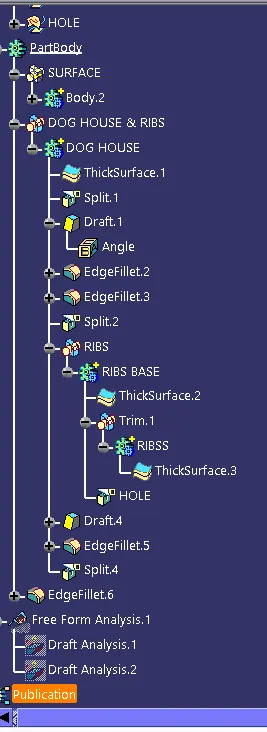

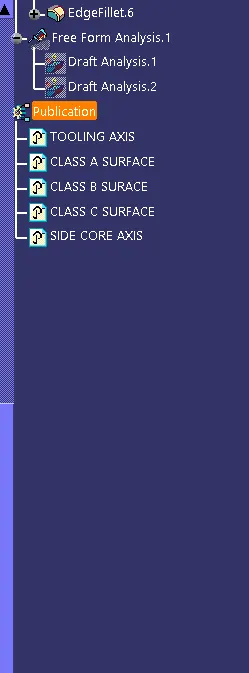

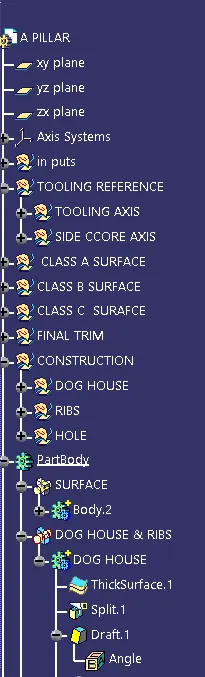

VIEWS
