Week 9 - Project - A pillar Design with Master Section

Tooling Axis

Main Tooling Axis : Created Tooling axis using Tanent surface of the given class A Surface.

Side Core Axis : Created Side core axis using tangent plane of the master cut section.

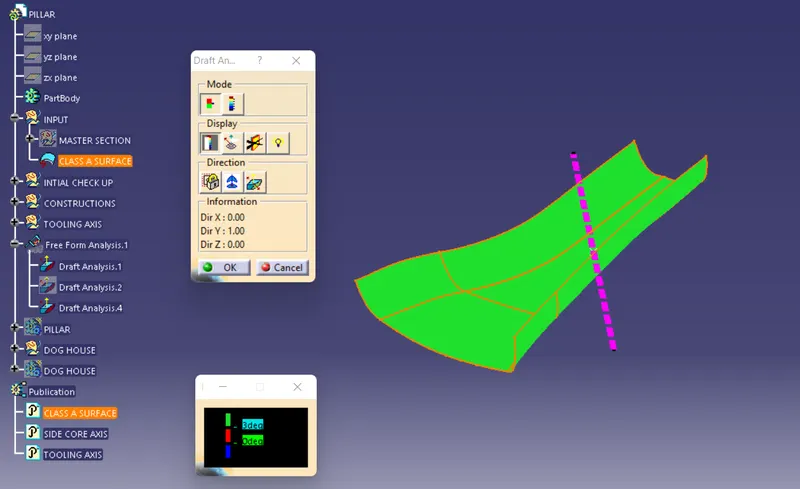

Draft Analysis of Class A surface

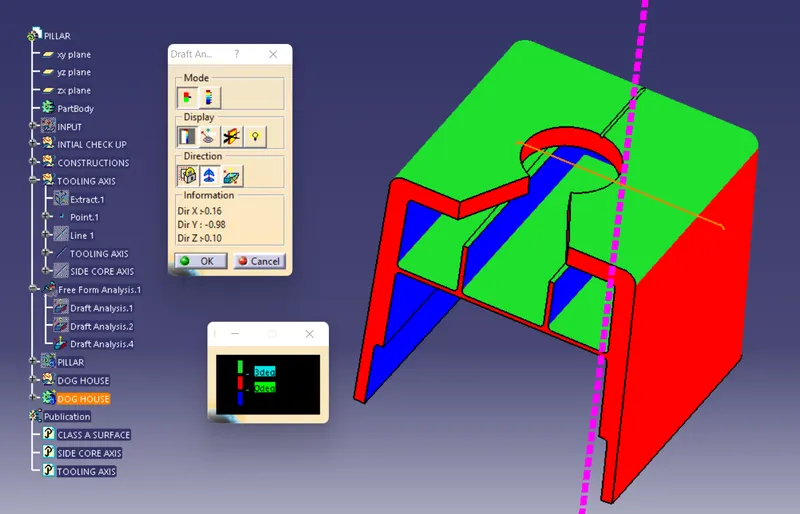

Dog House draft analysis of using Side Core Axis

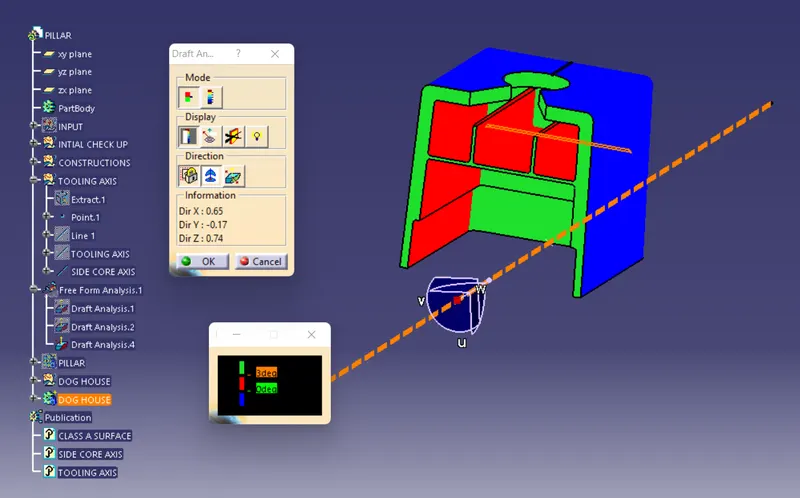

Dog House draft analysis of using Main Tooling Axis

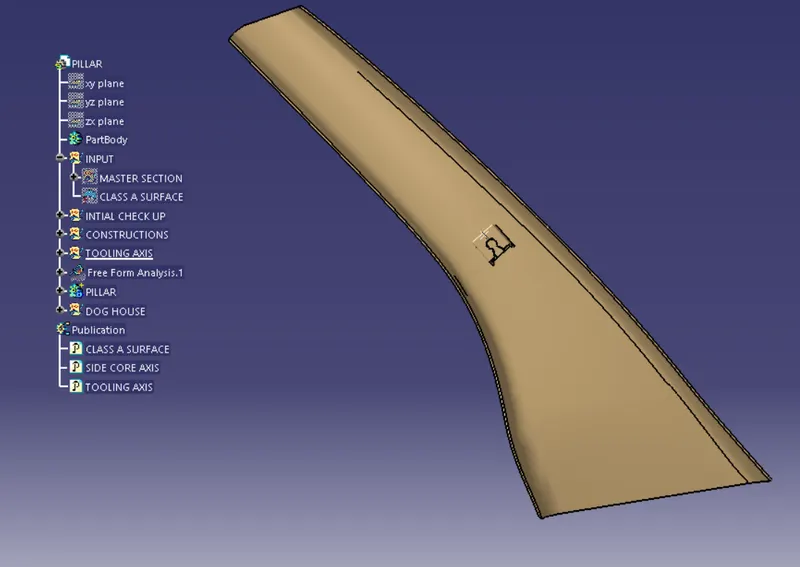

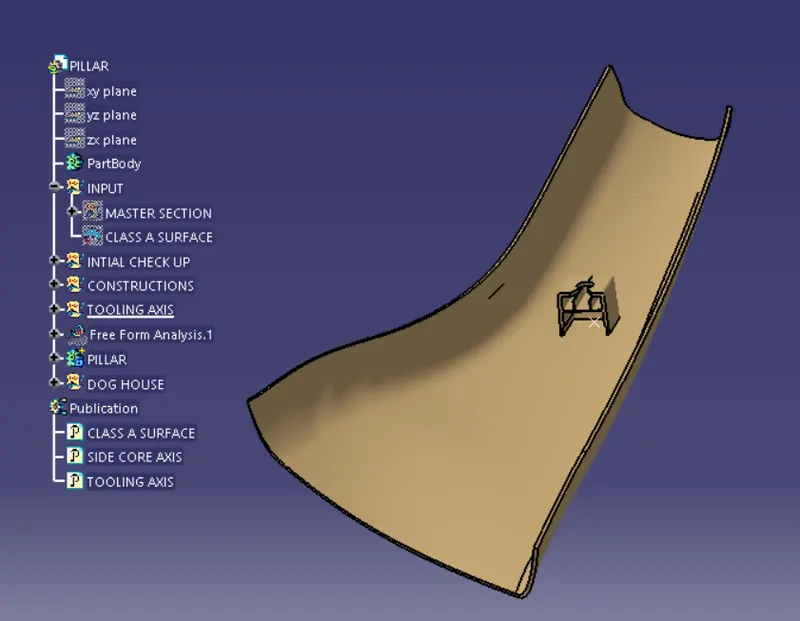

Tree Structure with plastic component

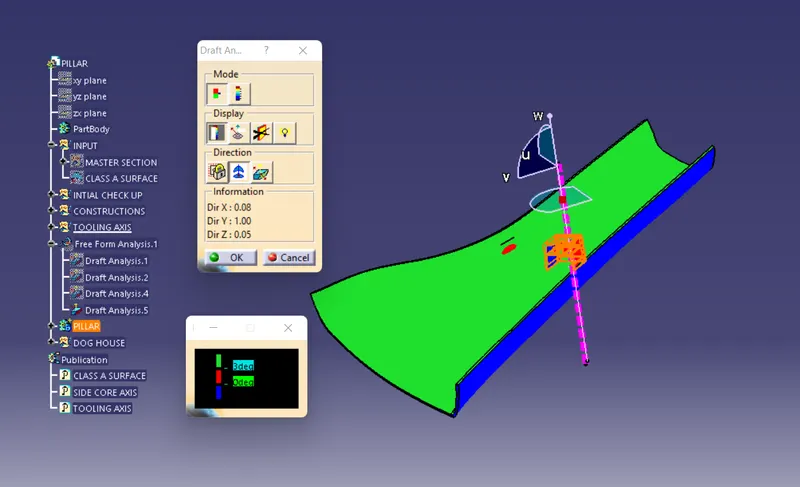

Draft Analysis Of Pillar
