Week 9 - Project - A pillar Design with Master Section

A PILLAR DESIGN WITH A MASTER SECTION

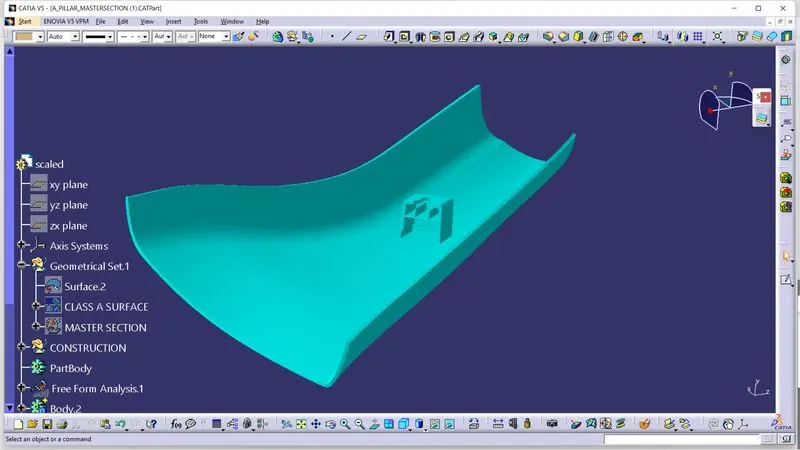

MASTER SECTION

REFERENCE FOR CLASS A, CLASS B & CLASS C SURFACE.

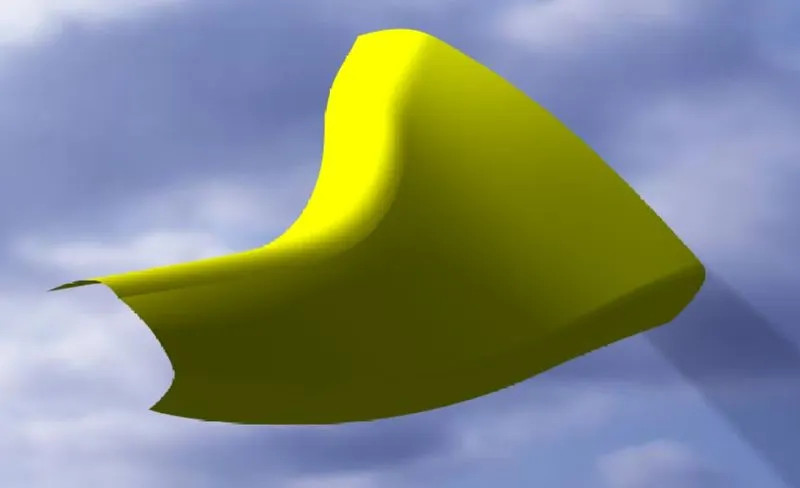

CLASS A SURFACE

check the surface quality

TOOLING AXIS

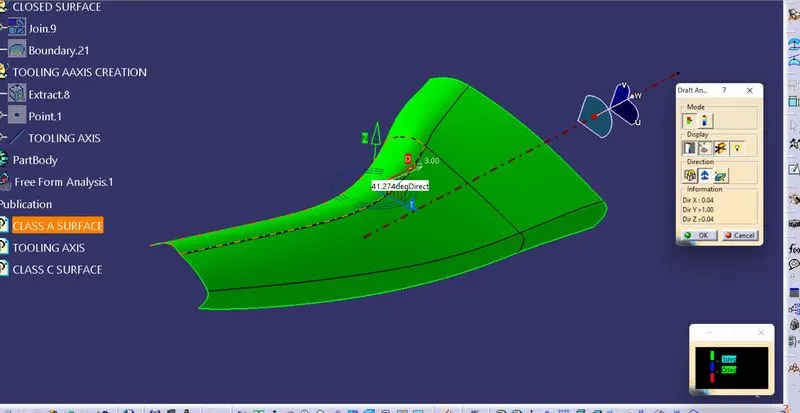

create the two lines with the master section, bisecting the line & create the tooling axis.

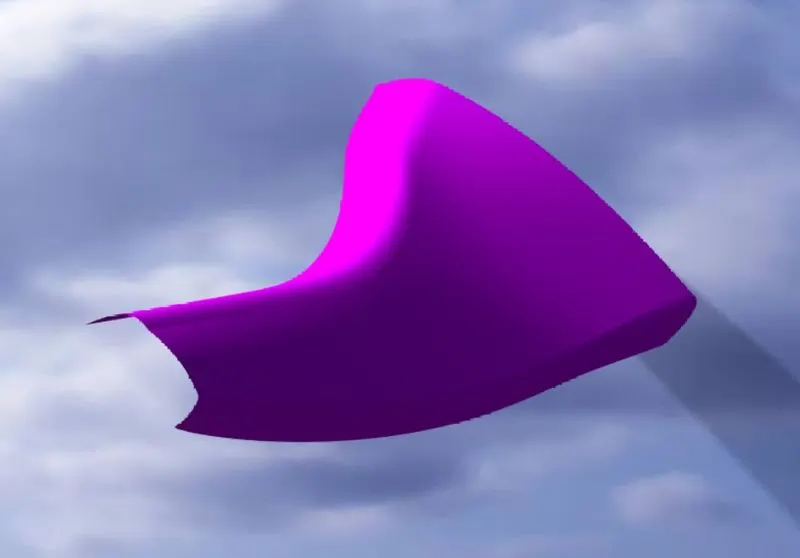

CLASS B SURFACE

Create a B surface offset from the class A surface as per the master section.

missing surfaces create with swept surface.

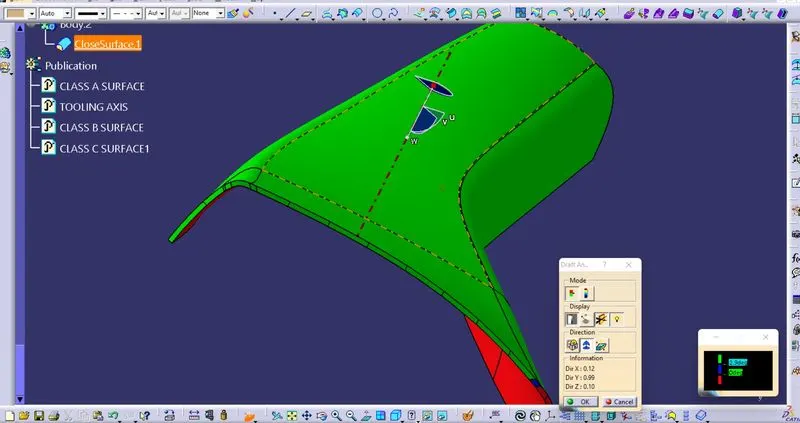

let's join the surfaces & create the class B surface.

CLASS C SURFACE

create the surface with swept & multi section surfaces.

SIDE CORE AXIS

create side core axis using master section.

DOG HOUSE & RIBS

Create the dog house & ribs as per master section.

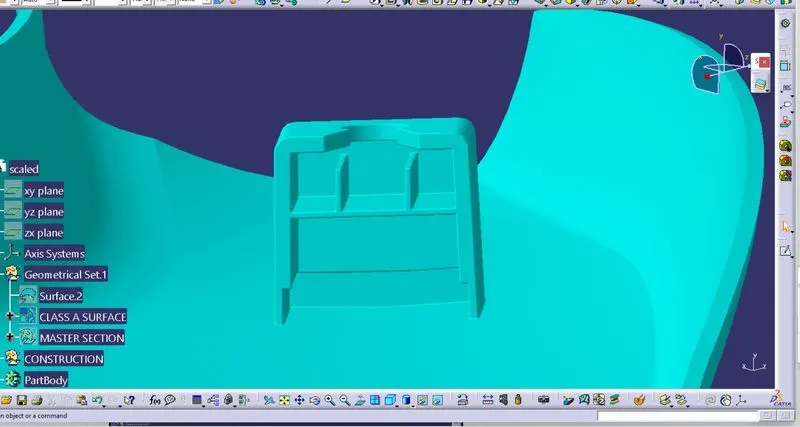

DOG HOUSE

final complete Model
