Week 8 - Challenge 3 - Coin Holder Design

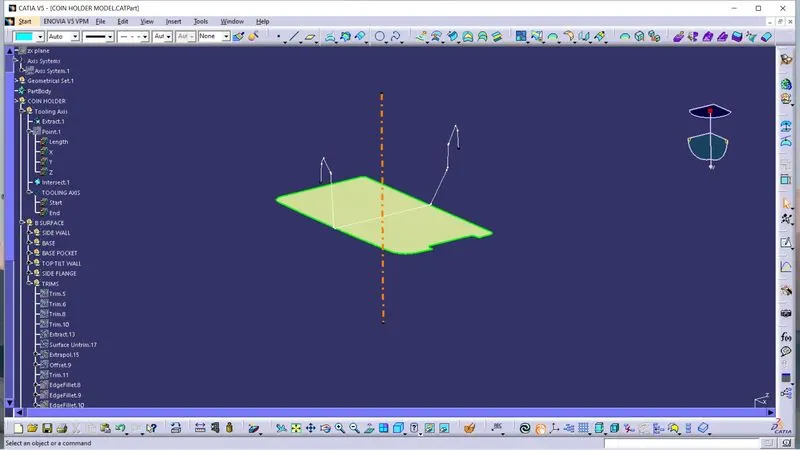

Tooling Axis

referece faces

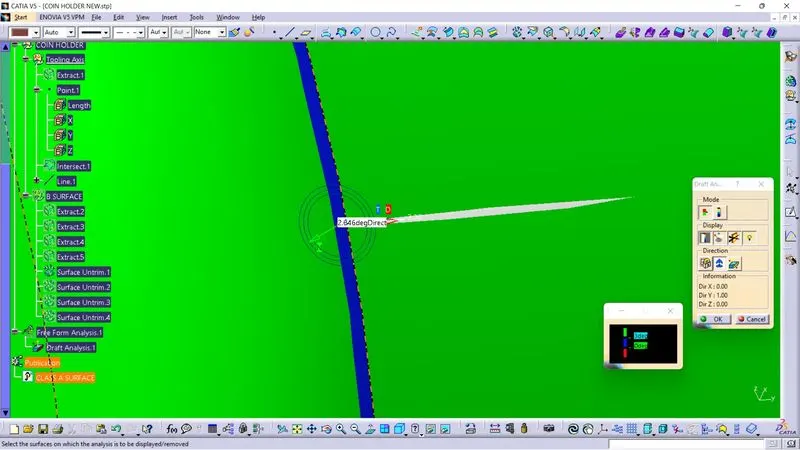

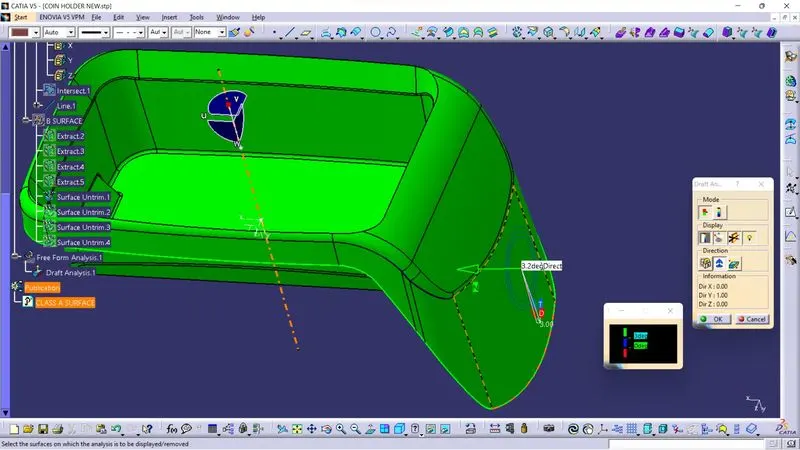

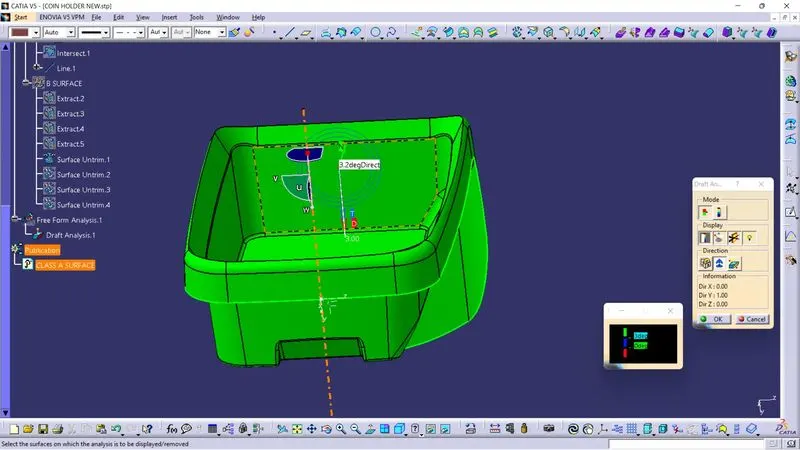

Class A draft analysis - first create tooling axis, then select material from material selection and click on insert then click on analysis and select geometric draft analysis and drag campus on the top of tooling axis and the select surface of class a and getting result in green color an also measure RIBs side angle. after that click okay.

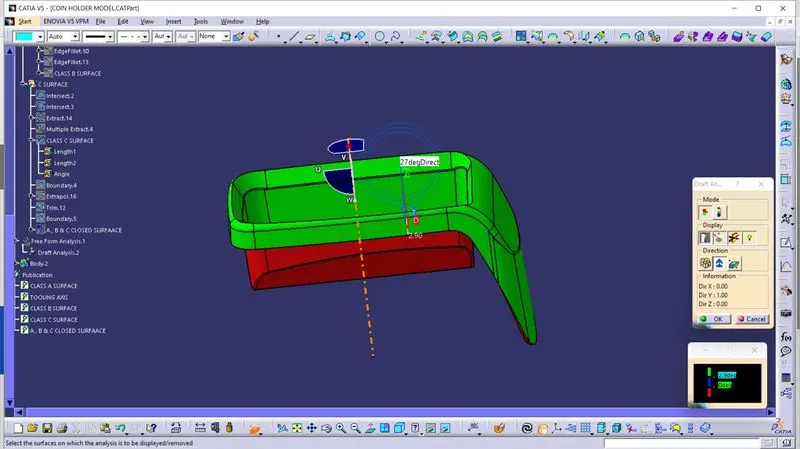

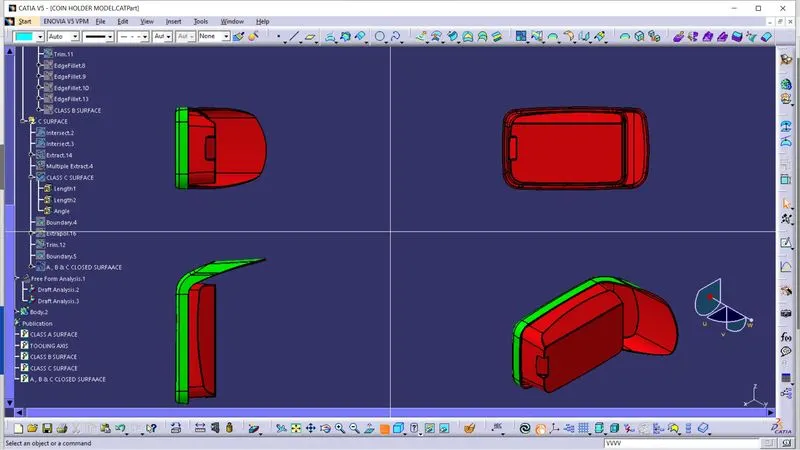

Draft analysis solid body - After trimming all surfaces class A, B & C and trimming all these surfaces got a closed surface and Solid body take a draft analysis and the result is class A & C is in green color and class B is in red color.
