Week 9 - Project - A pillar Design with Master Section

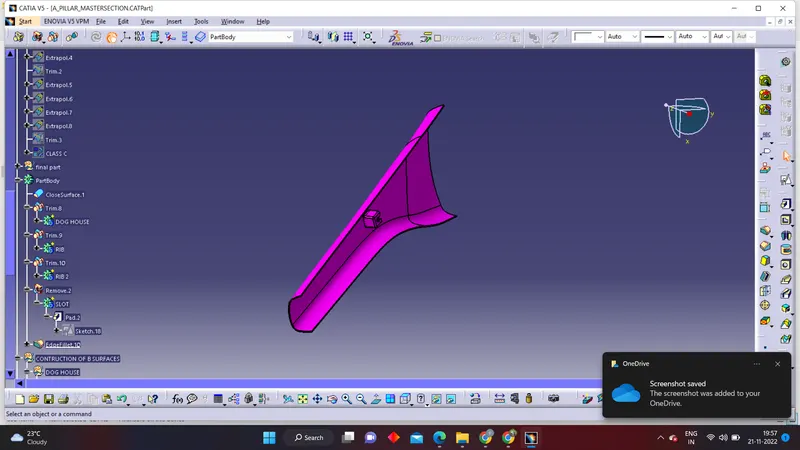

Master section tree structure:-

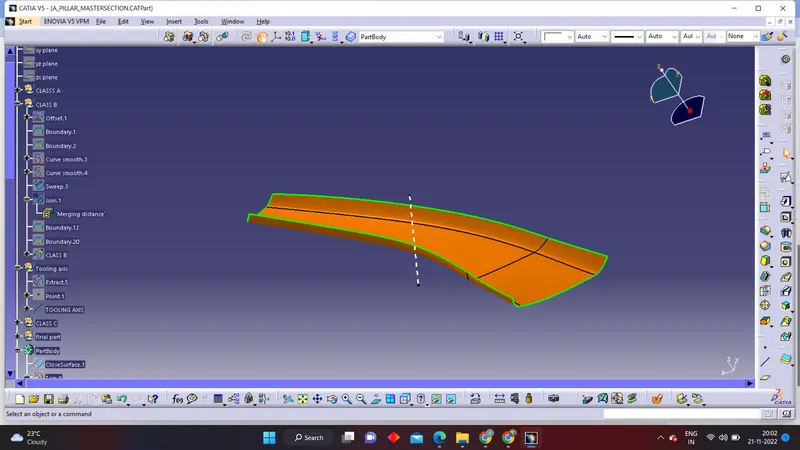

DRAFT ANALYSIS FOR THE GIVEN CLASS A SURFACE:

Conclusion:- From the draft analysis, it is evident that the given class A surface draft is more than 3 degree to the selected tooling axis. Hence it is feasible to manufacture.

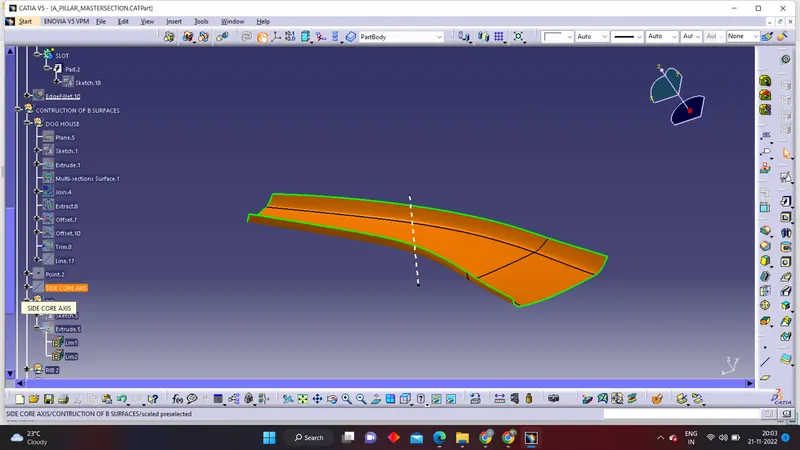

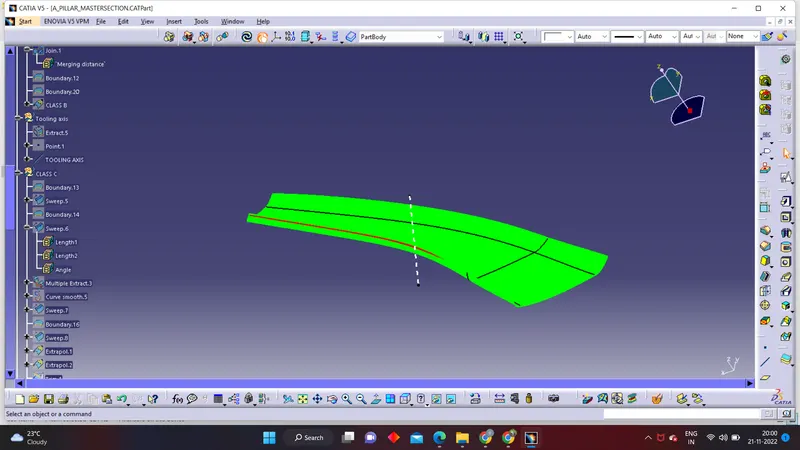

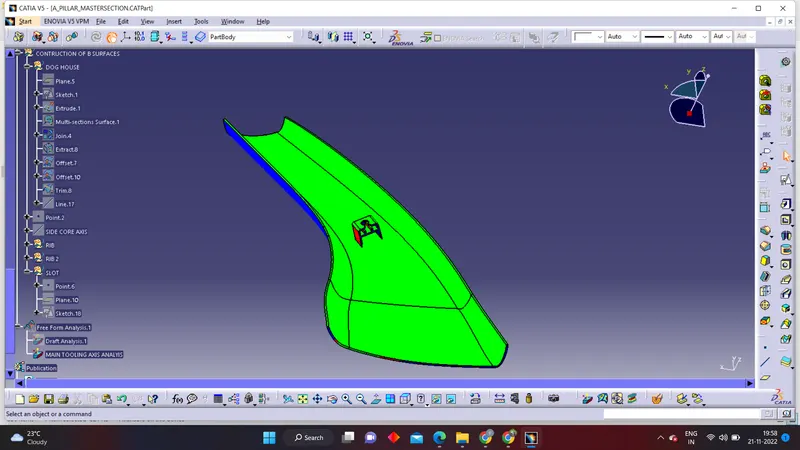

DRAFT ANALYSIS FOR THE GIVEN CLASS A SURFACE_NORMAL TO TOOLING AXIS

Same draft analysis image of class A surface normal to tooling axis. It is all green(draft more than 3 degree).

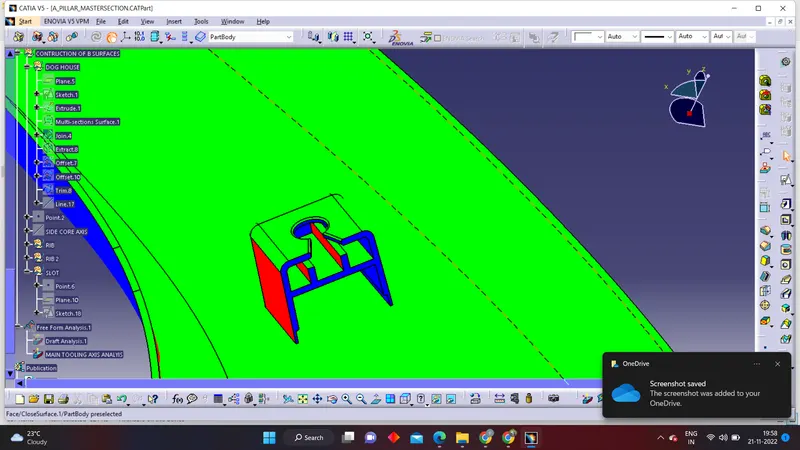

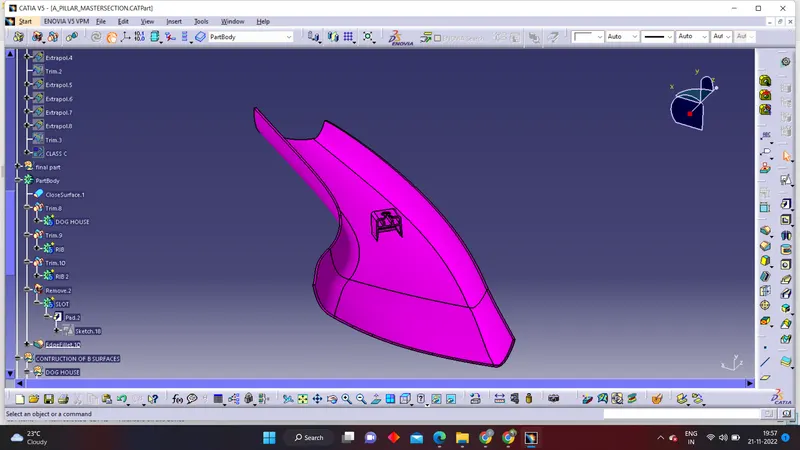

DRAFT ANALYSIS FOR THE FINAL PLASTIC COMPONENT:-

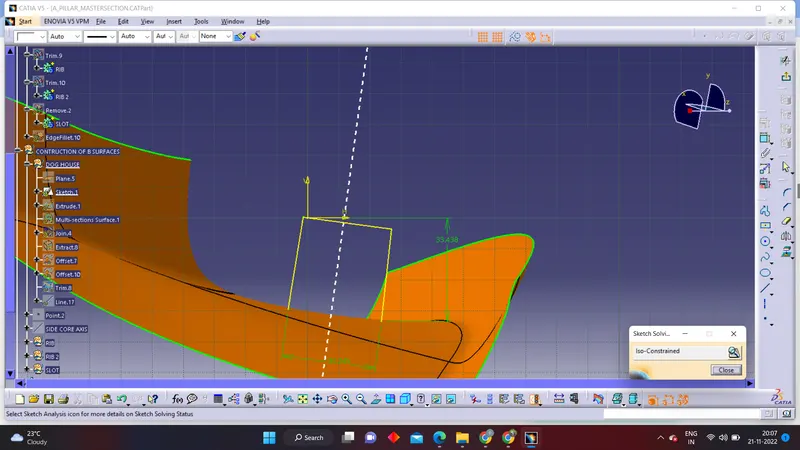

dog house feature:-

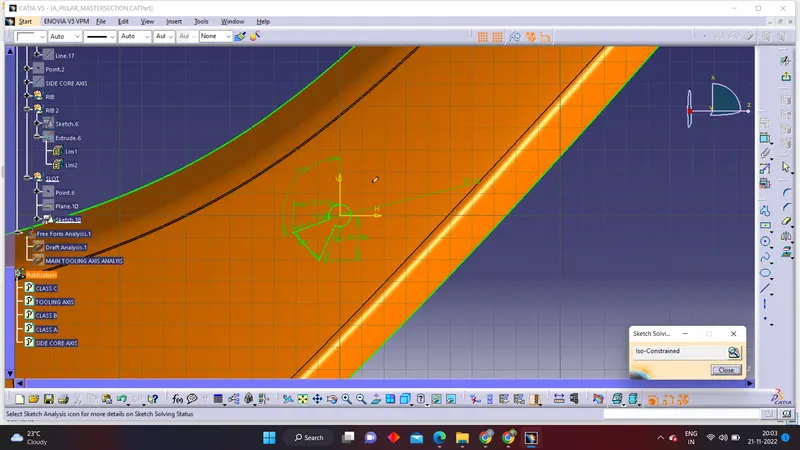

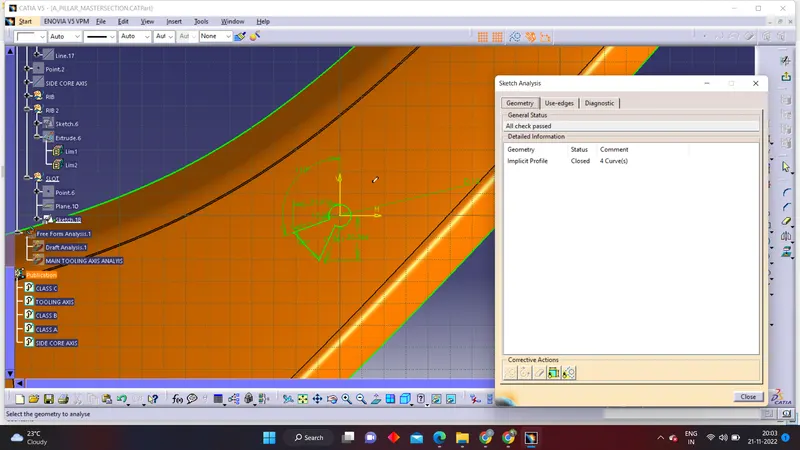

sketch solving status:-

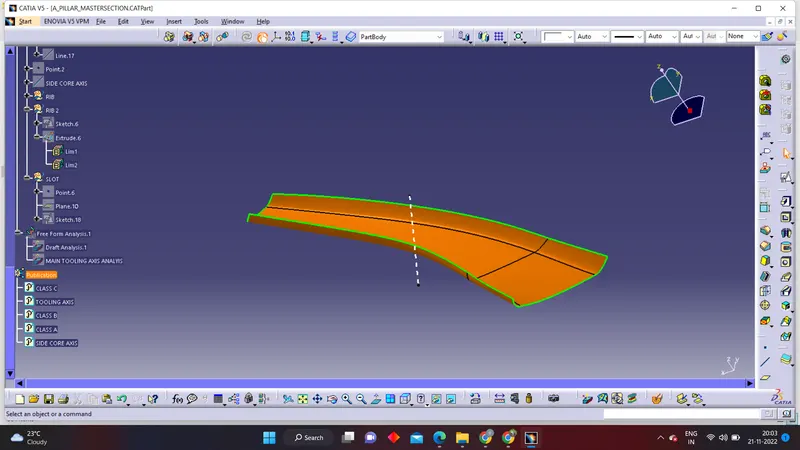

Tooling axis:- Tooling axis can be created by using different ways in this case i used a flat surface taking reference to create a tooling axis . Intially we need to extract the surface and make a point on the surface then take a point direction and draw the line normal to the surface.

top view:-

side view:-
