Week 9 - Project - A pillar Design with Master Section

A-PILLAR MASTERSECTION:

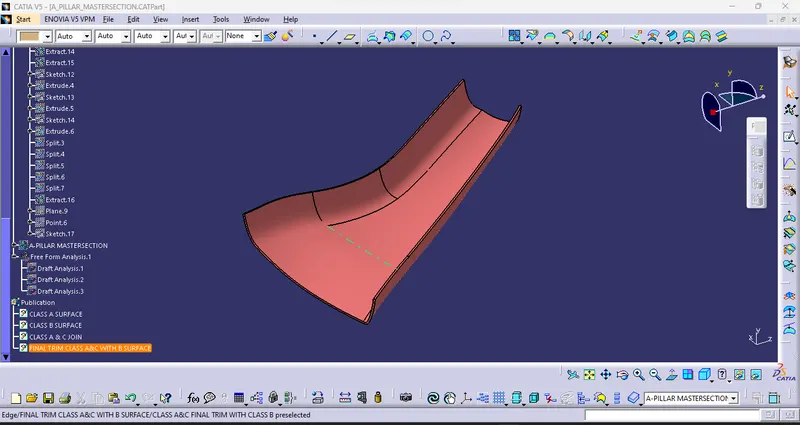

CLOSED A SURFACE:

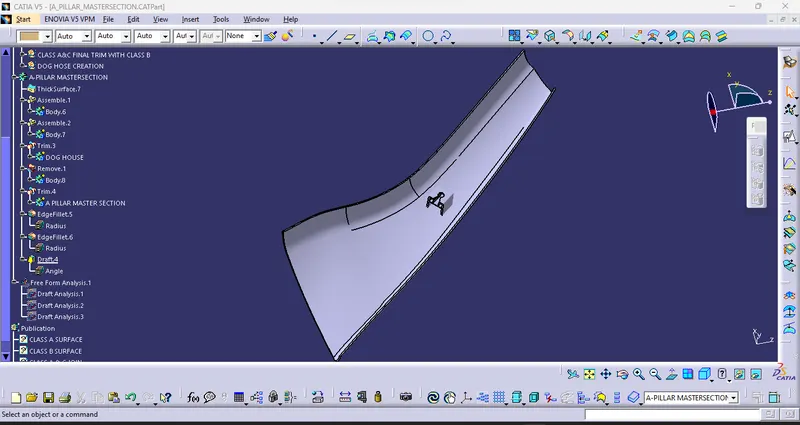

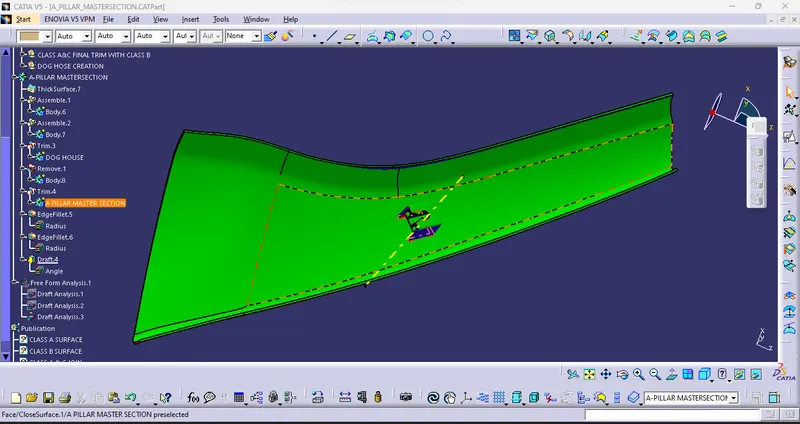

CLOSED BODY:

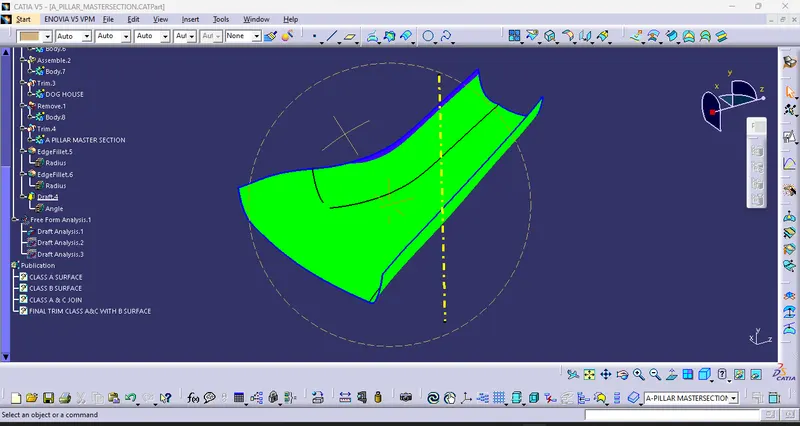

CLASS A SURFACE DRAFT ANALYSIS:

CLASS B SURFACE DRAFT ANALYSIS:

CLOSED BODY DRAFT ANALYSIS:

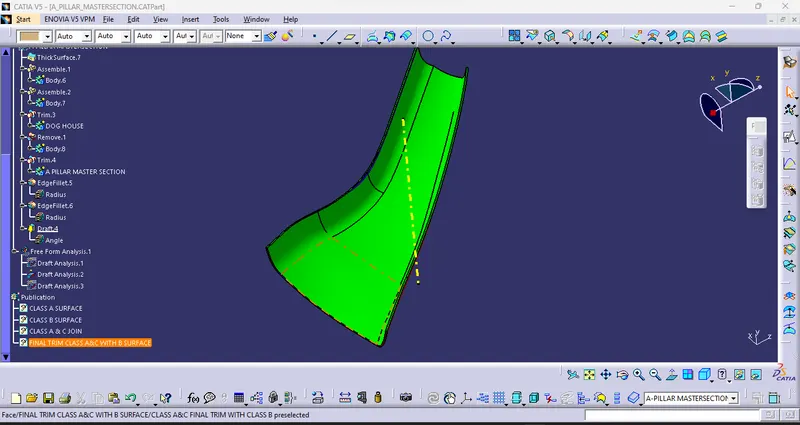

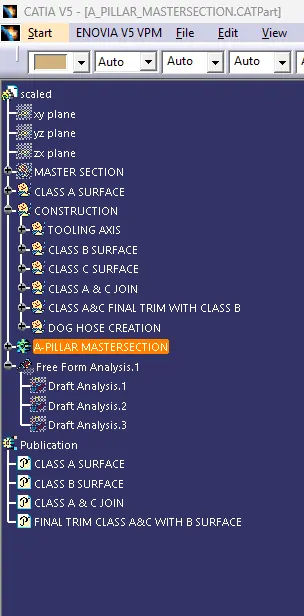

FULL TREE STRUCTURE:

REPORT...

1) begin with, the Referance tooling axis for the given Class-A Surface.

2) Creating centre line by using surafce

3) Creatin the B surface by extracting the given A surface.

4) Publiction of Tooling axis & Surface A.

5) By using the A surafce crating the Boundry for the component.

6) Sweeping it towards B surface to create C Surface.

9) Joning the A surface and C surafce ..

10) Then trimming the joined A&C Surface with the B surface..

11) After the switch to part workbench and creating the Closed body..

12) Constructing Doghouse and thickening with part body.

13) Union trim with Mastersection body with Dog house body.

14) Draft analysis the closed body
