Week 9 - Project - A pillar Design with Master Section
ALL REQUIREMENTS and REPORTS DERAILS :

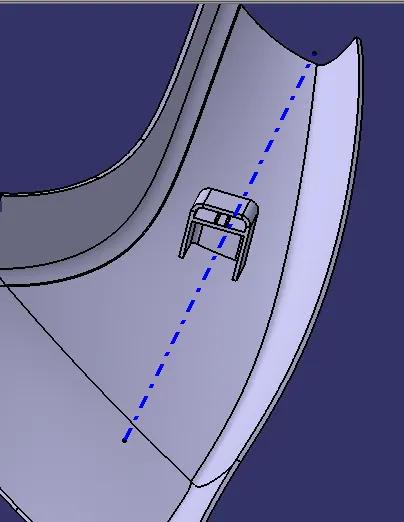

TOOLING AXIS :
The tool axis is a rotated an Angle 1 about the x-axis, then rotated an Angle 2 about the y-axis. The tool
axis is a rotated an Angle 1 about the z-axis, then rotated an Angle 2 about the x-axis. The tool axis is a
rotated an Angle 1 about the y-axis, then rotated an Angle 2 about the z-axis.
The direction in which the mold or core and cavity opens is the tooling axis. STEP-01. Connectivity of
Class-A surface: Checking the connectivity of the surface, this can be done by creating boundaries or by
simply using the join option such that any openings can be easily visualized.

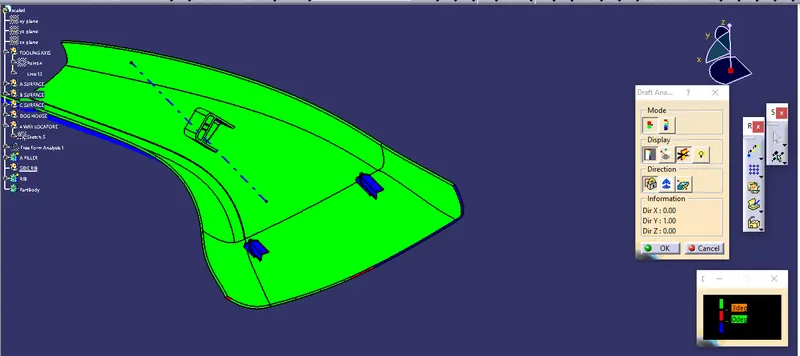

DRAFT ANALYSIS :
The draft analysis technique is used to analyze whether our part model created in CAD is manufacturable
based on the draft condition applied.
- Part Design.
- Generative Shape Design.
- Wireframe and Surface for Building.
- FreeStyle Shaper
With draft analysis, you can verify draft angles, examine angle changes within a face, as well as locate
parting lines, injection, and ejection surfaces in parts.
The Draft Analysis allows the user to easily analyze a part for proper draft angle. A Draft Angle describes
the amount of taper for molded or cast parts perpendicular to the parting line. Find the Draft Analysis in Tools
tab.

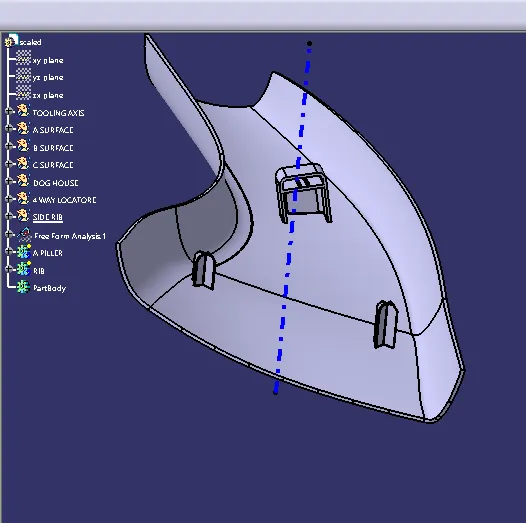

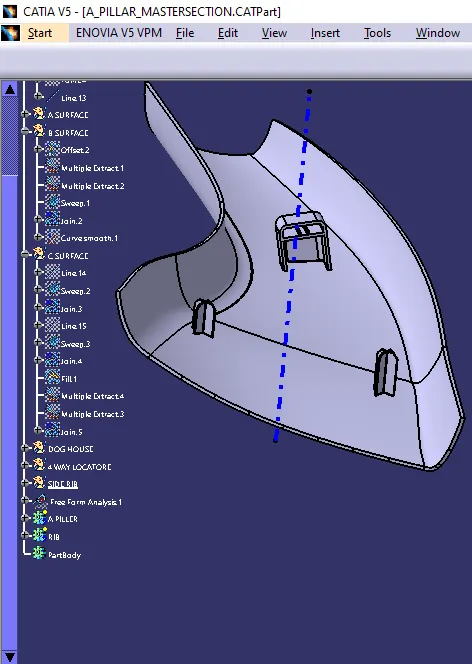

CLASS B AND CLASS C TREE STRUCTURE :

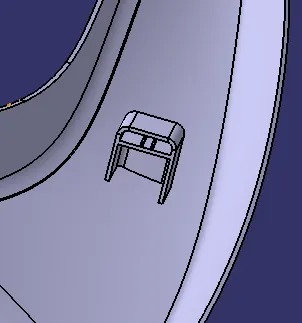

DOG HOUSE AND LOCATORE ,RIB :
Dog house is an engineering feature used in plastic trim design. Dog houses are used as supporting
feature. Sometimes other engineering features like snaps; locators etc.

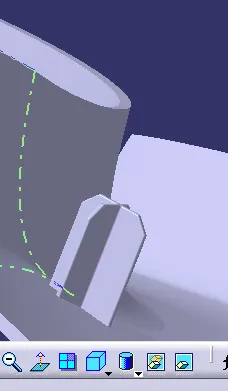

This is a loatore. SUPPORT PART

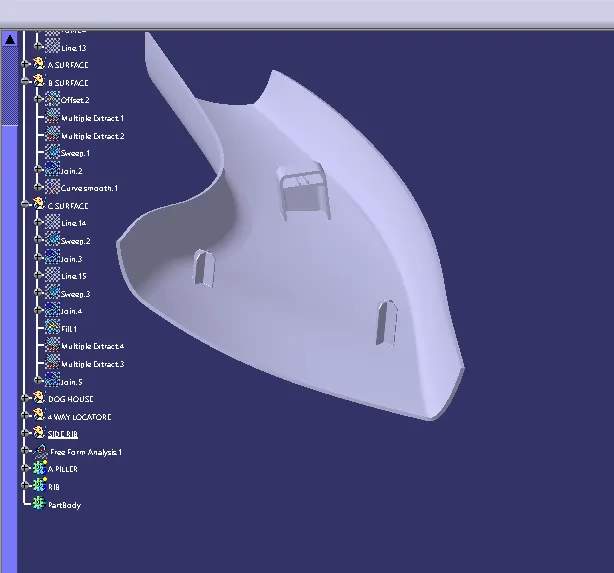

FINLA PART :
CATPART FILE :
The CATPART files is inserted and submitted.
