Week 9 - Project 1 - Door Trim Lower with Engineering Features
Door Trim Lower

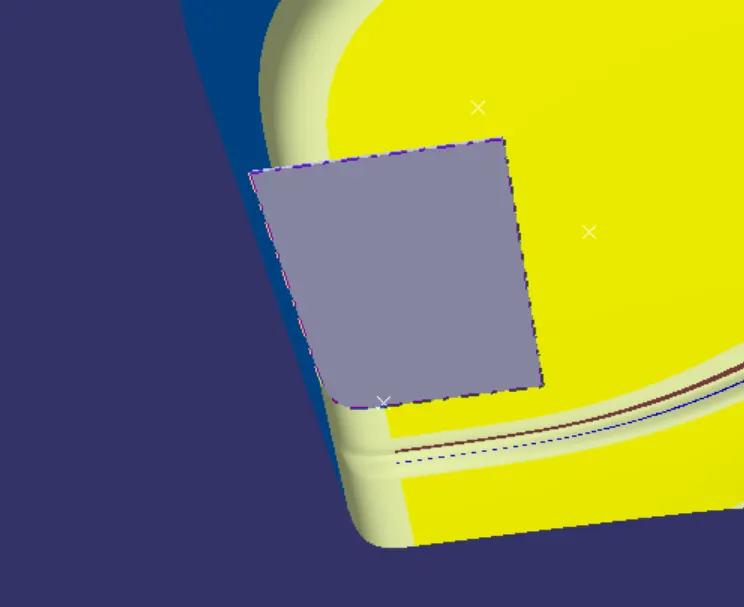

makepoint on a required surface and apply axis system on that point

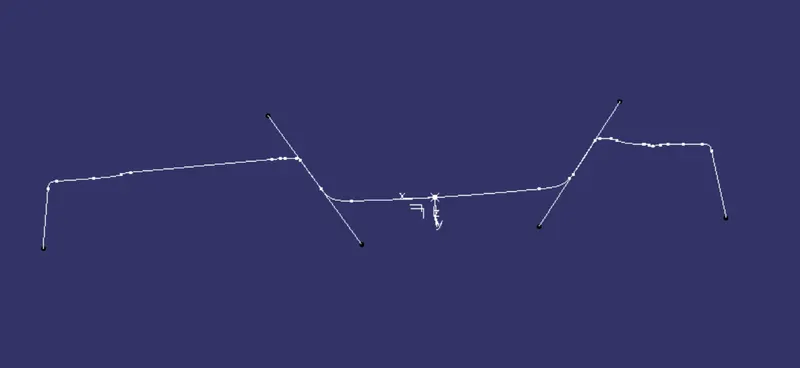

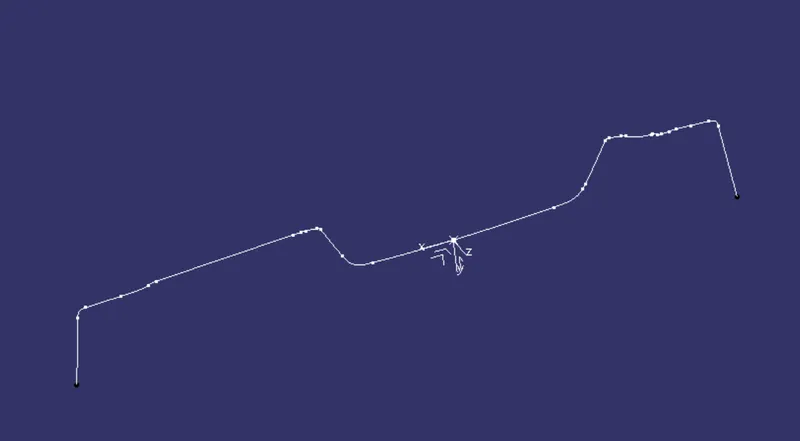

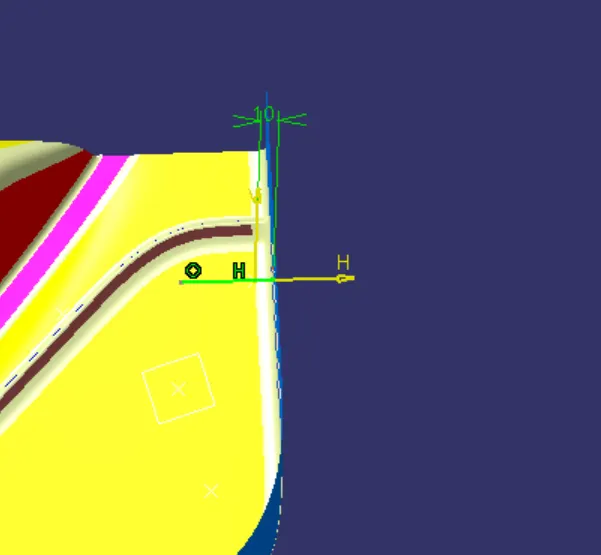

makes the intersection on xz planemake lines on the both sides of intersection line

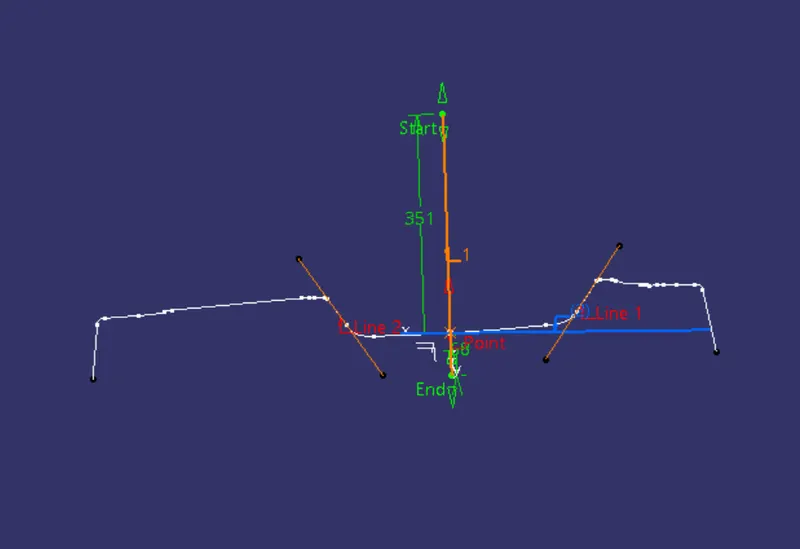

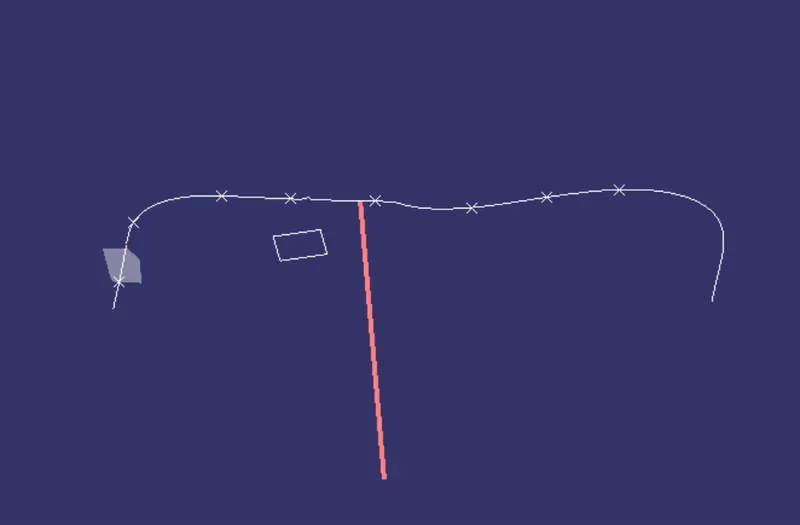

by using bisection line to make line and thats names as tooling axis

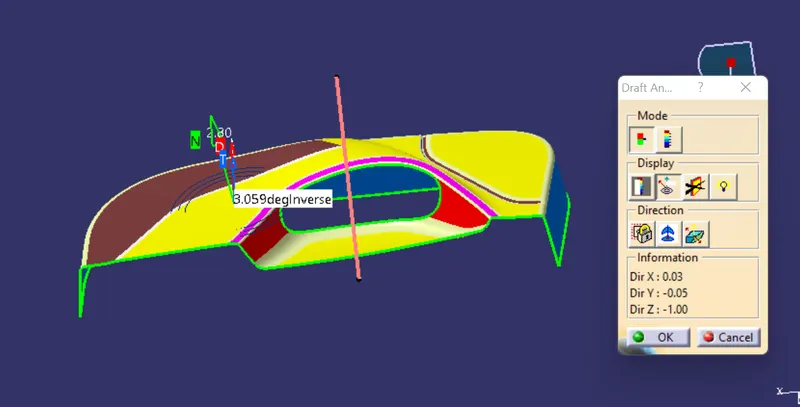

by using tooling axis to make the drafting at an angle of 3deg
B SURFACE

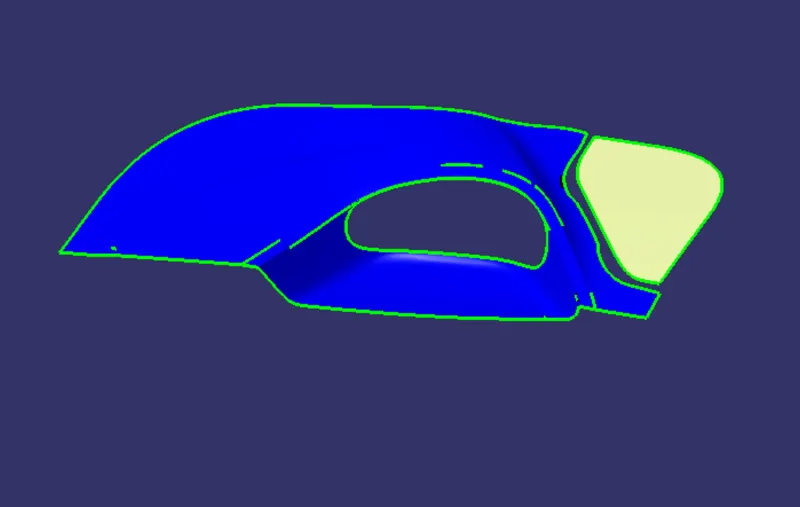

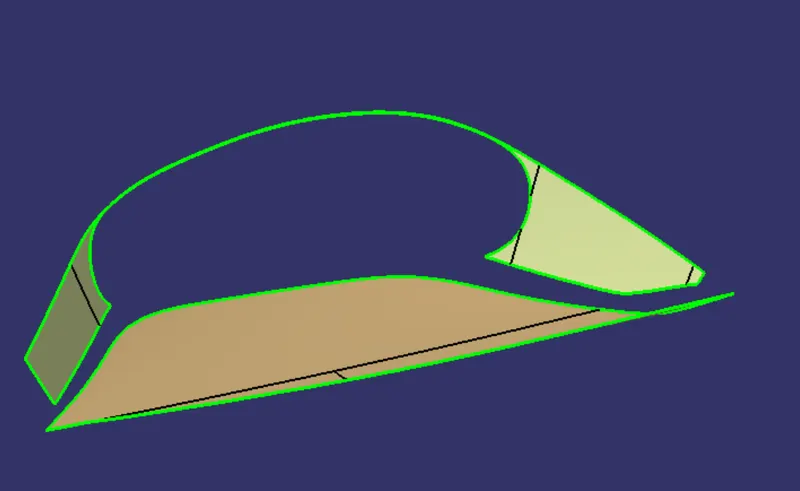

extract the base surface

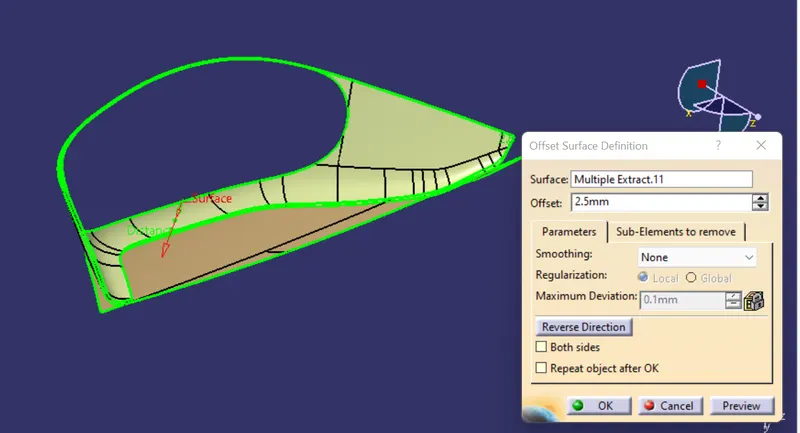

exapolate the surface and offset the surface upto 2,5mm
extract the side wall surface
untrim the side wall surface and extrapolate the trimed surfaces
offset the surface upto 2.5mm
trim surfaces andapply fillets on the surface
extract the top surface
extrapolate the surfacea and trim with side wall surface
extract the remaining top surface
extrapolate the surfaces and offset upto 2,5mm
trim the all surfaces with side wall surface
extract the side portions of top surfaces
extrapolate the surfaces and offset upto given direction
extract the small portions of top surface
, and extrapolate upto given length and apply fillets on all edges
extaact the side flage
extrapolate the surface and offseted
then trim with top and apply fiilets on the top side
C SURFACE

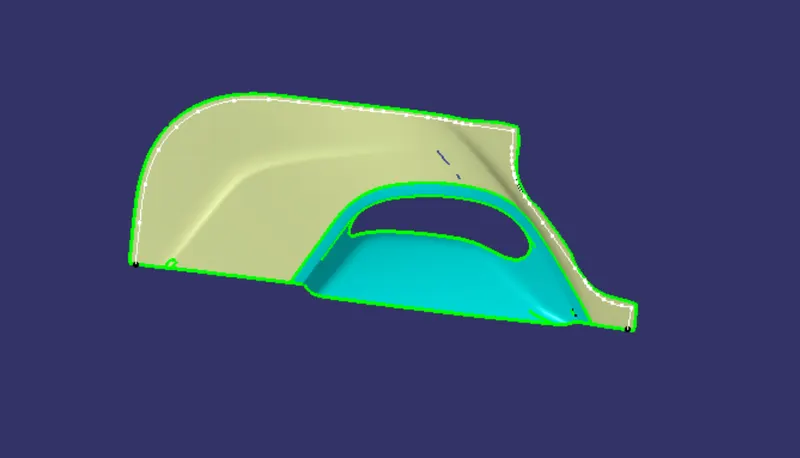

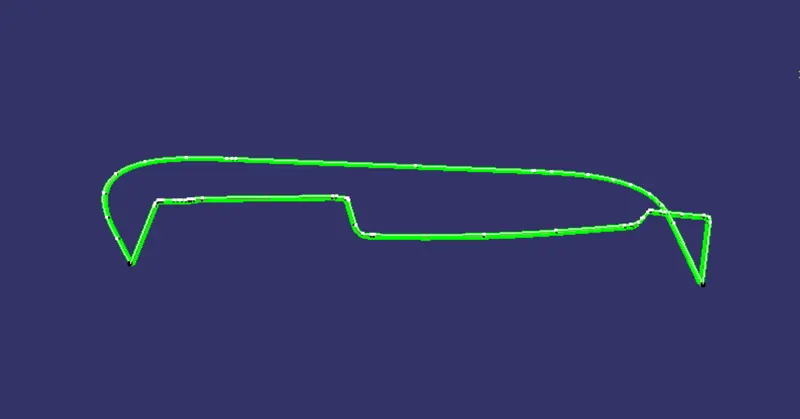

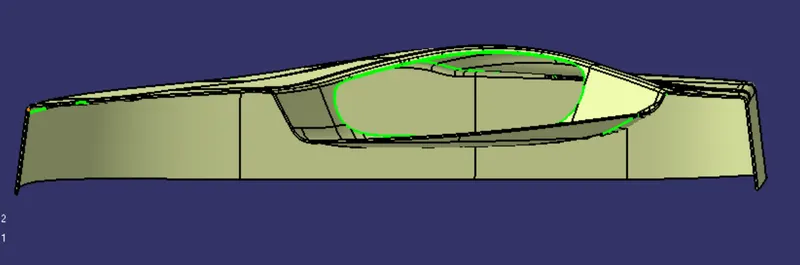

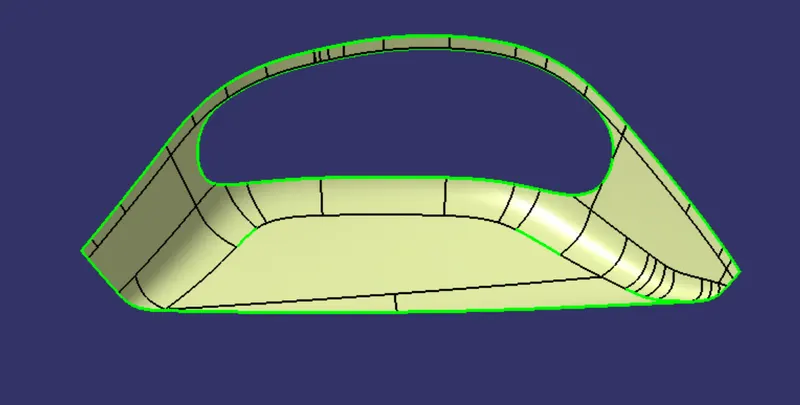

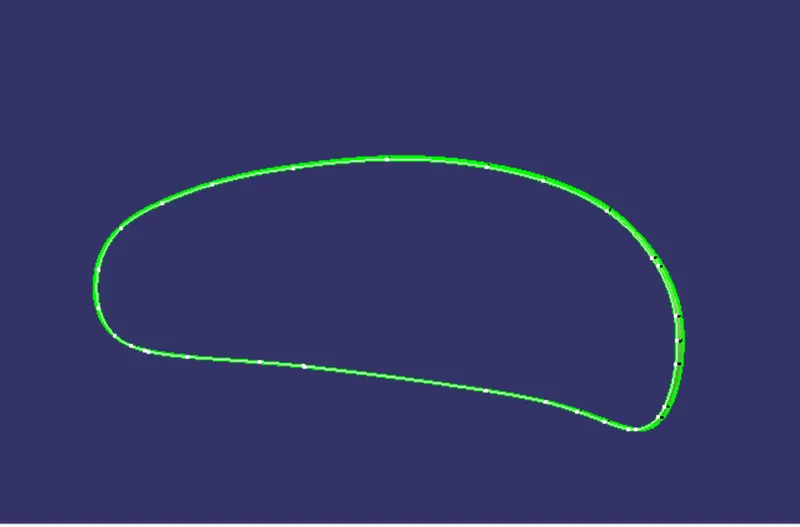

extract the outer edges off class a surface

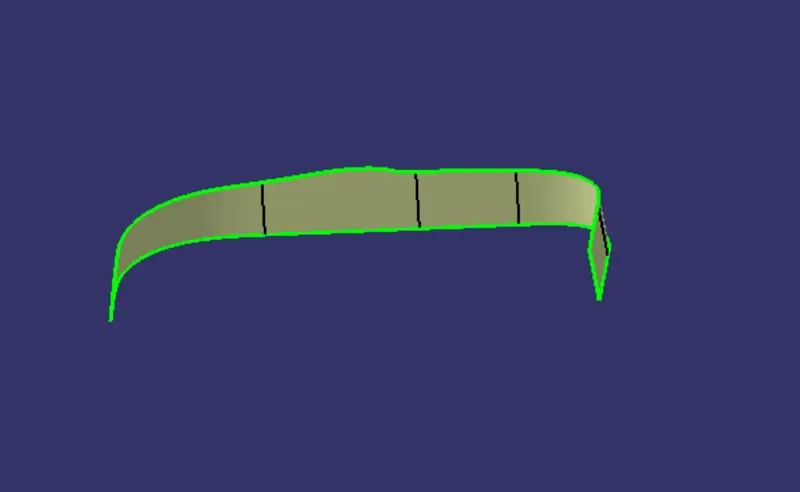

make the surface by using the sweep command at 90deg
c surface join with a sutface
then trim c surface with b surface
extract the holes outer edges off class a surface
make the surface by using the sweep command at 90deg
c surface join with a sutface
then trim c surface with b surface

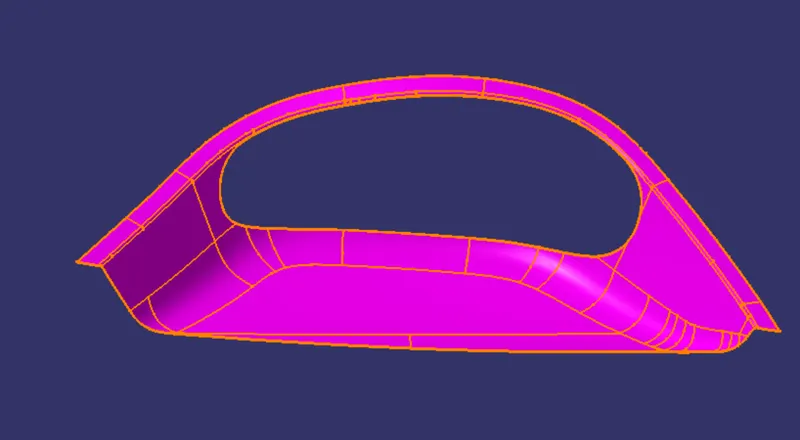

join together all surfaces
LOCATORS

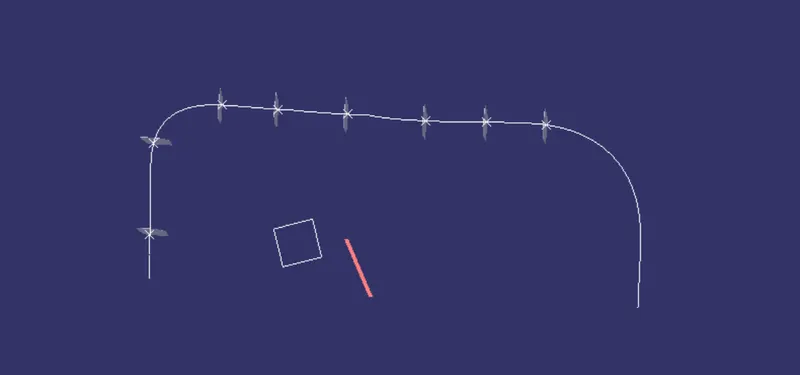

makes first point on 2way locator select suitable plane

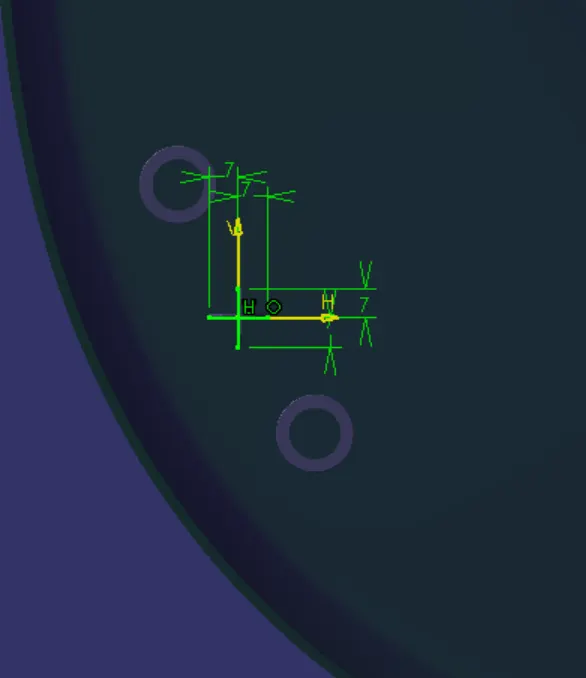

make sketch by using that plane and point
pad the sketch upto required length

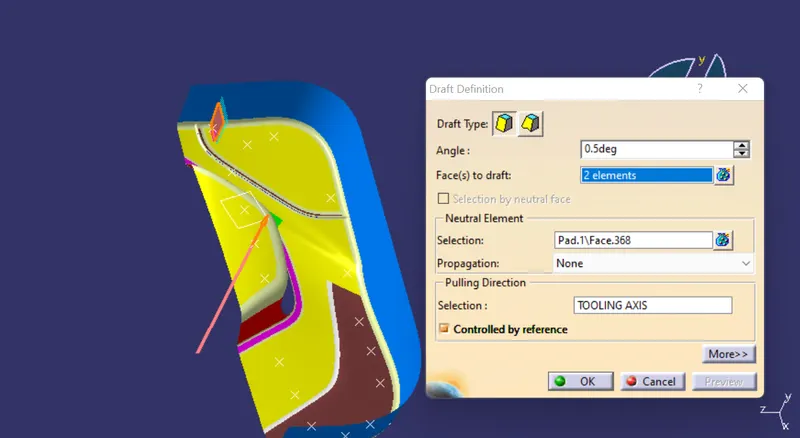

apply draft on o.5 deg
add chamfer on sharp edges

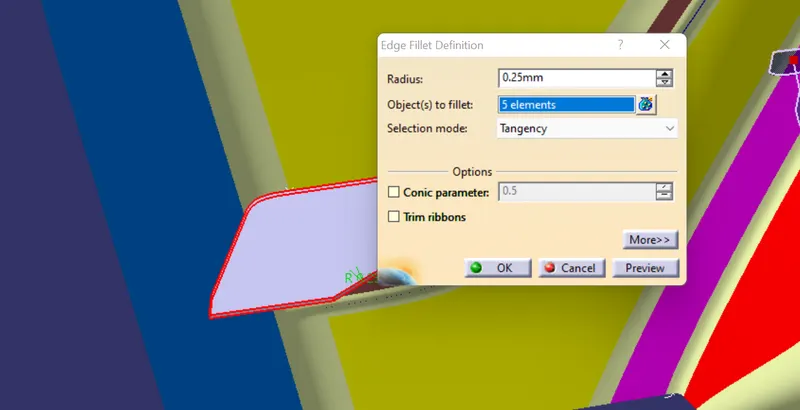

add 0.25mm fillets on the all sides of locator

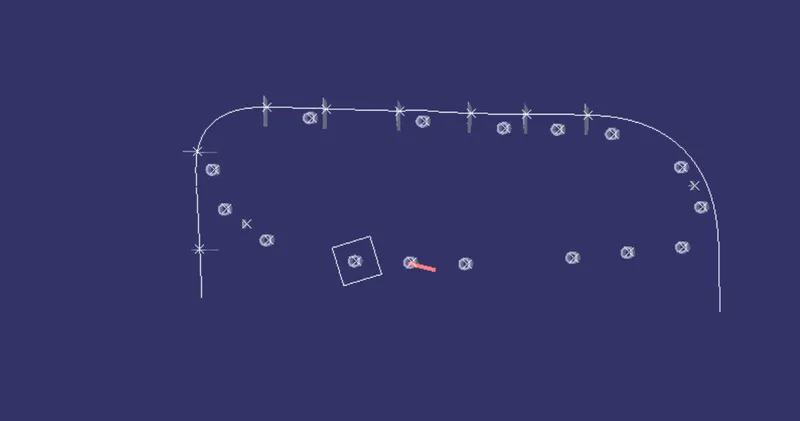

make another position points of 2way locaters
copy the locator and past the locatot in past special with as link
then transilate the locators by using point to point

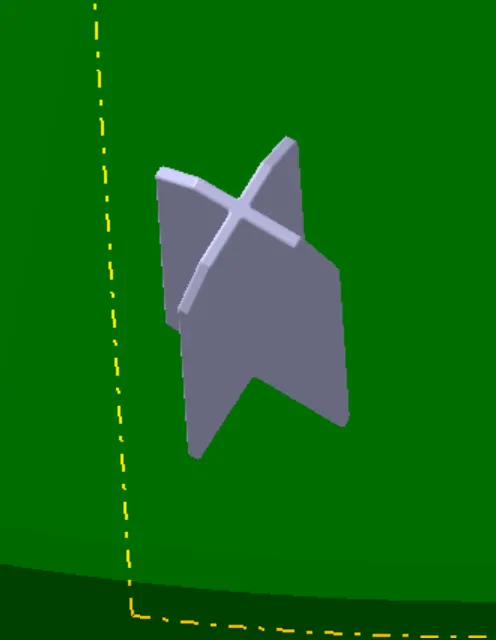

4WAY LOCATOR
makes point as required positions
make sketch by using that plane and point
pad the sketch upto required length
apply draft on o.5 deg
add chamfer on sharp edges
add 0.25mm fillets on the all sides of locator
copy the locator and past the locatot in past special with as link
then transilate the locators by using point to point

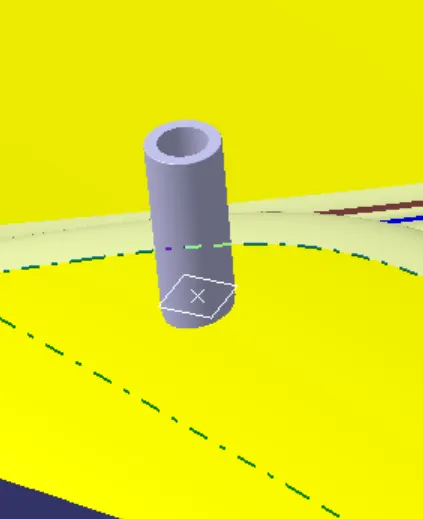

HEAT STAKES
make sketch by using that plane and point
pad the sketch upto required length
apply draft on o.5 deg
copy the locator and past the locatot in past special with as link
then transilate the locators by using point to point in agiven positions

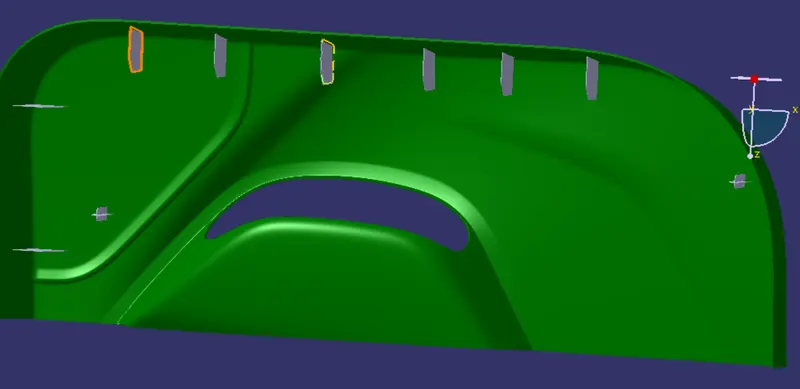

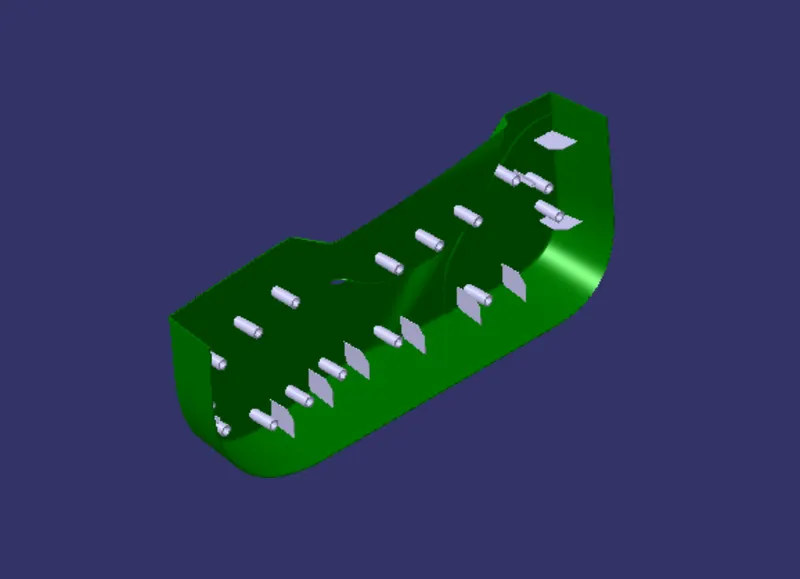

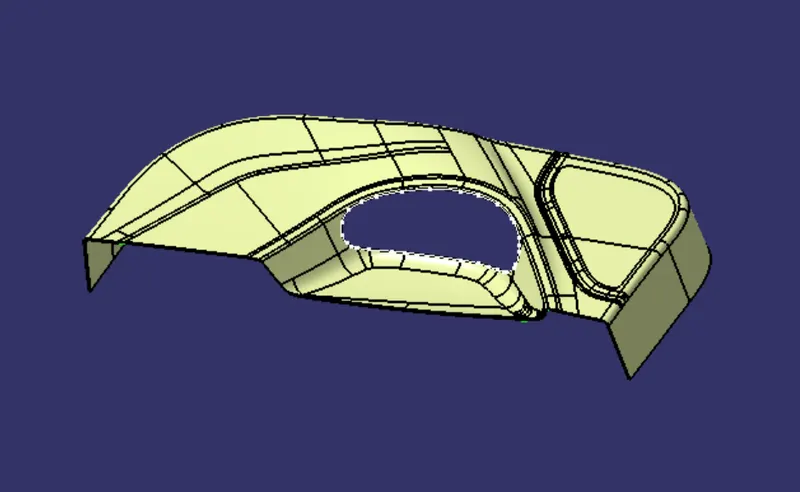

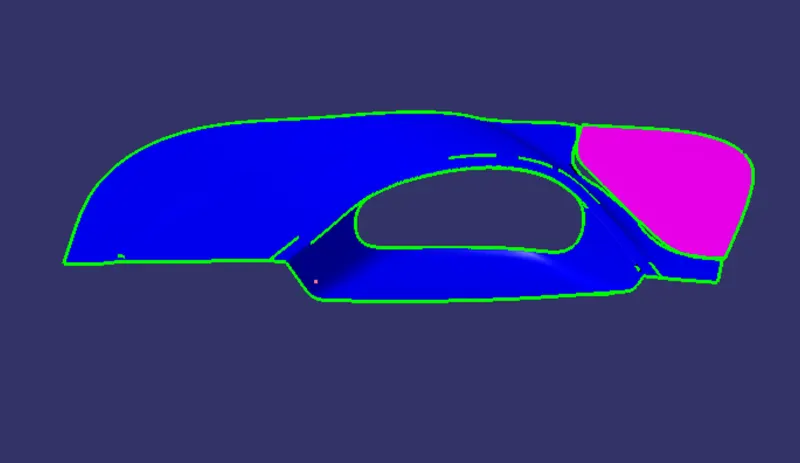

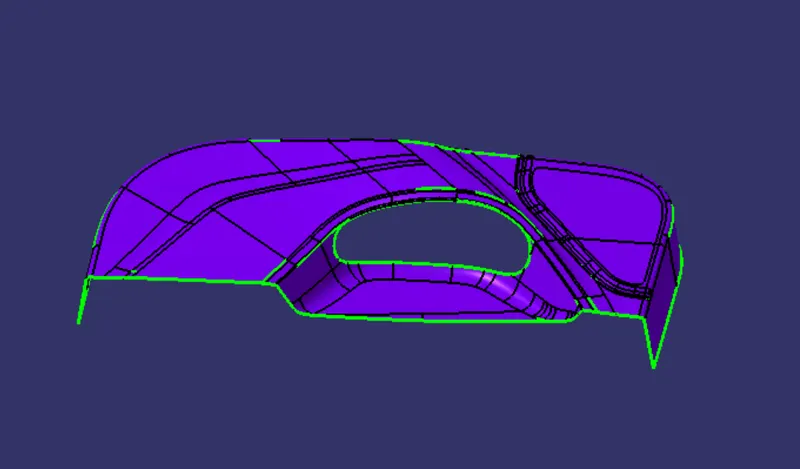

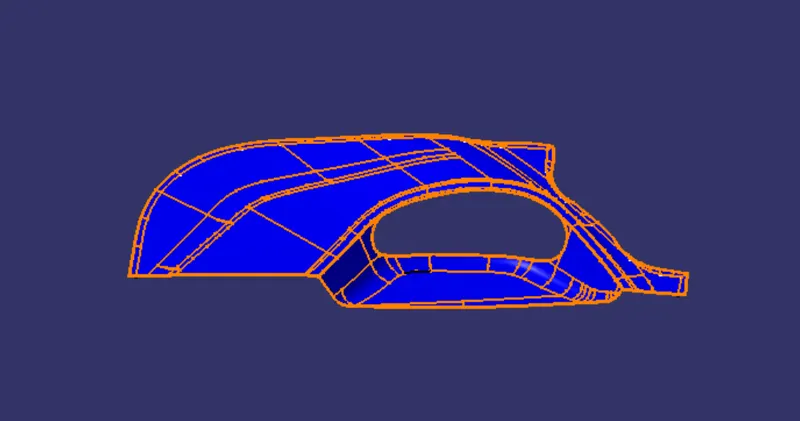

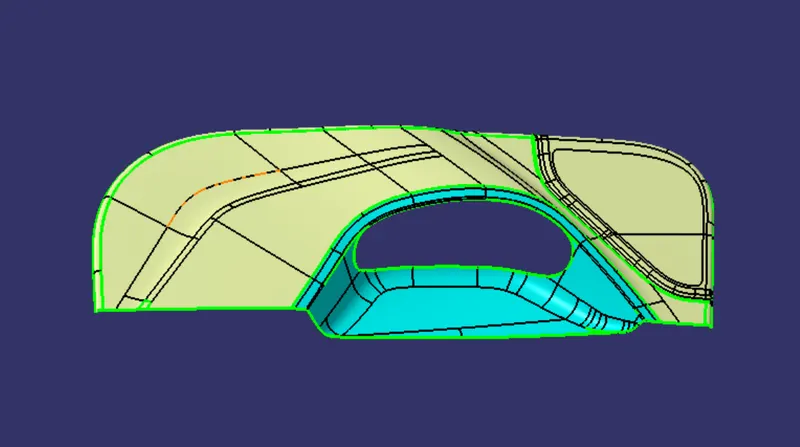

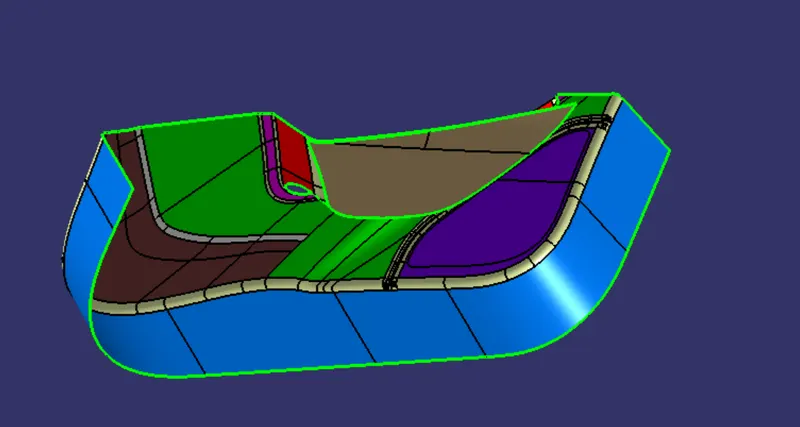

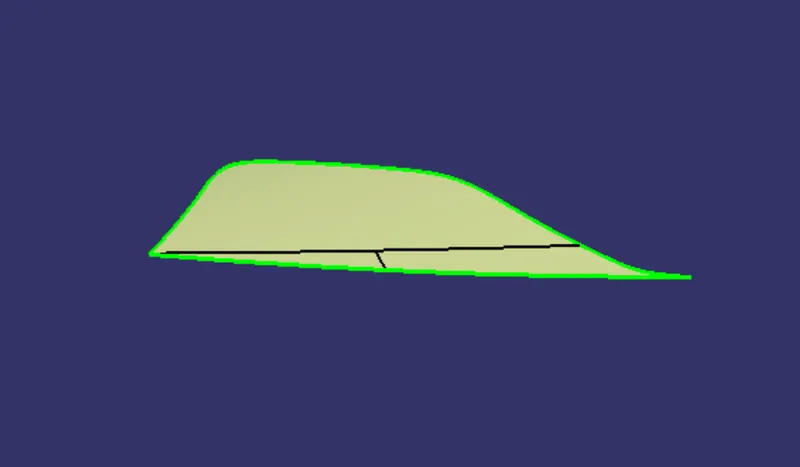

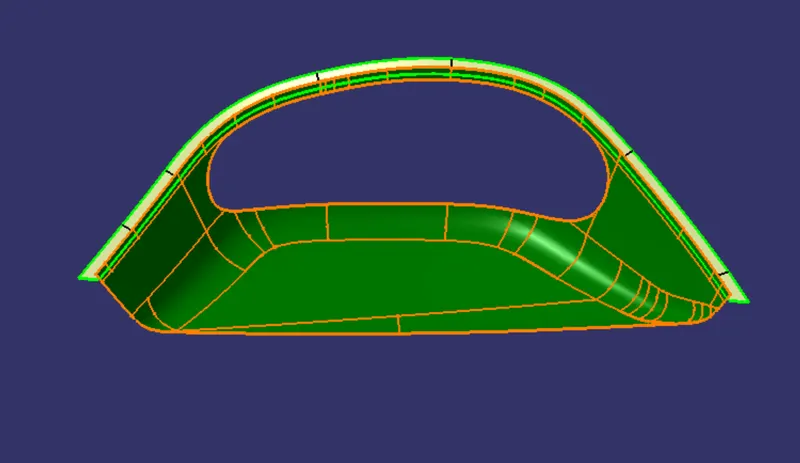

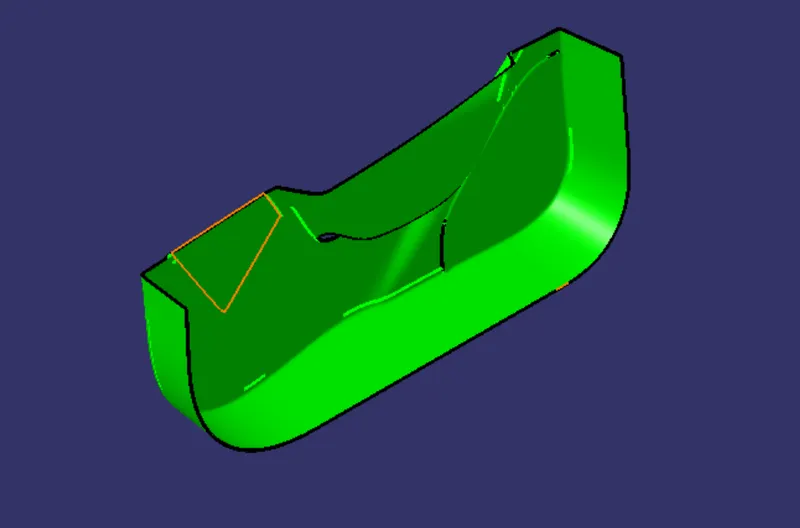

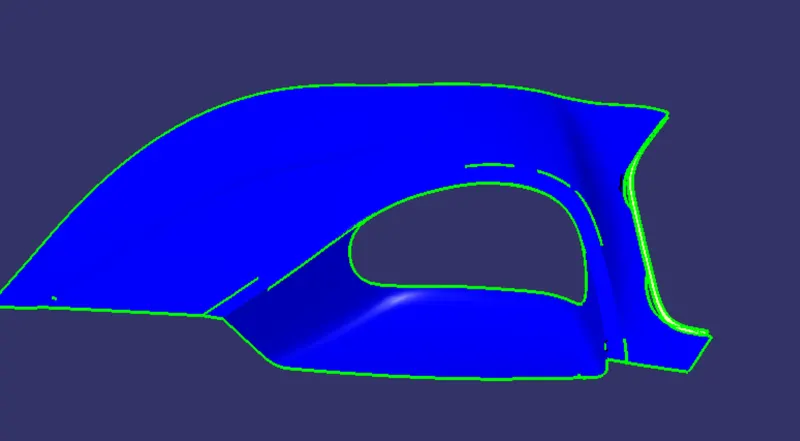

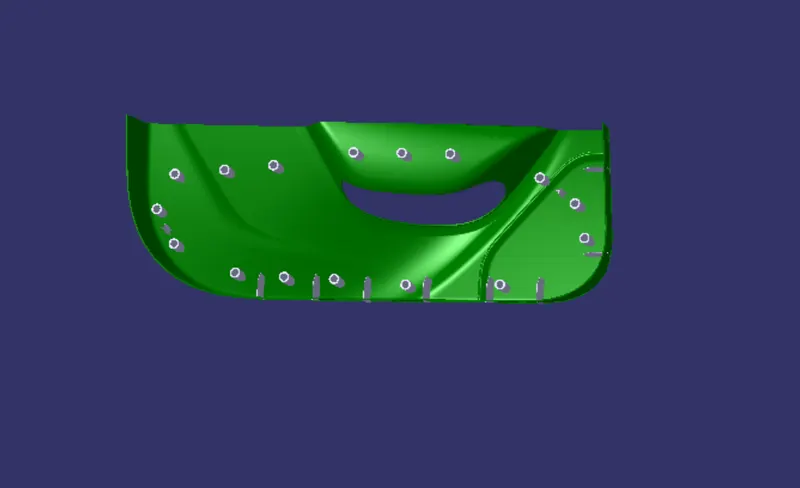

model images -

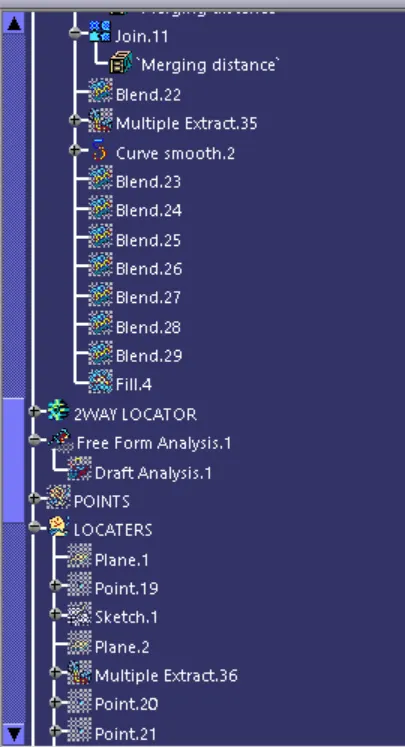

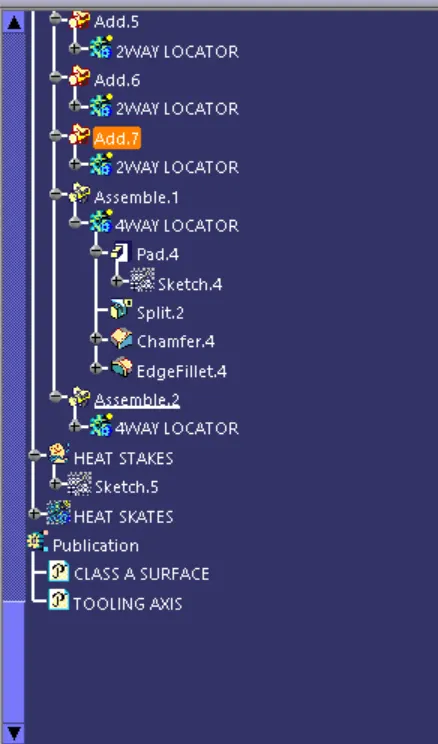

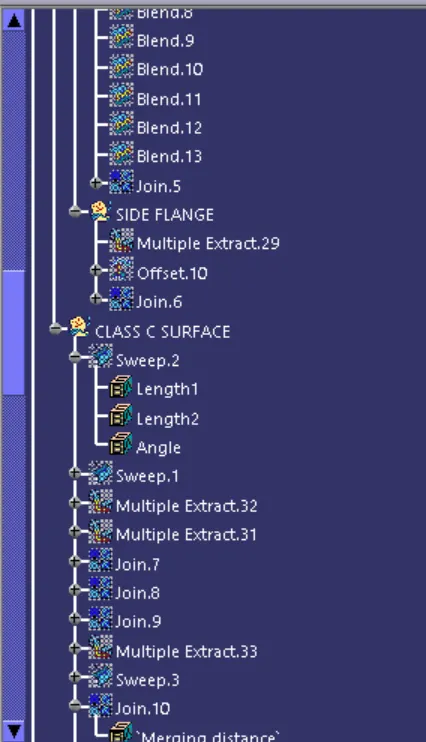

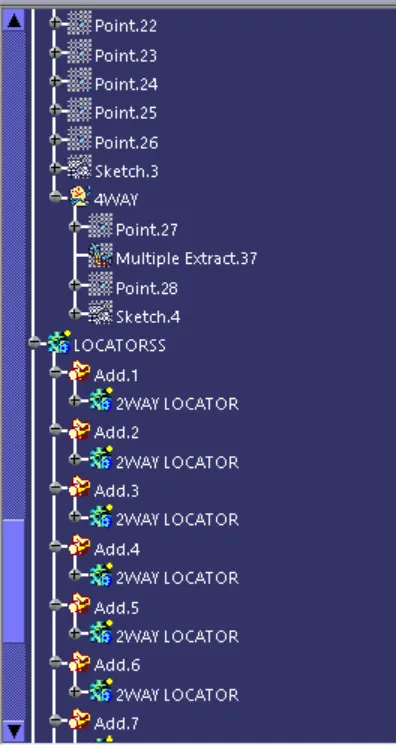

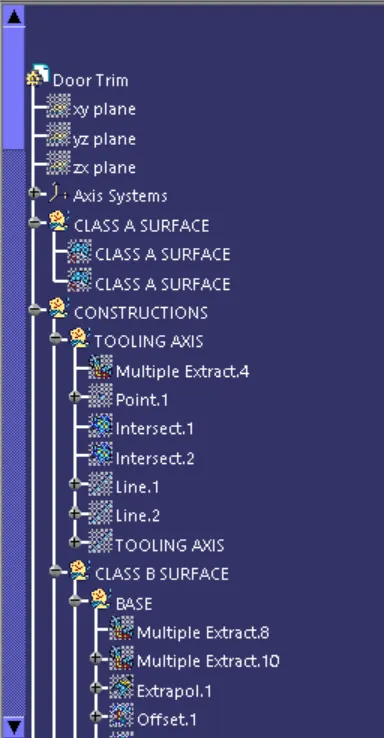

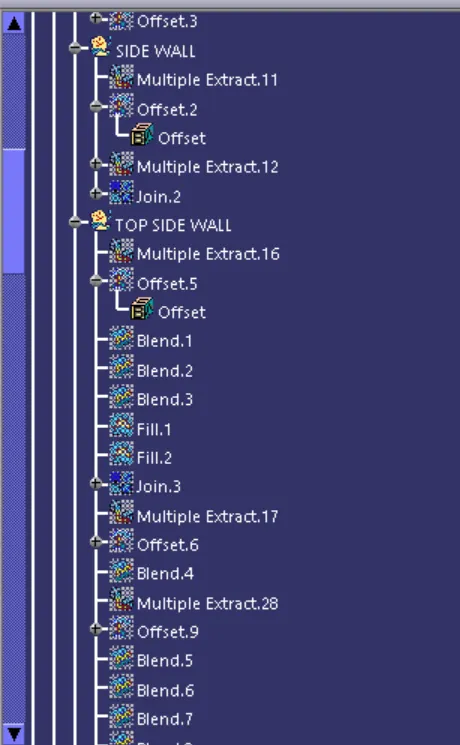

feature tree image:
