Week 9 - Project 1 - Door Trim Lower with Engineering Features

detail report of door trim of engineering feature of inserting heat stacks and locators

fFIRST STEP

first we want to make the surface and offset into 2.5 to 3 mm TO GET B SURFACE

SECOND STEP

NEXT we WANT to patch the surface where all the surface all are removed

here i got to know around 3 major areas surface is not there so i want to remove al the area wher patch has to been because as like that the patch cannot be and its not highly recommed and also we sould not use fil command also here for filling because if we use fill command we cant able to modify the fillet range etc

to make the patch close first bo b surface and creat a geometery set

and extract around area and make them extrapulate or un trim and trim

in this we want to notice one thing while extractting we have to extract sharp edge becausee edge fillet has not be interested after extract and trimming that triimmed surface should be joint with b surface but here existing handie shape of the surface should be remove by join comment and SUB ELEMENTS TO AFTER THAT every element is meant to be join

after joint the suface

we can move the second surface it is small thing so i go with mltisurface option here

and lst surface is little bit tricky so

we have to multi extrude and extrapulate the left side surface with middle surface and trin with trimmed body we can extrapulate tha right side body and trim

finally join them and join 3 surface

fourth step

we want to create c surface with help of Asurface by

hideing all the surface expect Asurface and make a limmited boudnry as per the surface to avoid over lap

after make the boundary for al the edge of the surface select the sweep commant and slelect the boundary and give 90 dgree and select the out ward selwection give on

same repeat he process for al the side of b surface u wil geth sweep of 90degree with requird mm which was given on the

and join al the sweep

after that join the sweep join with a surface

fifth step

final trim has to be done with b surface and last a+c surface that is sweep created surface

engineering features

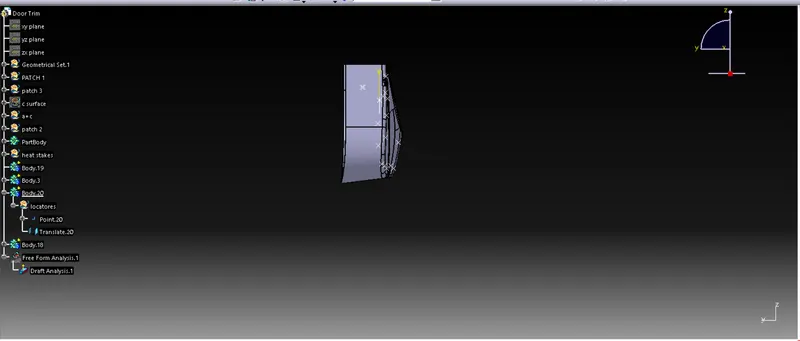

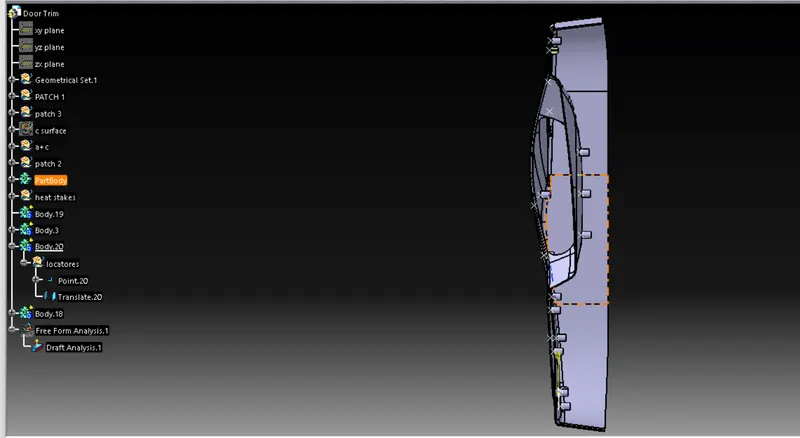

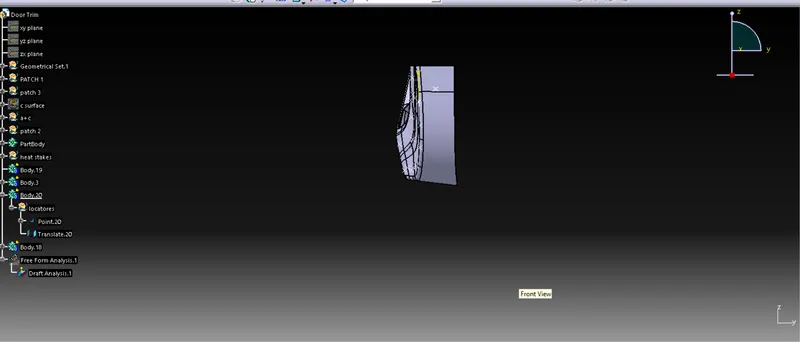

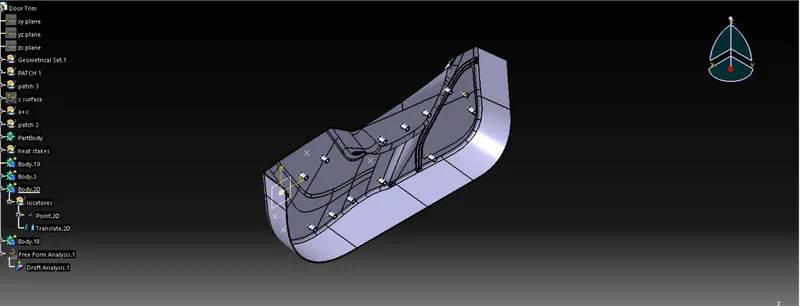

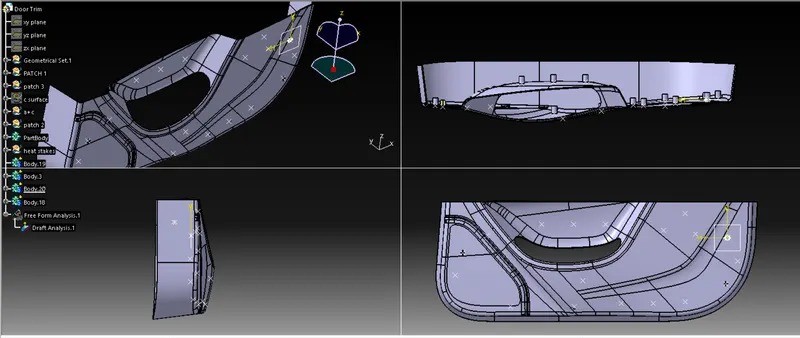

now i have to fix the heatsteaks and locatore as the required area as they given

first we have to make the heat steaks

we have to create the geometery and in the geomtery we have to insert the plane and the plane should be paralle to the point

and then with the respect of heat steak rules anad design rules we have to draw a circle and pad for 20 mm and two circle diameter willl be remove the small circle fron the bigger one the do the same process for al other sam thing useing plane

and locatores

for locators we have to draw plus shape line and we have to extrude for a design rules of 15*15

in the thick so we get a thick locators and we have to do a chamber for 3* 45deg

at last after compeleting the one locatore we have transtitio the locatore from one place to antoher with same images

at last draft analysis

with the help of the tooling axsi we have to run the draft anallysis for 3 degree abd 2 degree with colour of red blue
