Week 9 - Project 1 - Door Trim Lower with Engineering Features
DRAFT ANALAYSIS OF THE COMPONENT:-

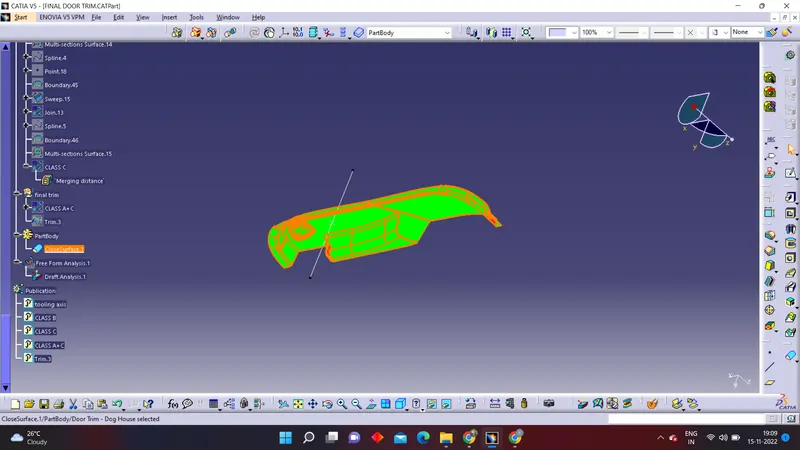

CLASS A ANALAYSIS
Conclusion:-
From the draft analysis, it is evident that the given class A surface draft is more than 3 degree to the selected tooling axis. Hence it is feasible to manufacture.

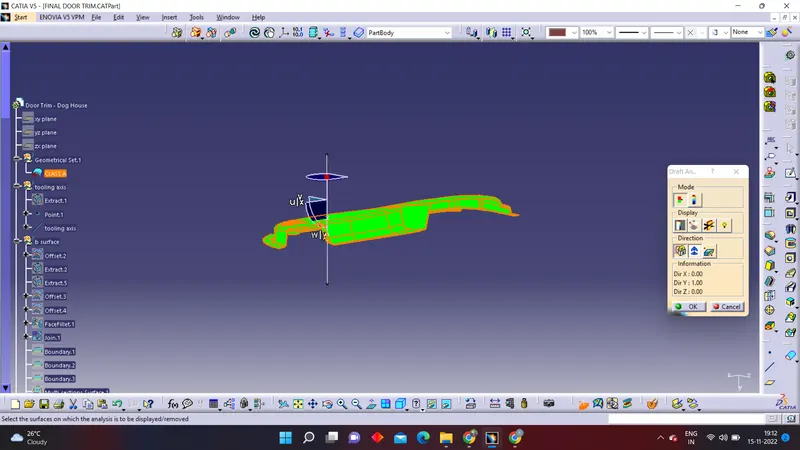

DRAFT ANALYSIS FOR THE GIVEN CLASS A SURFACE_NORMAL TO TOOLING AXIS
Same draft analysis image of class A surface normal to tooling axis. It is all green(draft more than 3 degree).

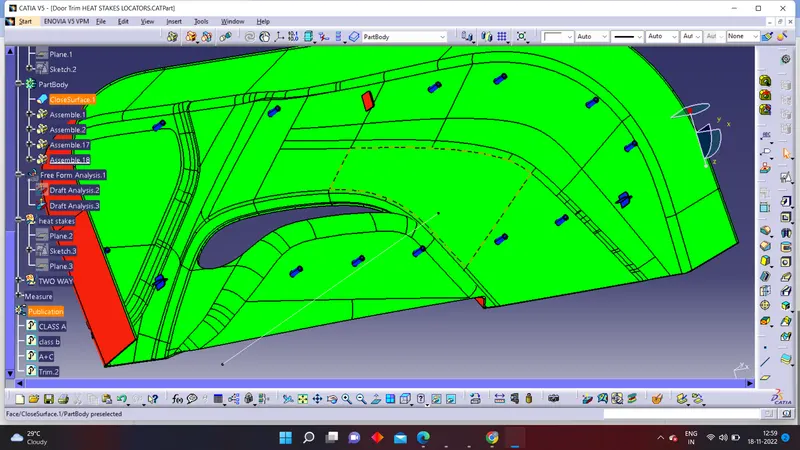

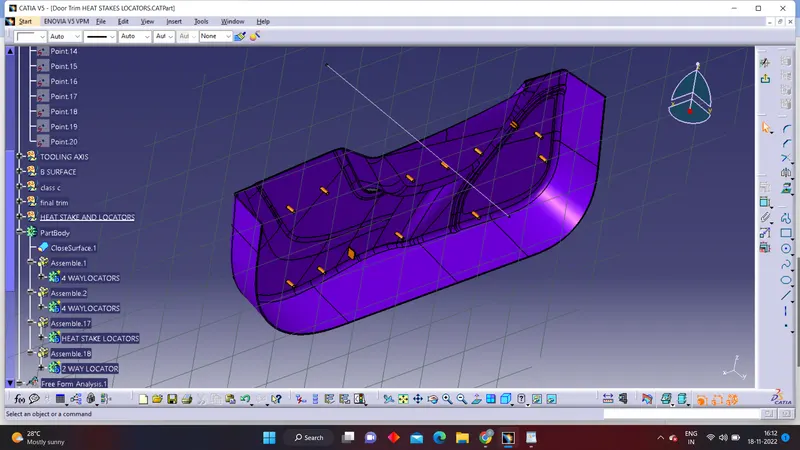

DRAFT ANALYSIS FOR THE FINAL PLASTIC COMPONENT:-

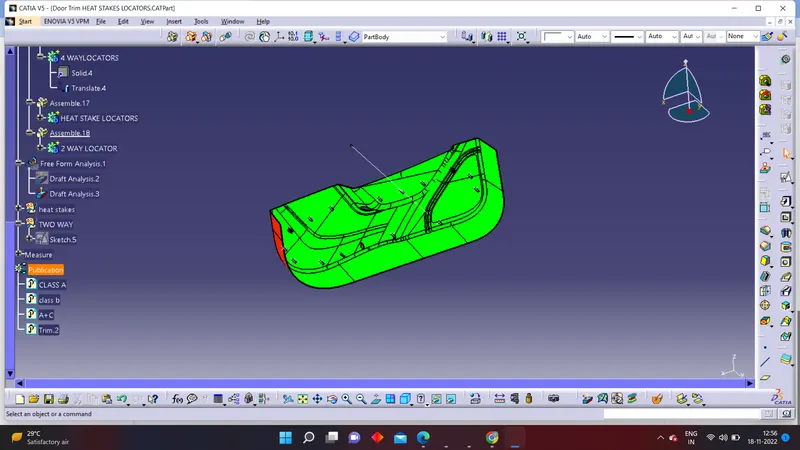

ISOMETRIC VIEW:-

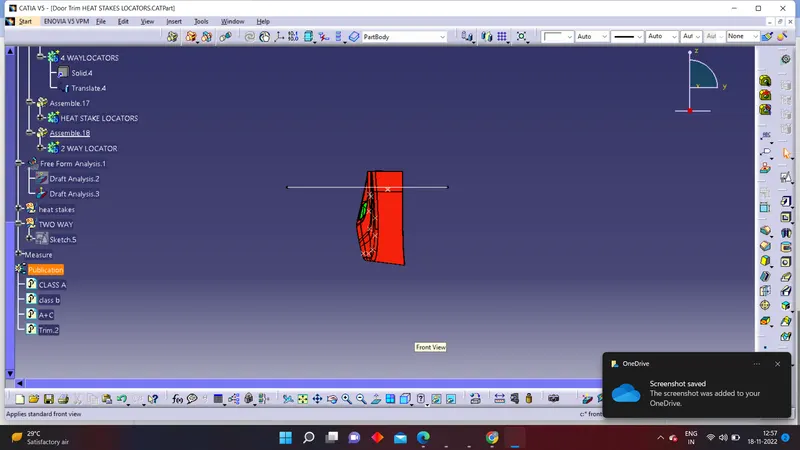

SIDE VIEW:-

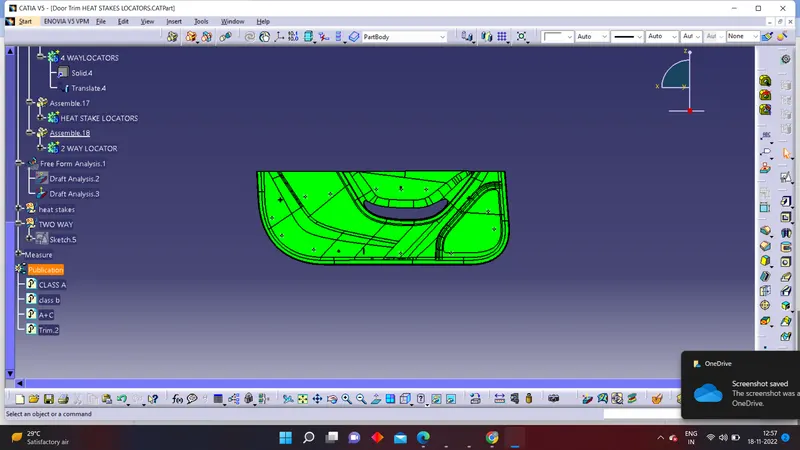

FRONT VIEW:-

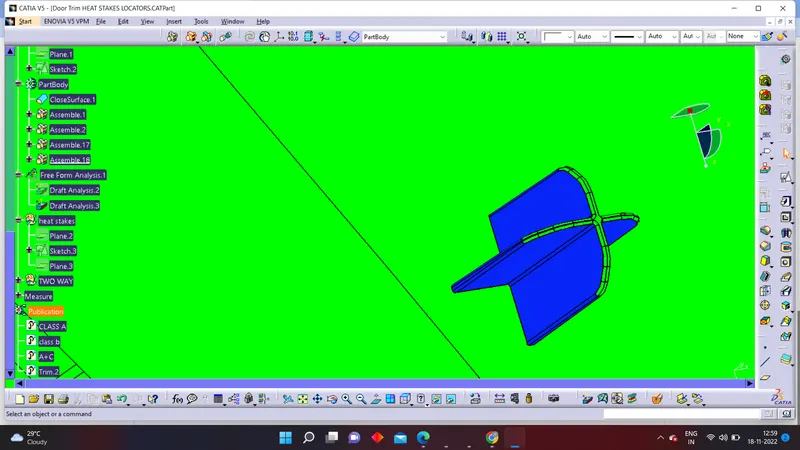

FOUR WAY LOCATOR:-

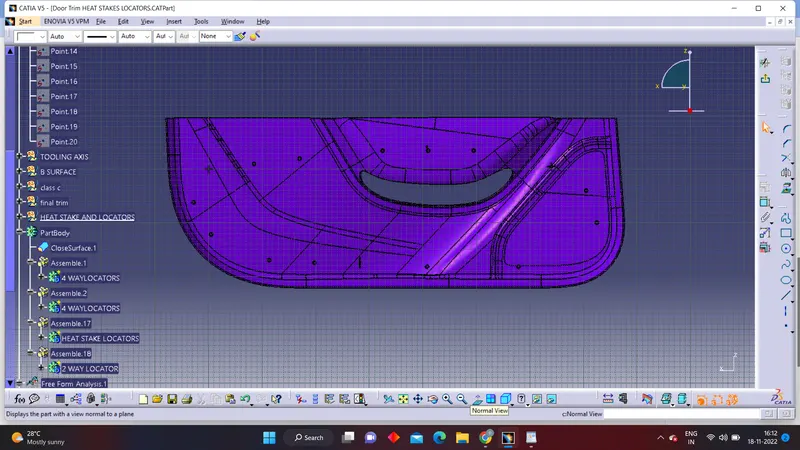

TOOLING AXIS:-
when we are working on a component,when we see the flat surface on the part and exactract the part form the component then make a point on the surface which we excract earlier and make a line from the point and give direction normal to surface and the tooling axis will be created. If u need to check wheather the axis is correct select the line click on normal view so u will recongize that the axis will be shown like a point.
