Week 9 - Project 1 - Door Trim Lower with Engineering Features

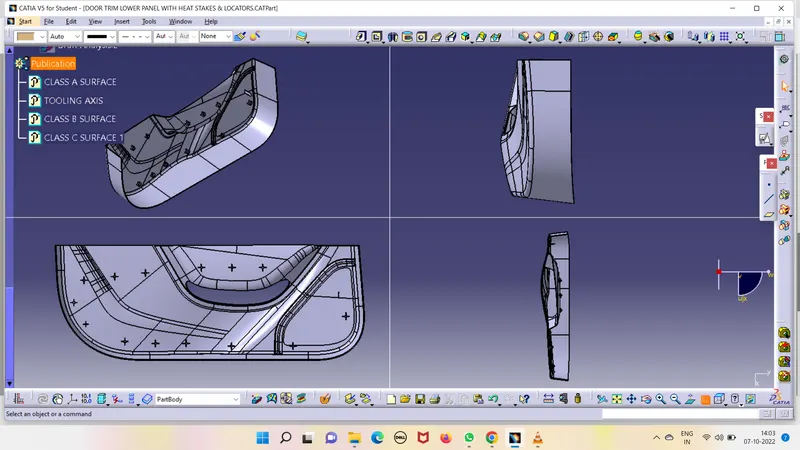

REPORT ON TOOLING DIRECTION:

BASED ON THE EJECTION FROM THE CAVITY OF THE MOLD AFTER MANUFACTURING THE TOOLING AXIS IS CREATED ALONG Y DIRECTION.

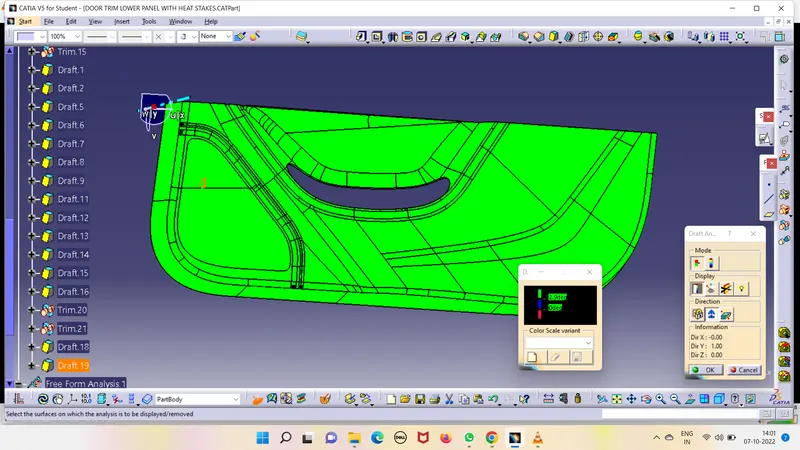

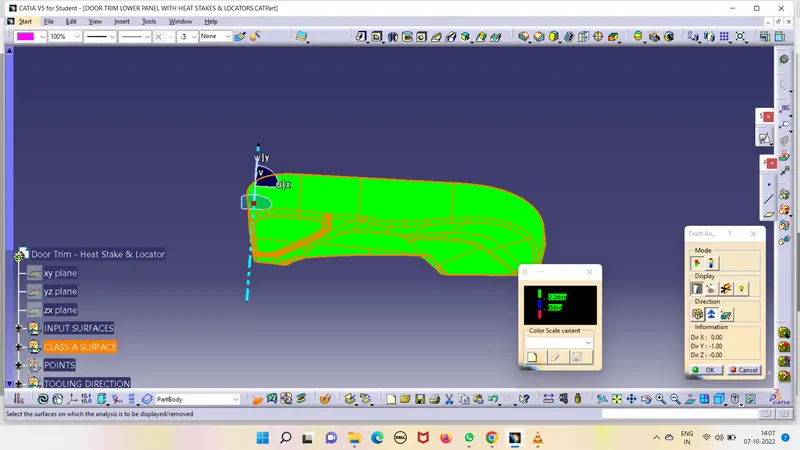

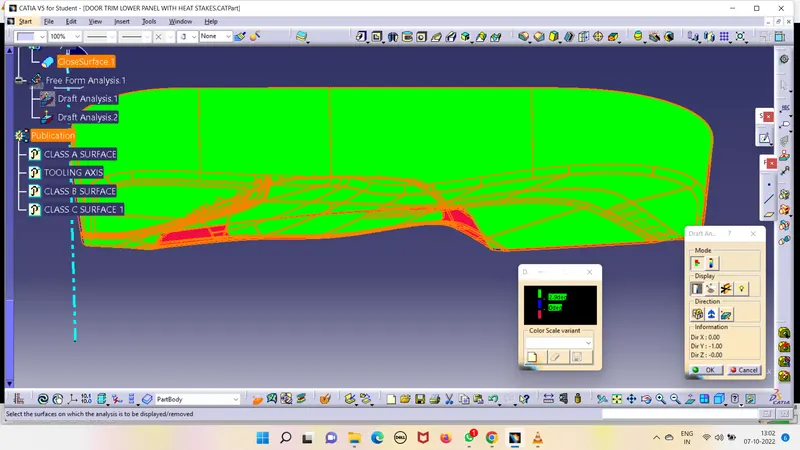

REPORT ON DRAFT ANALYSIS OF DOOR TRIM LOWER:

THE DOOR TRIM LOWER IS CREATED WITH DRAFT ANGLE OF 3 DEGREES IN ALL THE SIDES SO IT IS CLEARING IN ALL SIDES.

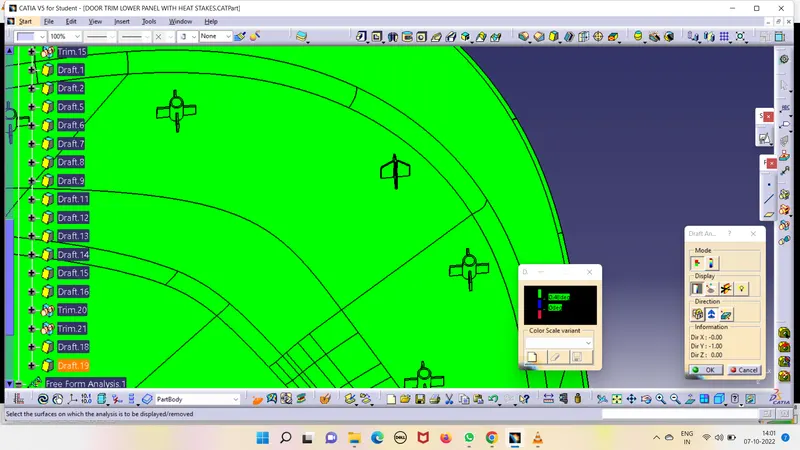

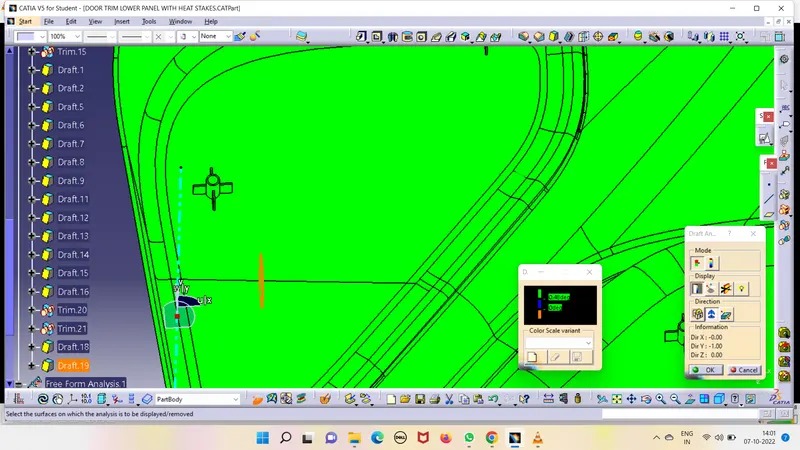

REPORT ON DRAFT ANALYSIS OF HEAT STAKES AND LOCATORS:

THE HEAT STAKES AND LOCATORS ARE HAVING 0.3 DEGREES DRAFT IN ALL THE SIDES SO IT IS CLEARING IN ALL SIDES.
