Week 9 - Project 1 - Door Applique Design with Engineering Features

after getting A_Surfac

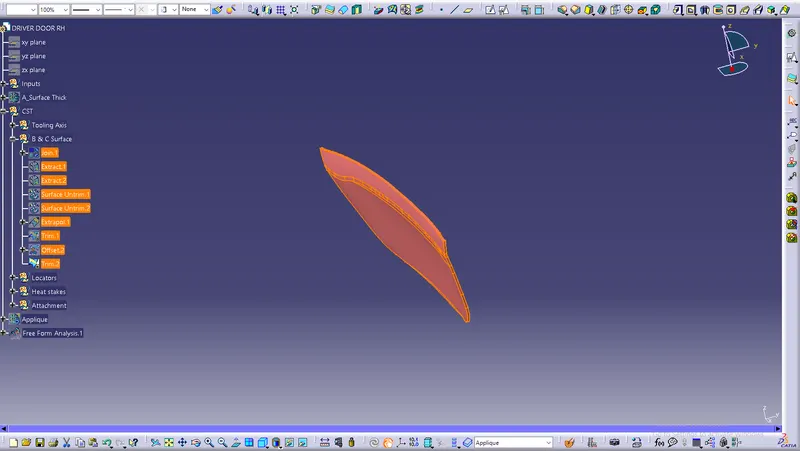

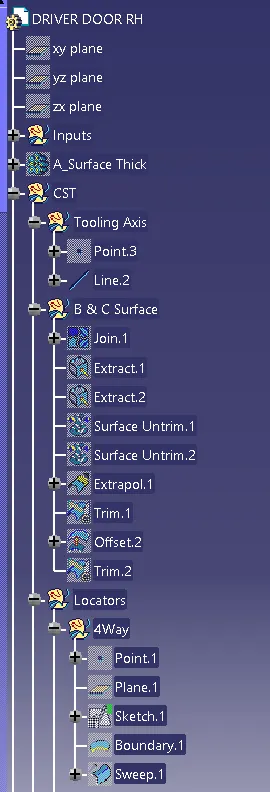

Step_1 Create the B&C_Surface

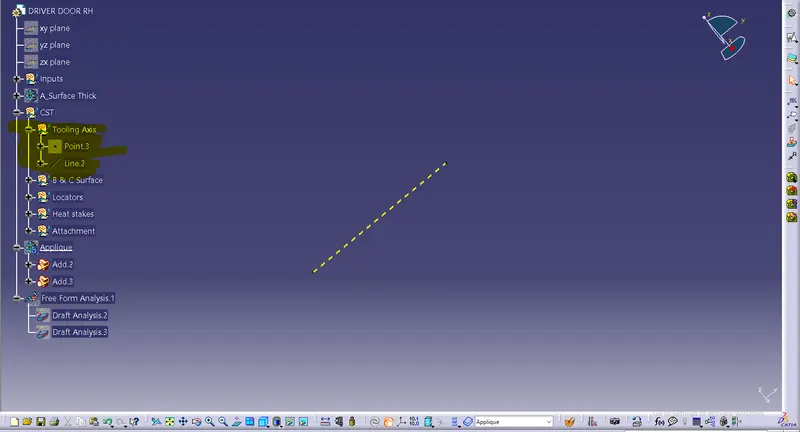

Step_2 Create the tooling Axis

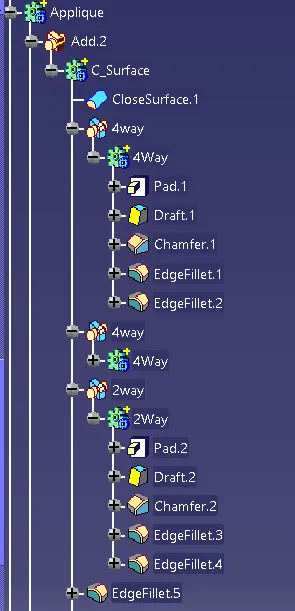

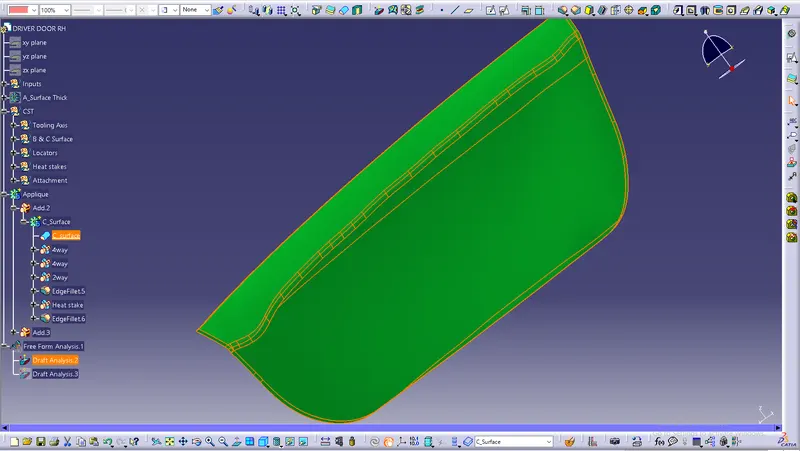

Step_3 Perform Draft Analysis

Step_4 create the locators and Heat stakes

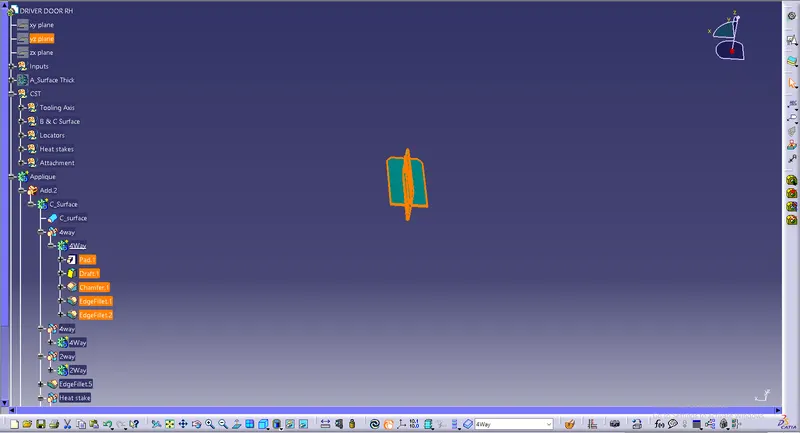

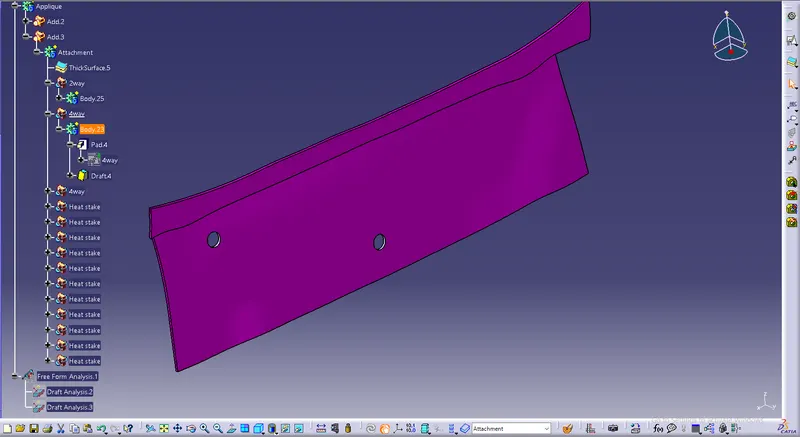

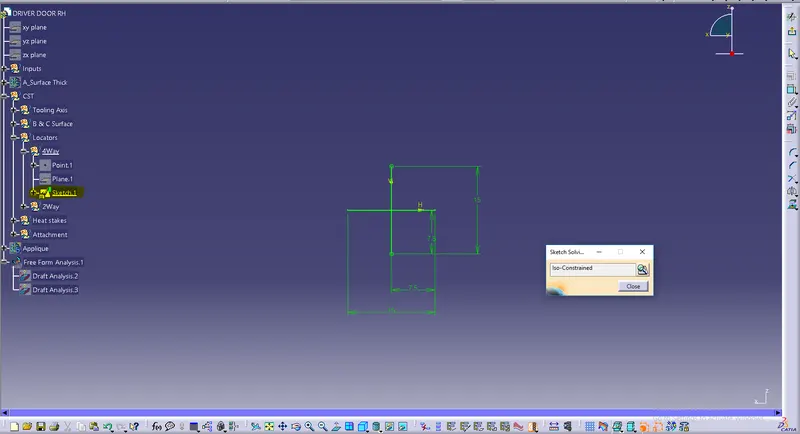

Step_5 create 4_way locator and pad it ensures the height should be greater than the Attachment surface

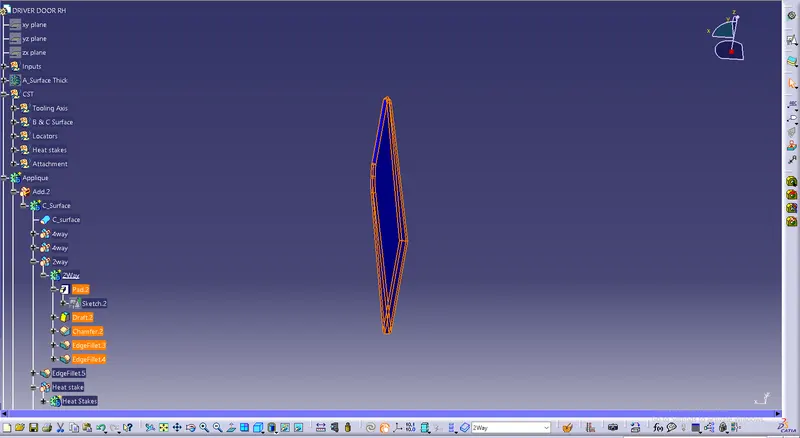

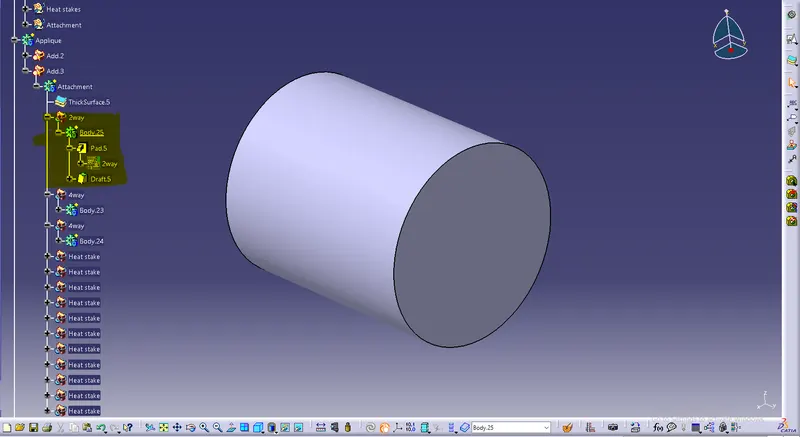

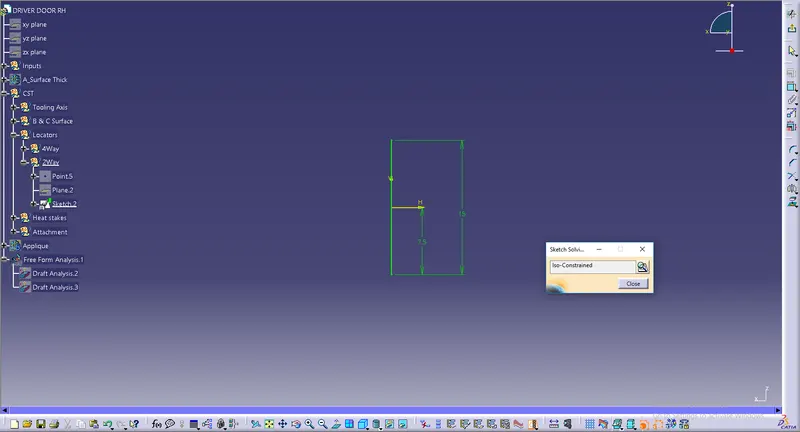

Step_6 Create 2_Way Locator and pad it ensure the height should be greater than the Attachment surface

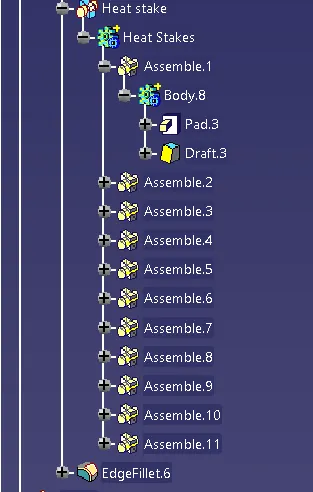

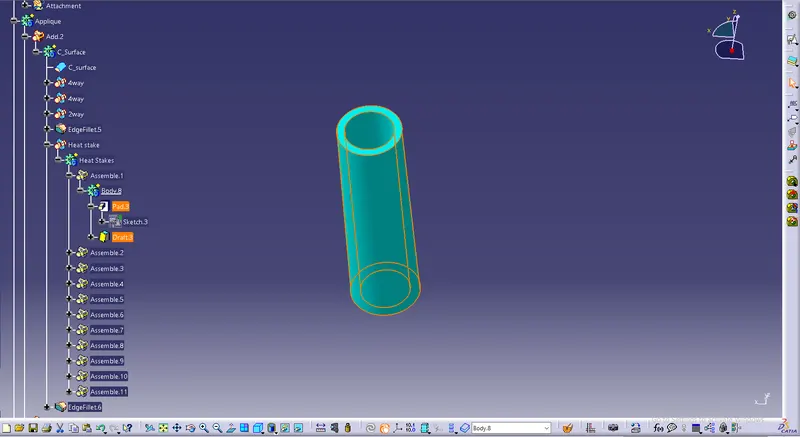

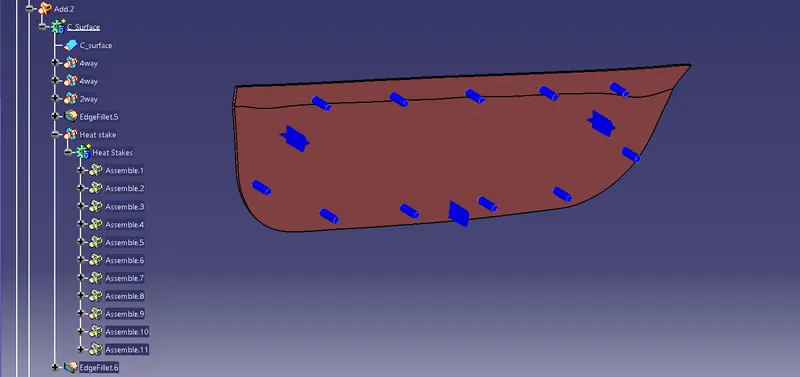

Step_7 Create Heat Stakes and pad it ensure the height should be greater than the Attachment surface

Step_8 unitrim the locators and heat stakes with the A_Surface to ensure all locators and heat stakes are joined with the A_Surface

After creating A_Surface we have to create the Attachment holes

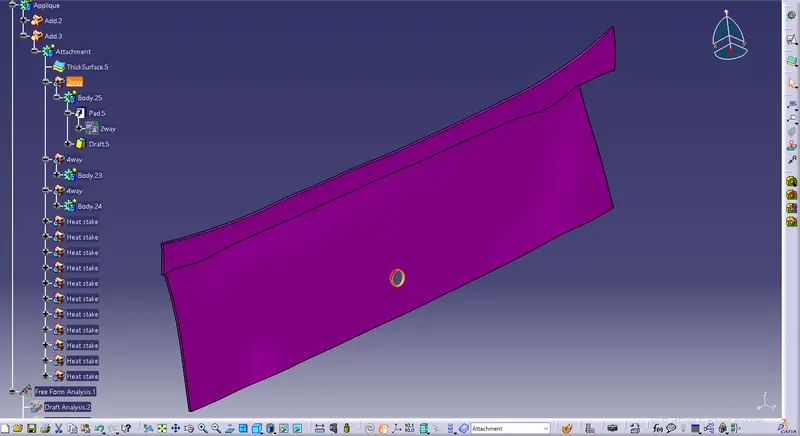

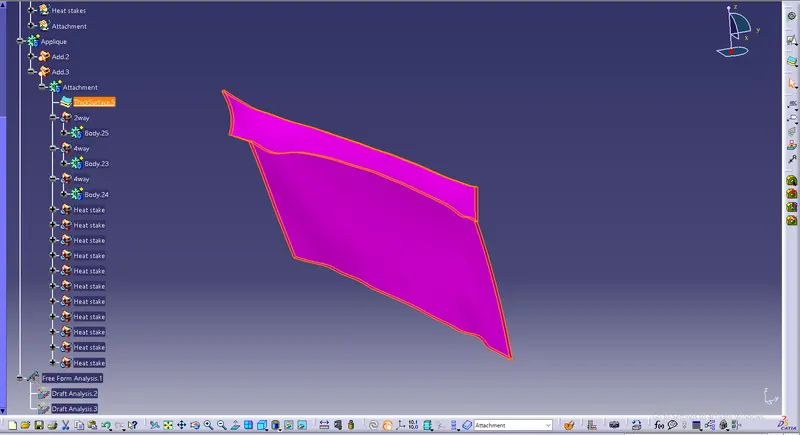

Step_9 thick the attachment with 2.5mm

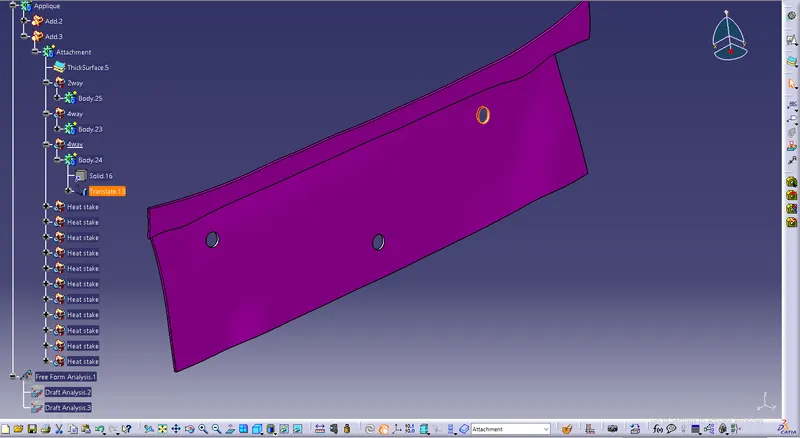

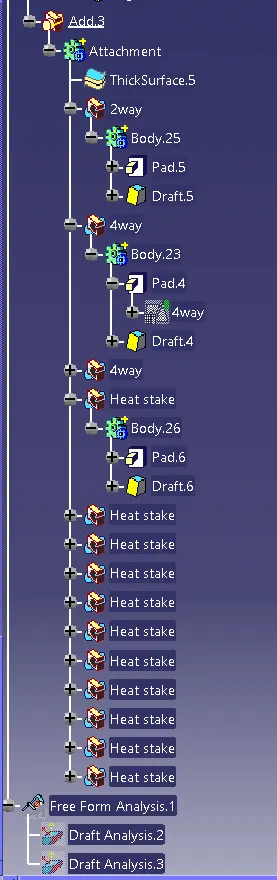

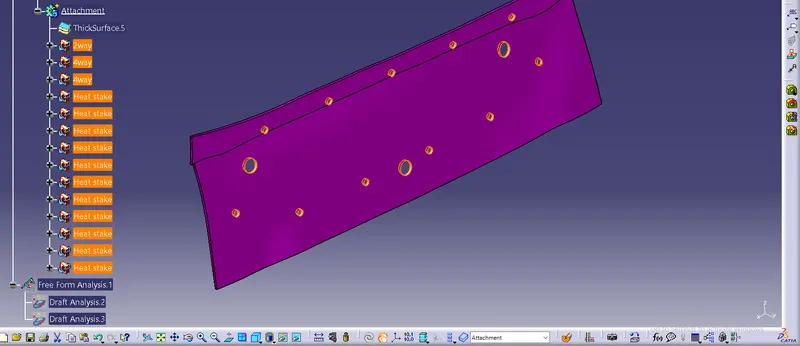

Step_10 Create holes on the Attachment which allows the locators and heat stakes

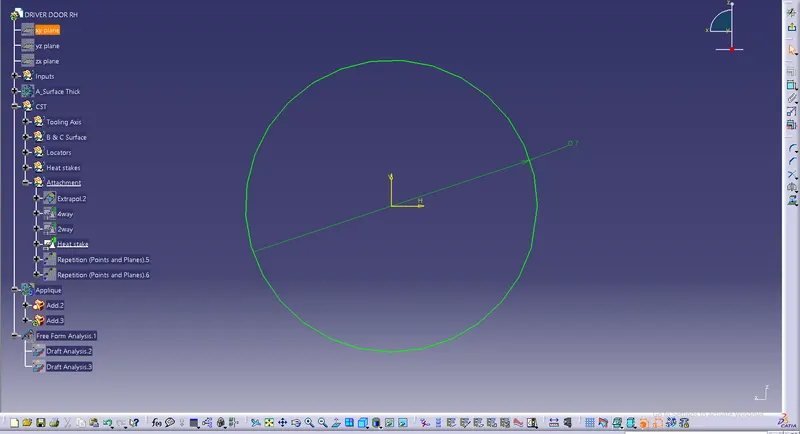

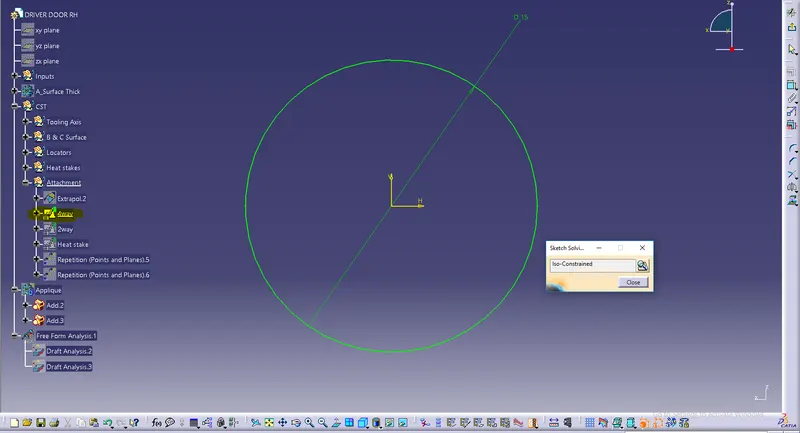

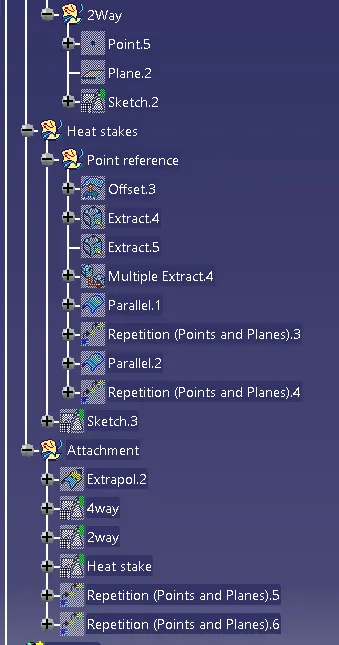

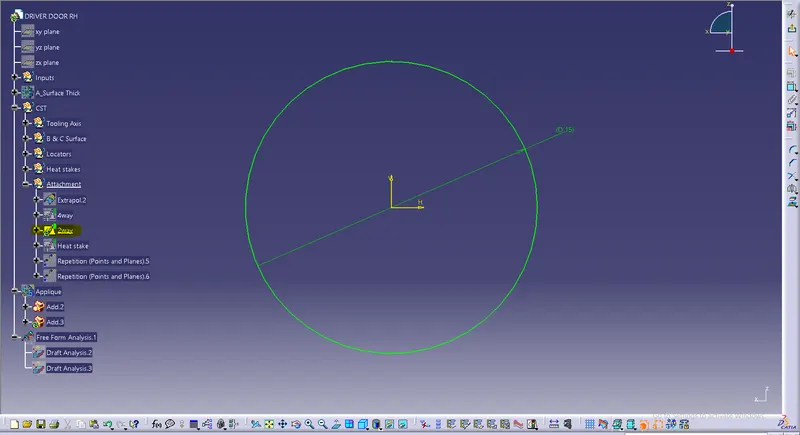

Step_11 create the sketch of the holes

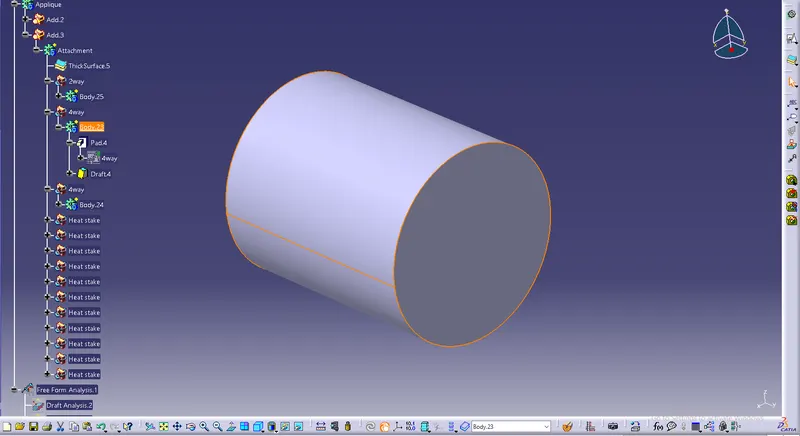

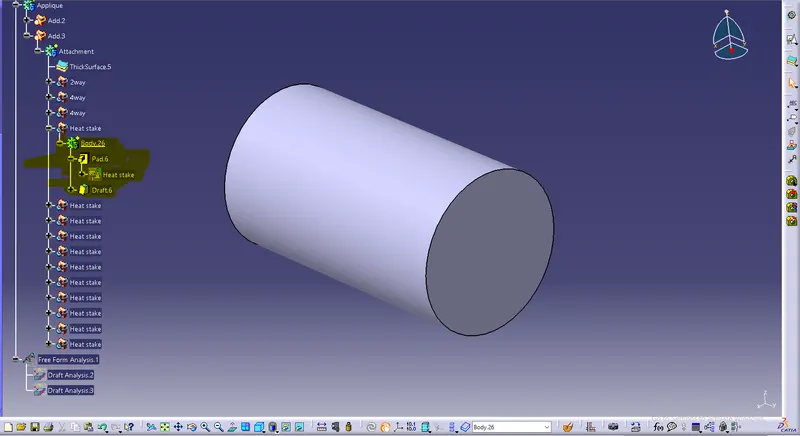

Step_12 pad than all ensure the height should be greater than the Attachment surface

Step_13 Remove all the pad elements with the attachment surface

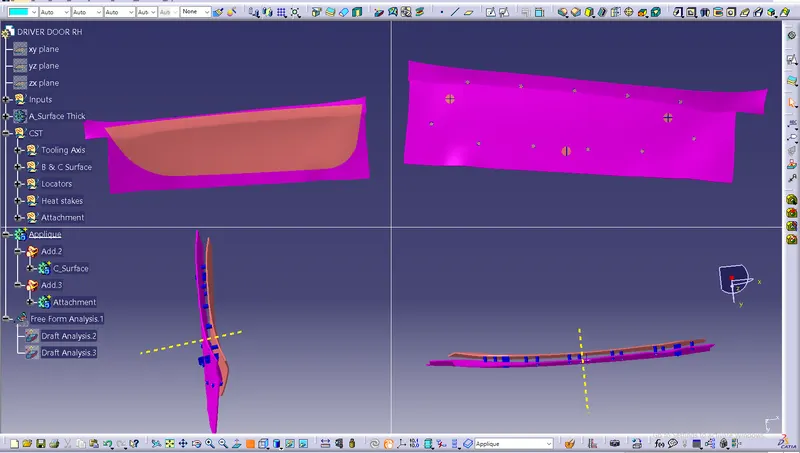

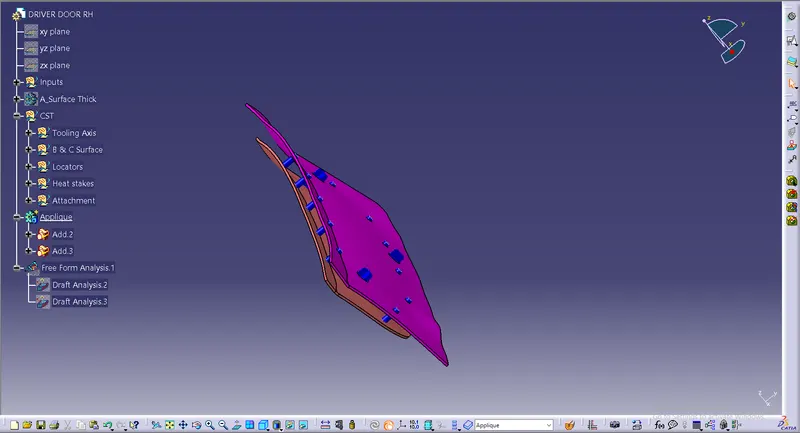

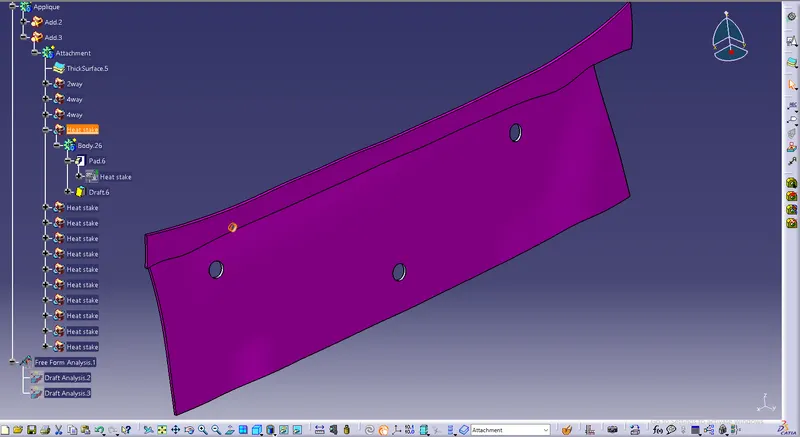

Step_14 after doing all this we can get our final output
