MACHINING WITH PLANAR CHALLENGE
OBJECTIVES
In this challenge we have to perform an explicit dynamics simulation to find out the Equivalent Stress, Total Deformation and also insert a User defined result to calculate the temperature of the body. You need to perform this for 2 cases. One will be with a cutting velocity of 20000mm/s and the other will be with a cutting velocity of 15000mm/s.
PROCEDURE

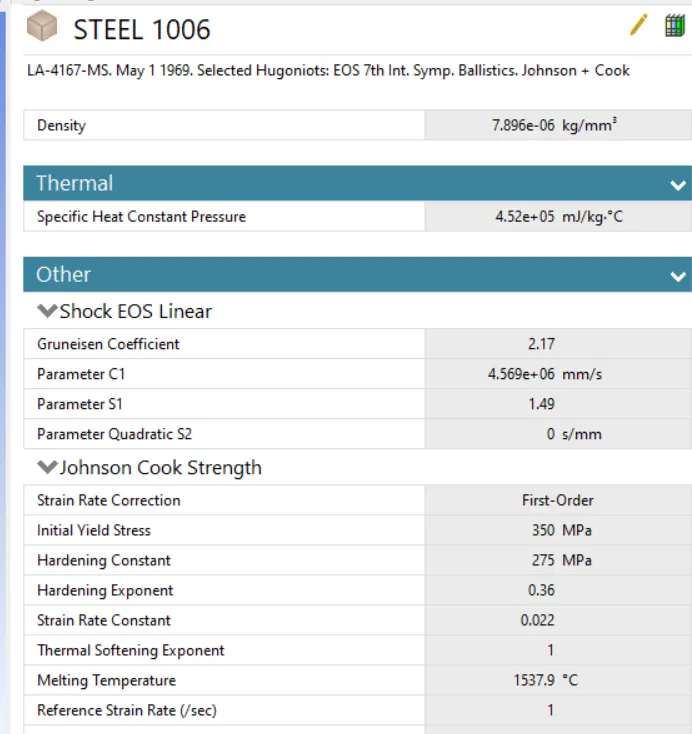

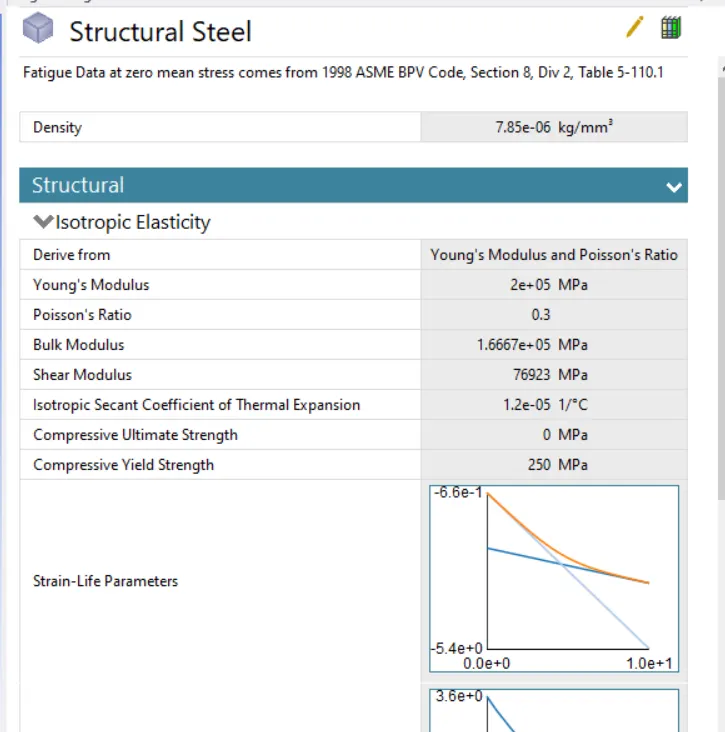

- First, we have to input the engineering materials with required properties or else by creating with required properties.

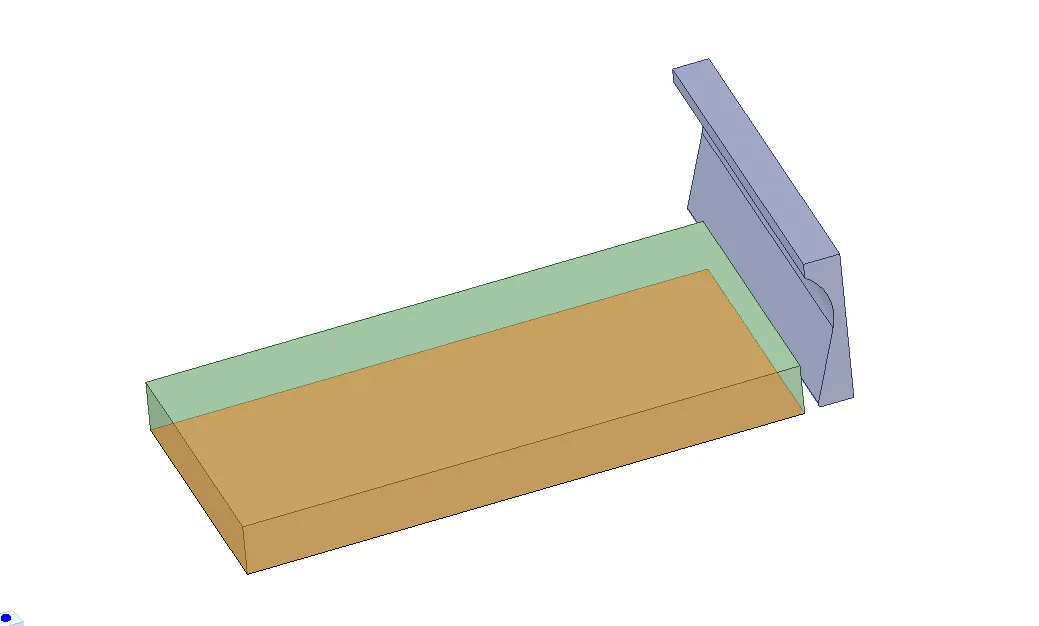

- Then we have to import our model into ansys, import the model and open it in space claim and cut the model into half so that the academic version support.
- Then we have to delete the connections and body interface is created default.
- Then mesh the component with required mesh size in this assignment we will use
- Mesh – default

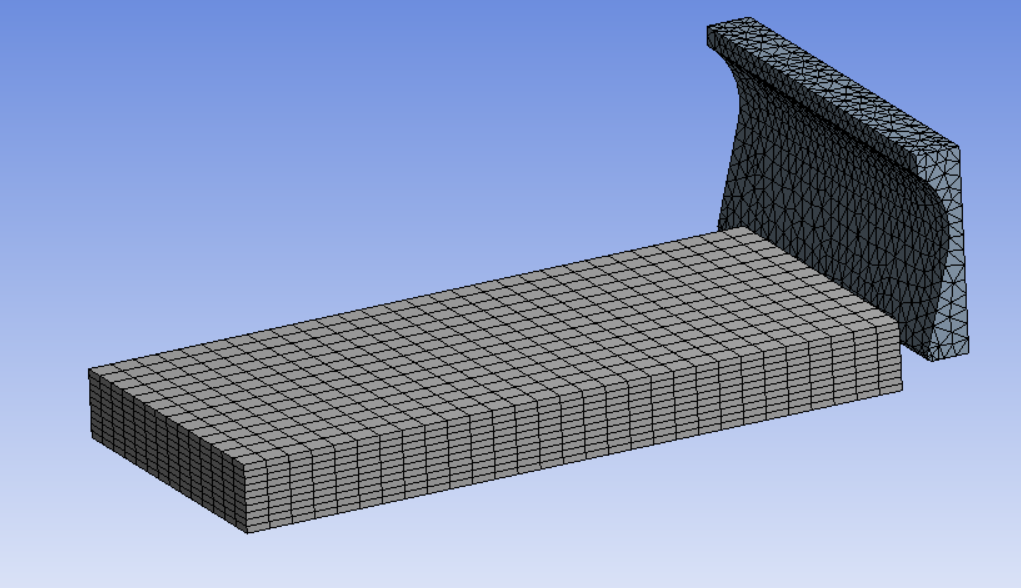

- Nodes – 6557
- Elements – 10071

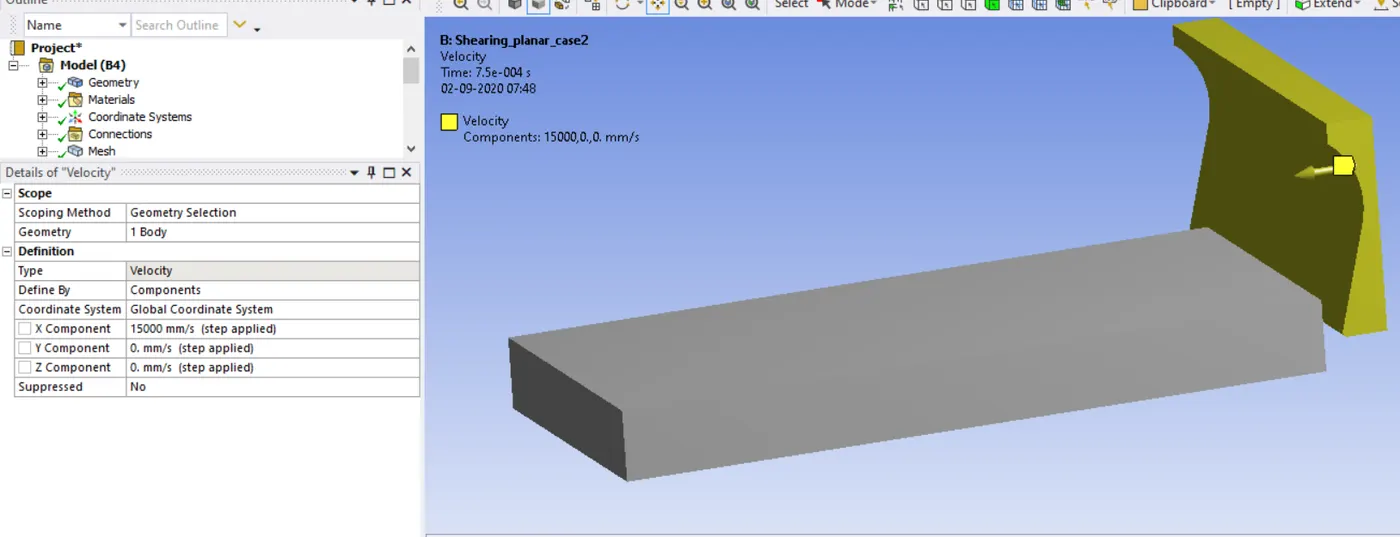

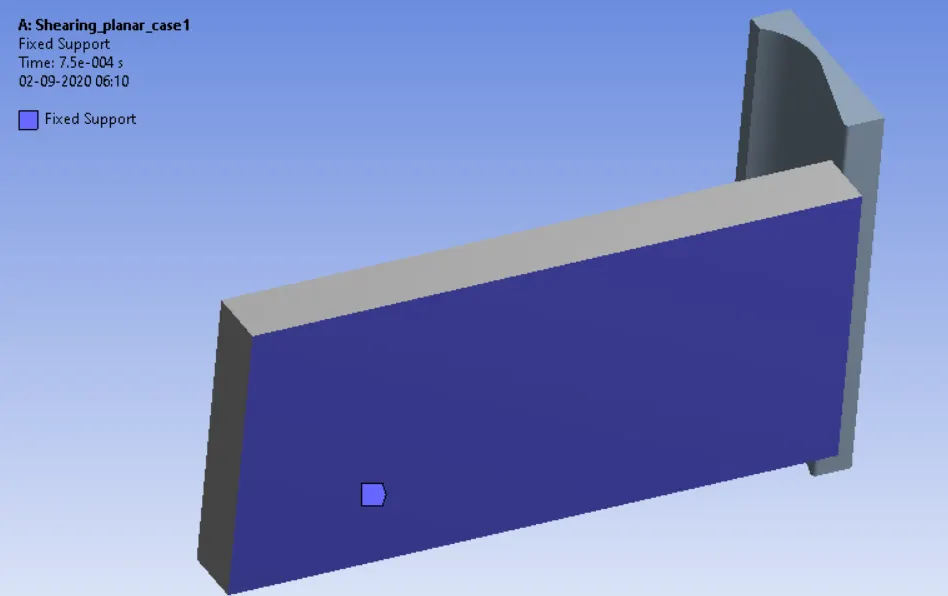

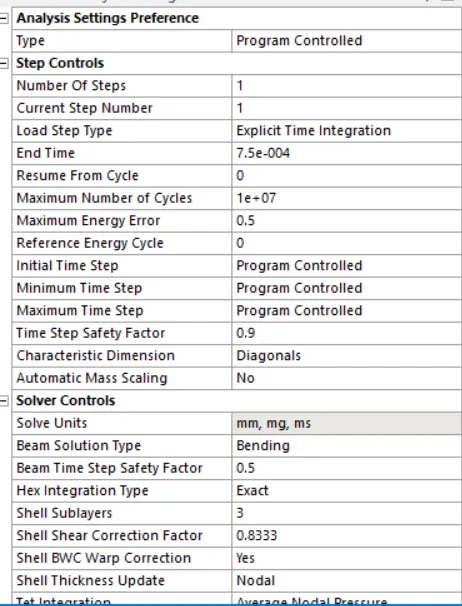

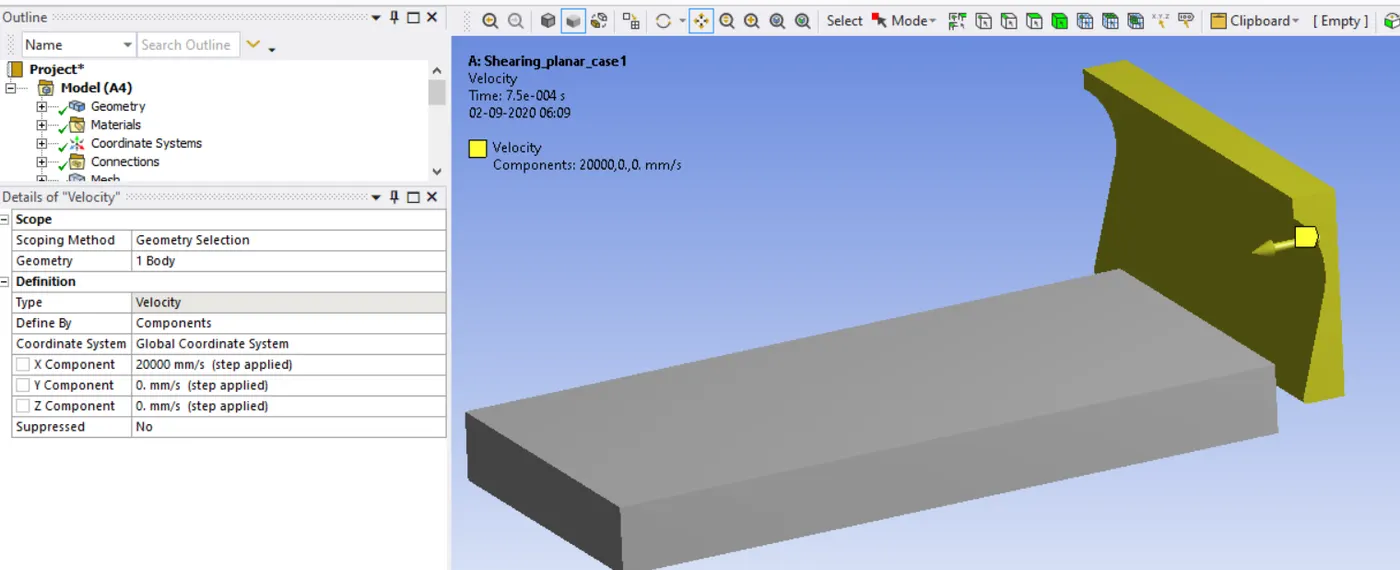

- Analysis setting give the end time as 7.5e-4 and assign fixed support and velocity.
- Then give the required solution parameters then solve.
RESULTS
Case 1: 20000 mm/s

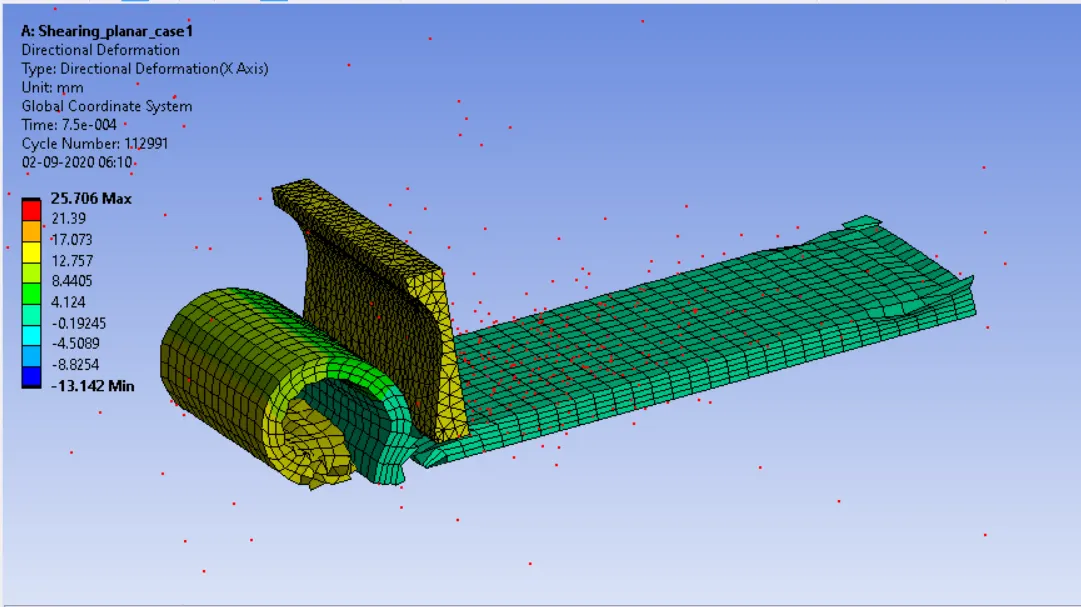

Total Deformation

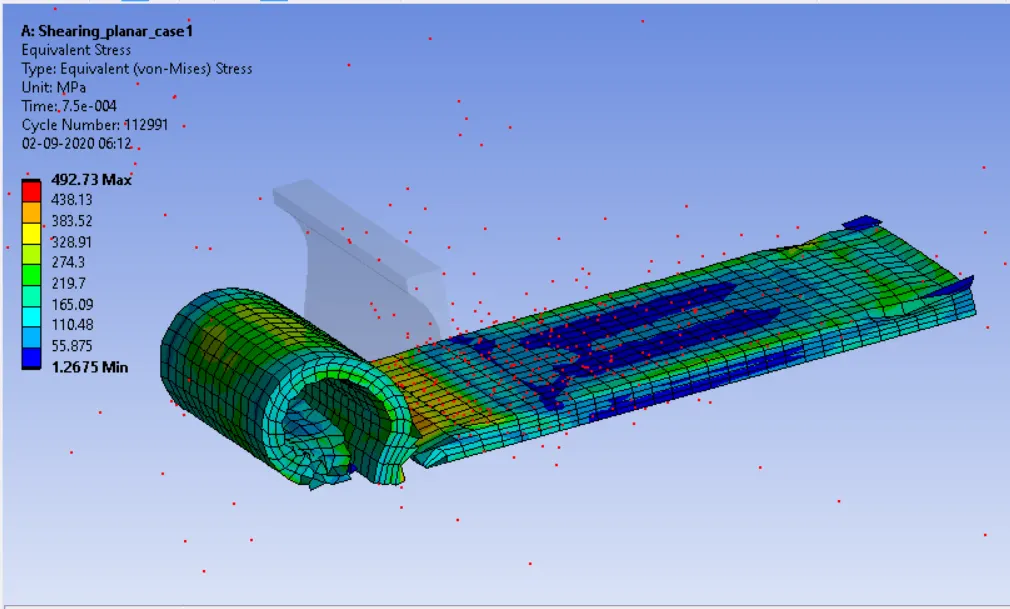

Equivalent stress

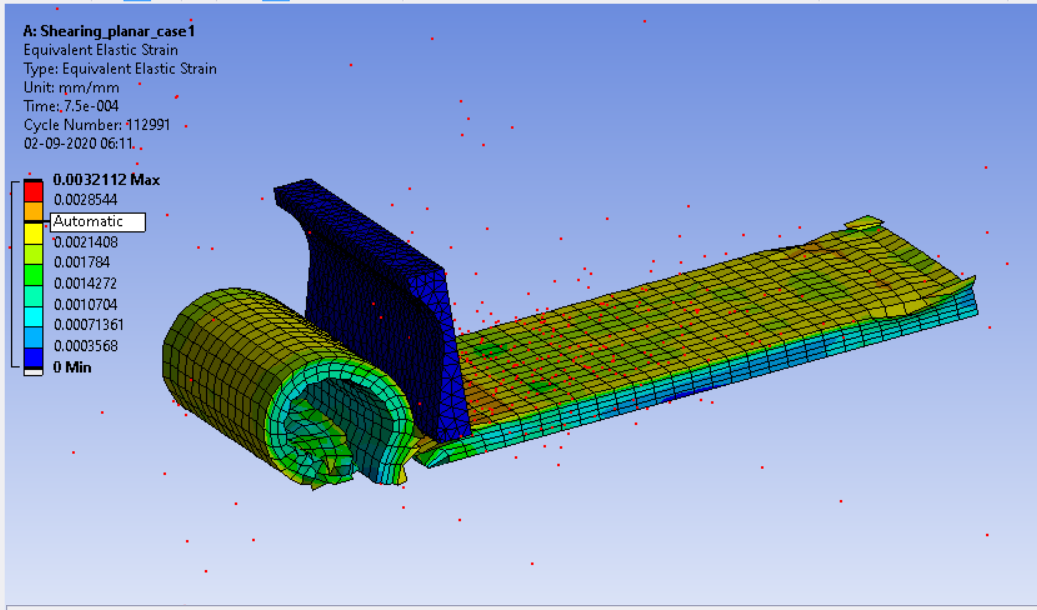

Equivalent strain

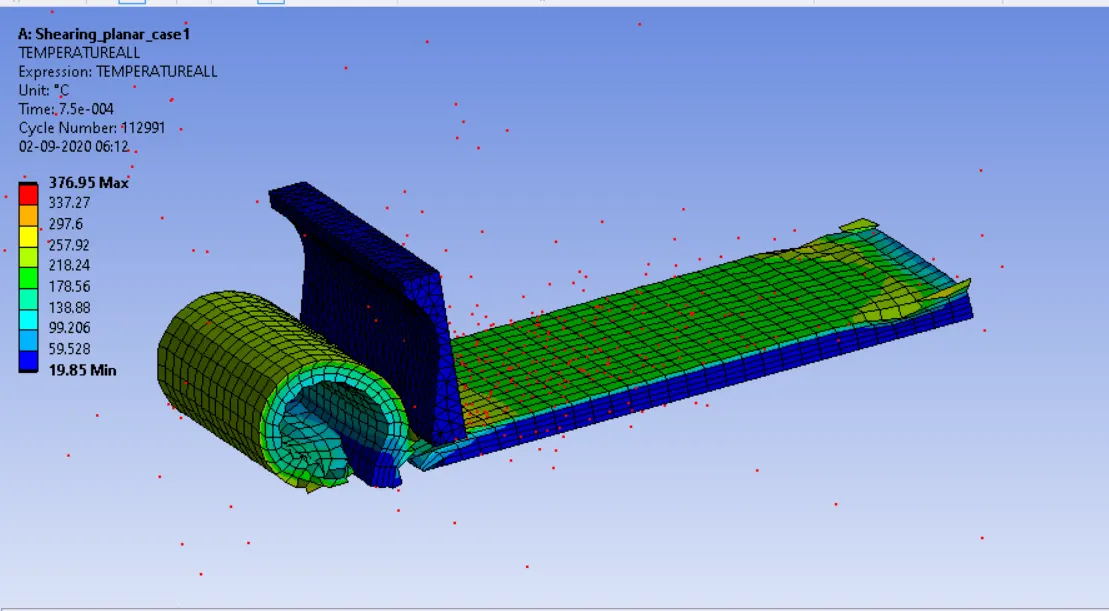

Temperature
Case 2: 15000 mm/s

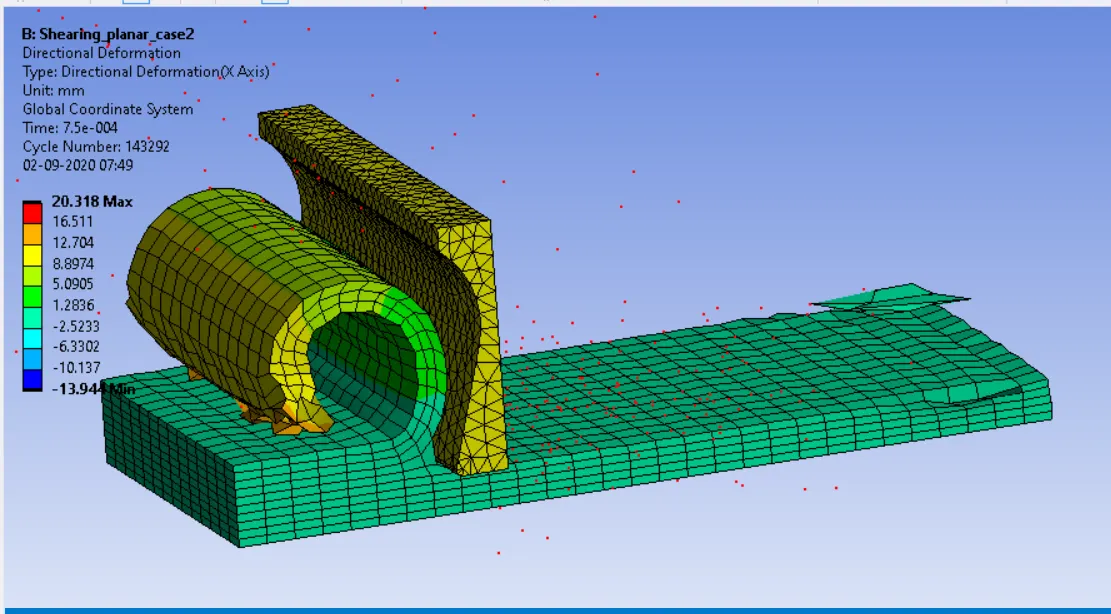

Total Deformation

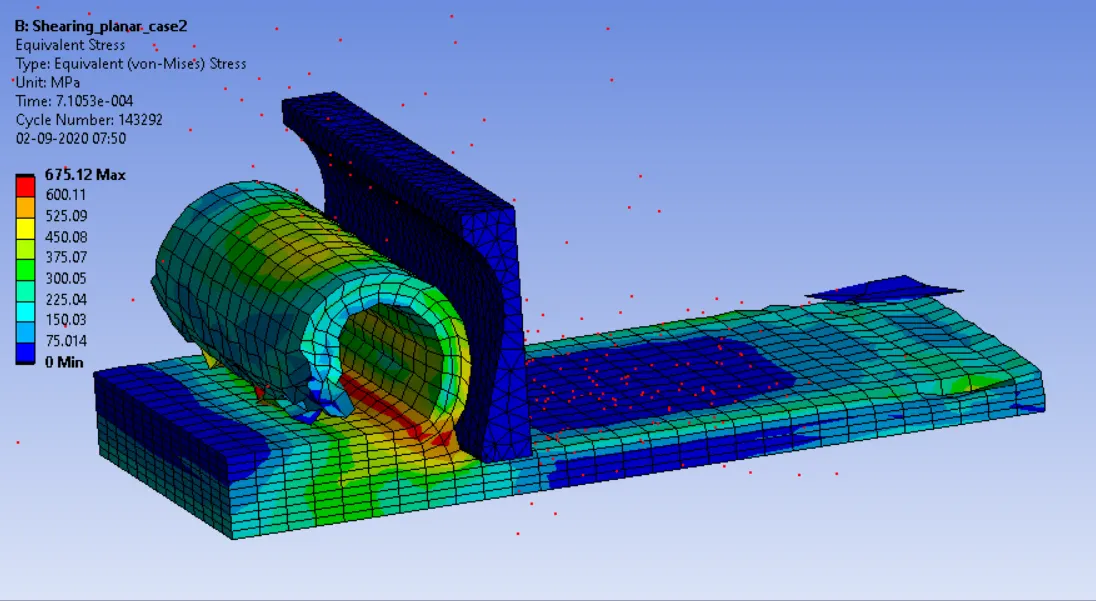

Equivalent stress

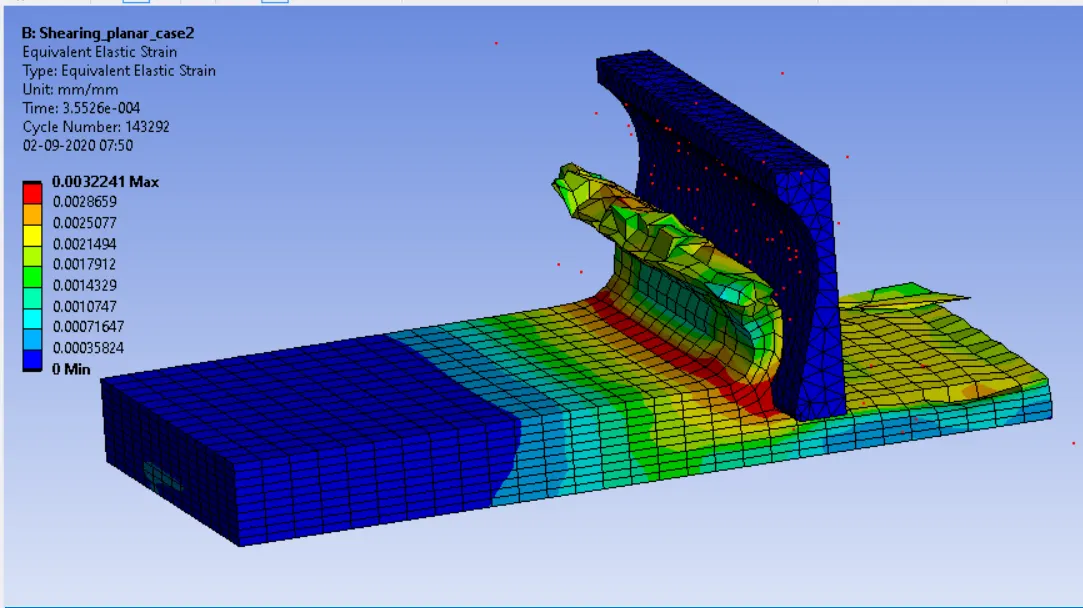

Equivalent strain

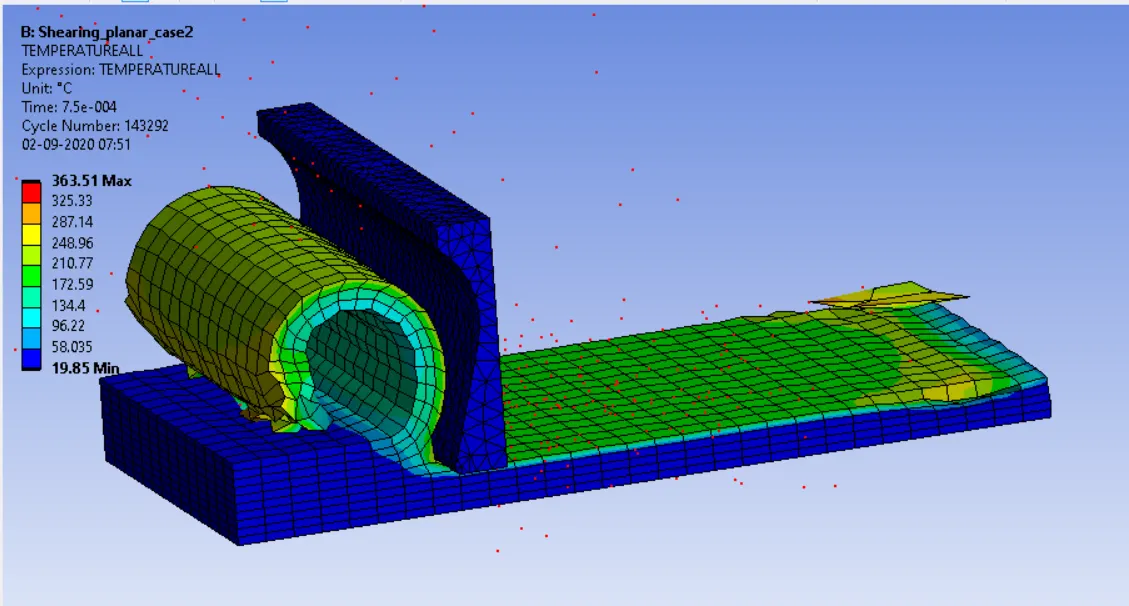

Temperature
Conclusion
|
|
Total deformation (mm) |
Equivalent strain |
Equivalent stress(MPa) |
Temperature °c
|
|
case1 |
25.706 | 0.003211 | 676.73 | 376.93 |
|
case2 |
20.318 | 0.0032149 | 675.12 | 363.51 |
From the above stimulation in case1 has higher velocity than case2 hence in case 2 the workpiece is not fully sheared approx 5mm is left out in worpiece and the temperature in case 1 is higher because of highvelocity compared to case 2 is around 13°c.
