Week 9-Creation of 1D Connectors Challenge

Aim

To perform 2D mesh on given component and create connectors based on given conditions

Objective

2D mesh size to be maintained 5mm

To create realized connectors

Procedure

1. Right_Rail_2 & Front_truss_1:- Seam-Quad(angled+capped+L)

Right_Rail_2 & Front_truss_1

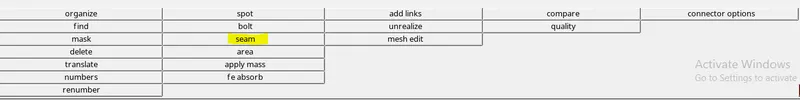

Go to 1D/2D connectors -> Select Seam

For Seam-Quad(angled+capped+L) select type as seam-quad(angled+caped+L

Weld angle

Angle between normal projection of nodes and slant length of weld elements

Recommended Weld angle 0 to 90 degree

Cap angle

Angle between normal of first slant and adjacent side element

Recomended cap angle 45 to 90 degree if cap angle is <10 degree

if 45 to 90 degree then recommended angle is >=75 degree

Run off angle

Angle between normal of first slant weld elements to adjacent weld elements

Recomended angle is 0 to 10 degree

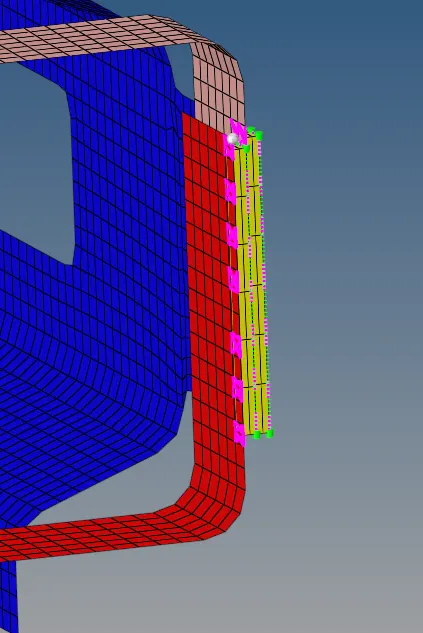

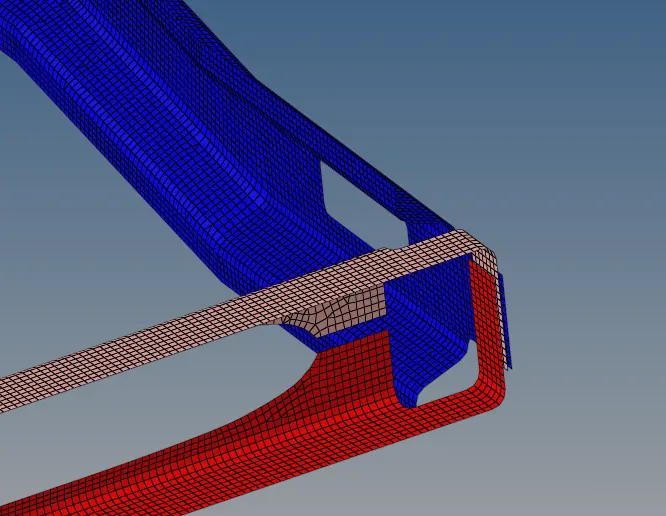

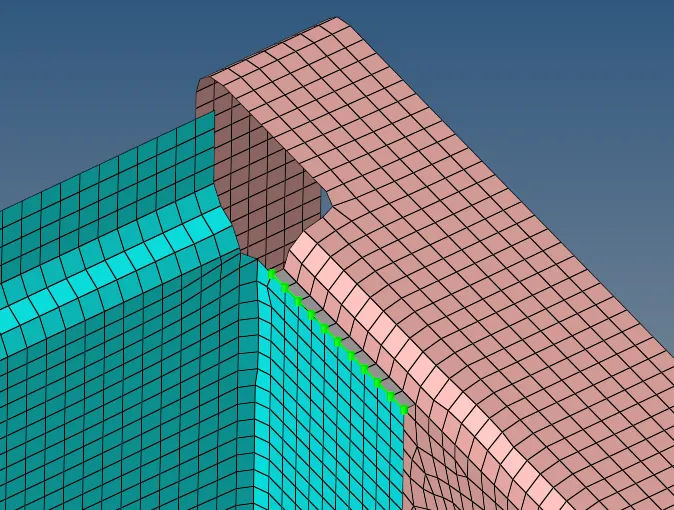

Seam-Quad(angled+capped+L) weld done

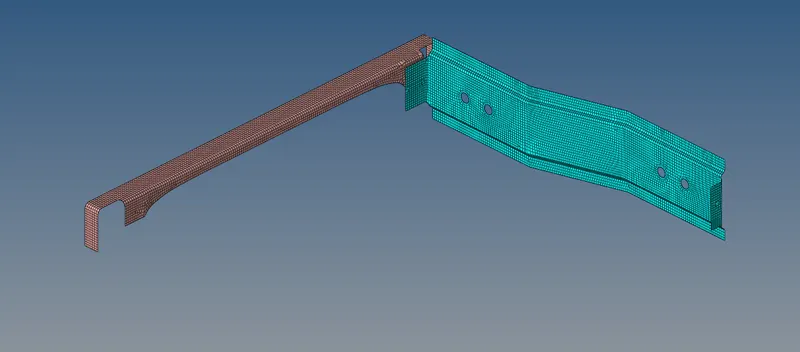

2. Left_Rail_2 & Front_truss_1:- Quad elements

Go to 1D/2D connectors -> Select Seam -> select quads

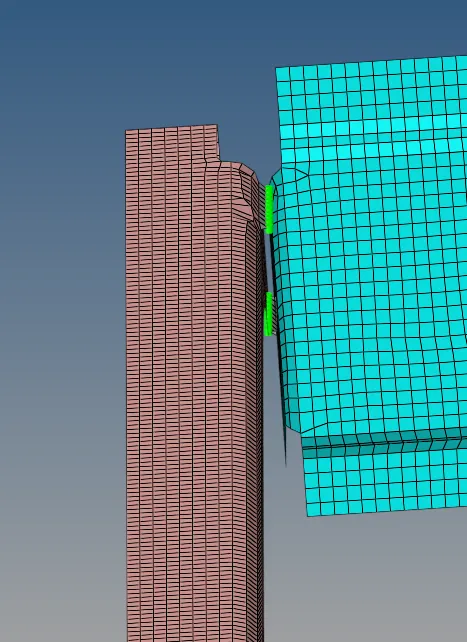

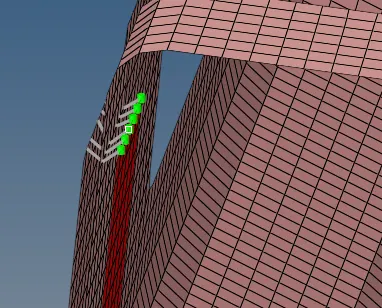

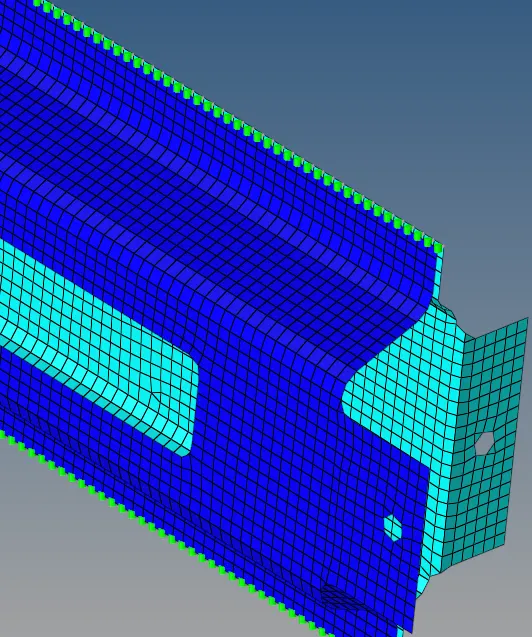

Quad elements weld

3. Front_truss_2, Front_truss_1 & Right_Rail_1:- Spot weld with 3 Layers and 5 mm Diameter

Go to 1D/2D connectors -> Select Spot

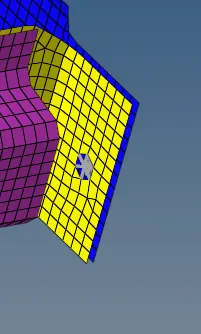

Spot weld with 3 Layers and 5 mm Diameter

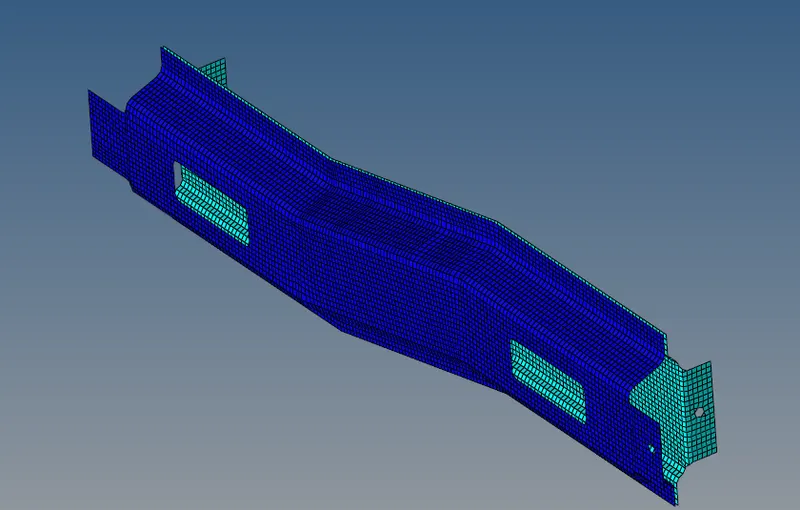

4. Front_truss_2, Front_truss_1 & Left_Rail_1:- Hexa (Adhesive)

Go to 1D/2D connectors -> Select Area

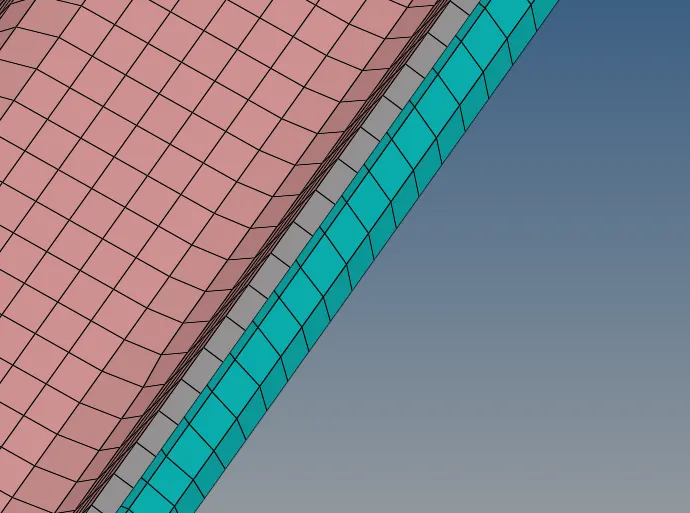

Select type - adhesives

Adhesives cannot be attached for 3 layers at time two layers were selected

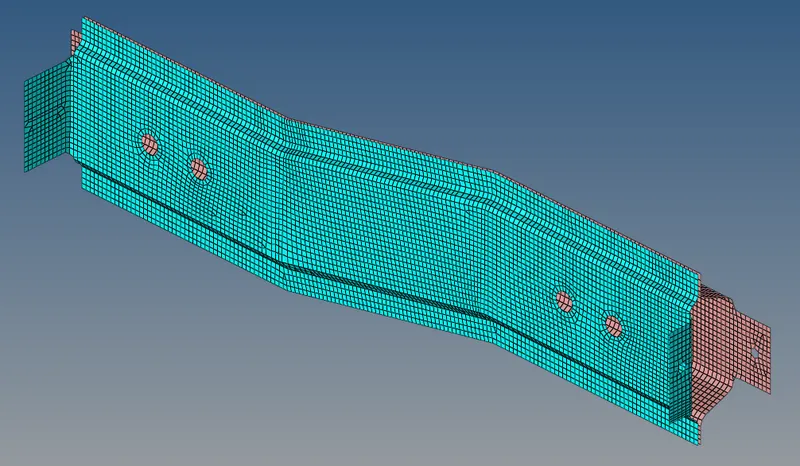

5. Bolt Connected Rear_truss_2 & Right_Rail_2

Go to 1D/2D connectors -> Select bolt

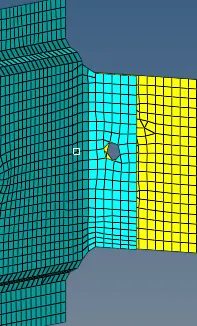

Rear_truss_2 & Right_Rail_2 : Bolt Connector

6. Rear_truss_2 & Left_Rail_2:- Bolt Connector

Go to 1D/2D connectors -> Select bolt

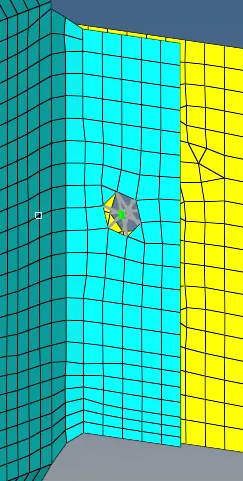

Bolt Connected Rear_truss_2 & Left_Rail_2

7. Right_Rail_1 & Right_Rail_2:- Spot-weld with Rigid Elements

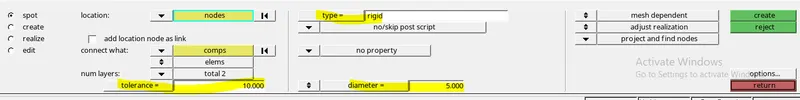

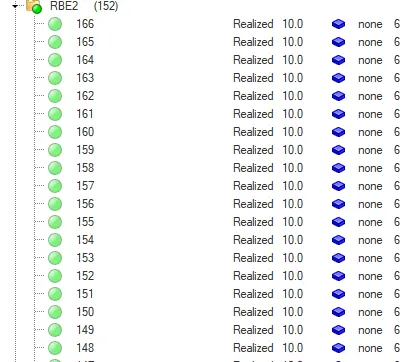

Go to 1D/2D connectors -> Select Spot -> Type ->rigid

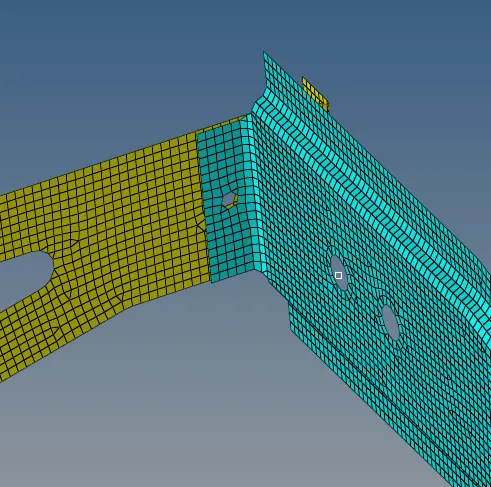

Spot-weld with Rigid Elements

8. Left_Rail_1 & Left_Rail_2:- Spot-weld with Spring Elements

Go to 1D/2D connectors -> Select Spot -> Type ->spring

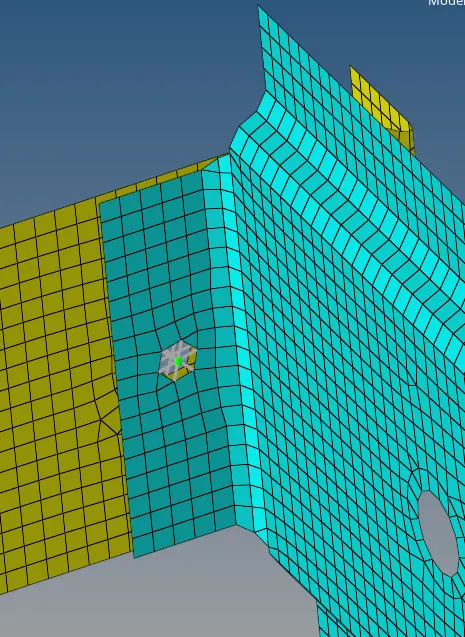

Spot-weld with Spring Elements

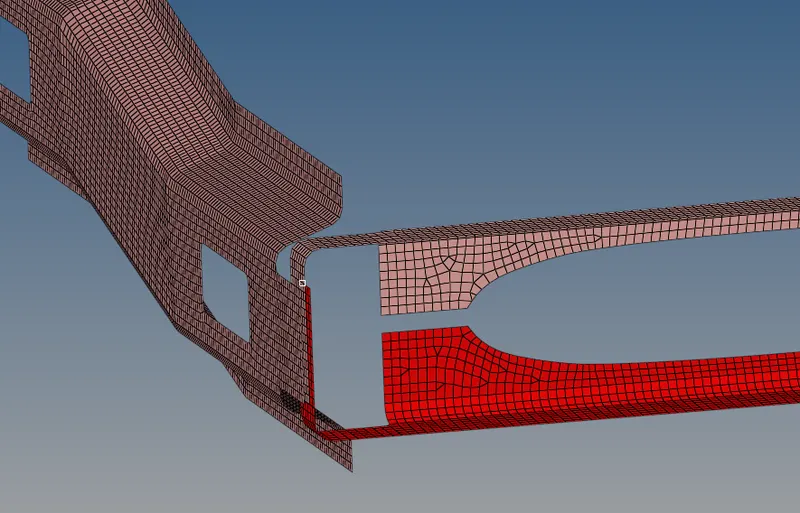

9. Rest all the component left Join them with suitable connectors

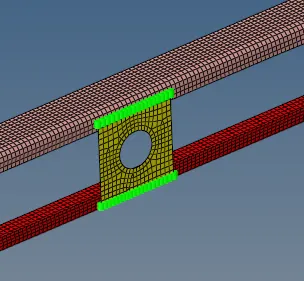

Reinforced pate was welded using Spot- type - spring

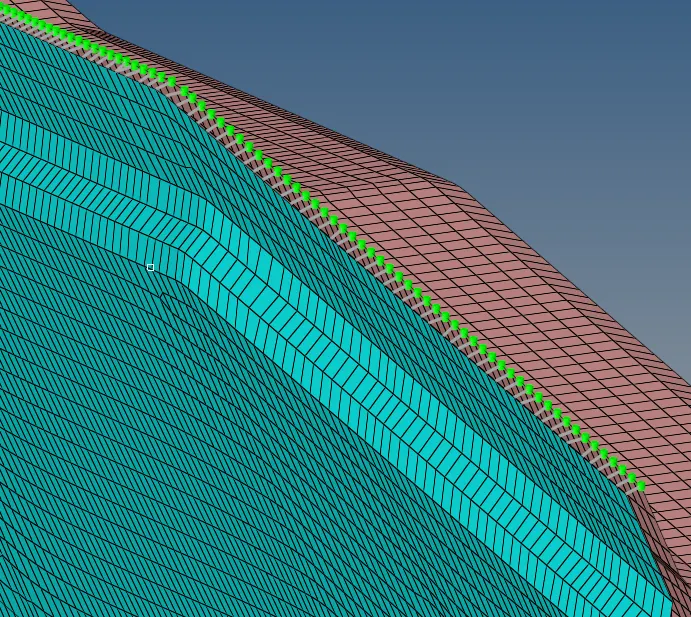

Right rail1 and Rail 2 was welded using quad

Left rail1 and left rail2 ends were bolted with hole

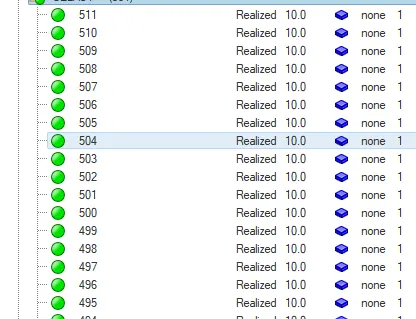

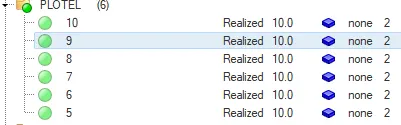

when it shows realized then the weld is correct

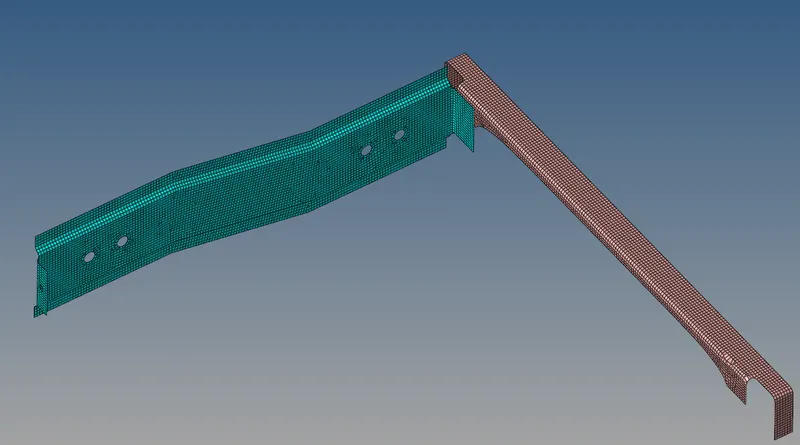

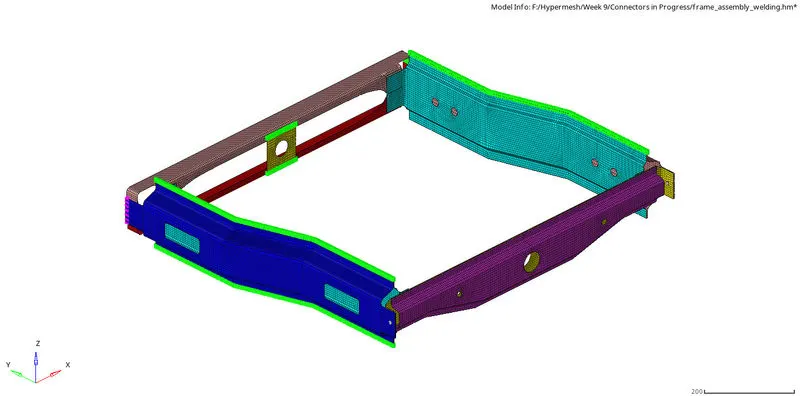

Final Welded assembly weld
