Week 9 - Challenge 3 - Bumper

BUMBER AIM - Create the Bumper Plastic component through the given Class-A surface. To begin with, the tooling axis for the given Class-A Surface should be created meeting the requirements of the draft angle and at the end perform the Draft analysis on the model.

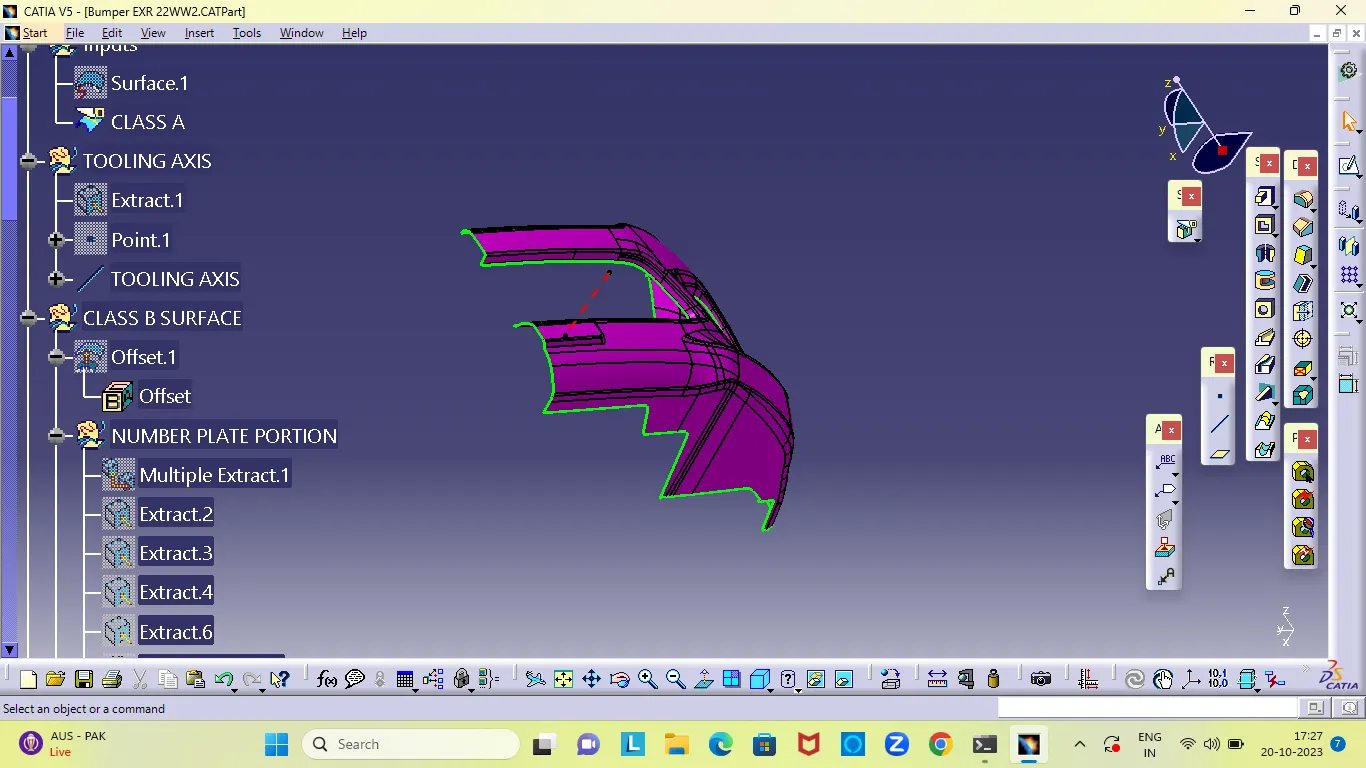

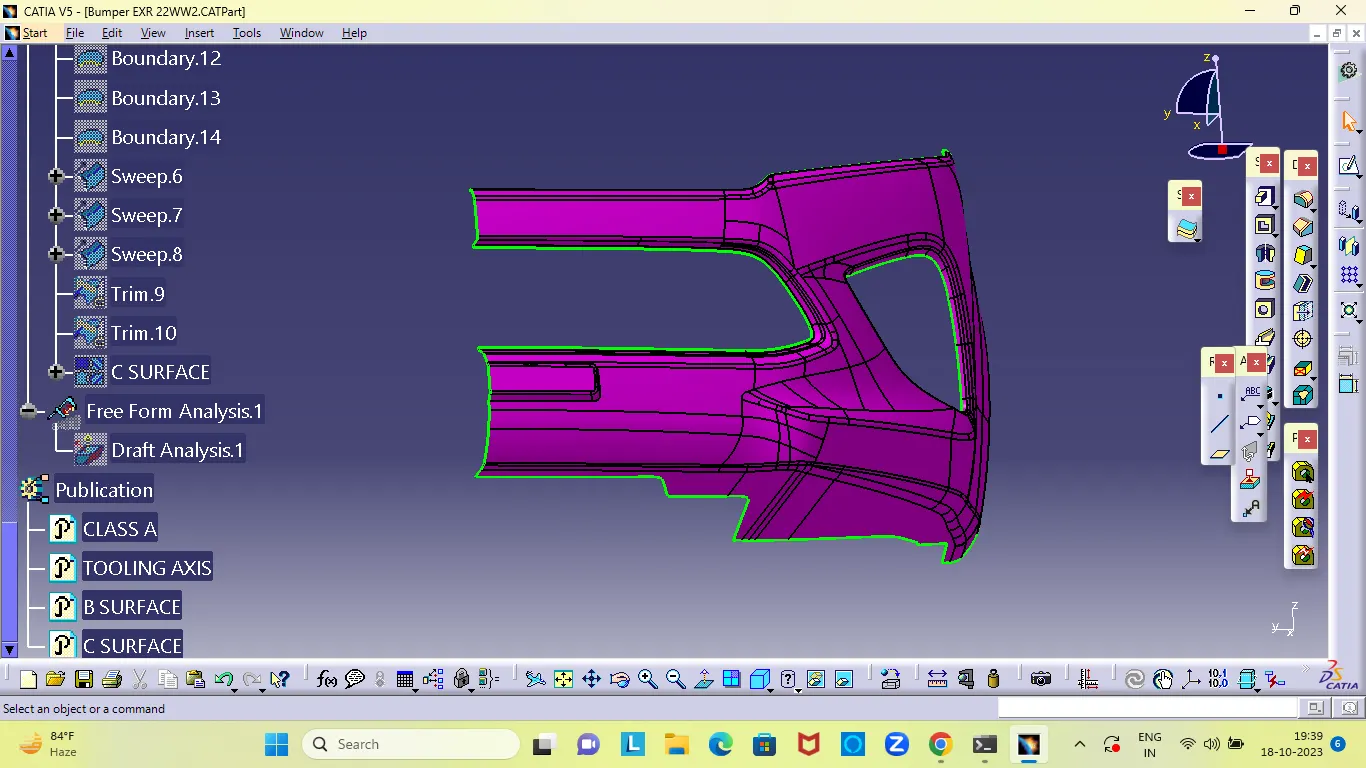

Take the Thickness of the component to be 3 mm CLASS A SURFACE TOOLING AXIS CLASS C CLASS A ,B & C CLASS B SURFACE - For making a Class B surface we have to take 3 mm offset with A surface and close the all open patches by extrapolation and trimming function the final B surface is shown below-

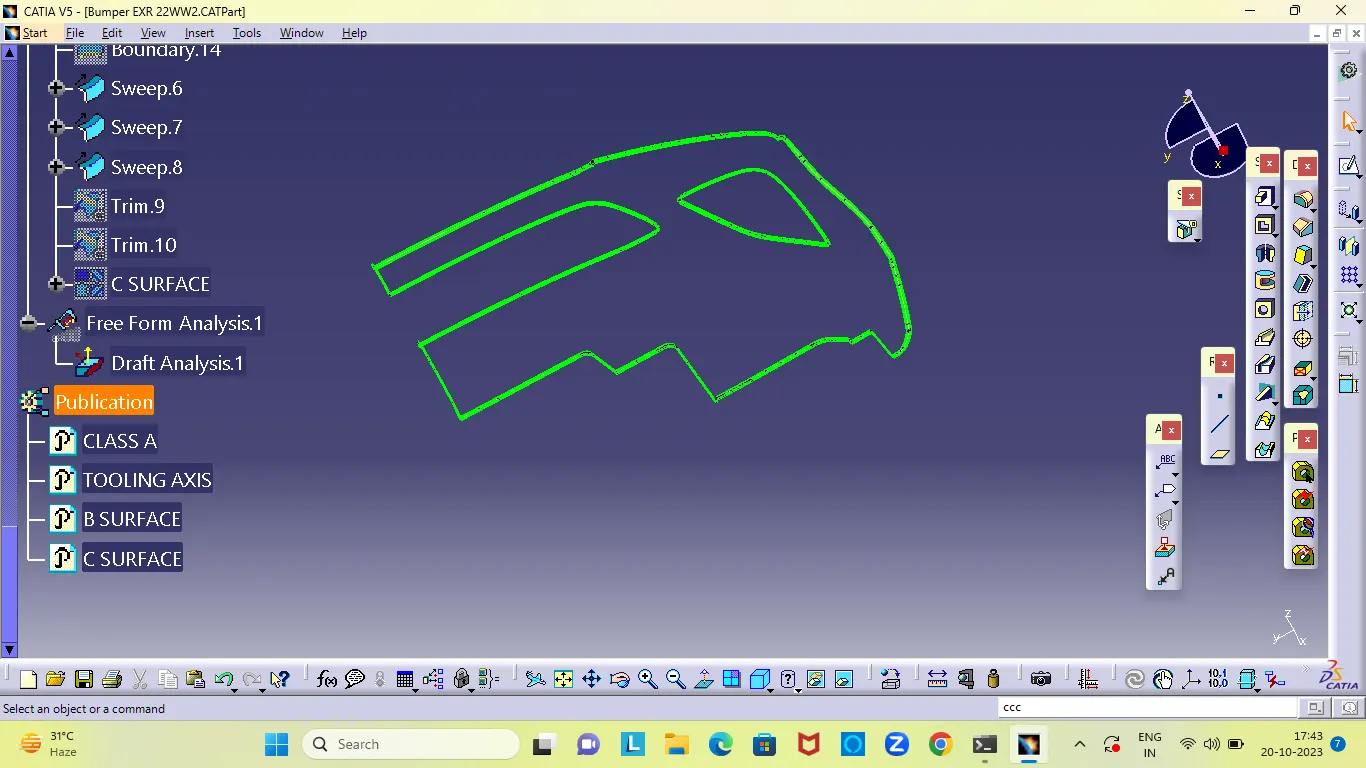

CLASS C SURFACE - For making a class b surface we have to use the Sweep command with reference to the surface and the length is given 5 mm.

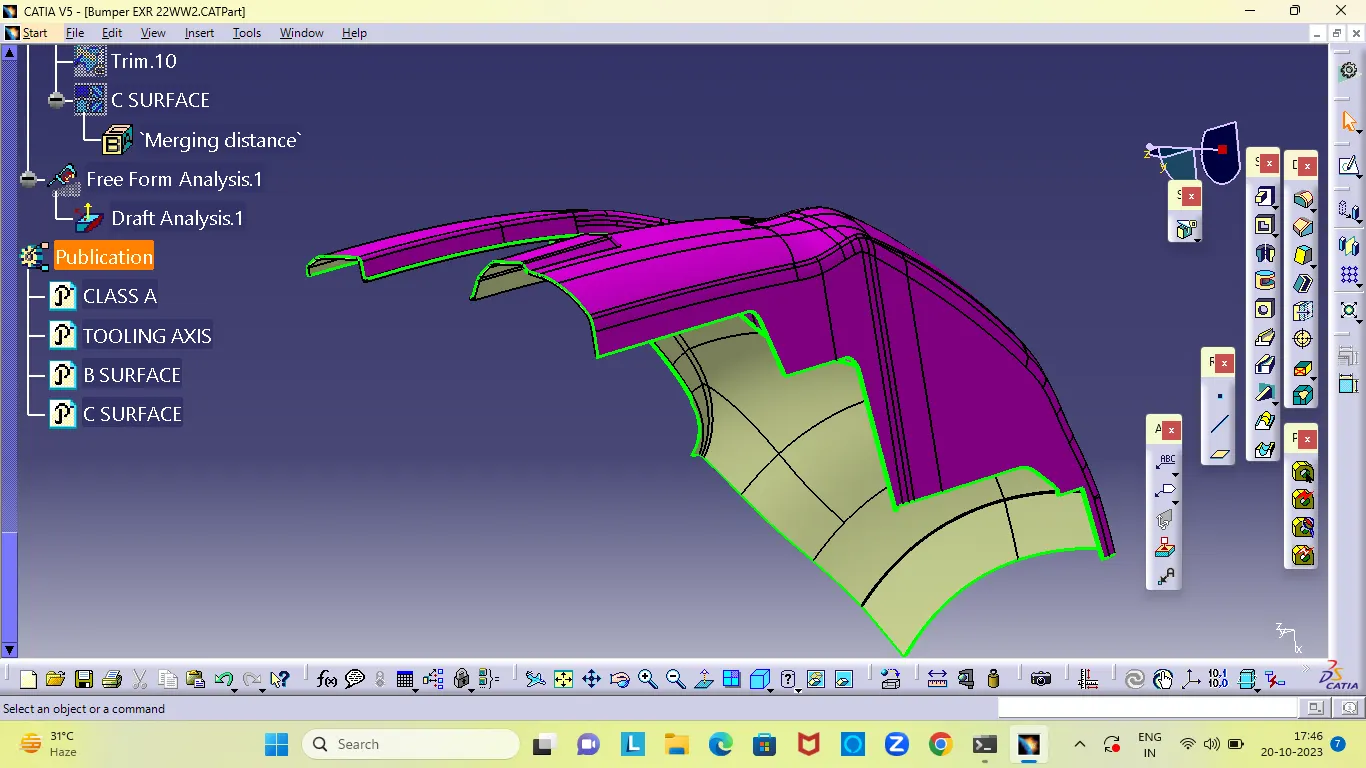

FINAL TRIMMED SURFACE - For this first, we have to join Class A and Class C and trim it with Class B.

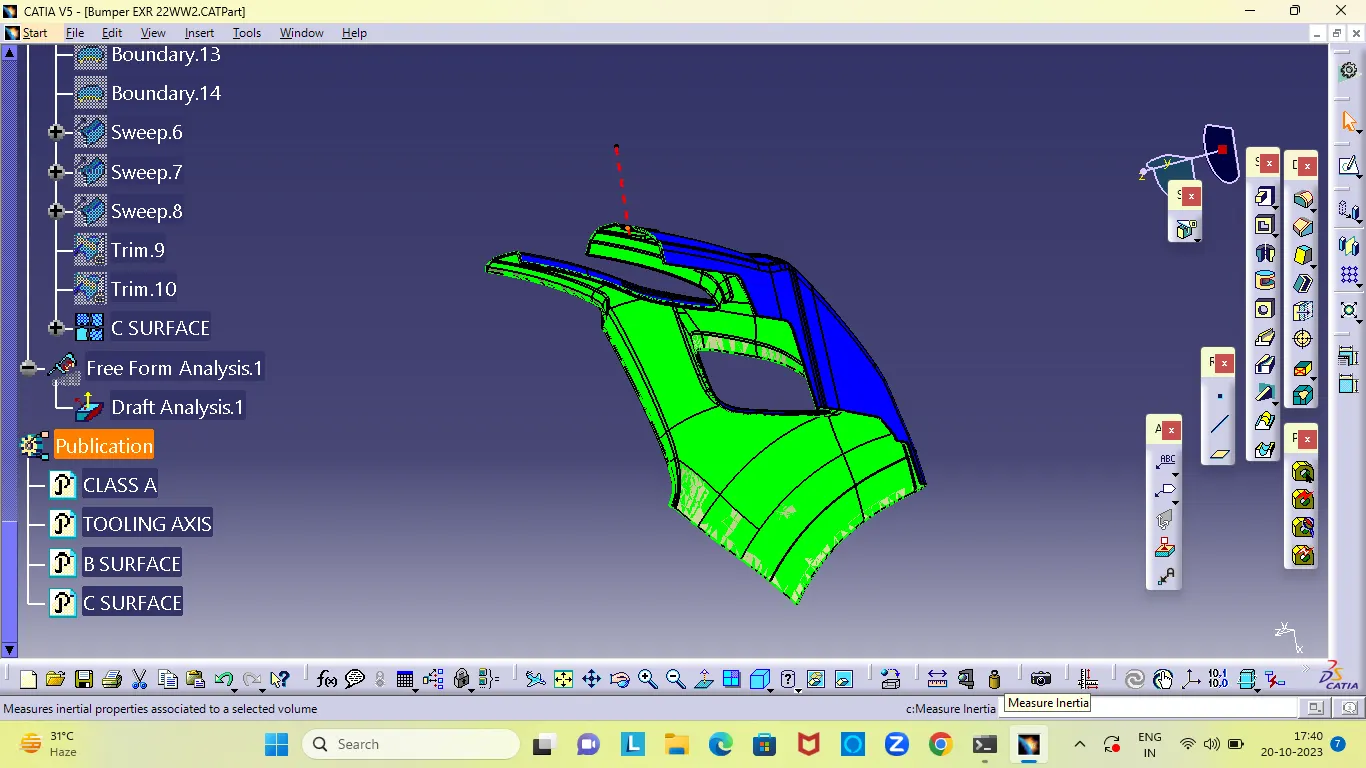

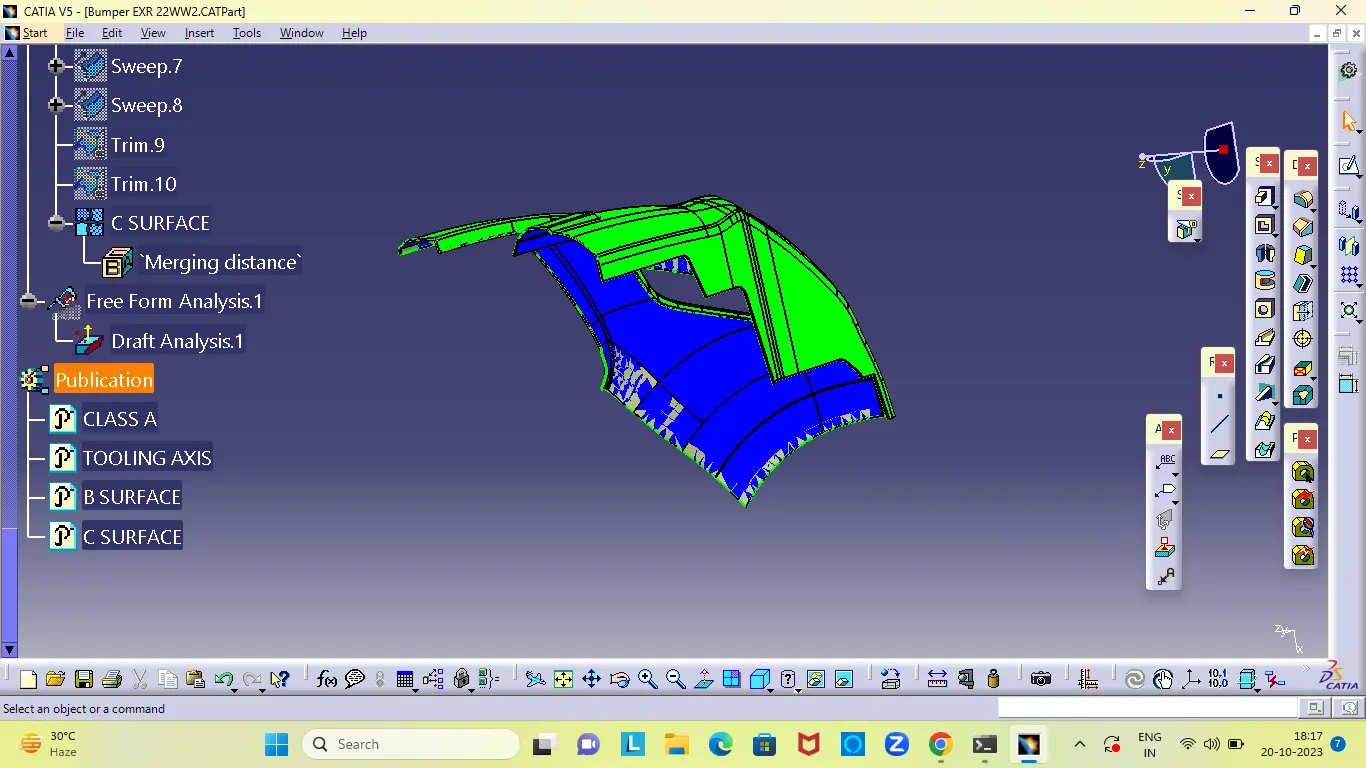

DRAFT ANALYSIS

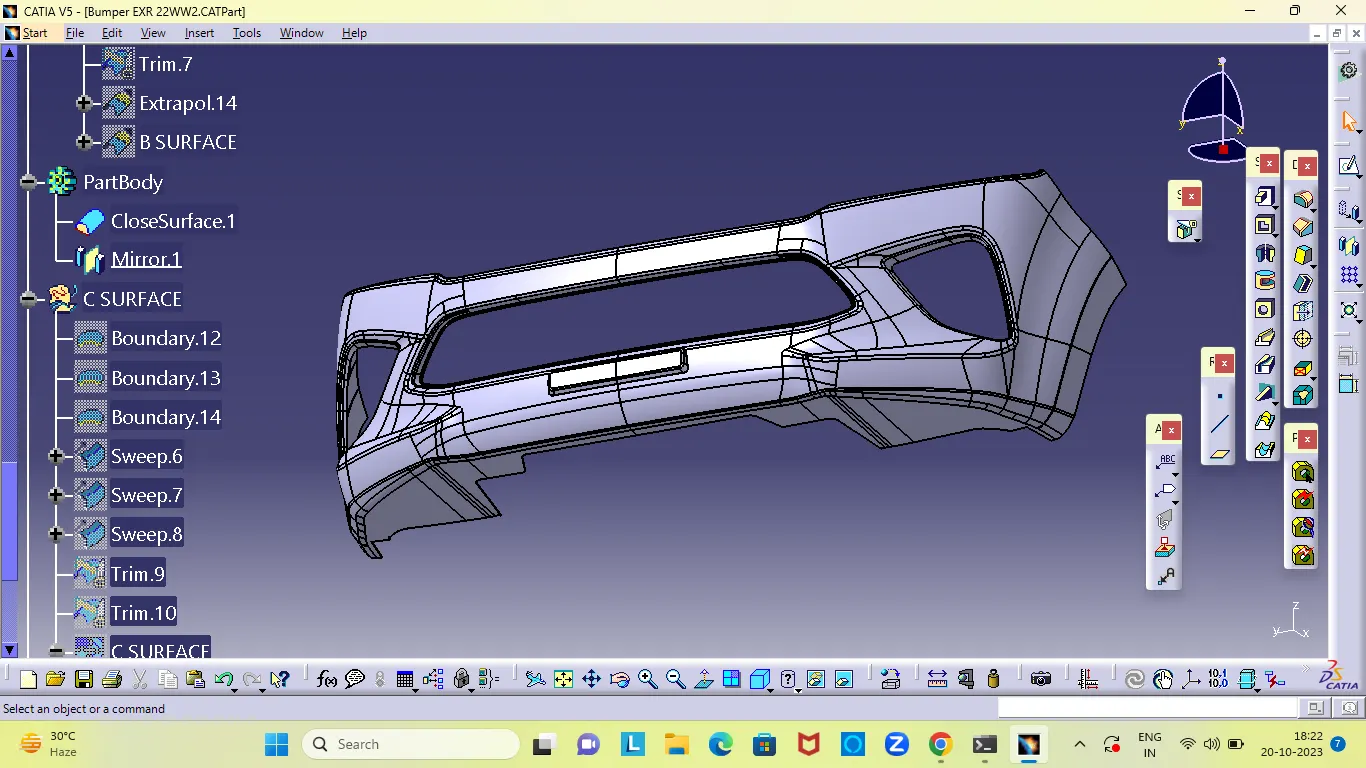

FINAL BUMBER PART

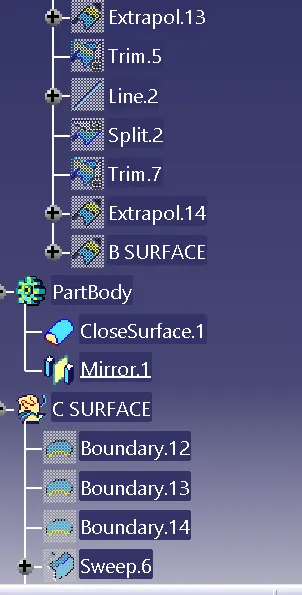

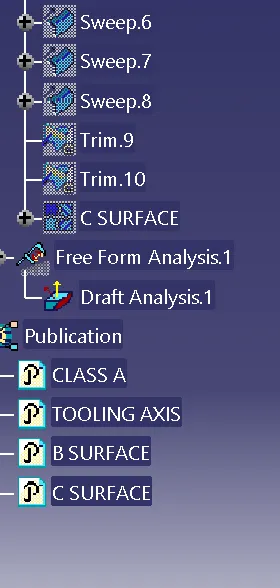

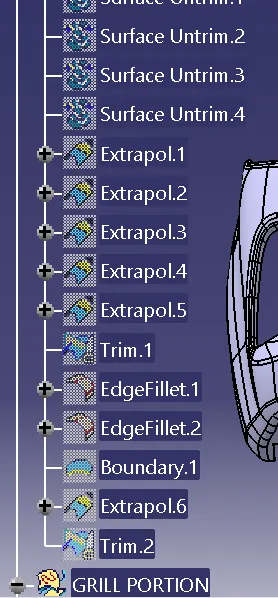

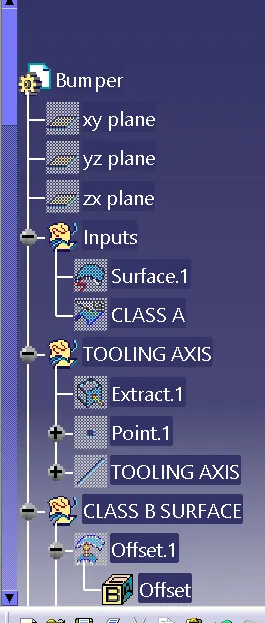

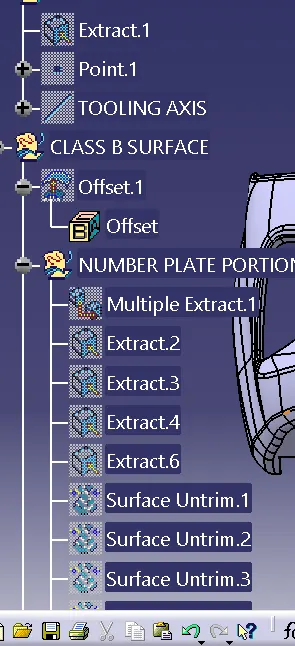

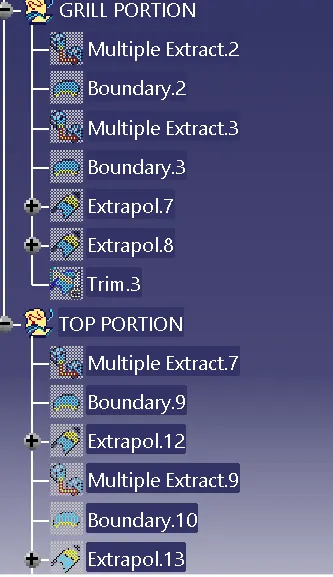

TREE STRUCTURE
