Week 9 - Challenge 3 - Bumper

FIRST STEP:

• WE HAVE TO FIND THE PERFECT AXIS FOR THE TOOLING AXIS.
• THEN WE HAVE TO CREATE A TOOLING AXIS FOR THE COMPENENT , BY USING TOOLING AXIS RULE .

SECOND STEP:

• WE HAVE TO CHECK THE DRAFT ANALYSIS FOR THE GIVEN 'CLASS - A' BY USING THE TOOLING AXIS.
• AND WE ALSO CHECK ALL THE SURFACE EDGES CAREFULLY

THIRD STEP:

 CREATING CLASS - B:

• FIRST WE HAVE TO CREATE A NEW GEOMETRICAL SET FOR CLASS - B CREATION.
• IN THIS BUMBER WE ARE USING THE DIRECT OFFSET METHOD ,BY SELECTING THE PROPER SURFACE AND SELECTING PROPER DIRECTION.
• AND THEN WE HAVE TO GIVE "3 MM " AS A OFFSET DISTANCE.
• WHEN WE DO THE DIRECT OFFSET METHOD ,WE ARE FACING SOME WARNING .SOME SUB ELEMENTS ARE MISSING.
• WE HAVE B-SURFACE WITH SOME SURFACE PATCHES ARE MISSING
• SO WE HAVE TO FILL THE SURFACE PATCH BY USING DIFFERENET TOOLS SETS
• IN THIS METHOD, WE ARE USING DIFFERENT TOOLS LIKE , MULTIPLE EXTRACT ,BOUNDRY,EXTRAPOLATE , TRIM ,SPLIT ,JOIN (SUB ELEMENT TO REMOVE ) , SURFACE UNTRIM AND FILLETS.

FORTH STEP :

CREATING CLASS - C:

• INSERT A NEW GEOMETRY SET AS A CLASS - C SURFACE.
• FIRST WE HAVE TO CHECK THE CLASS - C DIRECTION TO MAKE.
• BY USING DIFFERENT TOOLS .
• AND WE EXTRECT ALL THE SURFACE BOUNDRIES AND THE EXTRAPOLATE TO THE REACHABLE DISTANCE TO THE CLASS -A SURFACE AND THEN TRIM IT.

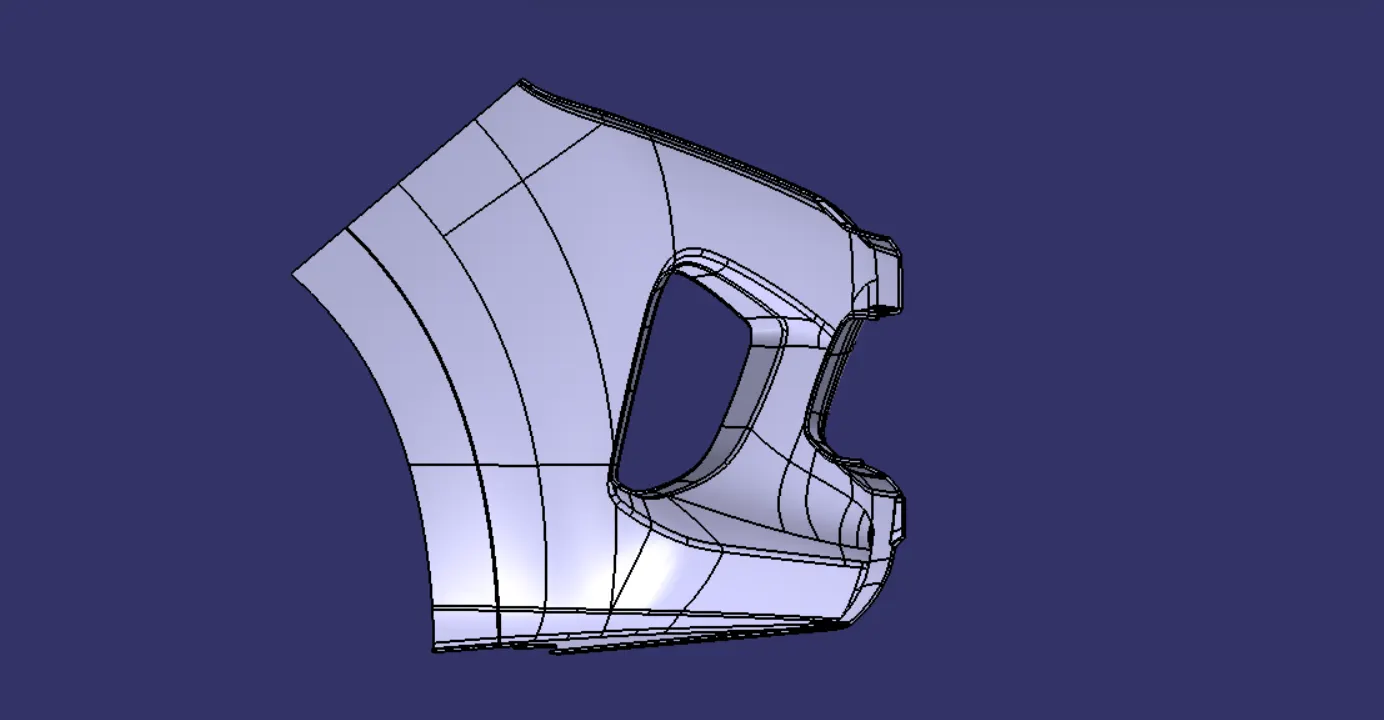

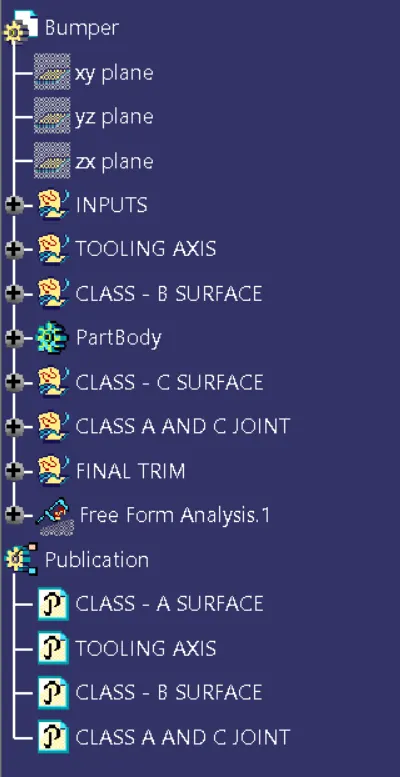

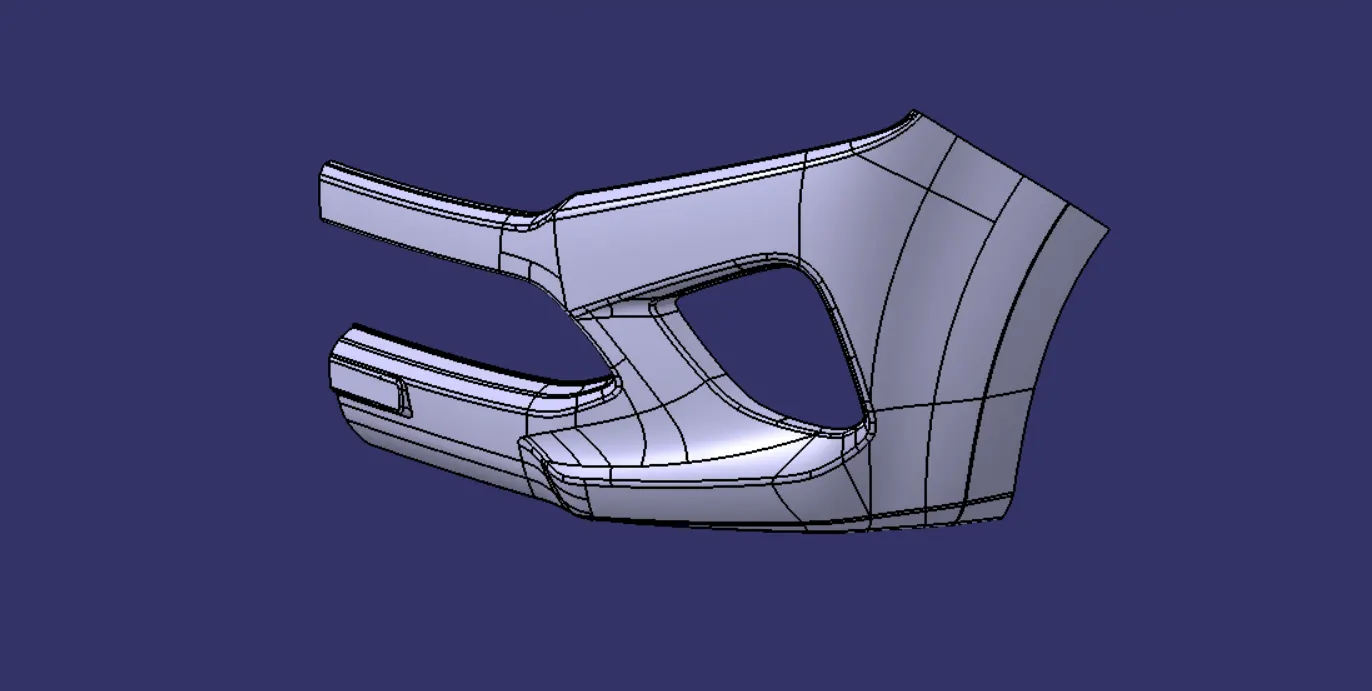

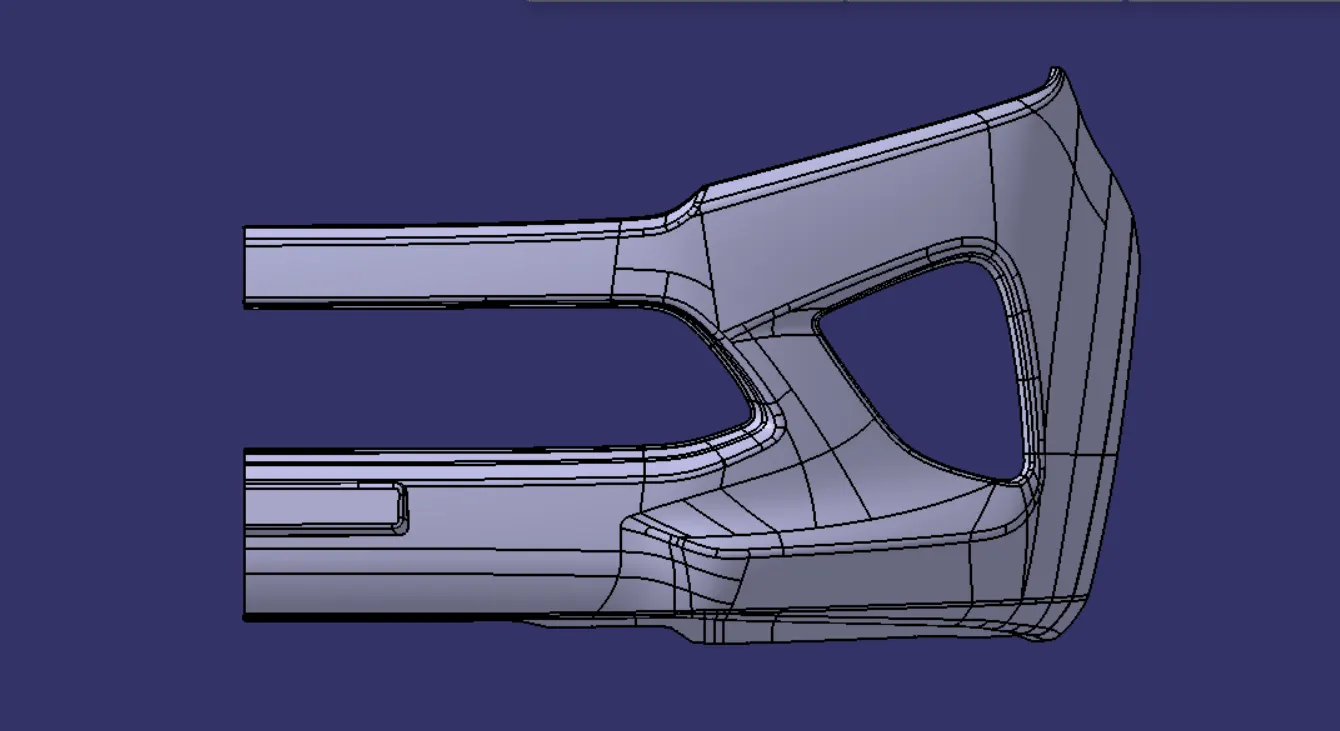

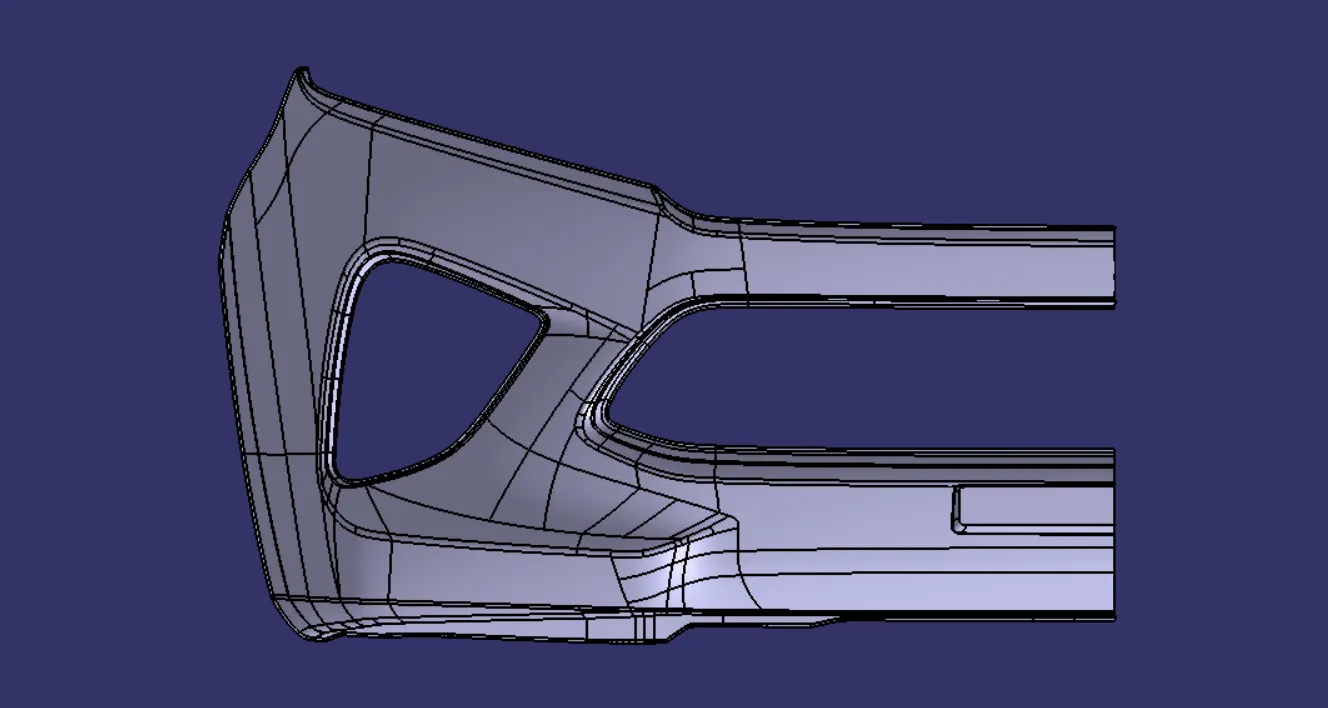

IMAGES:
