Week 9 - Challenge 3 - Bumper

TO CREATE A TOOLING AXIS BELOW STEPS ARE FOLLOWED.

• ANALYSE IN WHICH AXIS THE TOOLING IS POSSIBLE. IN BUMPER DESIGN CHALLENGE FIRST I HAVE CHECKED IN WHICH AXIS TOOLING WILL BE DONE WITHOUT MUCH DIFFICULTY.
• I HAVE FOUND OUT THAT IN Z AXIS TOOLING WILL BE EASY.
• SO FIRST I HAVE DRAWN ONE POINT ON THE CURVE.
• THEN DRAW A LINE USING POINT & DIRECTION. DIRECTION IS Z AXIS.
• AND THEN DO THE DRAFT ANALYSIS TO MAKE SURE THAT THE PART WILL BE CLEARED IN THE TOOLING AXIS WHICH I HAVE DRAWN.

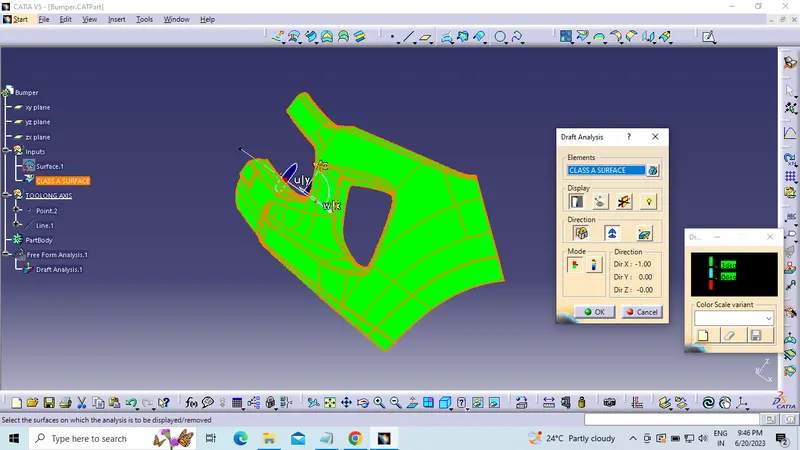

DRAFT ANALYSIS FOR CLASS A & PART BODY OF BUMPER.

• FIRST OPEN THE DRAFT ANALYSIS TOOLBAR.
• ALIGN THE COMPASS TO THE MAIN TOOLING AXIS AND THEN CLICK ON THE LOCK ICON.
• THEN SELECT ANY SURFACE ON THE BODY.
• HERE I CHANGED DRAFT ANGLE TO 2.5 DEGREE SO THAT EVERY SURFACE WILL CLEAR THROUGH MAIN TOOLING AXIS.

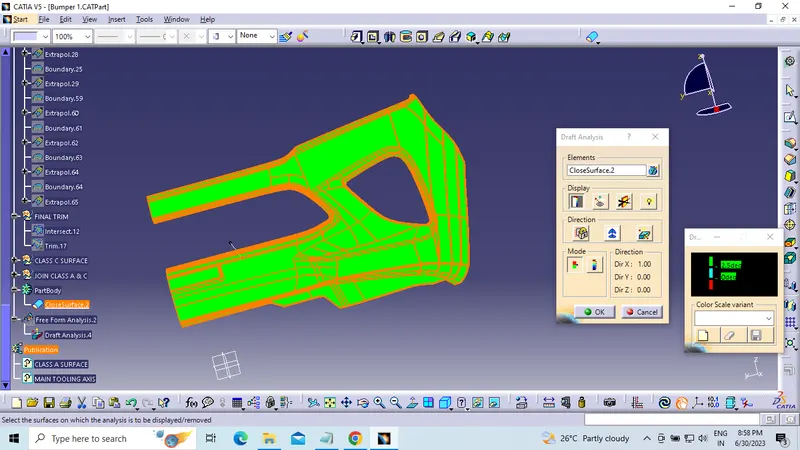

• IN BELOW IMAGE YOU CAN SEE THE GREEN REPRESENT THE ANGLE 2.5 DEGREE AND PART WILL CLEAR THROUGH MAIN TOOLING AXIS.
• AND BLUE REPRESENT THE ANGLE BETWEEN 2.5 TO 0 DEGREE.
• AND BELOW ZERO IT WILL SHOW RED.

•
