Week 9 - Challenge 1 - Base Bracket Design

TO CREATE A TOOLING AXIS BELOW STEPS ARE FOLLOWED.

• ANALYSE IN WHICH AIXS THE TOOLING IS POSSIBLE.
• WE CAN CREATE DUMMY TOOLING FOR OUR REFERNCE.
• FOR THIS PARTICULAR MODEL ALONG Z-AXIS IT IS EASY TOOL THE MOULD.
• TO CREATE A TOOLING AXIS ALONG Z AXIS FIRST CREATE A PLANE ALONG ZY.
• TAKE THE INTERSECTION OF CLASS A SURFACE ALONG ZY PLANE.
• DRAW LINES ALONG THE INTERSECTION WHICH ARE AT AN ANGLE AND FEELS LIKE DIFFICULT TO TOOL.

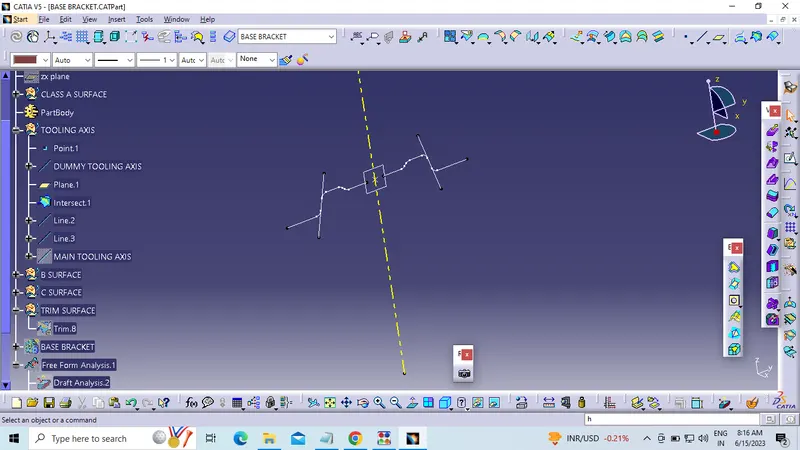

• THEN DRAW BISECTING LINE FOR THOSE TWO LINES.THE OUTPUT OF THIS IS MAIN TOOLING AXIS.

DRAFT ANALYSIS FOR CLASS A & PART BODY OF BASE BRACKET.

• FIRST OPEN THE DRAFT ANALYSIS TOOLBAR.
• ALIGN THE COMPASS TO THE MAIN TOOLING AXIS AND THEN CLICK ON THE LOCK ICON.

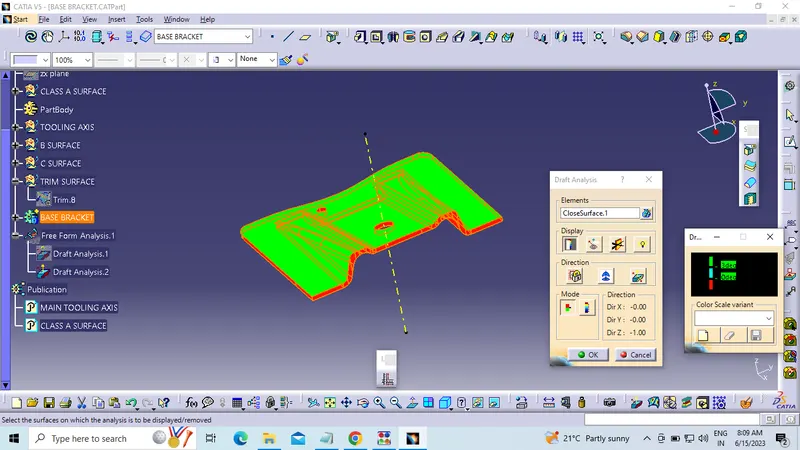

• THEN CLICK ON THE SURFCAE IF THE DRAFT ANGLE IS 3 DEGREE IT WILL SHOW GREEN COLOUR AND INBETWEEN 0 AND 3IT WILL SHOW BLUE (DEPENDS ON WHICH COLOUR YOUR GOING TO SET) AND BELOW ZERO IT SHOWS RED COLOUR.
•
