Week 9 - Challenge 3 - Bumper

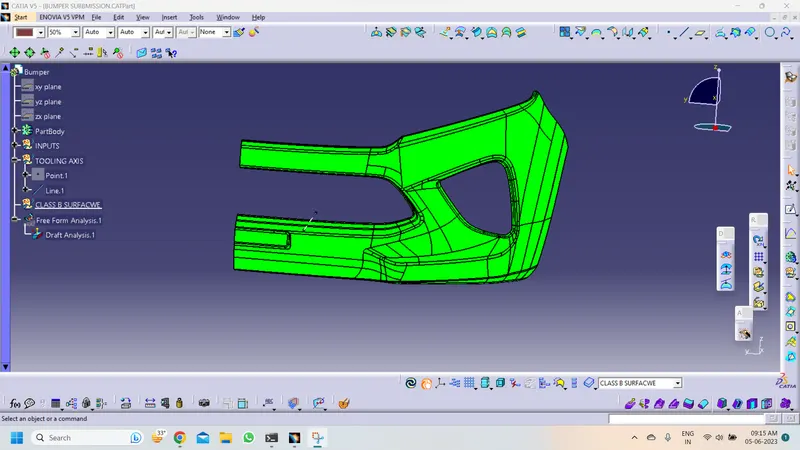

DRAFT ANALYSIS OF GIVEN CLASS A SURFACE -

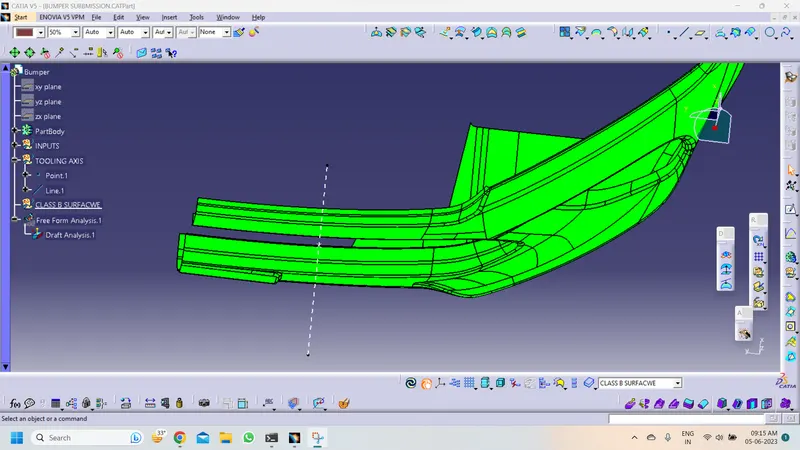

MAIN TOOLING AXIS - For the creation of the main tooling axis we find a Flat surface in our A surface and make a line reference to the surface with all dimensions on 0.

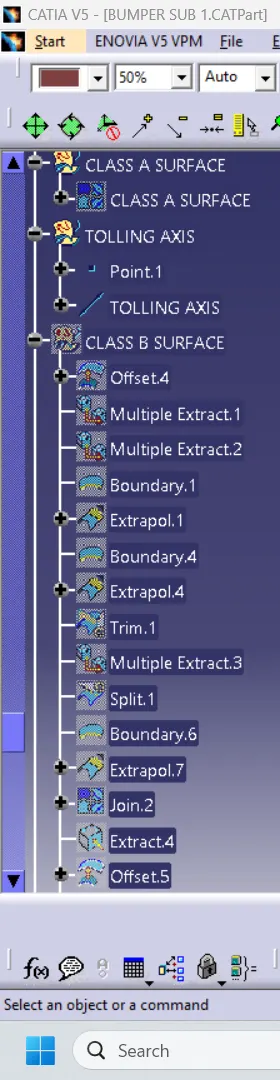

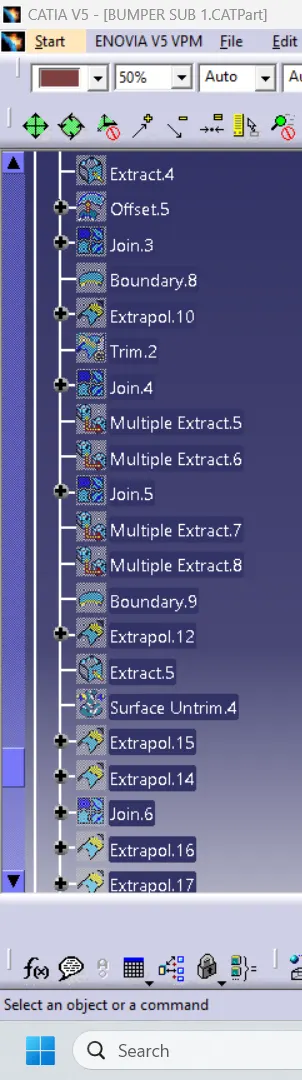

CLASS B SURFACE - For making a Class B surface we have to take 3 mm offset with A surface and close the all open patches by extrapolation and trimming function the final B surface is shown below-

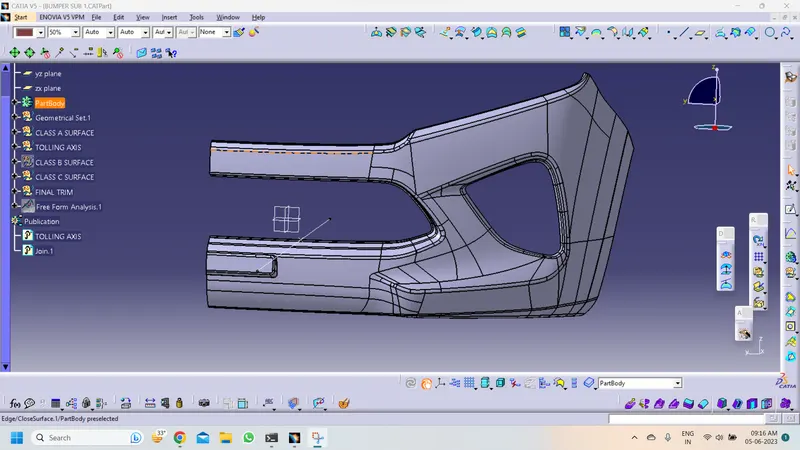

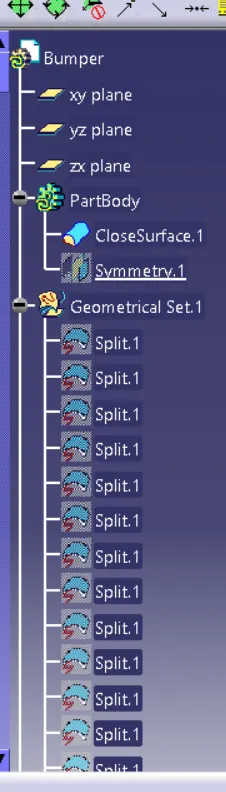

FINAL BUMPER PART -
