Week 9 - Challenge 3 - Bumper

Sir,

Initially Draft analysis is performed with Class A,The first process is creation of tooling axis,

After the successful result from the Class A surface then class B surface Creation started.

After Class B surface creation successfully created.Then from Class A ,class C surface creation started.

After CLASS A ,CLASS B,CLASS C ,successfuly created,Class A and Class C added together then Class B is trimmed with Class A and C.

Then by inserting Body,then surface is converted to Body.

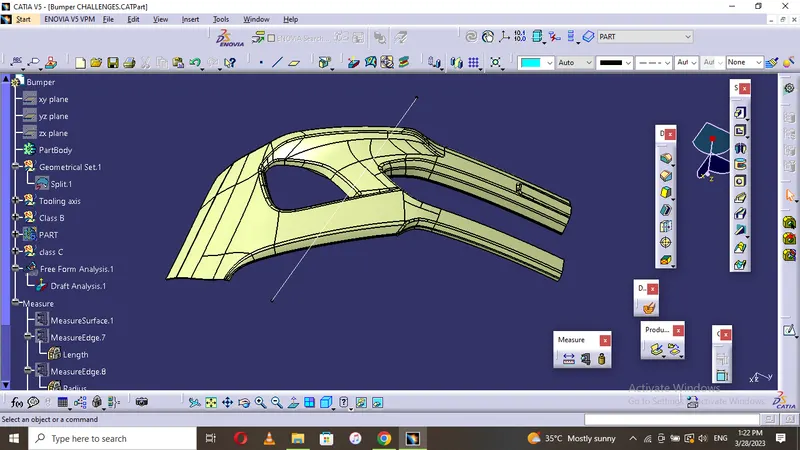

Draft analysis

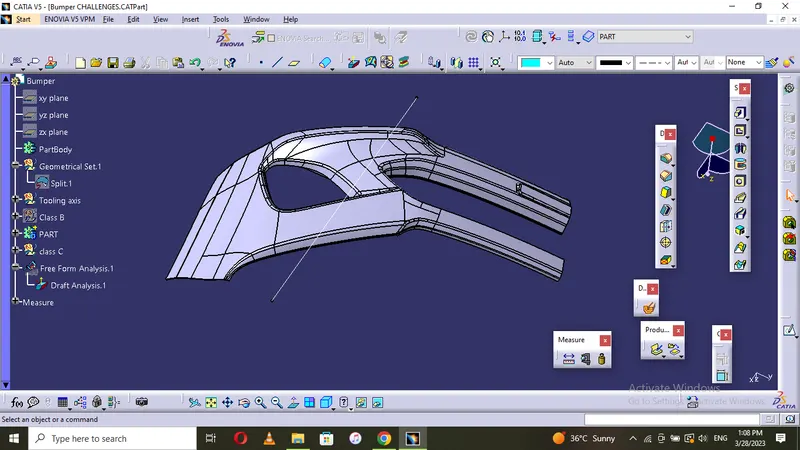

CLass B

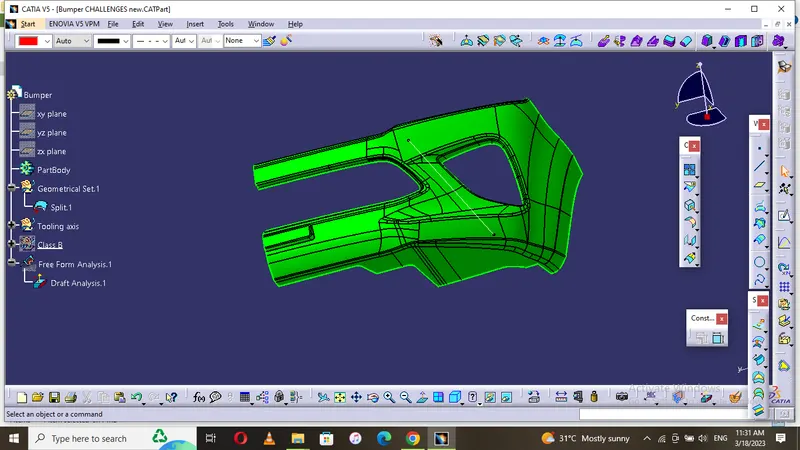

PART BODY
