Week 9 - Challenge 3 - Bumper

Tooling axis:

it is nothing but the direction in which the mold opens and closes the draft angle needed to be provided by considering this tooling axis.

We can create a tooling axis by using the bisecting method.

BISECTING METH

This method is used for the generation of the tooling axis for that purpose first we need to decide the direction of molding and then we create one dummy tooling axis for the reference to the purpose.

In this method, we select the surfaces which can create problems and take intersections with respective planes in the x and y-direction. By using these intersection curves we draw two lines and then draw a bisecting line from these two lines in the x-direction and y-direction.

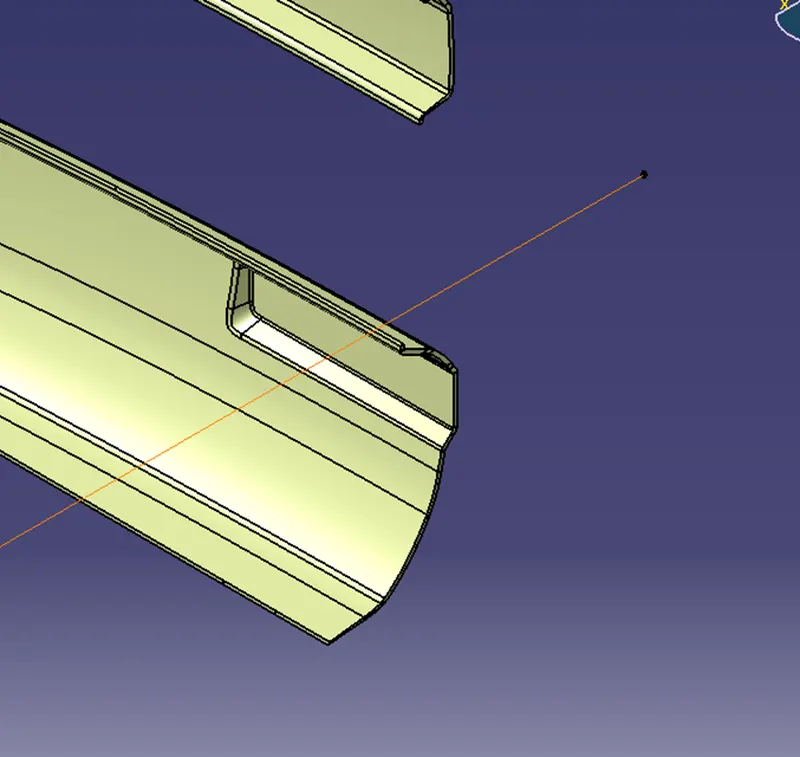

Extracting of the surface to male tool axis

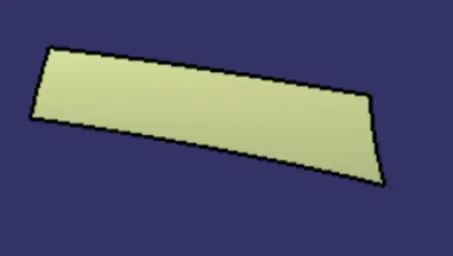

B surface

Offsetting the class a surface

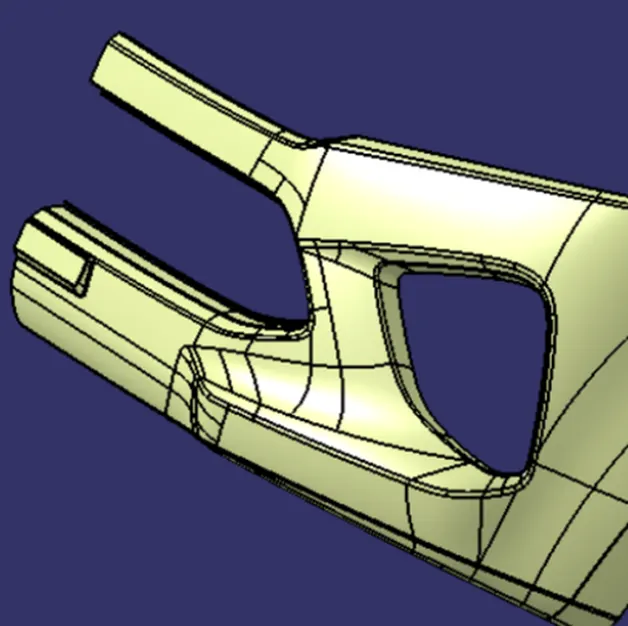

Patches of classa surface

The performing of the class c outer body The final trim of a body

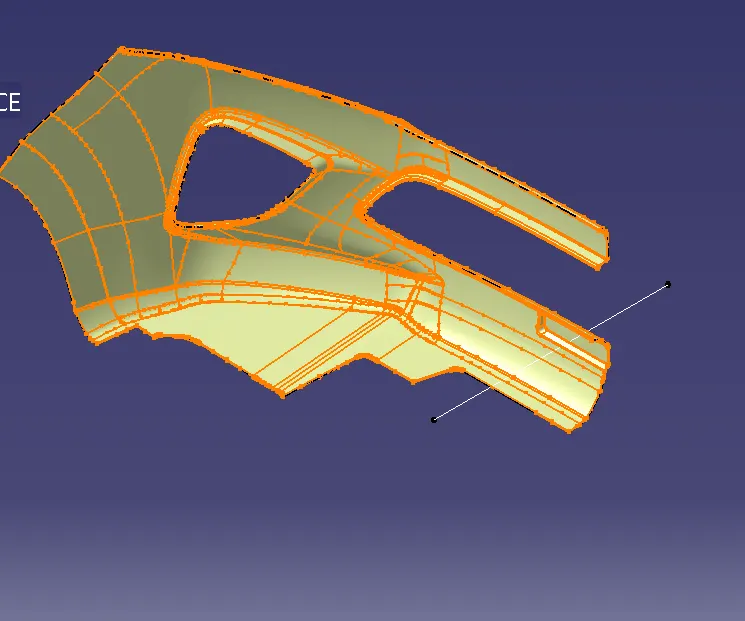

The final join of class A class B and class C syrface

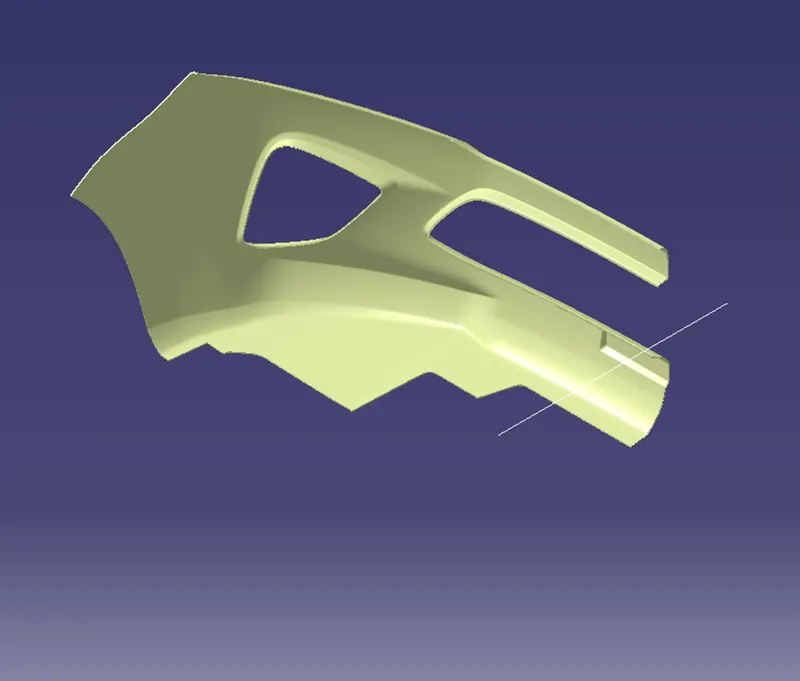

The final product is there

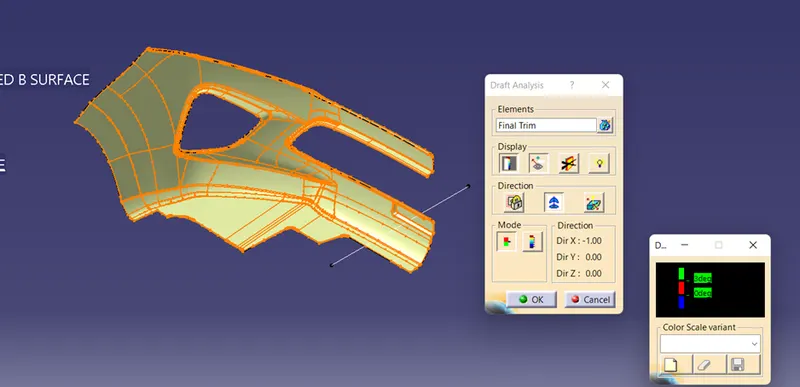

And coming to the draft analysis

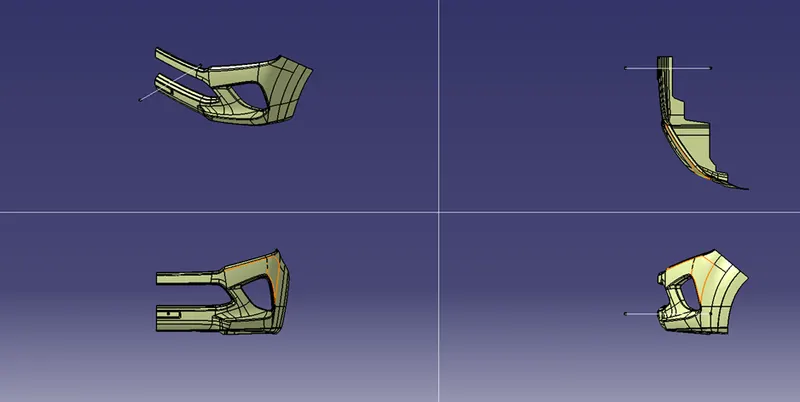

The final isometric views of the product is:
