Week 9 Challenge

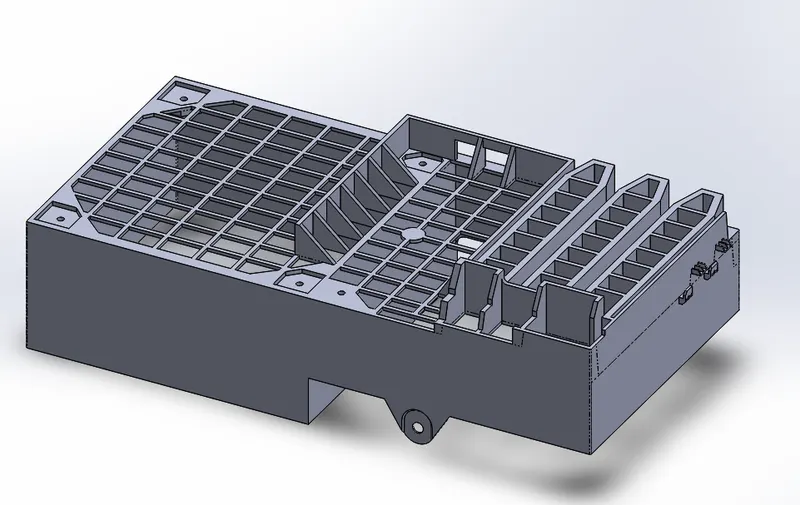

Given design file cpu fab case

1. Parting line

2.Parting surface

3. Core block

4. Cavity block

5. Slider 01

slider 01 core and cavity editing

6. Slider 02

Slider 02 core and cavity editing

7. Inserts

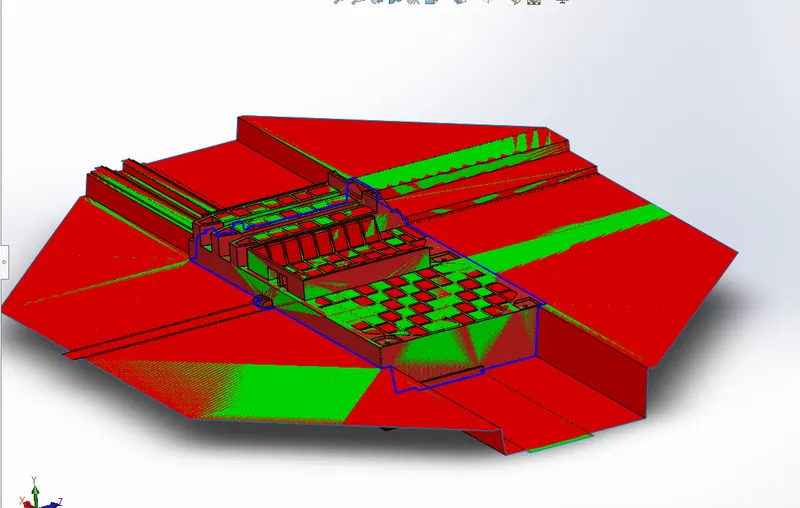

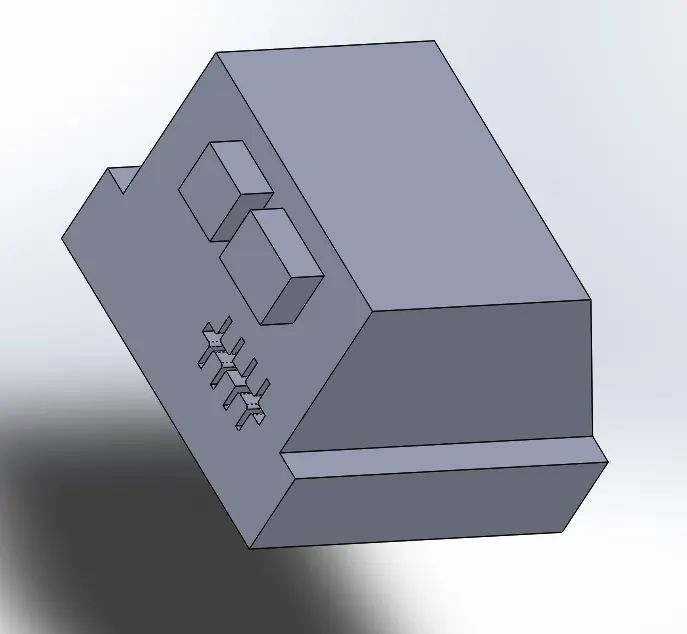

Parting line and Parting surface iso view

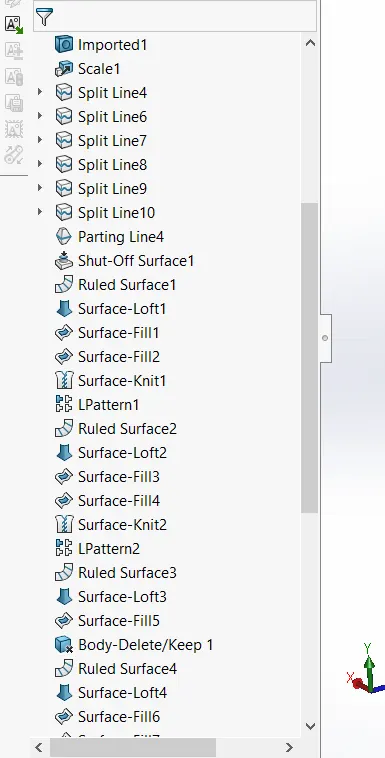

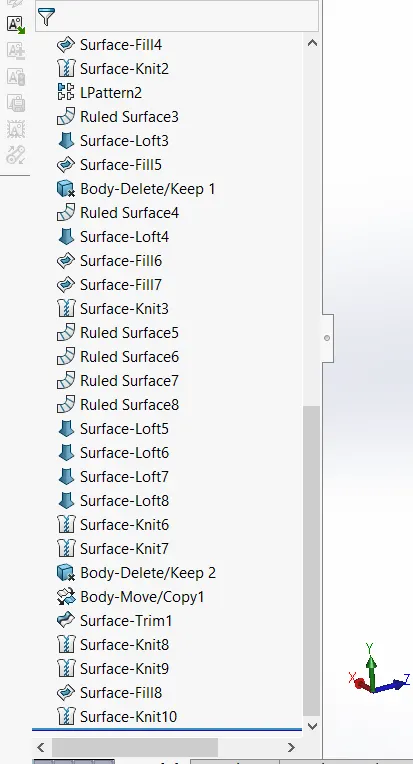

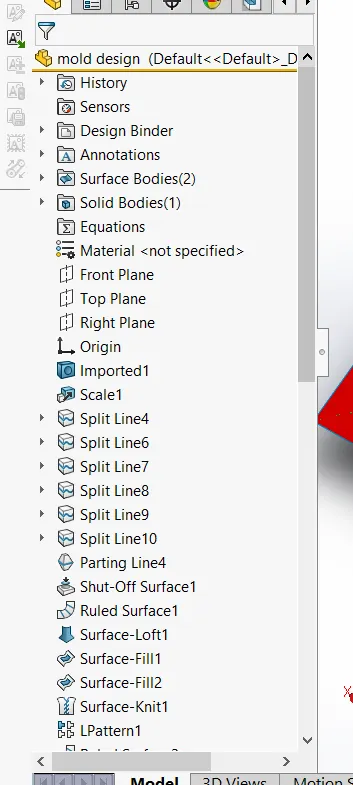

Parting line and parting surface design tree

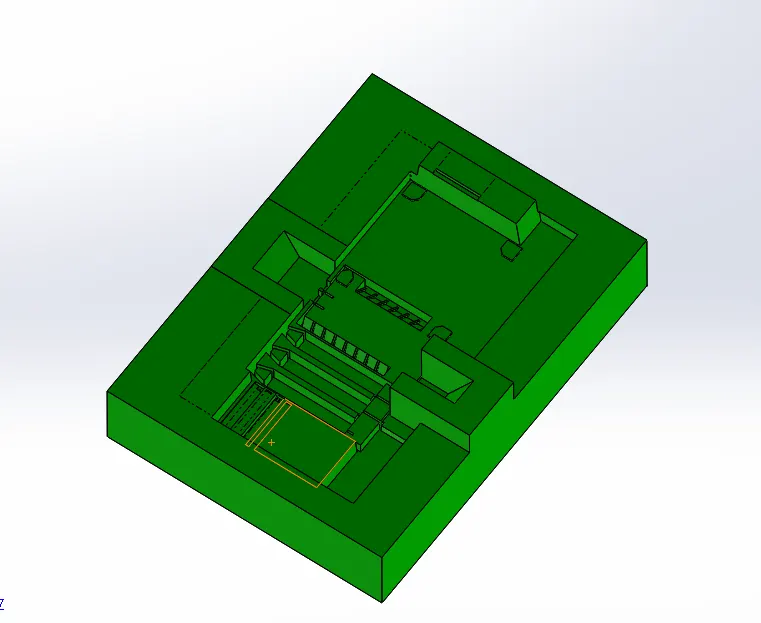

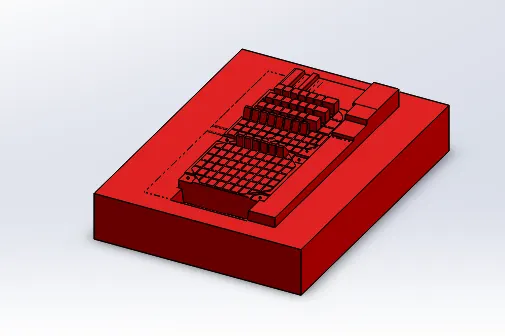

Cavity block iso view

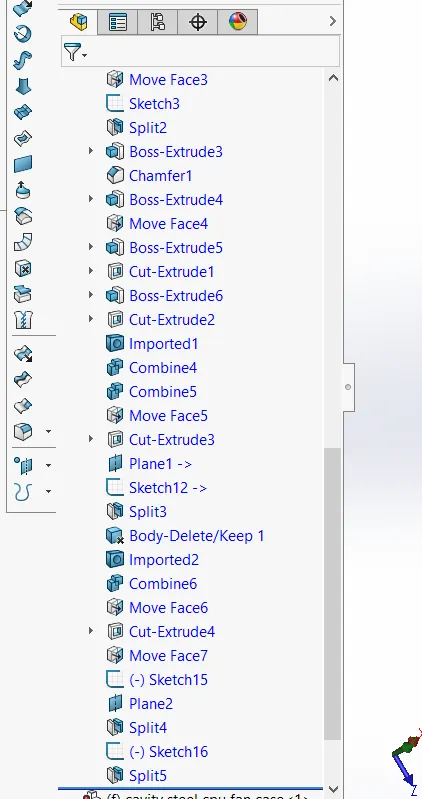

Cavity block disgn trees

Core block iso view

Core block designtree

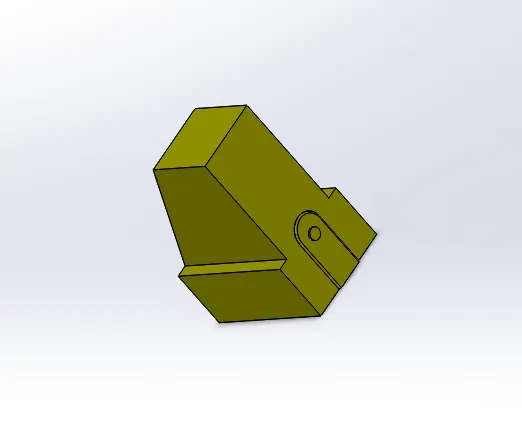

Slider 01 iso view

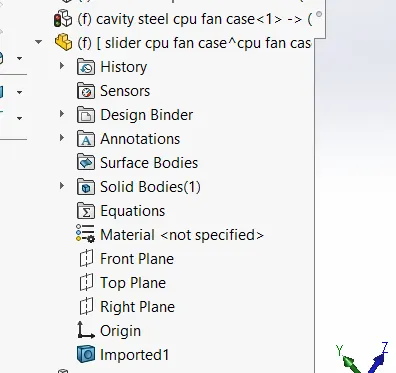

Slider 01 design tree

Slider 02

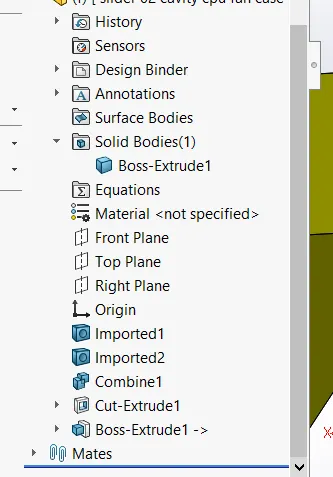

Slider 02 design tree

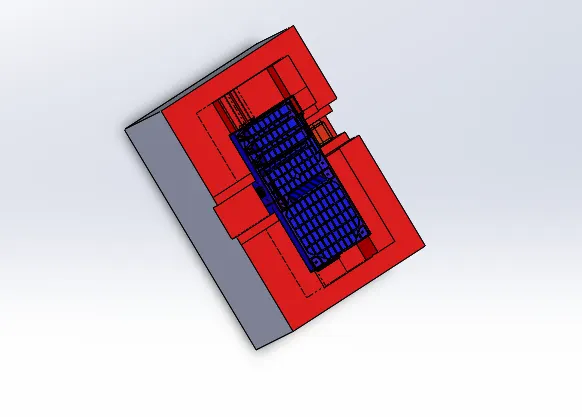

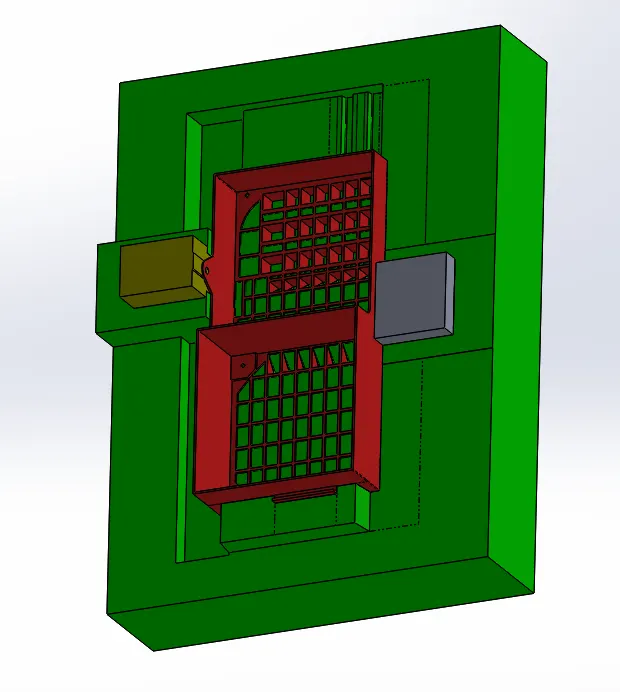

Slider position view

Inserts
