Week 9 - Challenge 2 - Switch Bezel Design

All CATpart(sketches) are attached in a .zip file.

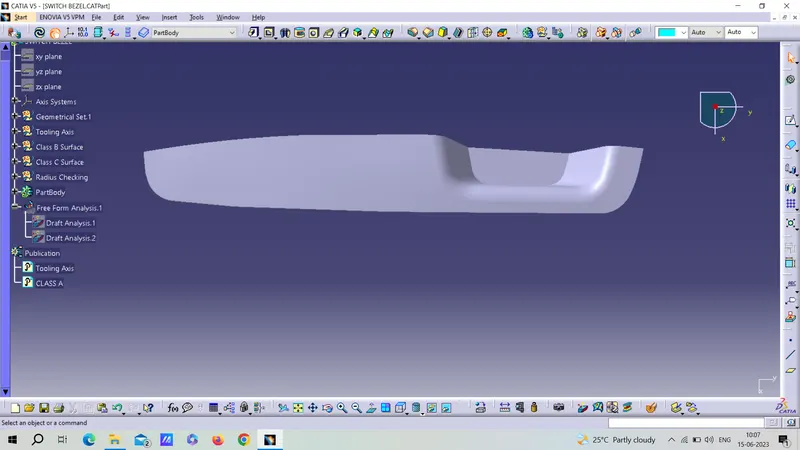

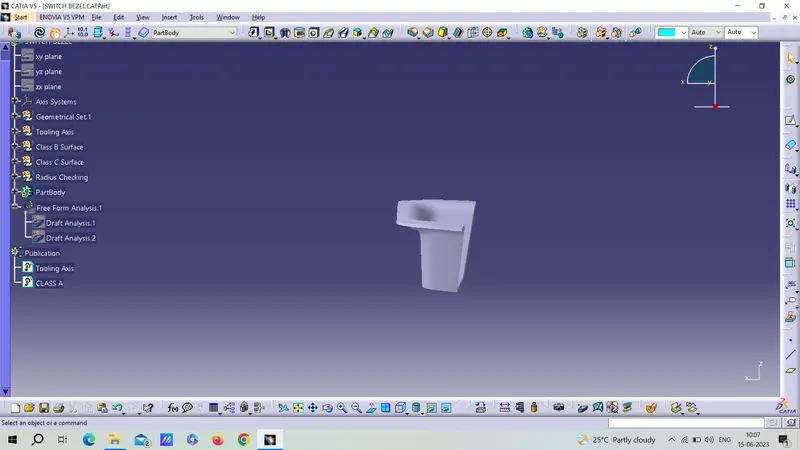

As the screenshots are attached to the answer as well as pested in the challenge section.

Tooling Direction:

We selected the tooling direction as Z-Axis.

Draft Analysis:

As for the Class A surface the tooling axis we've selected is of and passing the draft analysis so we go ahead with the same Tooling axis.

When we done draft analysis for the final plastic product the class C is showing in red colour because the steep surface it is in clear at 2.8 degree, so we go forward with it.
