Week 9 - Challenge 1 - Base Bracket Design

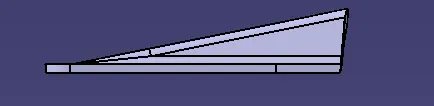

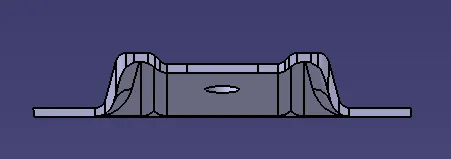

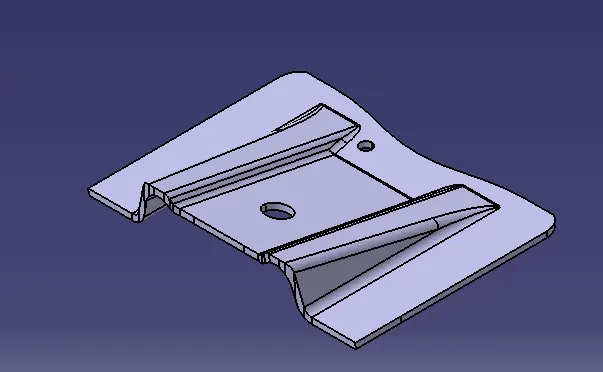

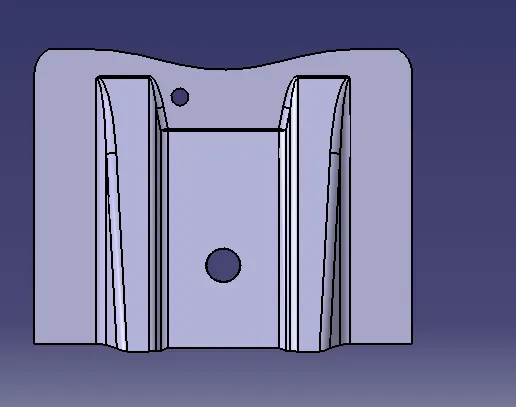

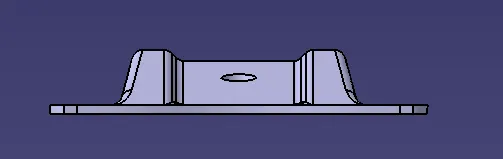

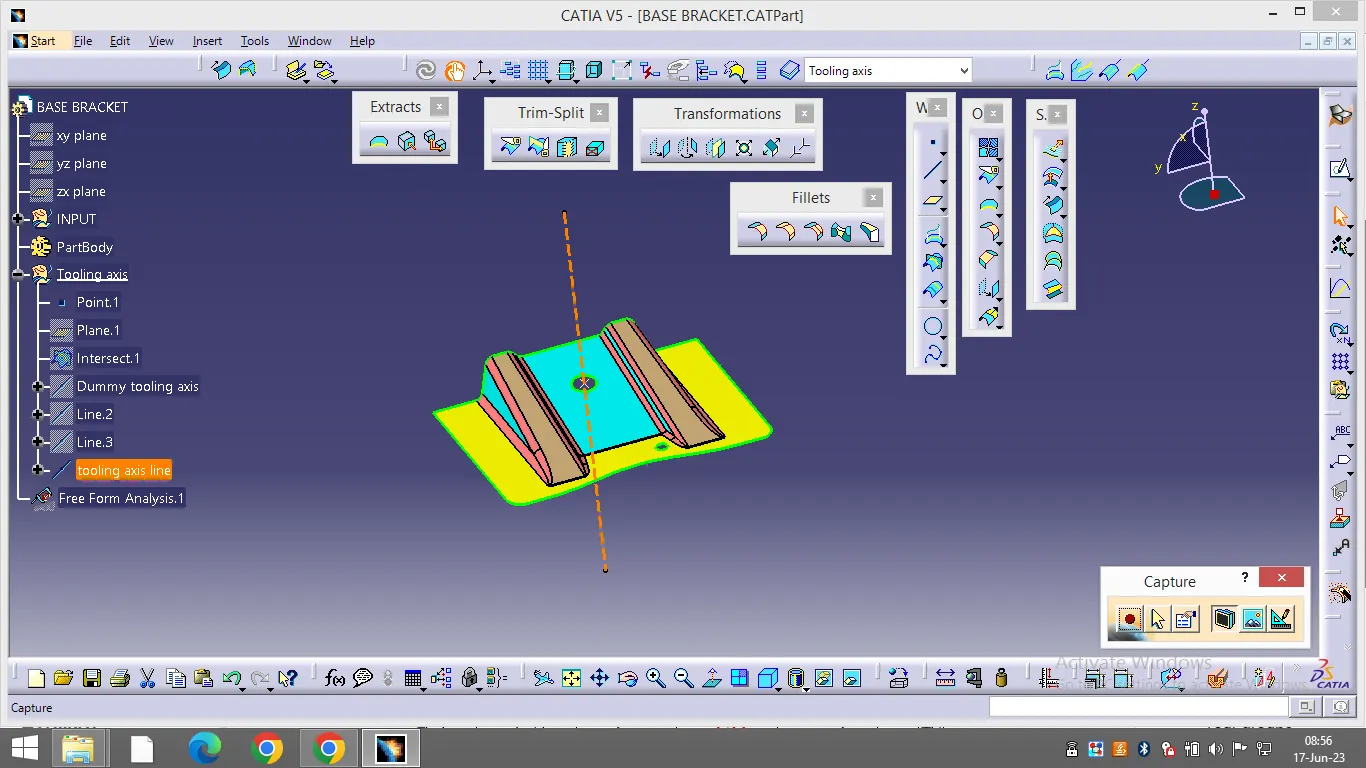

1)Tooing axis: Initiallly we have to create a tooling axis before drawing class b surface because based on the tooling axis the part will move.

Points to remember:

*At the time of desiding the position of tooling axis we have to keep cost constraint and ease of doing the job work in mind.

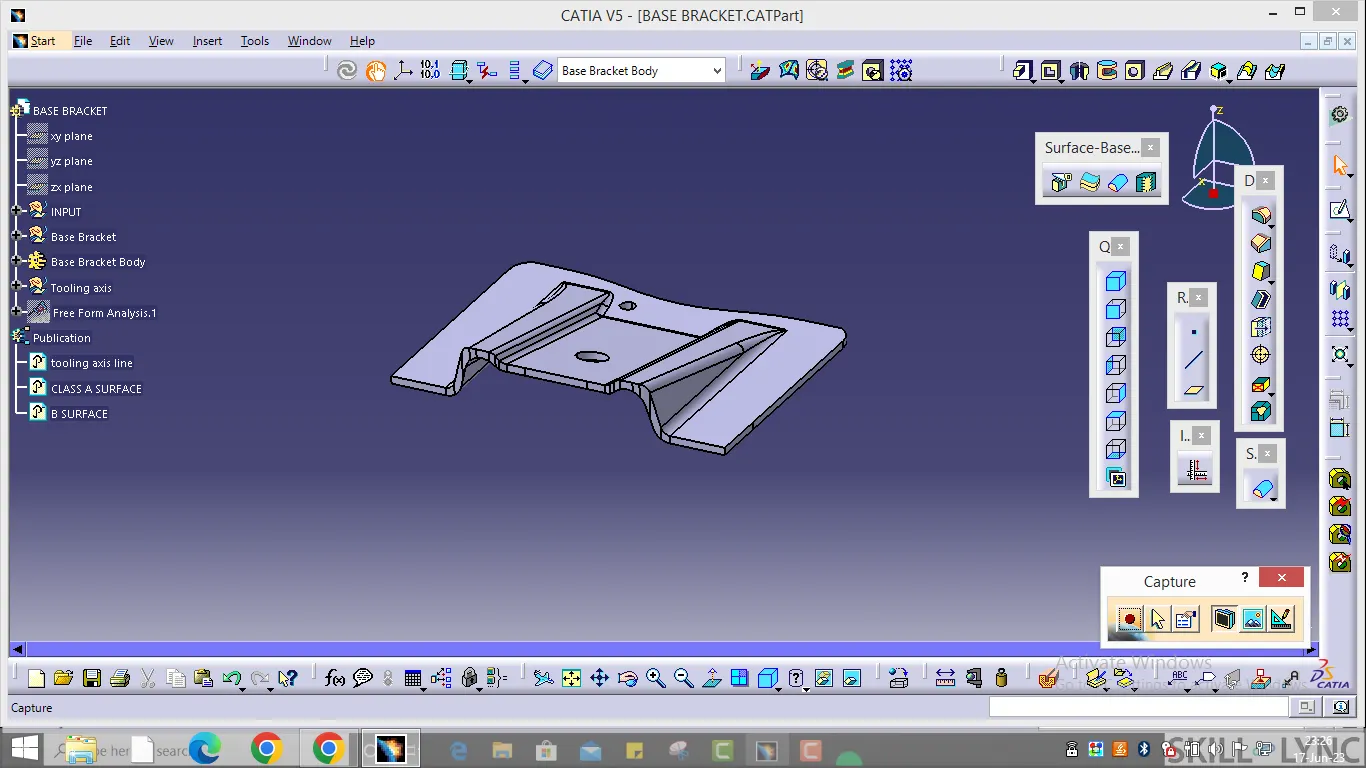

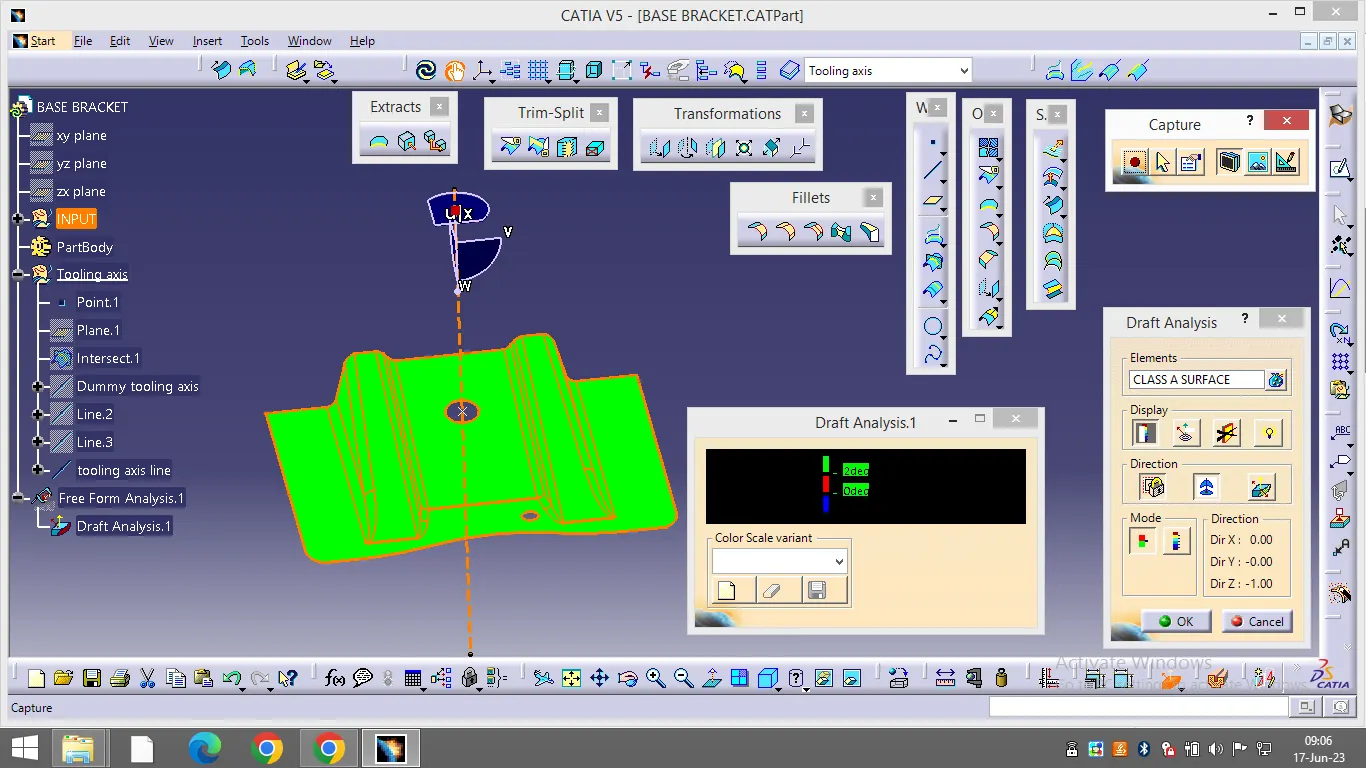

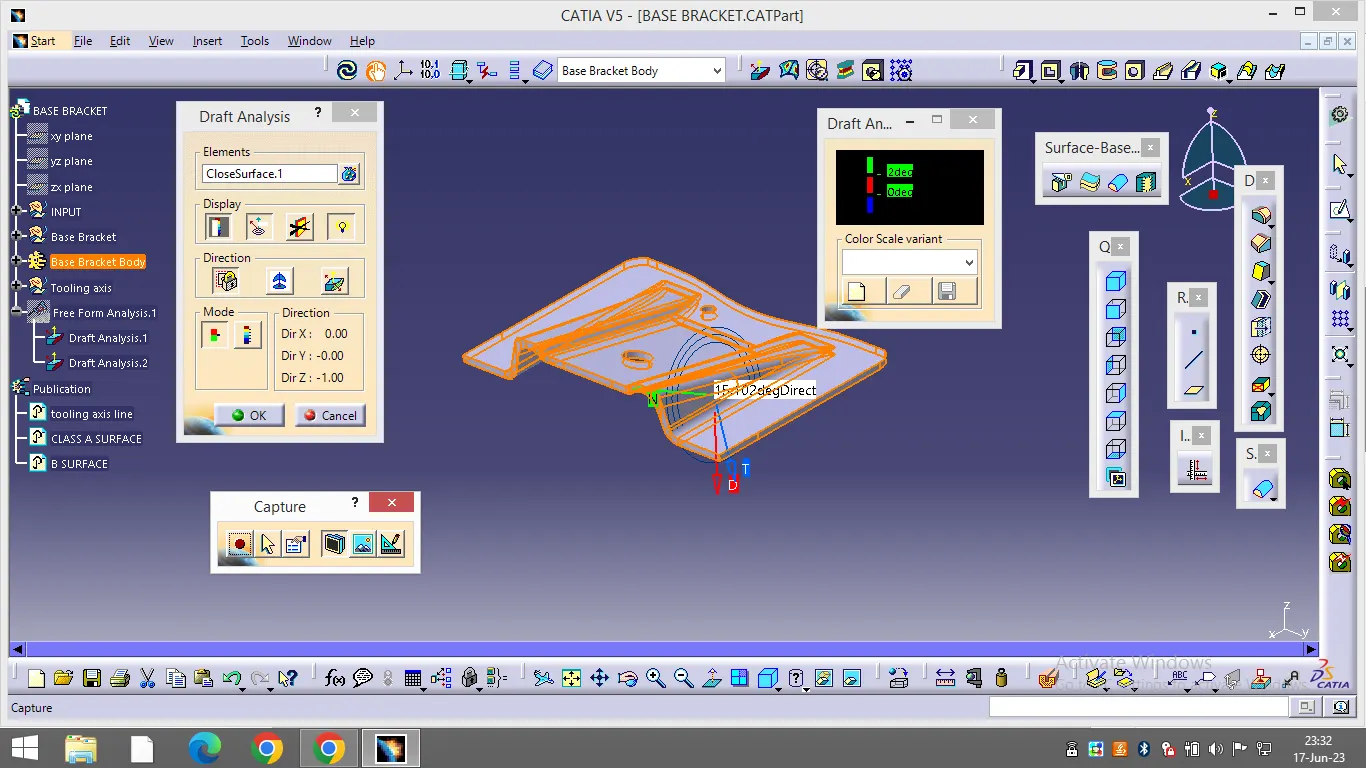

2)Draft analysis: Draft analysis for plastic part is minimum 3degree draft analysis plays a major role in mold manufacturing because at the time of manufacturing the mold if we make with out draft angle then the final product will damage practically.
