Week 9 - Attachment Feature Creation (Ribs & Screw Boss) - Challenge 1
Aim:
To Create the rib for the Drill Handle considering the design rules mentioned in the video.
To Create the Screw boss for the Drill Handle considering the design rules mentioned in the video.
General Guidelines for Bosses:
- Draft - 0.5 degrees on the walls of boss
- Thickness - Typically 40%* of the nominal wall at the base.
- Height to Diameter Ratio - 3:1
- Radii - 0.25mm maximum radii.

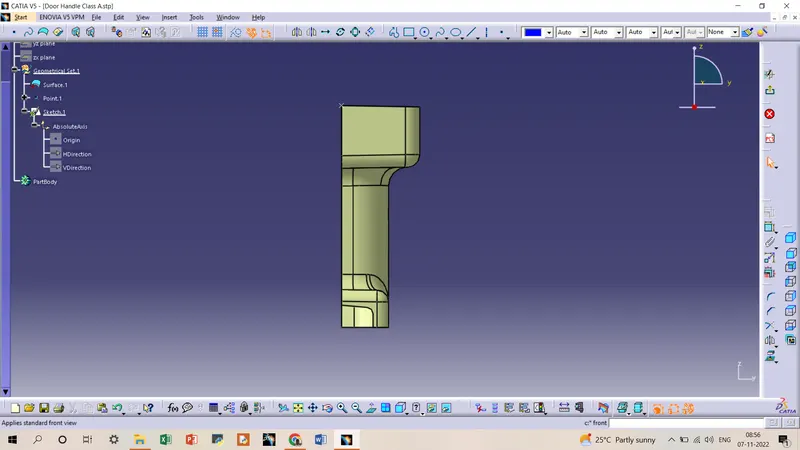

Screenshots as per the requirements:

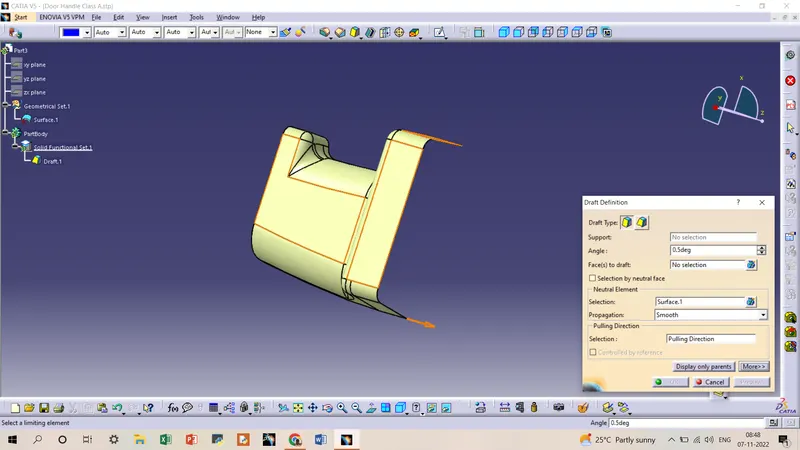

Draft Screenshot:

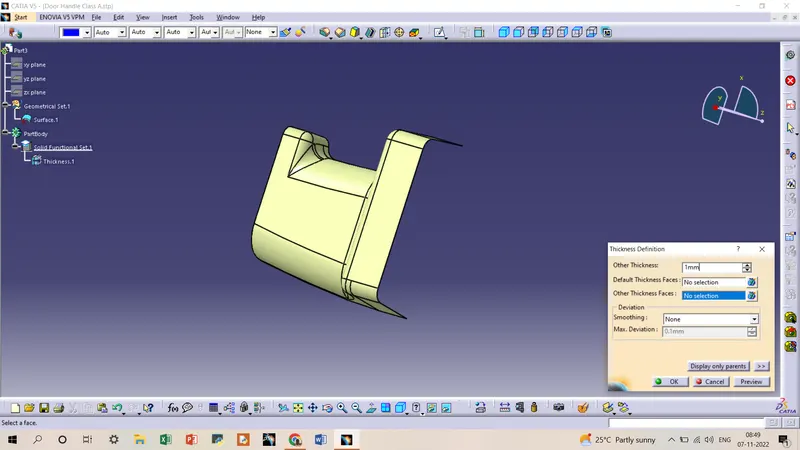

Thickness Screenshot:

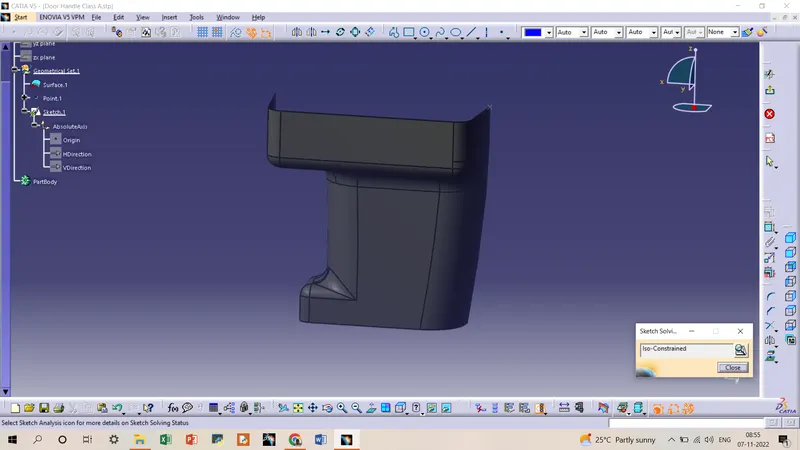

Sketch Solving Status Dialog Box showing ISO Constrained:

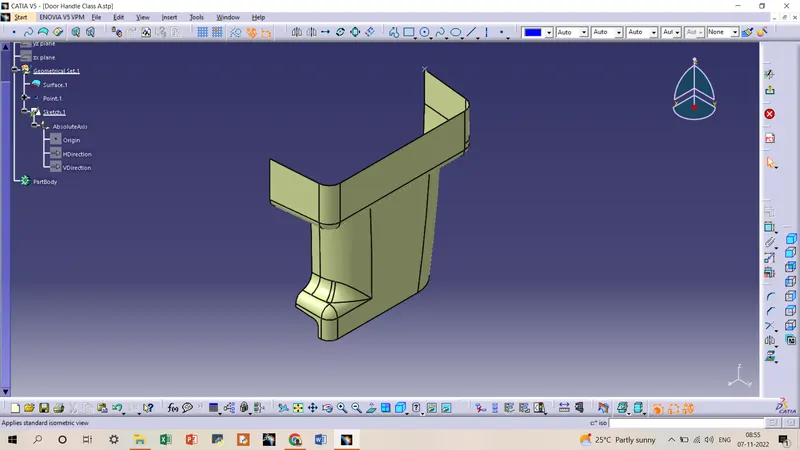

Isometric View:
Front View:

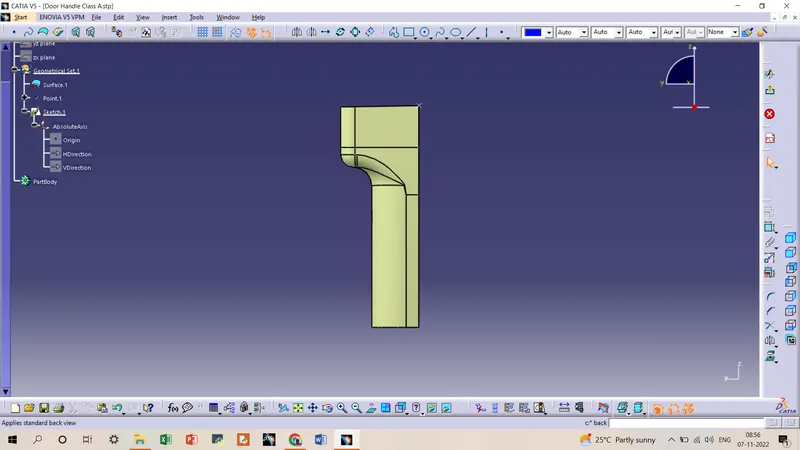

Back View:

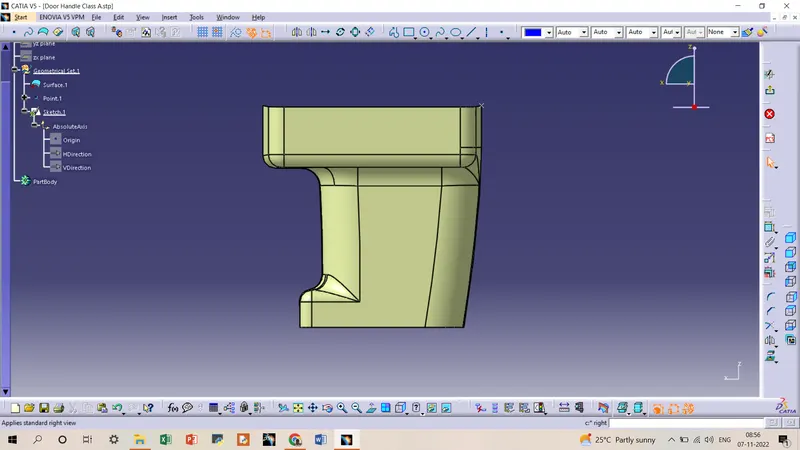

Right Side View:

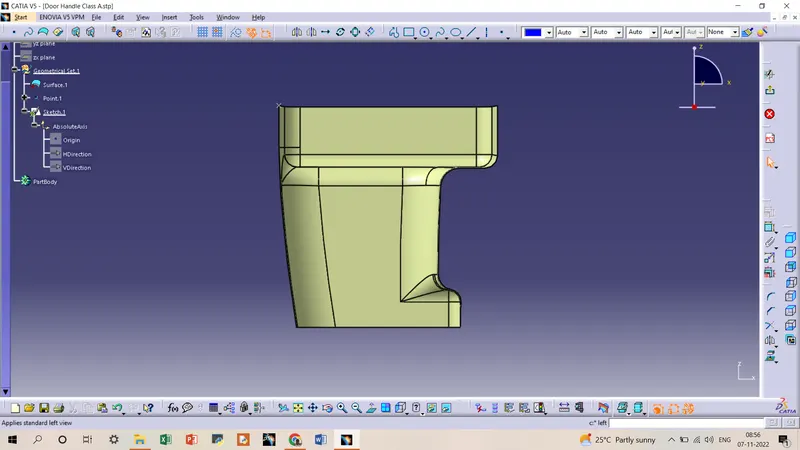

Left Side View:

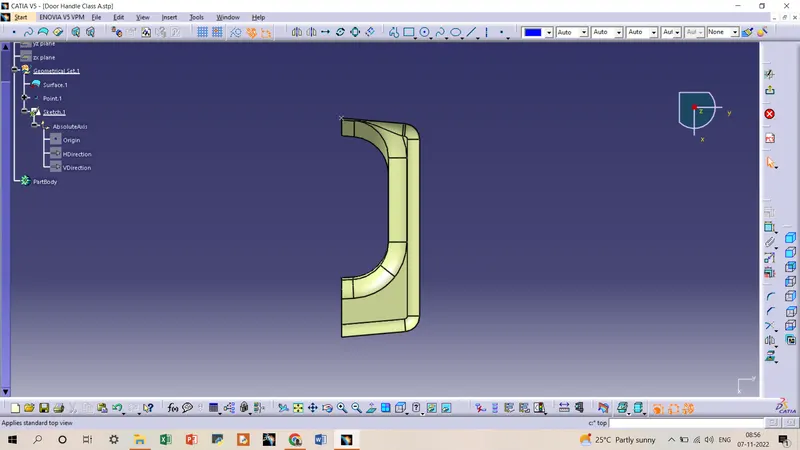

Top View:
