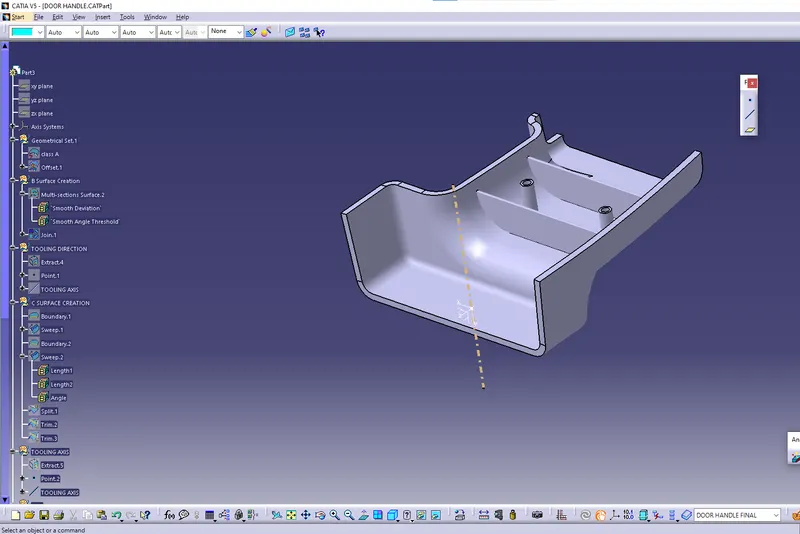

Week 9 - Attachment Feature Creation (Ribs & Screw Boss) - Challenge 1
- First created tooling axis from a flat surface where maximum material is visible
- then created B surface from offsetting the A surface through 2.5mm
- Non material part were filled using Multi sections
- created C surface form sweep comand
- ribs were cr5eated on the surface with width as 0.25*4 and height as 2.5*5
- the draft was given as 0.5 deg
- the rib was then offseted for the required dimension
- the screw boss creation with new geometrical sets and it was then translated after diving draft angle 0.5 degree
- final draft analysis is carried out for the entire structure
