Week 9 - Attachment Feature Creation (Ribs & Screw Boss) - Challenge 1

AIM:

Create the Screw boss for the Drill Handle considering the design rules.

General Guidelines for Bosses:

• Draft - 0.5 degrees on the walls of boss
• Thickness - Typically 40%* of the nominal wall at the base.
• Height to Diameter Ratio - 3:1
• Radii - 0.25mm maximum radii.

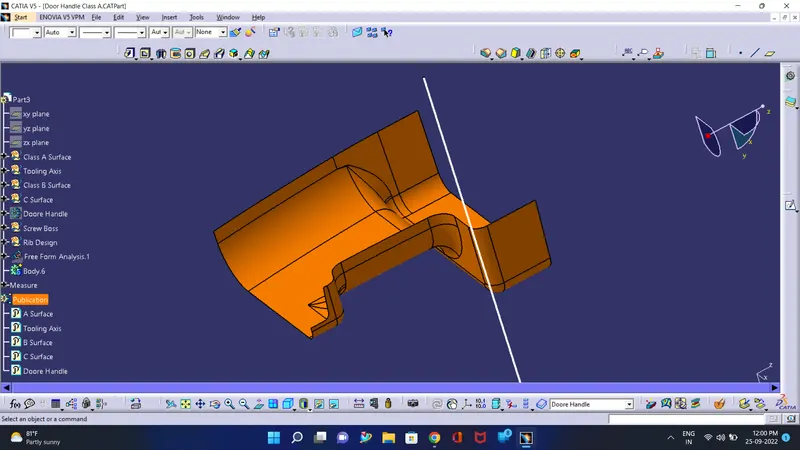

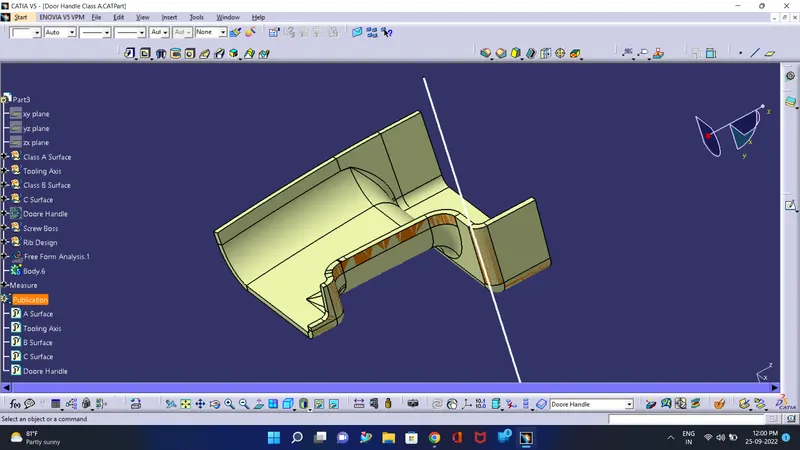

Class A Surface With Tooling Axis:

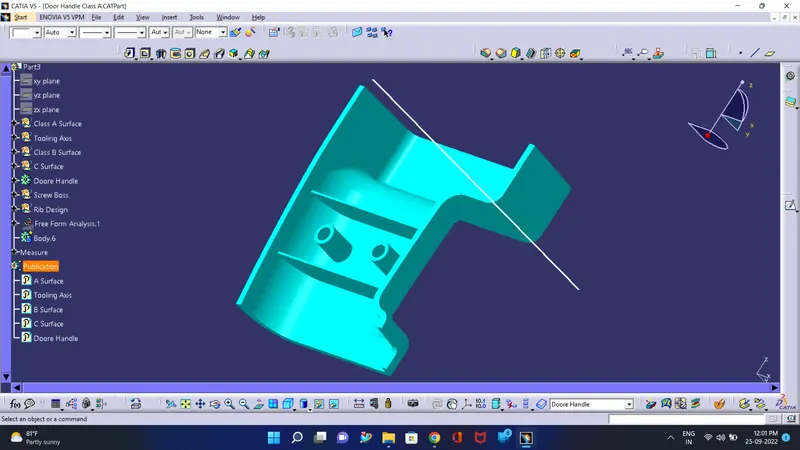

Class C Surface:

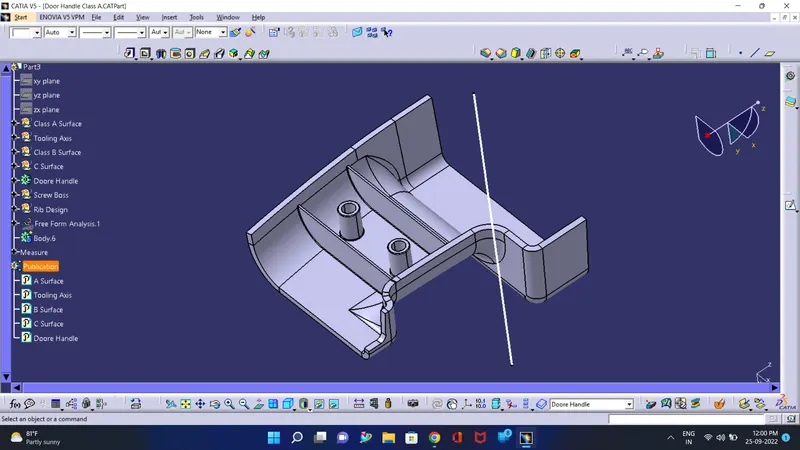

Solid Body;

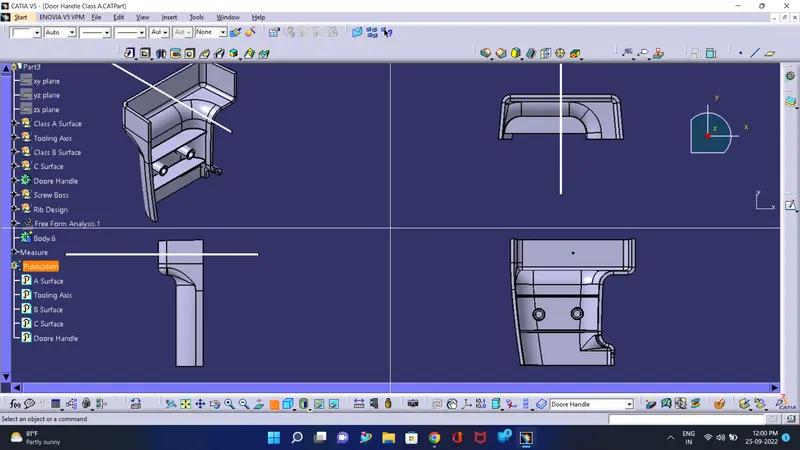

Isometric View;
