Week 9 - Attachment Feature Creation (Ribs & Screw Boss) - Challenge 1

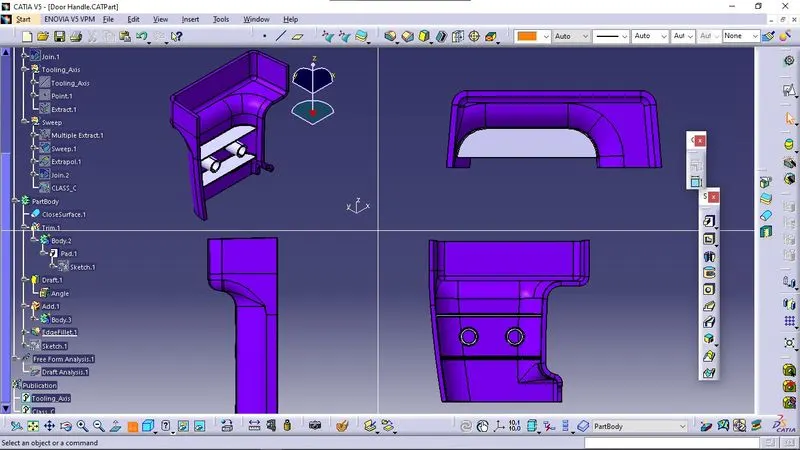

Tooling Axis Creation

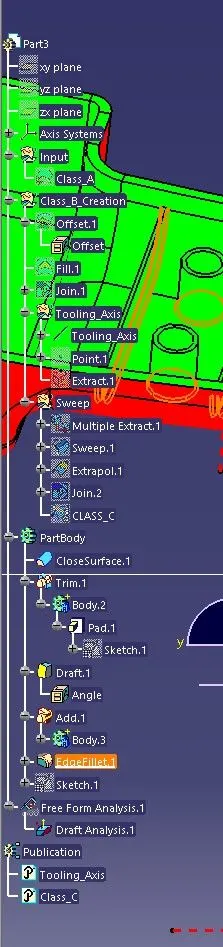

Tooling Axis is created by Extracting the BAse surface and Creating line normal to the surface.

Draft Analysis Report

Draft Angle= .45 Degree.

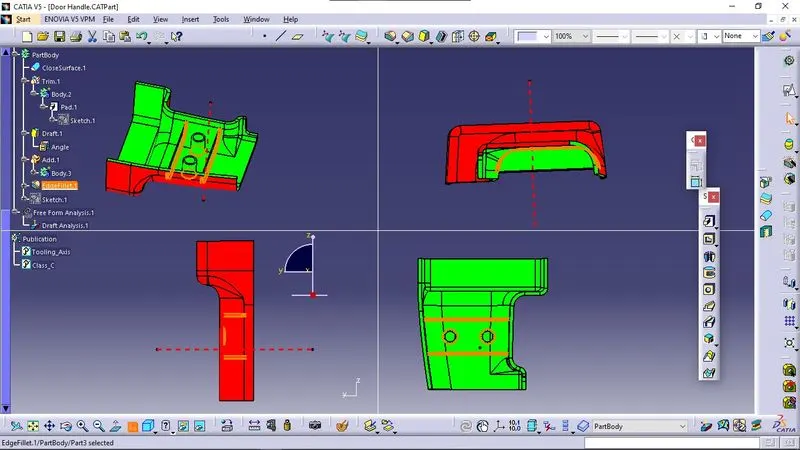

Analysis is created as shown : Red shaded area have draft angle more than .45 Degree.

Blue shaded area represents the draft angle were less than .45 Degree.

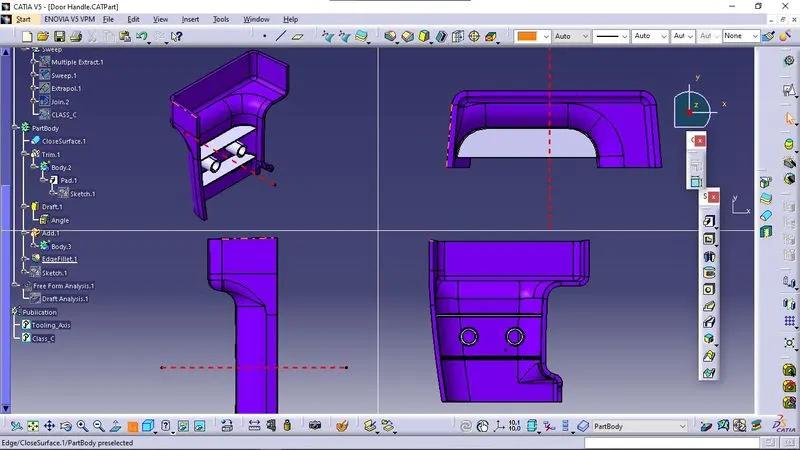

Sweep is created like wise, 90 Degree to the surface boundary of the Class_C. All the area of sweep have 90 degree to the Class_B surface

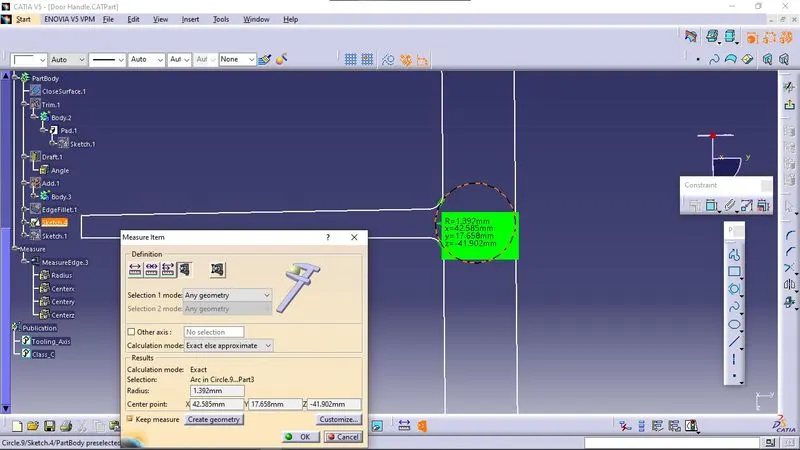

Rib Root Thickness

Class_C
