Week 9 - Attachment Feature Creation - Challenge 2

Final Report:-

                      Given above surface Door Trim Dog house model is having various different vetexs and saurfaces joined all in a single surafce body that is Class A Surface.by using Class A srface extarct the single surface that is helps to create the Tooling Axis, create a point using the extarct surface, after that create the tooling line using bisecting method,point and direction.

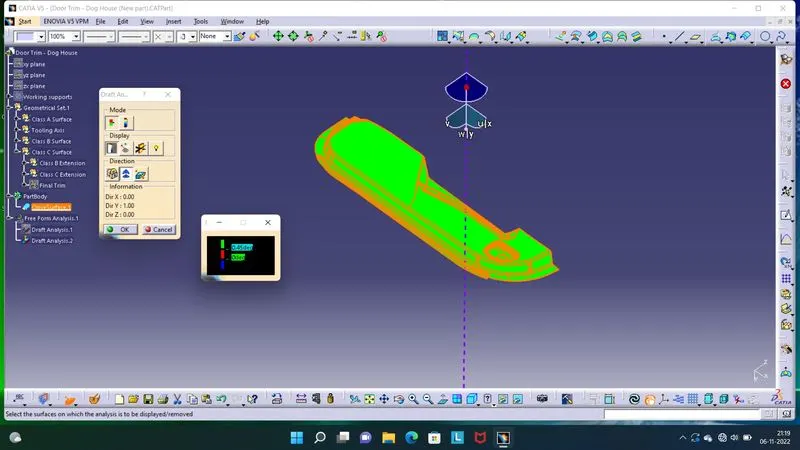

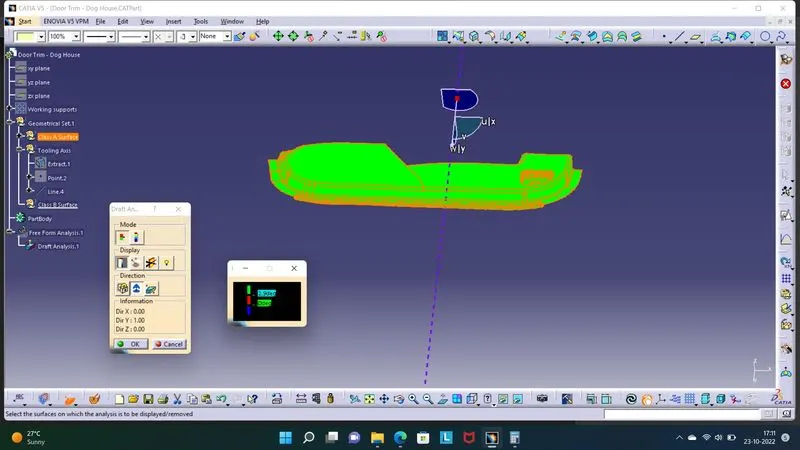

   Using Featured Draft Analysis know the given input model is possible to manufacture or not, So given model is analysis that is class A surface.Its possible to manufacture, analysis report is uploaded above.

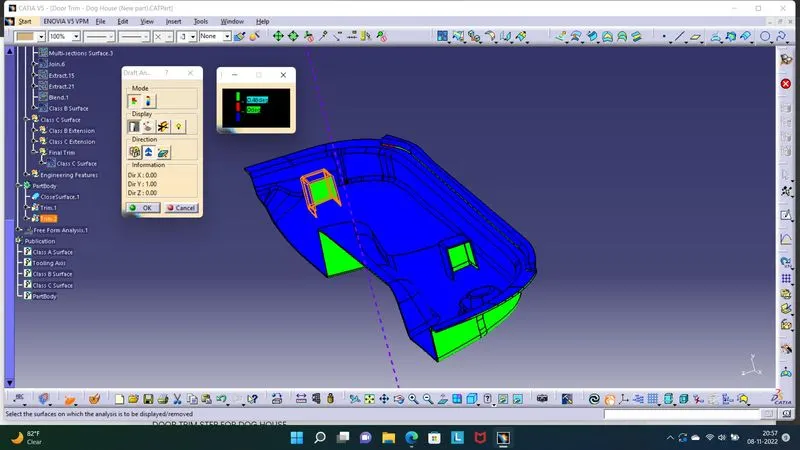

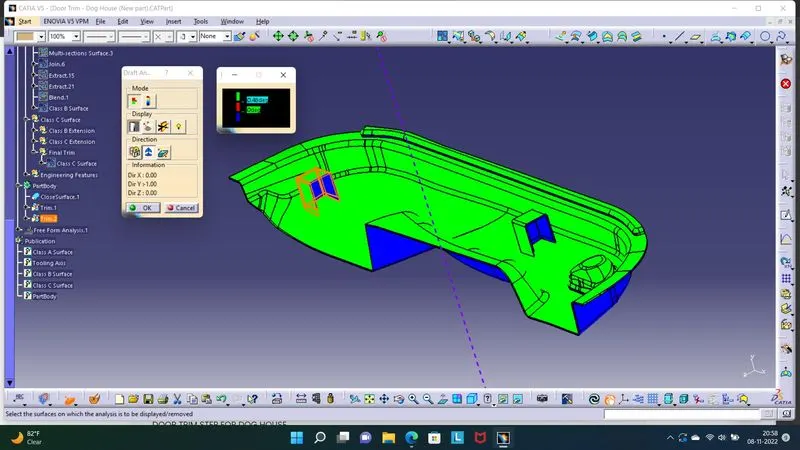

   After that create the Class B Surface and Class C surface joned three with eachother.Then after convert the surface part body to solid part body with help of colsed surface operation.Then after analysis the final plastic part its results is uploaded above the image.

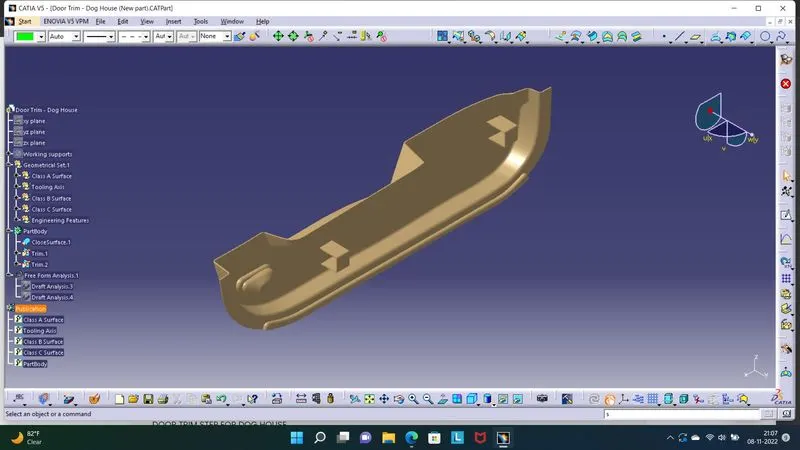

     Craete the Dog House on given required point and position,joined with using boolean operation.The required final plastic part is generated.

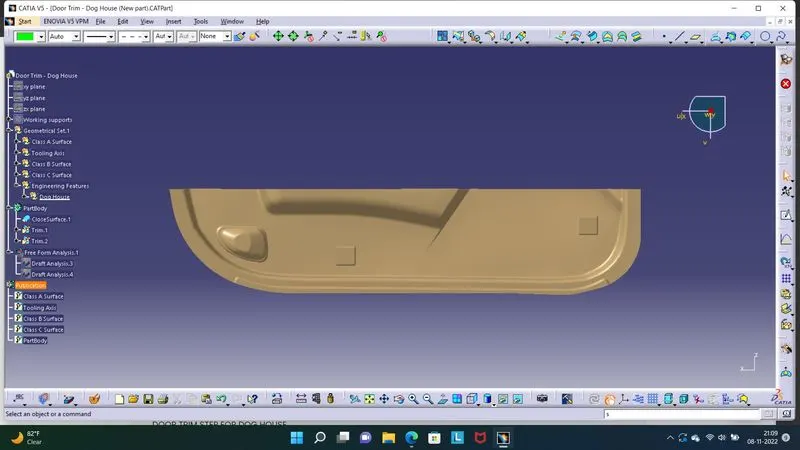

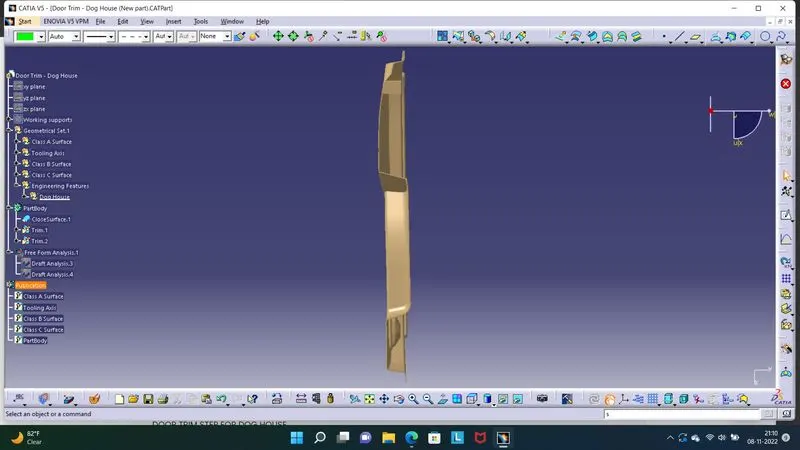

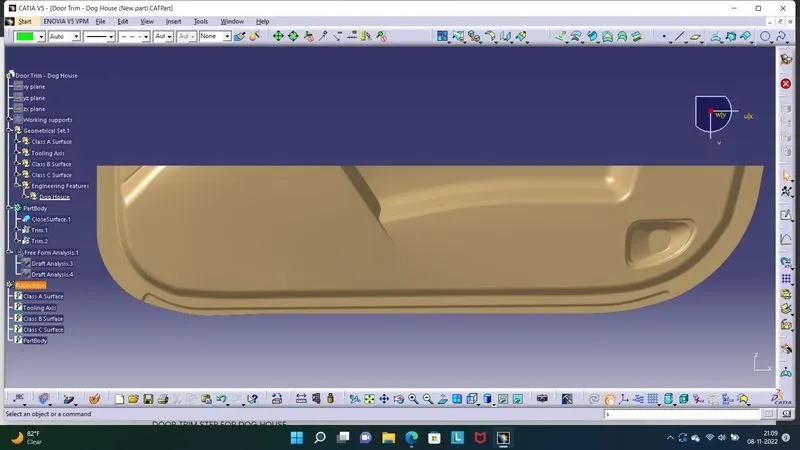

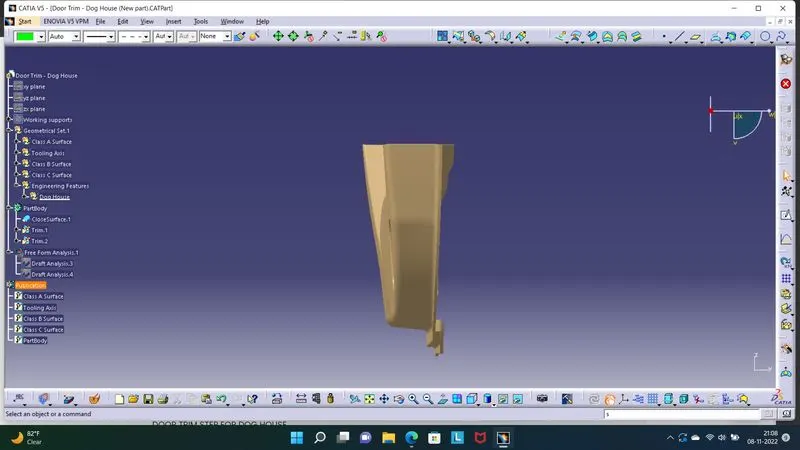

   After that again Analysis the final plastic part with Dog House, metion the draft analysis report above.

So given model is possible to manufactring without any error.
