Week 9 - Attachment Feature Creation - Challenge 2

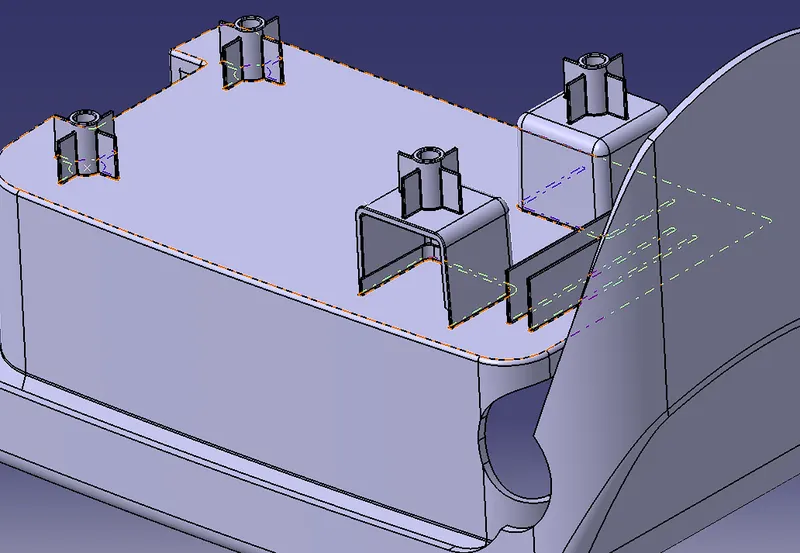

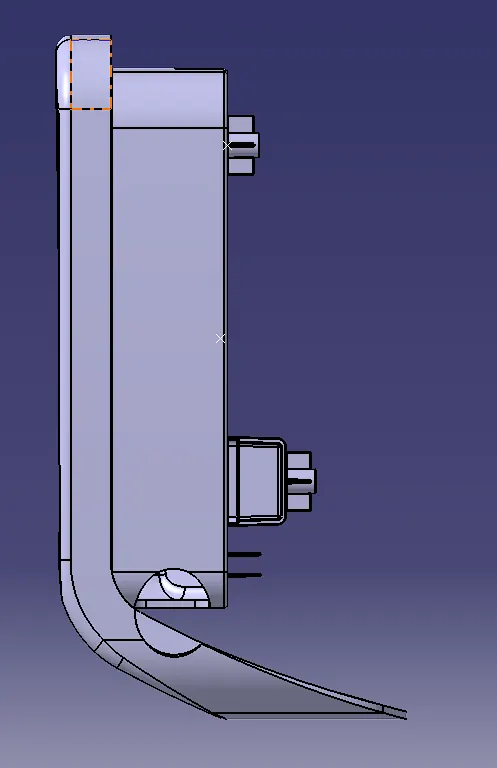

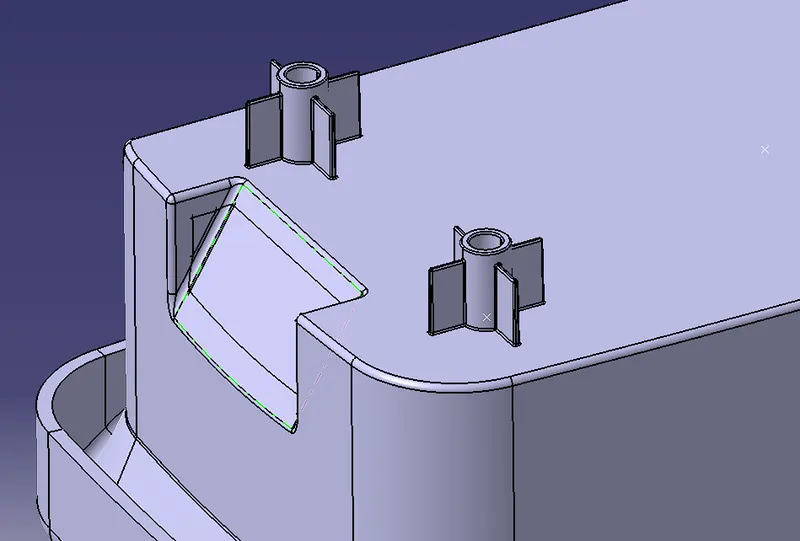

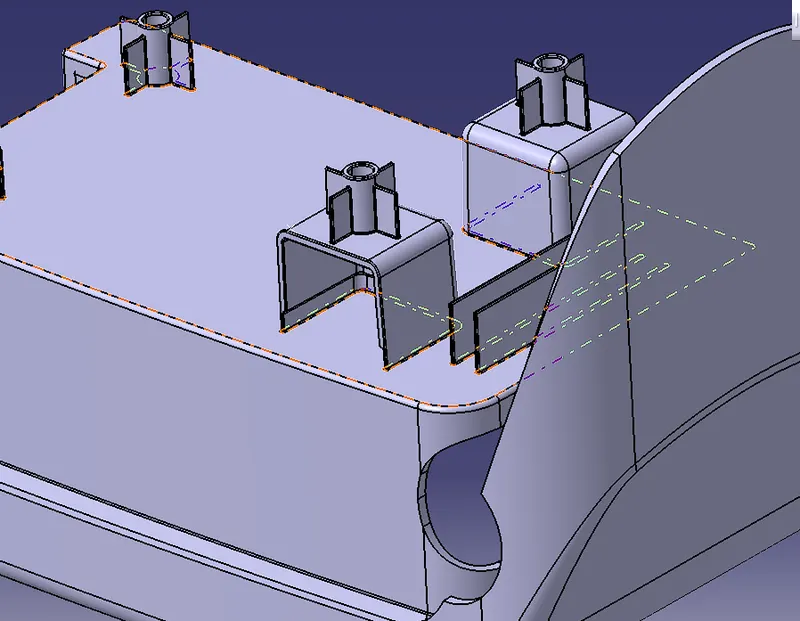

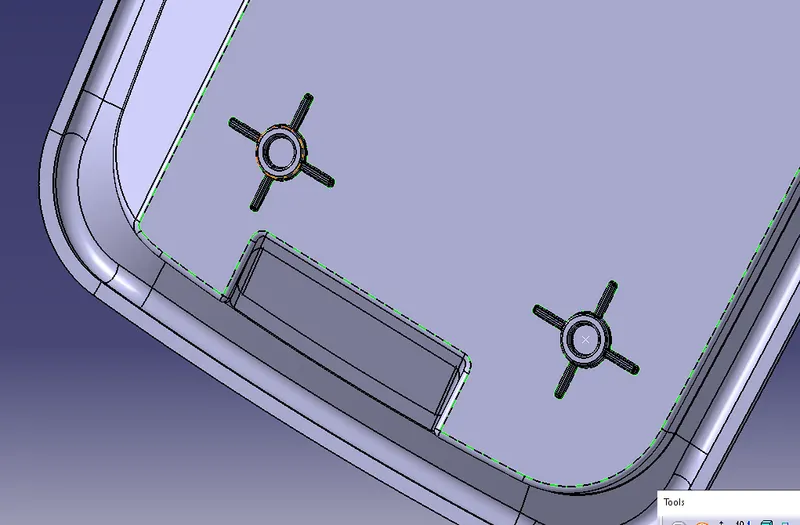

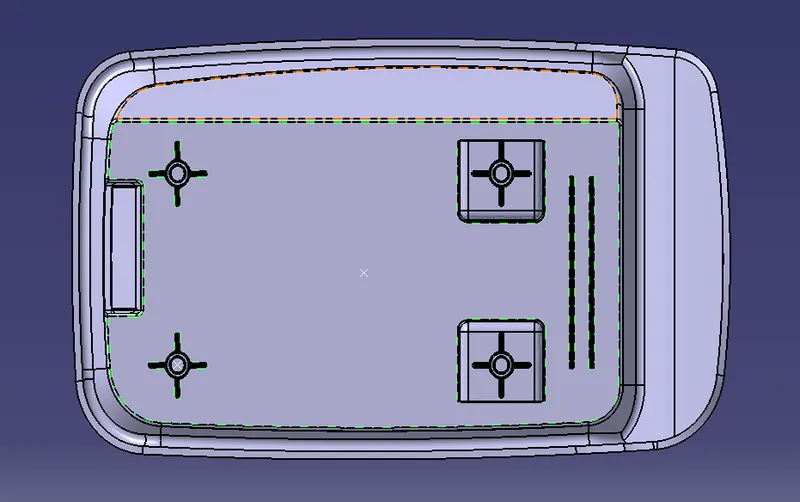

Aim : To design Plastic Screw Boss and Dog House on existing model.

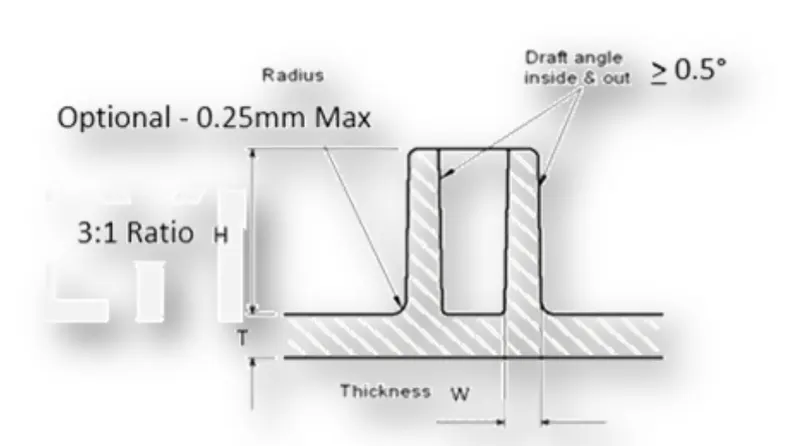

Design COnsideration for Screw Boss

•   Draft  - 0.5 degrees on walls of boss
•   Thickness -  Typically 40%* of the nominal wall at the base.
•   Height to Diameter Ratio -  3:1
•   Radii - 0.25mm maximum radii.

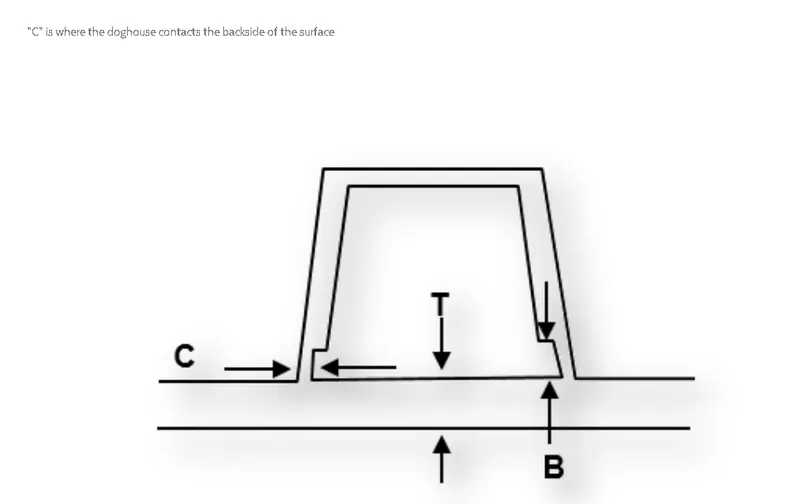

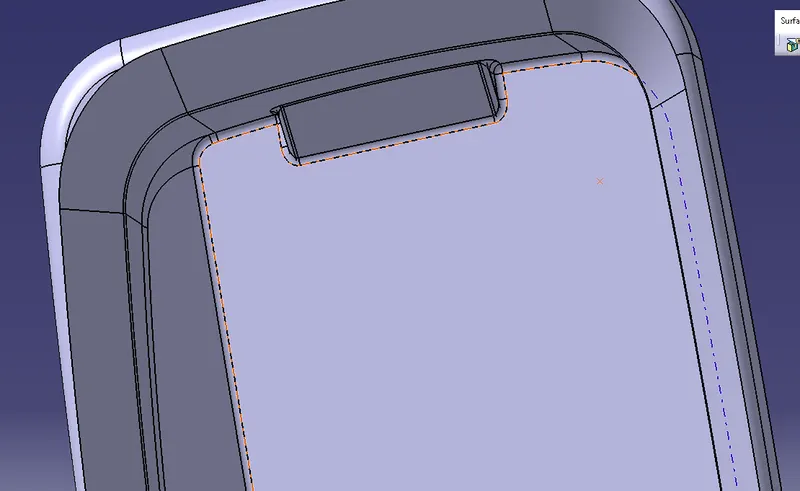

Design Consideration for Doghouse

\

•  Doghouse wall thickness at the intersection of the part wall ( C ) should be 40% or less than the main wall stock ( T ).

• Height of  ( B ) should be between 3.0 – 6.0 mm

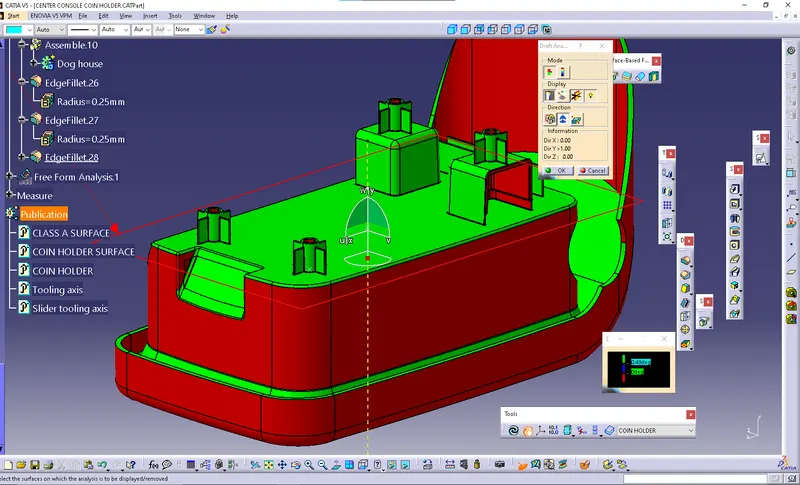

Draft analysis along Main Tooling axis

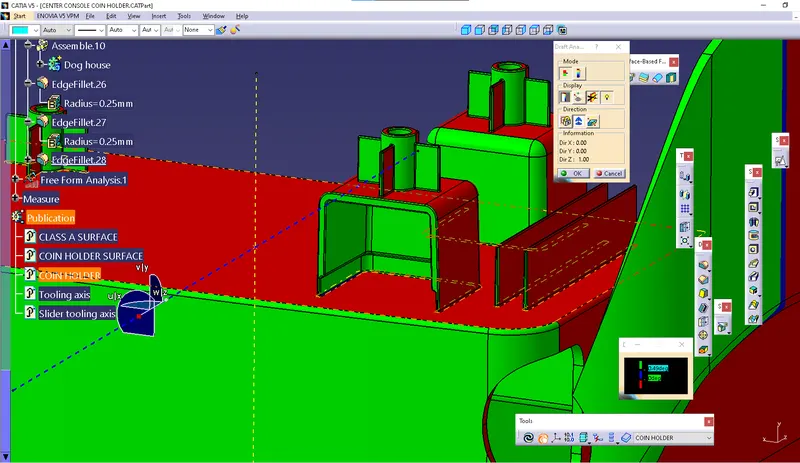

Draft analysis along slider tooling direction.

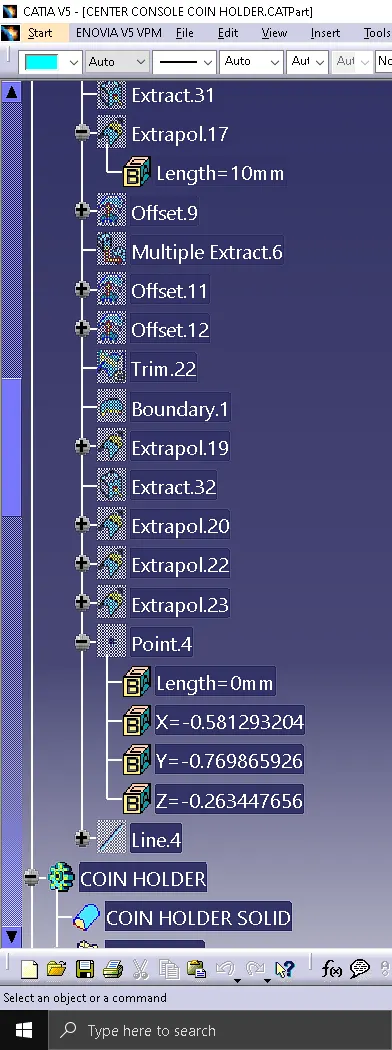

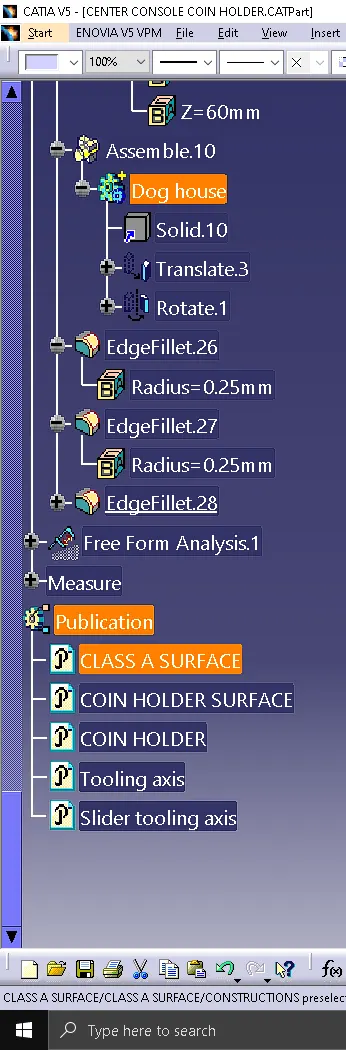

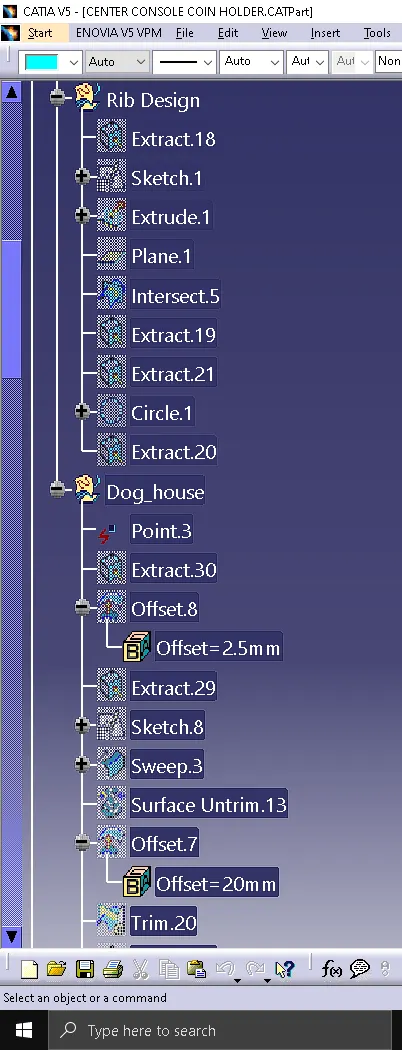

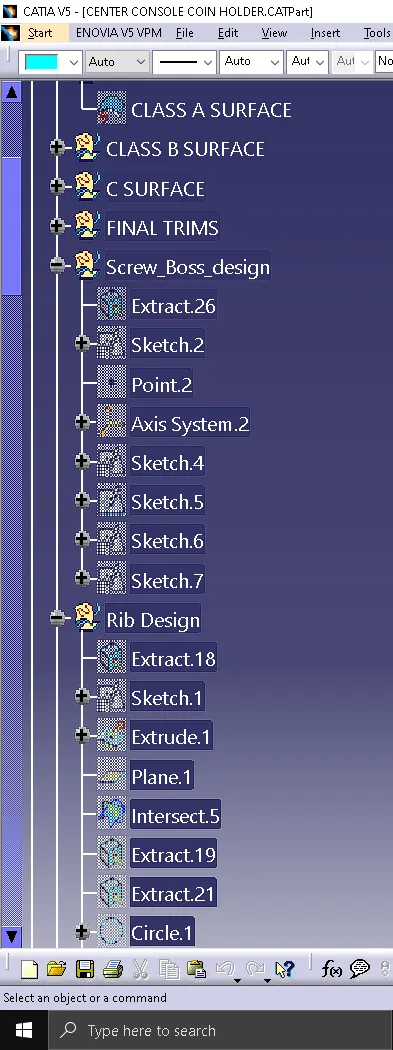

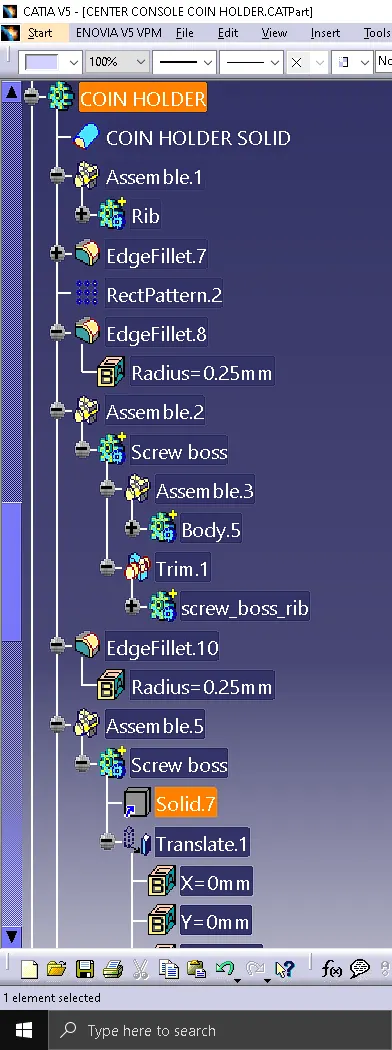

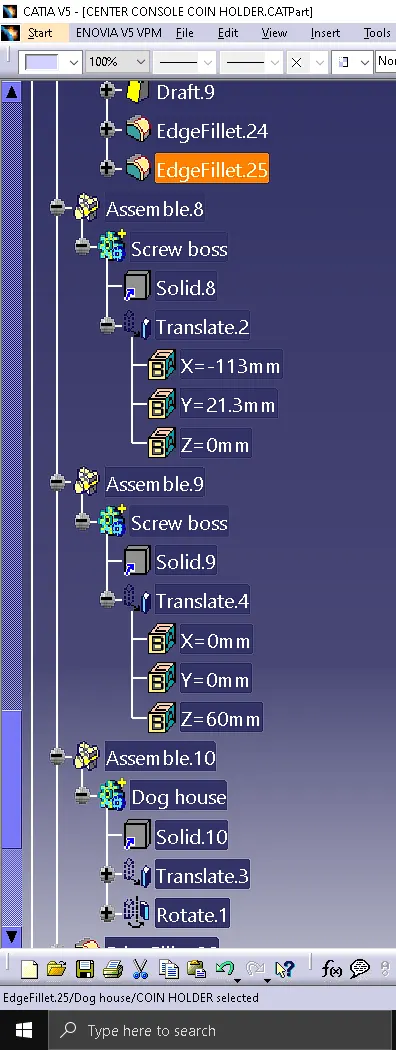

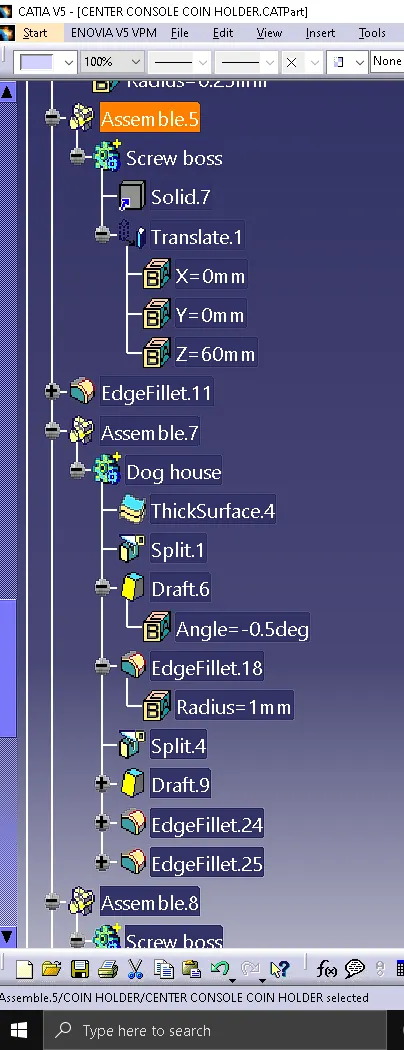

Feature Tree

Conclusion: Hence all the screw boss and doghouse are desiged as per the given standards.
