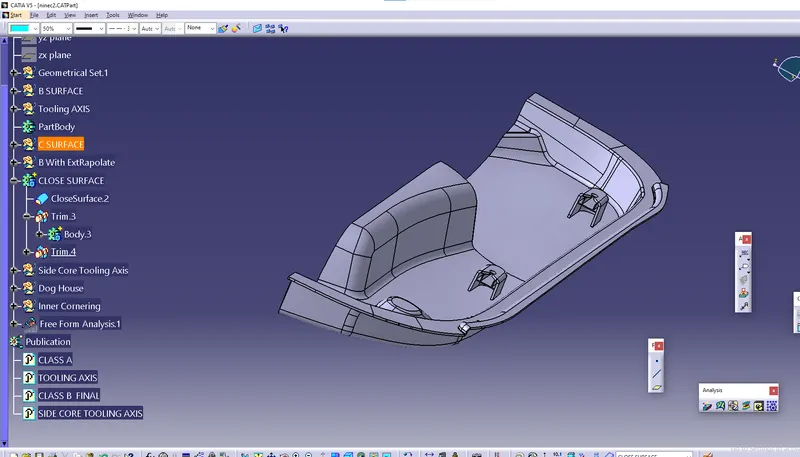

Week 9 - Attachment Feature Creation - Challenge 2
- Initial Class b surface is created with given class A by offsetting class A surface by 2.5mm
- Then class C suface is created using sweep method and it is joined alltogether
- then class C is joined with class A surface and trimmed with class B surface
- The entire surface is made to solid body and draft analysis is done with maximu draft upto 3 degree
- Then Dog house is created using and it is made to a solid body and the base is splitted
- FInal everything is uniontrimmed together
