Week 9 - Attachment Feature Creation - Challenge 2

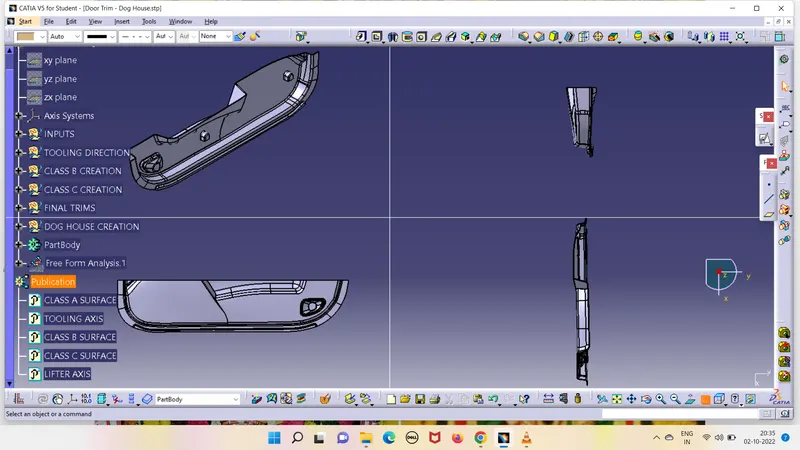

REPORT ON TOOLING DIRECTION:

BASED ON THE EJECTION FROM THE CAVITY OF THE MOLD THE TOOLING AXIS IS CREATED ALONG Y DIRECTION.

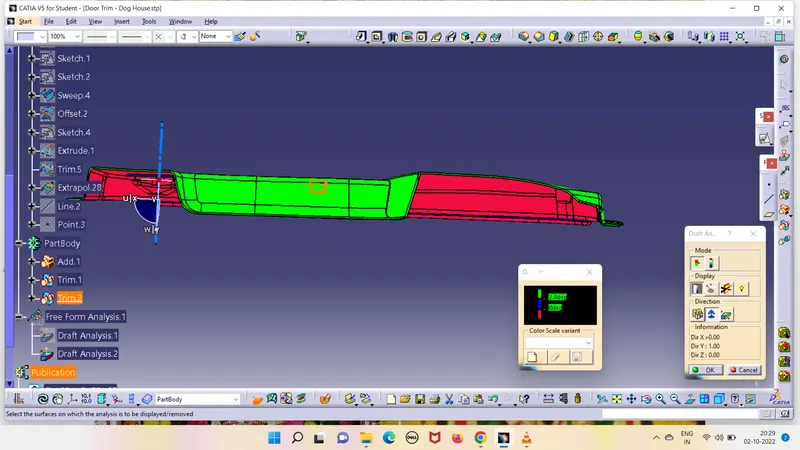

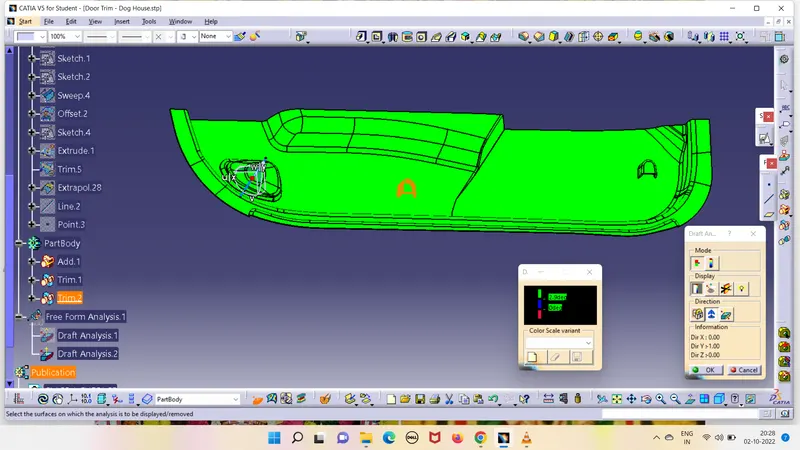

REPORT ON DRAFT ANALYSIS:

THE C SURFACE IS CREATED WITH 3 DEGREE DRAFT ANGLE IN ALL THE SIDES SO IT IS CLEARING ON ALL THE AREAS.

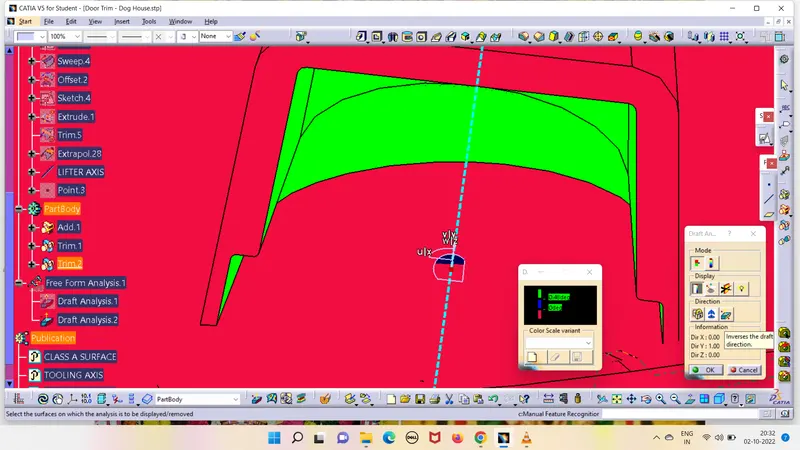

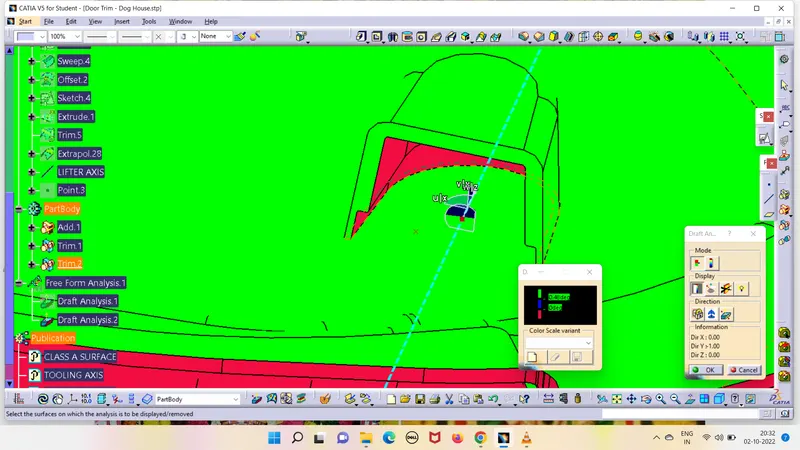

REPORT ON LIFTER AXIS:

THE LIFTER AXIS IS CREATED ALONG X DIRECTION TO INDICATE THAT DOG HOUSE IS CLEARING WITH MINIMUM DRAFT ANGLE OF 0.5mm ON INNER SIDE AND ITS OUTER ITS CLEARING WITH 3 DEGREES.
