Week 9 - Attachment Feature Creation - Challenge 2

Tooling Axis Creation

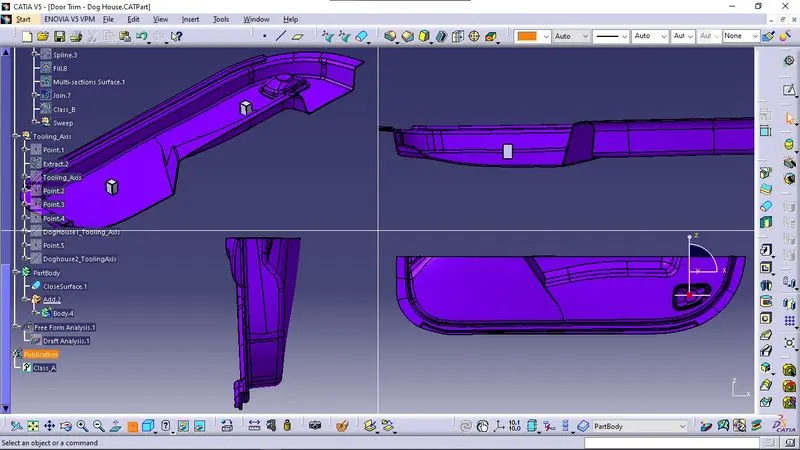

The Yellow dotted line is the Tooling Axis of the Door Trim. Created by the normal line to the base surface of the class A

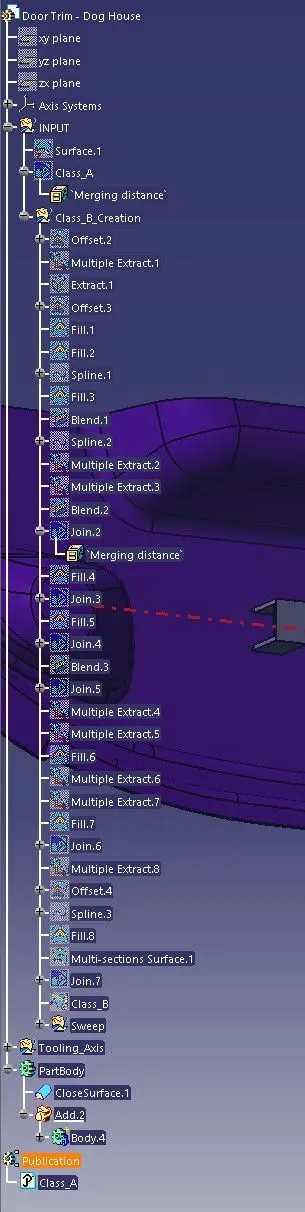

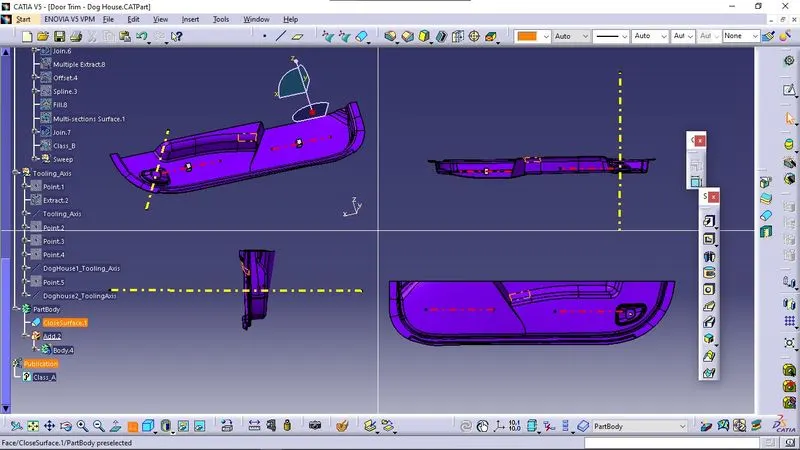

The Red Dotted Line represents the Tooling Direction of DogHouse. (Side Core) Created using line normal to the base surface of the Dog House.

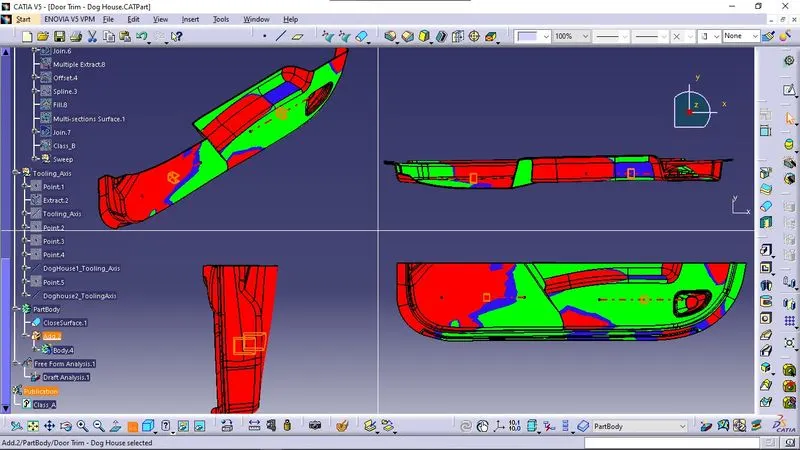

Draft Analysis Report

Given The draft analysis of the dog house , The tooling axis is normal to the base of the Dog House

Draft Angle= .45 Degrees.

(90 Degree Sweep is given to the class A)
