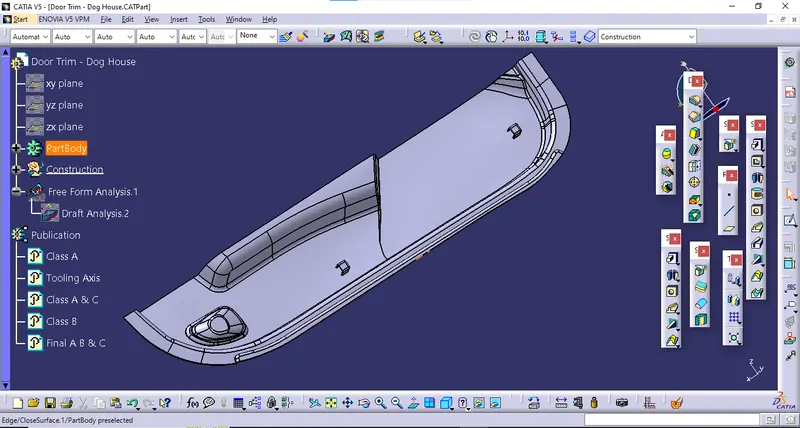

Week 9 - Attachment Feature Creation - Challenge 2

Tooling axis is created based on the axis system where area coverage is more based on that Tooling axis is selected in the Y Direction by extracting an element from A Surface and creating a mid point.

Bisecting method is not been used as the First method itself is covering all the draft analysis.

As the surface is not parallel to the base, the dog house is also not parallel. Main tooling axis and Side code tooling axis is covering the draft analysis at 3 degree.

As the thickness of the material is not mentioned, the assumed thickness is 2.5 mm

Height of the dog house is 20 mm and inside Cut out is 4 mm from the B Surface.
