Week 9 - Attachment Feature Creation - Challenge 2

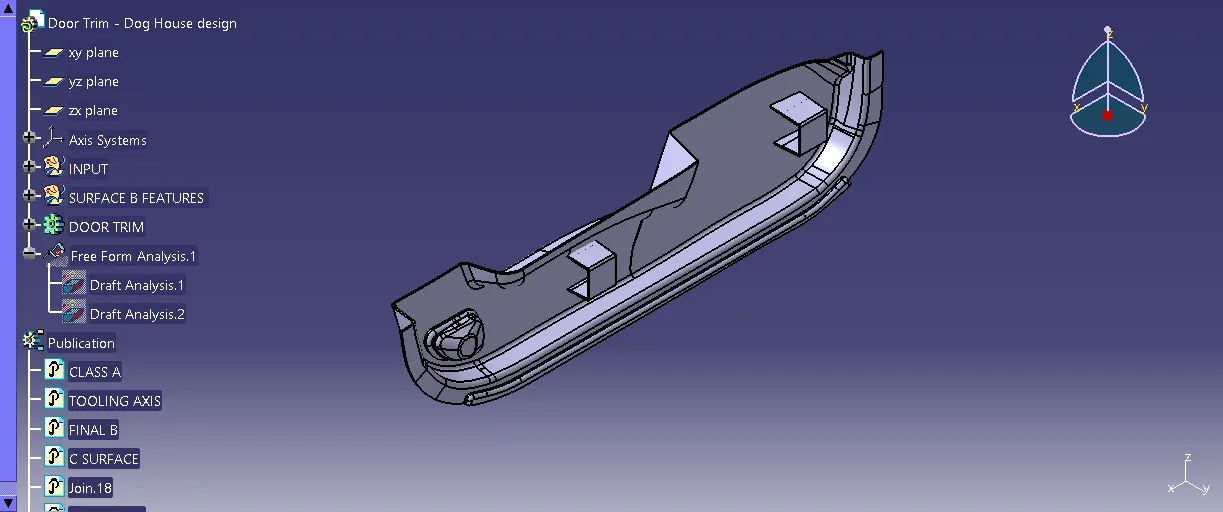

DOOR TRIM ISOMETRIC VIEW :

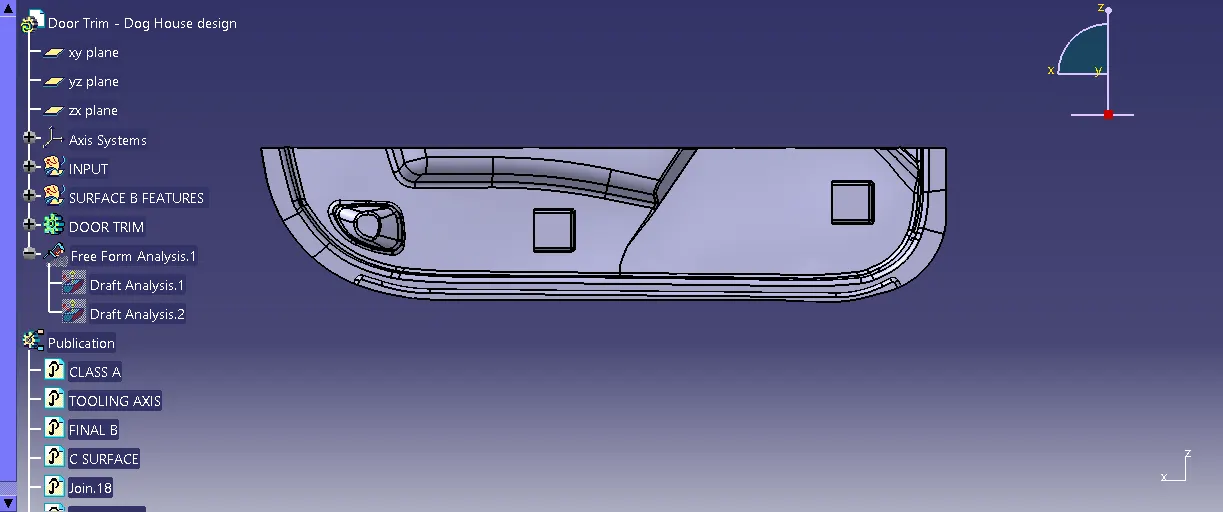

DOOR TRIM RIGHT SIDE VIEW :

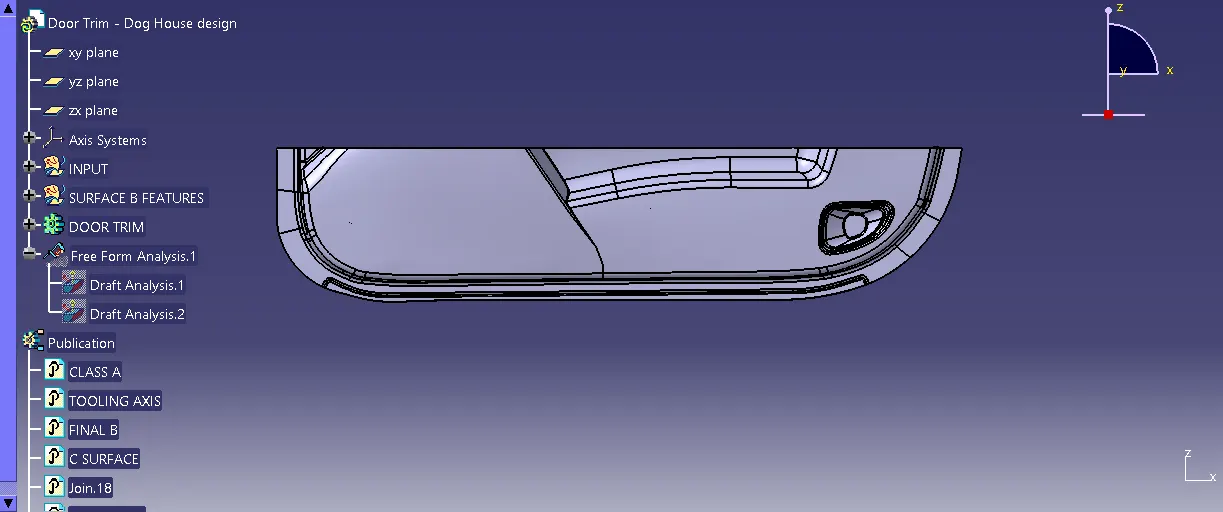

DOOR TRIM LEFT SIDE VIEW :

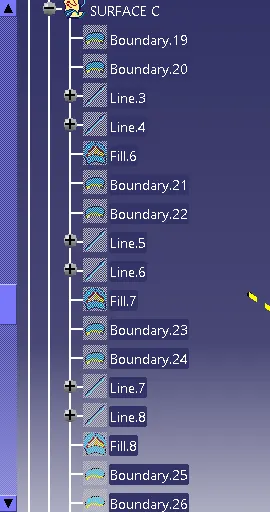

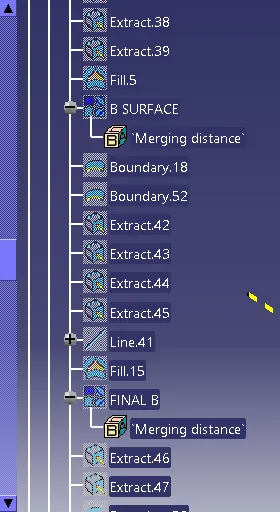

TREE STRUCTURE 1 :

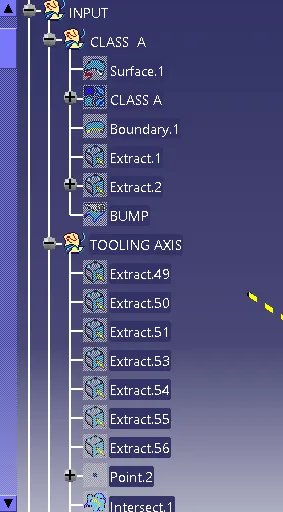

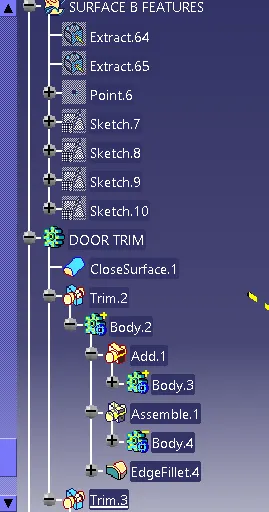

TREE STRUCTURE 2 :

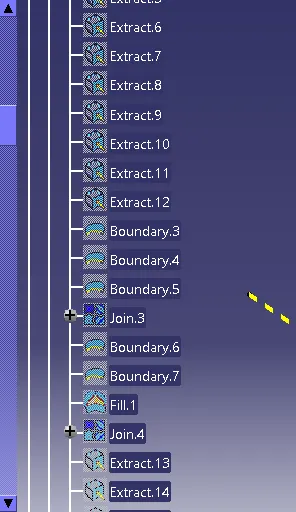

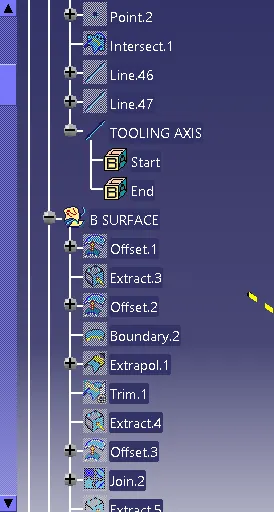

TREE STRUCTURE 3 :

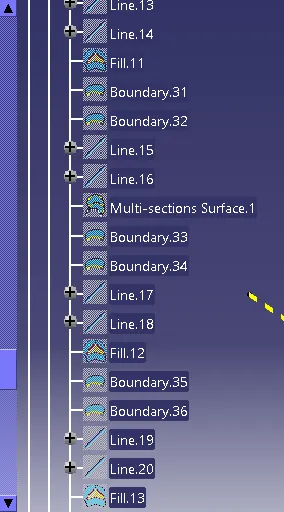

TREE STRUCTURE 4 :

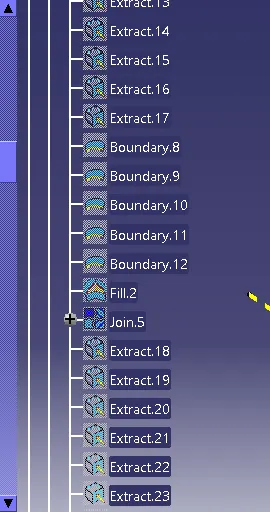

TREE STRUCTURE 5 :

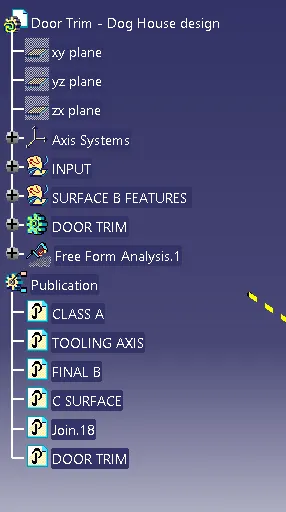

TREE STRUCTURE 6 :

TREE STRUCTURE 7 :

TREE STRUCTURE 8:

TREE STRUCTURE 9 :

TREE STRUCTURE 10 :

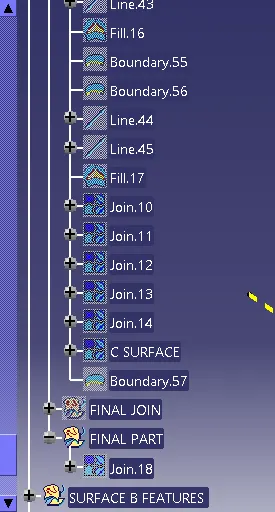

TREE STRUCTURE 11 :

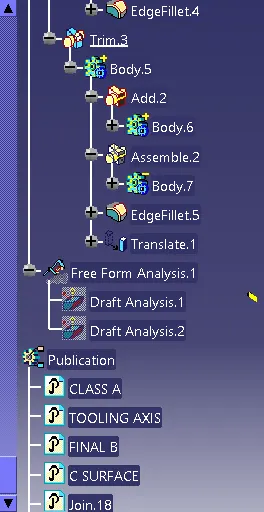

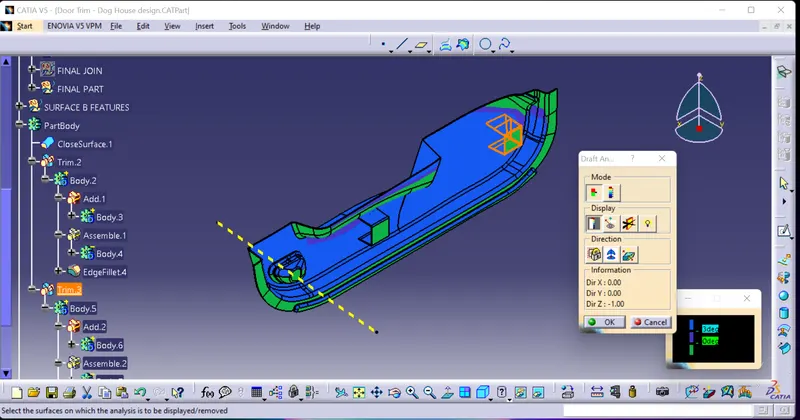

DRAFT ANALYSIS ON SURFACE A:

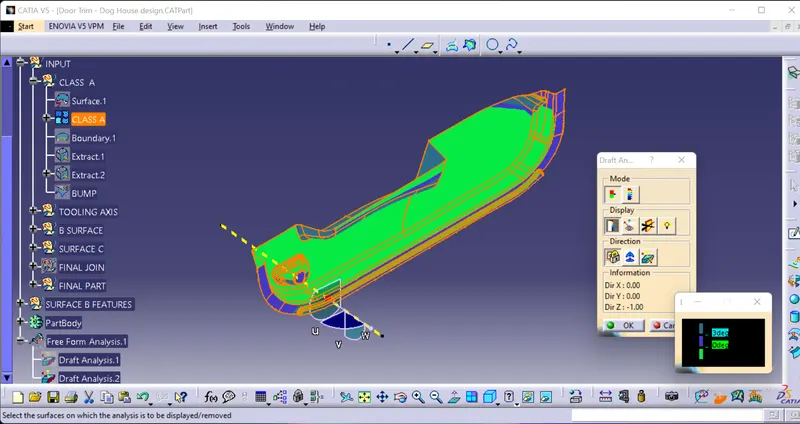

DRAFT ANALYSIS ON PART :

REPORT ON DRAFT ANALYSIS :

# Draft analysis of the door trim helps in verifying draft angles and in locating parting lines, ejection and injection surfaces in parts .

# The creation of tooling axis helps in draft analysis of the component, later the tooling axis helps in creating the C surface, draft angles and sweeping surfaces.

# Tooling axis with bisecting lines helps in solving the problems while doing analysis as the faces which are not near are solved by this method.
