Week 9 - Attachment Feature Creation - Challenge 2

draft analysis of dog house and bush

dog house analysis = with tooling axis

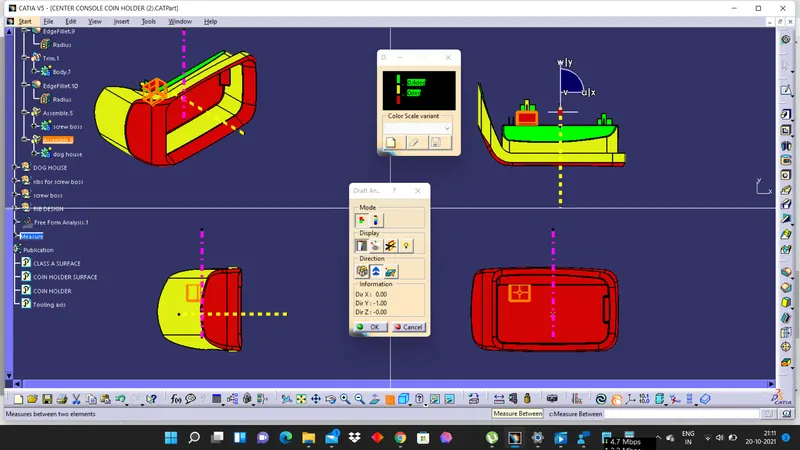

1. with the help of tooling axis .put campass on tooling axis then click on dog house. in colour scale varient it shown colour .0.4 degree and above is green and less than zero itshow red

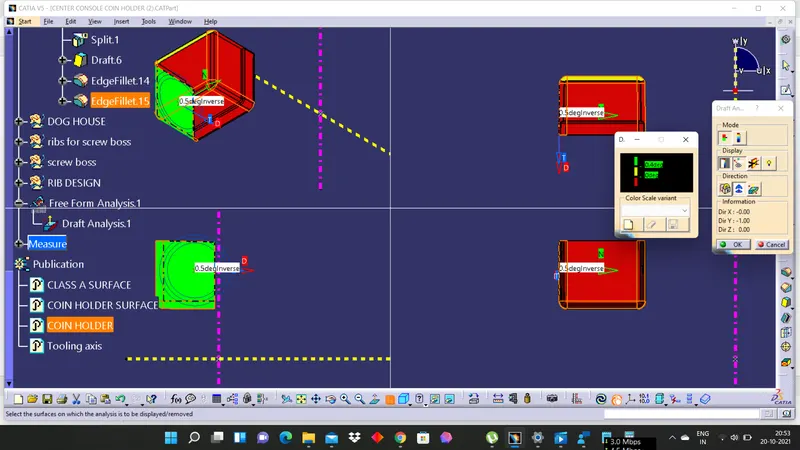

dog house with side tooling axis

0.5 degree

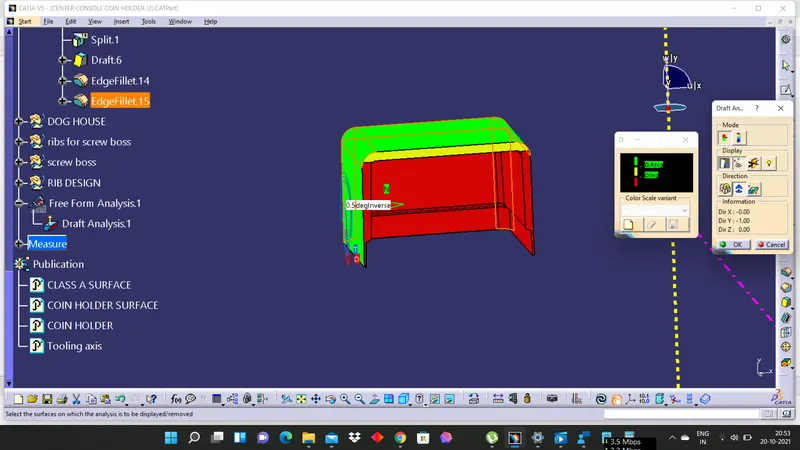

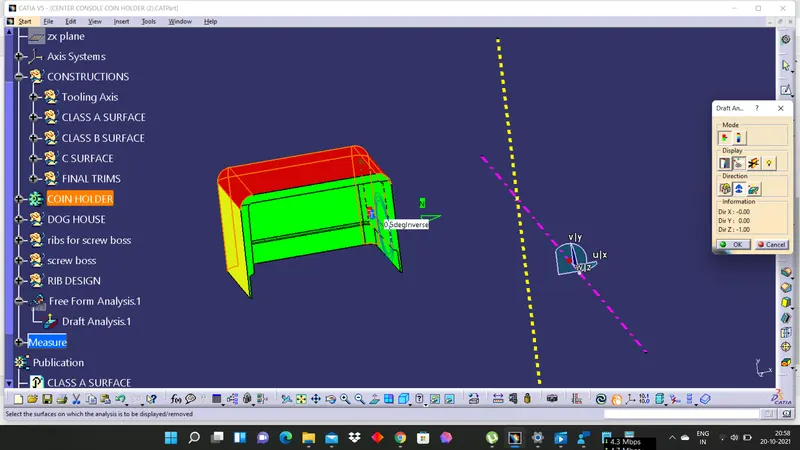

draft analysis of full body

tooling axis

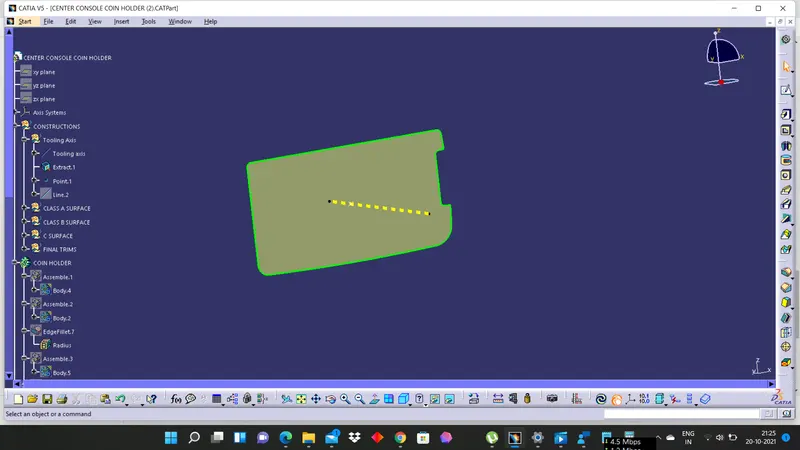

extract the base surface and create a point then create a line in z direction

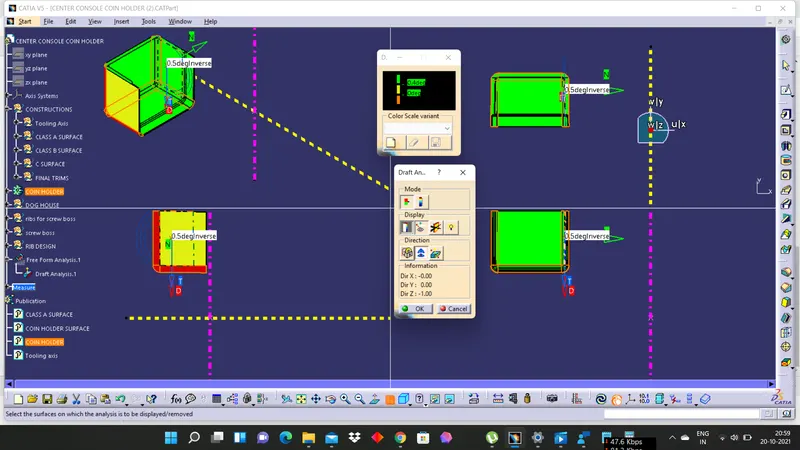

side core axis

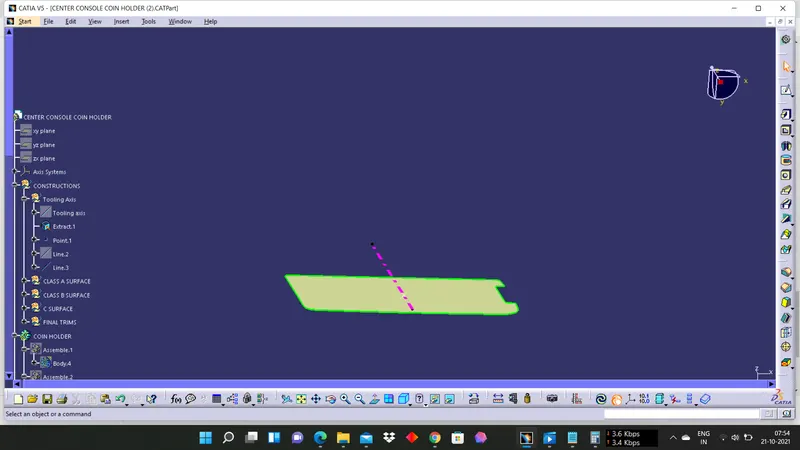

create a line in y direction on same point
