Week 9 - Attachment Feature Creation - Challenge 2

AIM

Create the Dog House for the Door Trim considering the design rules.Consider the thickness of the part to be 2.5 mm.

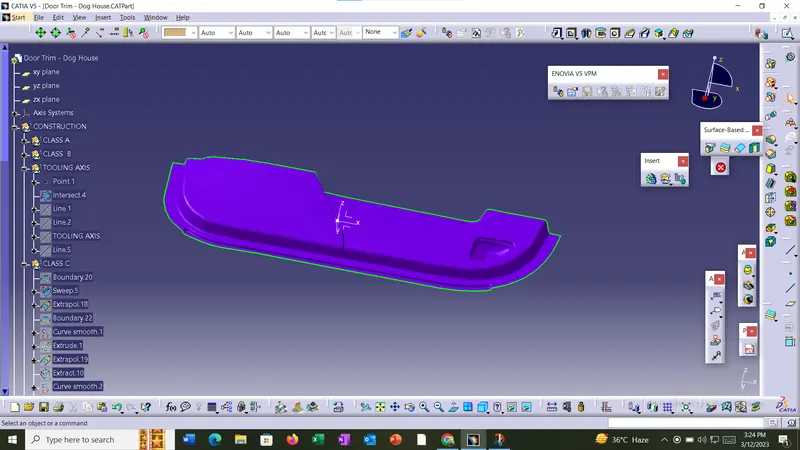

CLASS A

The given class A surface was perfect.By using boundary tool ensured that the surface have no gap.

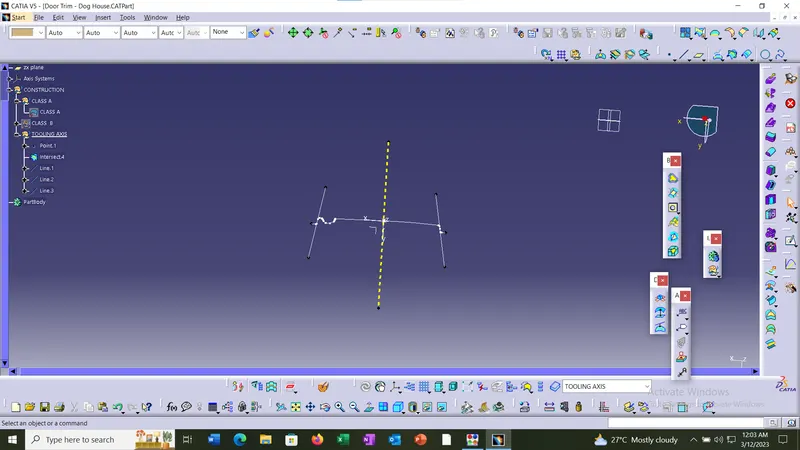

TOOLING AXIS

Creating tooling axis is the very important step in this project. A point was created on the midle of surface, then a axis system inserted on that point.Intersection is taken in yx plain.Now using Point-Point in Point Definition extend the line to take reference drafted lines on both sides and bisect those lines to get the direction in the yx plane.

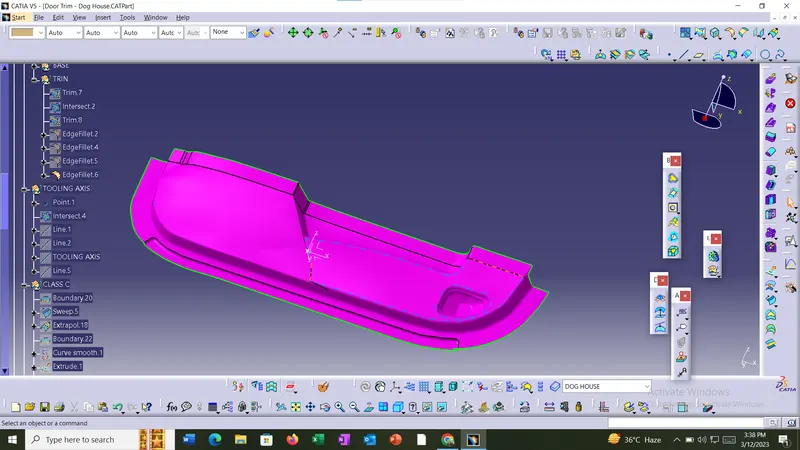

CLASS B

Class b is created from class a by offseting 2.5mm. There were some gap and discontinuity in the class b surface.By using the operation like extrat, sweep,trim, join etc we created a good class b surface.

DRAFT ANALYSIS

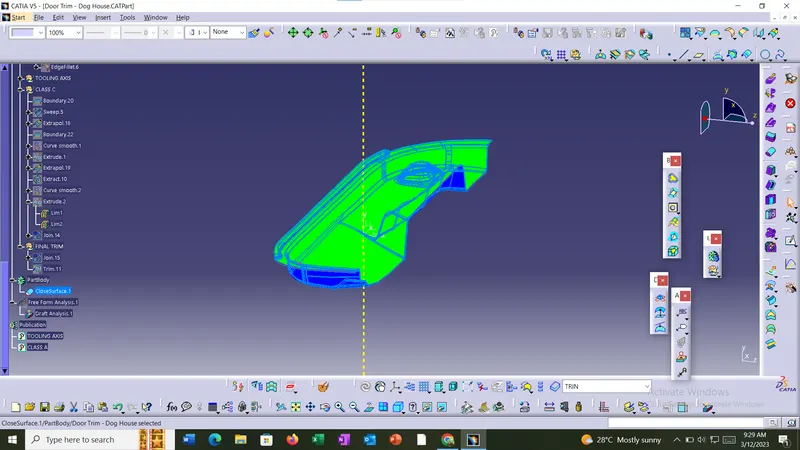

Draft analysis for part

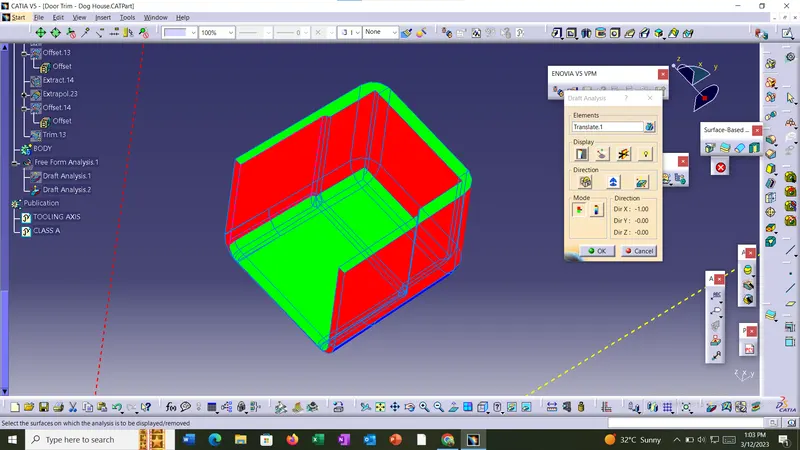

Draft analysis for dog housing.

Draft analysis for the solid component tooling axis and check for the draft angle as it should be in green in colour in the tooling axis.

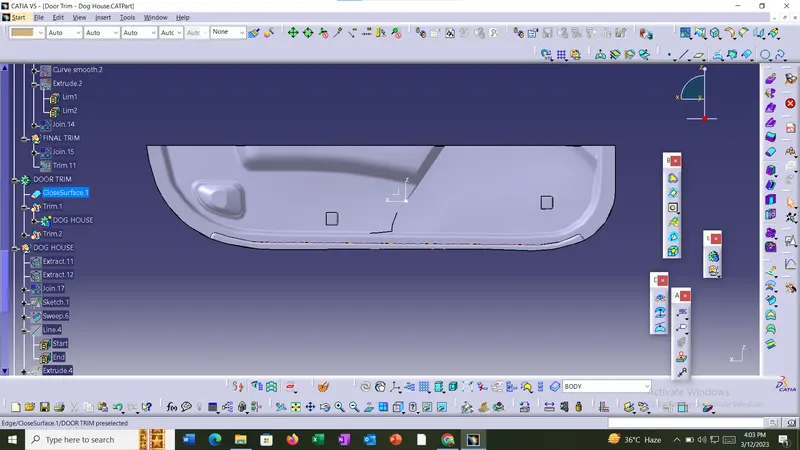

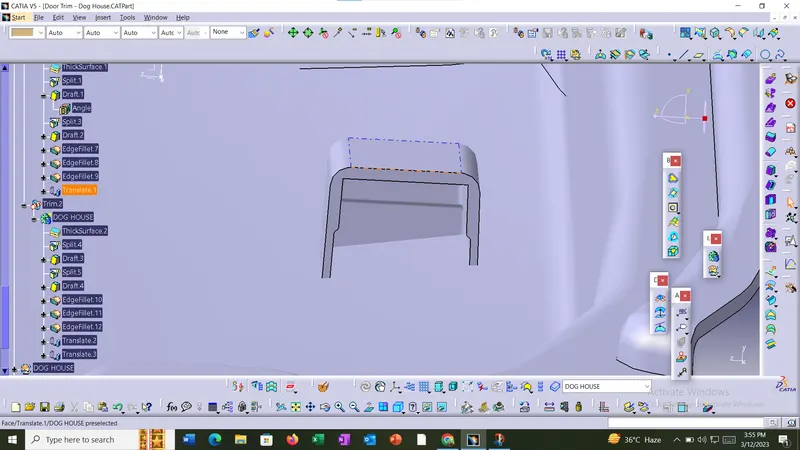

DOG HOUSE

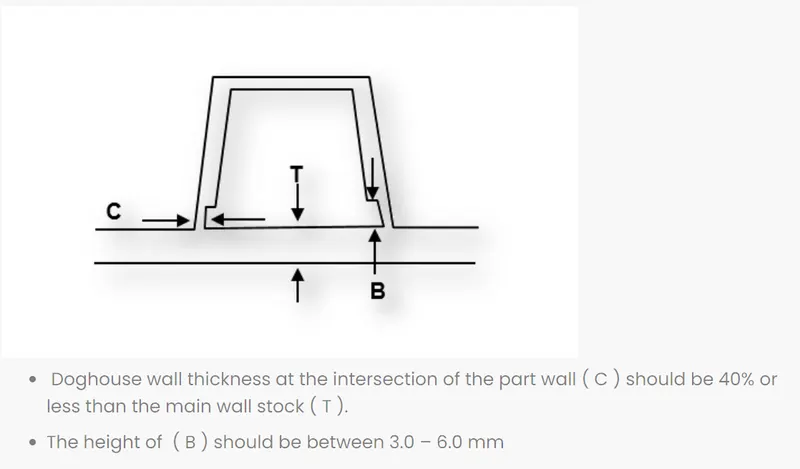

The project aim was to create two dog house with proper strength.The draft analysis is also done for the dog house.

RESULT:

Created the Plastic design for Door Trim and added thickness to it and generated the Draft Analysis on a solid surface for Final Component.
