Week 9 - Attachment Feature Creation - Challenge 2

1.TOOLING AXIS CREATION:

I CREATED THE TOOLING AXIS BY USING BISECTING METHOD , WHERE I CAN SEE ALL THE SURFACE WITHOUT ANY HIDDEN SURFACE. WHILE EJECTING PART FROM THE MOULD IT WILL COME SMOOTHLY BY USING THIS DIRECTION.I ALSO CREATED TOOLING AXIS FOR INNER SIDE OF THE BOTH DOGHOUSE IN THE DIRECTION OF X AXIS.

2.BISECTING METHOD:

IN THIS EXERCISE THE COMPONENT I TAKEN INTERSECTION FROM BOTH XY AND YZ AXIS AND BY USING THIS I HAVE TAKEN REFERENCE LINE FROM THE BOTH AXIS, SO I GOT 2 LINES FROM THAT I GOT TOOLING AXIS BY BISECTING THE 2 LINES.

2.DRAFT ANALYSIS:

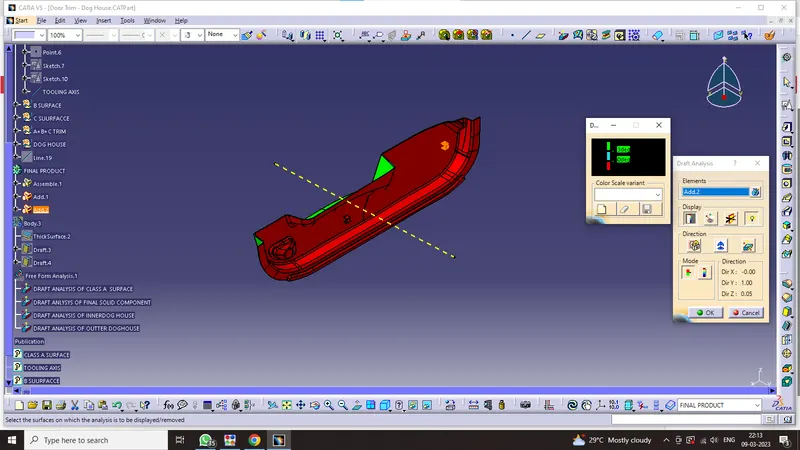

USING THE TOOLING AXIS I HAVE DONE THE DRAFT ANALYSIS FOR CLASS A SURFACE, FINAL SOLID PART, INNER SIDE OF DOG HOUSE AND OUTTER SIDE OF DOG HOUSE., I HAVE SET RED COLOUR FOR DRAFT ANGLE LESS THAN 0, BLUE COLOUR FOR DRAFT ANGLE BETWEEN 0-3 AND GREEN COLOUR FOR DRAFT ANGLE MORE THAN 3.

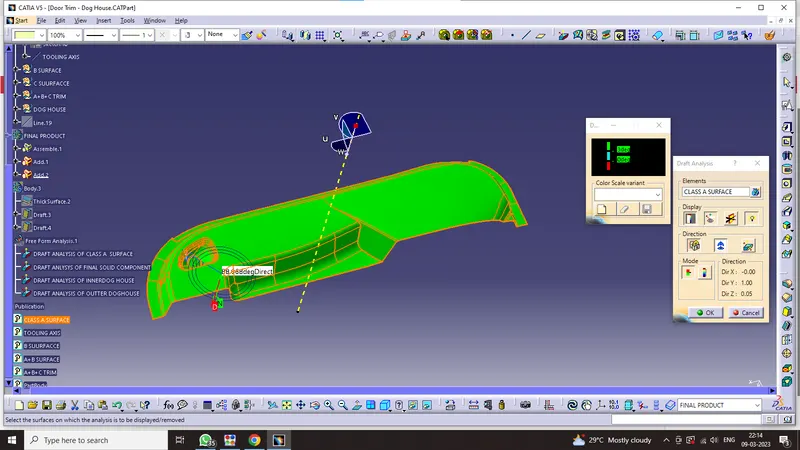

1.Screenshots of the CLASS A SURFACE Draft analysis.

2.Screenshots of the FINAL PLASTIC COMPONENT Draft analysis.

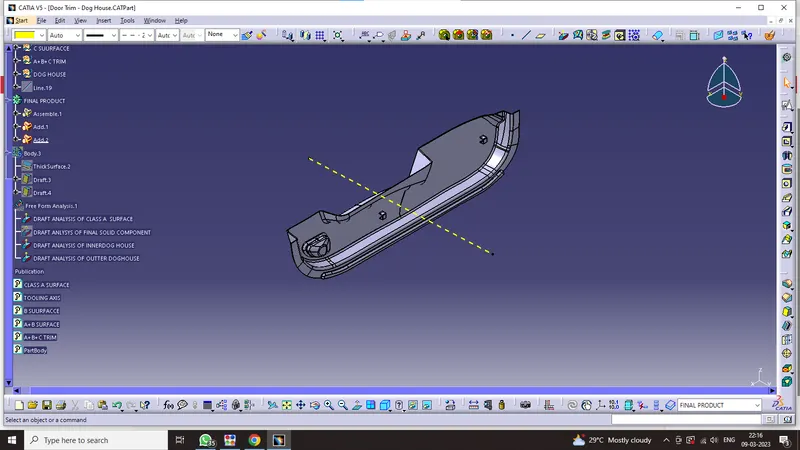

3.Screenshots of the ISOMETRIC view.

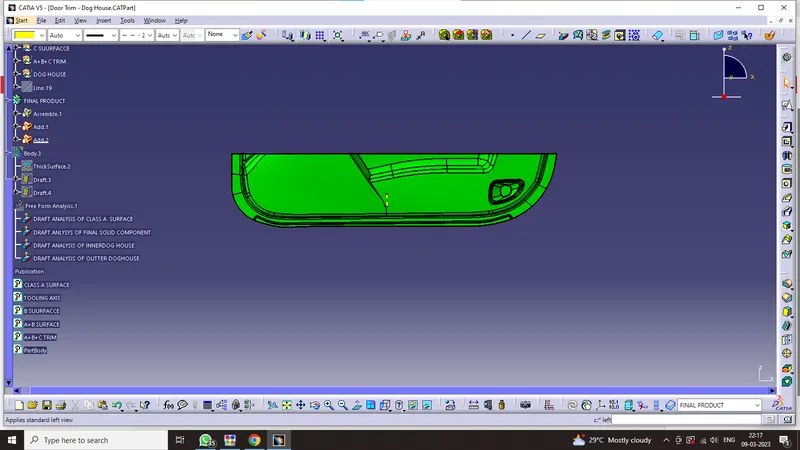

4.Screenshots of the FRONT view.

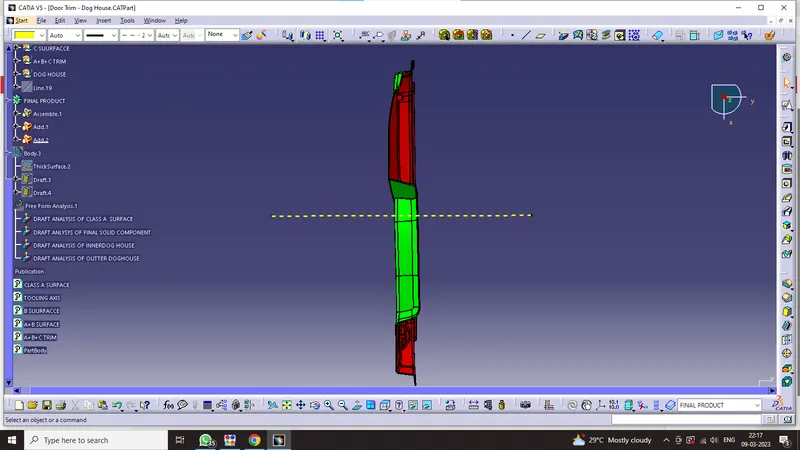

5.Screenshots of the SIDE view.

6.Screenshots of the TOP view.
