Week 9 - Attachment Feature Creation - Challenge 2

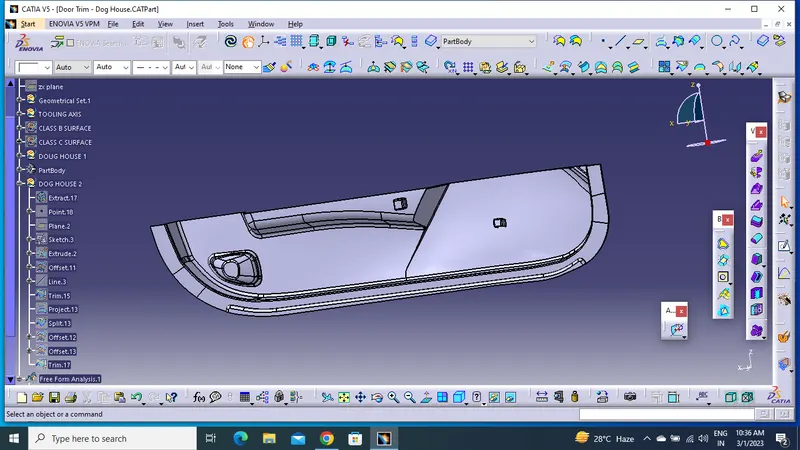

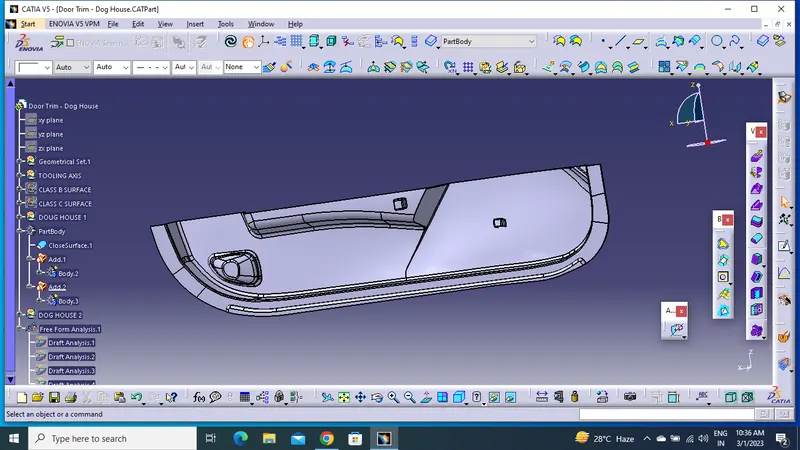

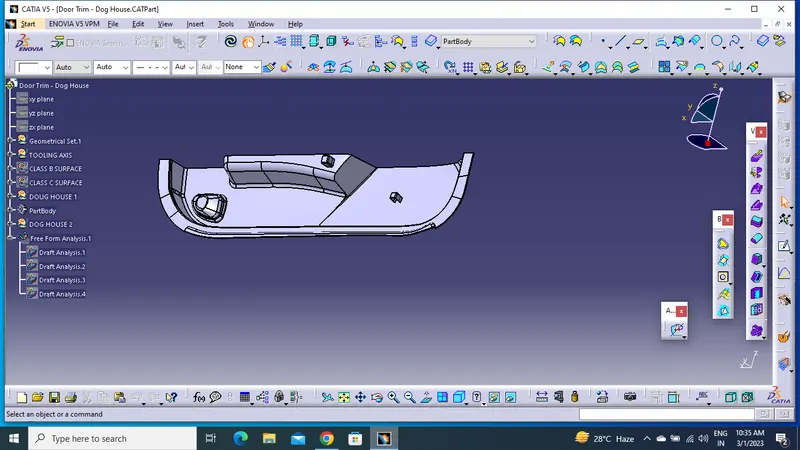

Create the Dog House for the Door Trim considering the design rules mentioned in the video. Consider the thickness of the part to be 2.5 mm.

"C" is where the doghouse contacts the backside of the surface

General Rules for Screw bosses.

• Draft of 0.5 degree on walls of boss
• Thickness is 40% of the nominal wall at the base.
• Height to diameter ration-3:1
• Fillet radius of max 0.25 mm.
